STARTECH.COM Wall-mounted rack cabinet with 2 columns and shelf 9U 19" RK9WALM DSP0000043524

Features of the Wall-Mounted Server Rack Cabinet 9U 19" RK9WALM
The RK9WALM 9U 19-inch wall-mounted rack cabinet is a practical and secure solution for installing and organising network equipment in professional spaces, offices, warehouses and server rooms. Its enclosed steel structure, 2-post design and load capacity of up to 90 kg allow it to house switches, patch panels and other compatible devices. It features ventilated doors and panels, rear access via hinges and a 1U shelf, providing an organised installation and easy maintenance.
9U wall-mounted design to optimise space
This 9U wall-mount rack makes use of the available space without requiring a floor-standing cabinet. Its 2-post structure features adjustable L-profile mounting rails, making it easy to install different network devices. It also has U-unit markings to organise devices inside the cabinet.

Rack format: 19" and 9U high.
Rack type: 2-post.
Installation: wall-mounted.
Maximum mounting depth: 37 cm.
Adjustable rails with L-shaped profile.
Square mounting holes for cage nuts and threaded holes.
U-unit markings for easier installation.
Compatible with the standard EIA/ECA-310-E.

Sturdy steel structure with a capacity of up to 90 kg
Made of SPCC cold-rolled steel, this network cabinet provides a sturdy structure for housing IT and communications equipment. Its maximum load capacity of 90 kg allows various rack-mount devices to be installed, while its black finish gives it a professional appearance suitable for work environments.

Material: SPCC cold-rolled steel.
COLOR: negro.
Maximum load capacity: 90 kg.
Structure type: enclosed cabinet.
External dimensions: 60 x 45 x 50,4 cm (width x depth x height).
Internal dimensions: 59,4 cm wide and 43,3 cm deep.
Cabinet weight: 17.7 kg.

Secure access with locks and removable panels

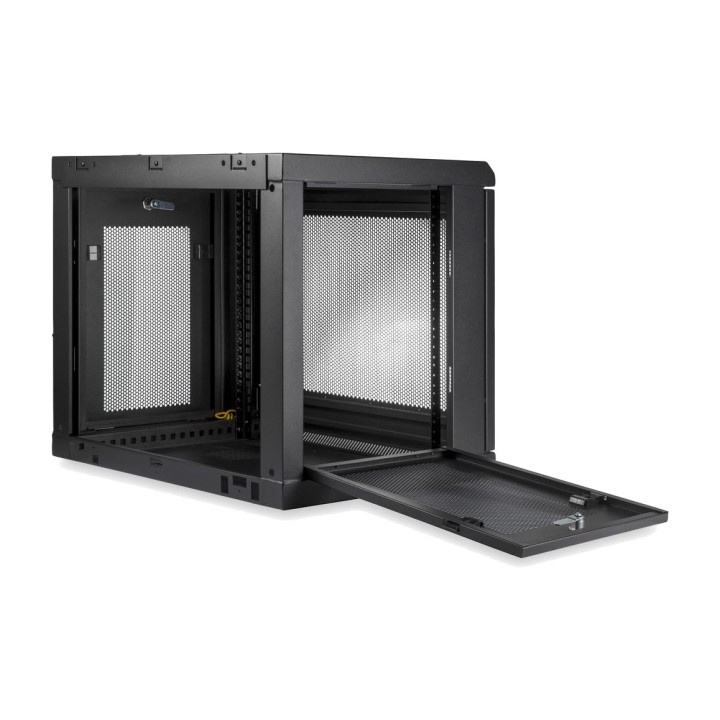

The cabinet features a reversible, removable front door with a security lock, allowing access to the installed devices to be controlled. Its side panels are also removable and lockable. In addition, the rear access hinge system makes it easier to install, inspect and maintain connections without having to remove the equipment.

Front door with security lock.
Reversible, removable front door.
Removable side panels with locks.
Rear hinges for easy access to the cabling and equipment.
Includes 2 keys for the front door and 2 keys for the side panels.

Optimised ventilation for network equipment
Its front door and side panels made of steel mesh promote natural airflow through the cabinet, helping to dissipate the heat generated by the installed devices. For configurations requiring additional cooling, it supports the installation of up to four optional 120 mm fans, providing greater flexibility for managing the internal temperature.

Front door made of steel mesh.
Ventilated side panels made of metal mesh.
Passive airflow through the cabinet.
Compatible with up to 4 optional 120 mm fans.
Fans not included.

Cable management and simplified installation
The RK9WALM rack is supplied fully assembled, eliminating the need to assemble its frame before installation. It features an integrated cable management system and grounding points, helping to keep things tidier and safer. It also includes a 1U shelf, hook-and-loop tape and the accessories required to secure compatible equipment to the rails.

Cabinet supplied fully assembled.
Integrated cable management system.
Grounding points.
1U rack shelf included, model CABSHELFV1U.
Roll of hook-and-loop tape for organising cables.
36 cage nuts 12-24.
36 screws 12-24.
Instruction manual included.

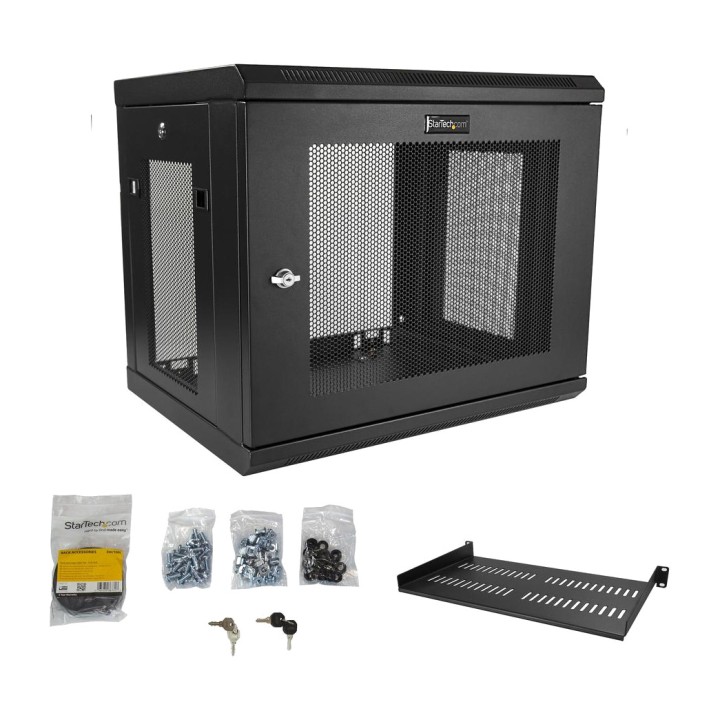

PACKAGE CONTENT
The 9U wall-mounted rack cabinet includes mounting and organisation accessories to make equipment installation easier. Supplied fully assembled, it makes setting up the network space more convenient.

1 wall-mounted rack cabinet.
1 tray of 1U.
1 roll of hook-and-loop tape.
36 cage nuts 12-24.
36 screws 12-24.
2 keys for the front door.
2 keys for the side panels.
1 instruction manual.

Other technical specifications
The RK9WALM model complies with the EIA/ECA-310-E mounting standard and comes with a 5-year warranty. Its identification and packaging data provide access to the product's logistics specifications.

Manufacturer reference: RK9WALM.
UPC code: 065030868341.
Quantity per pack: 1 unit.
Warranty: 5 years.
Industry standard: EIA/ECA-310-E.
Assembly required: no.
Package dimensions: 52.7 x 67.7 x 59 cm (width x depth x height).
Package weight: 20.4 kg.
