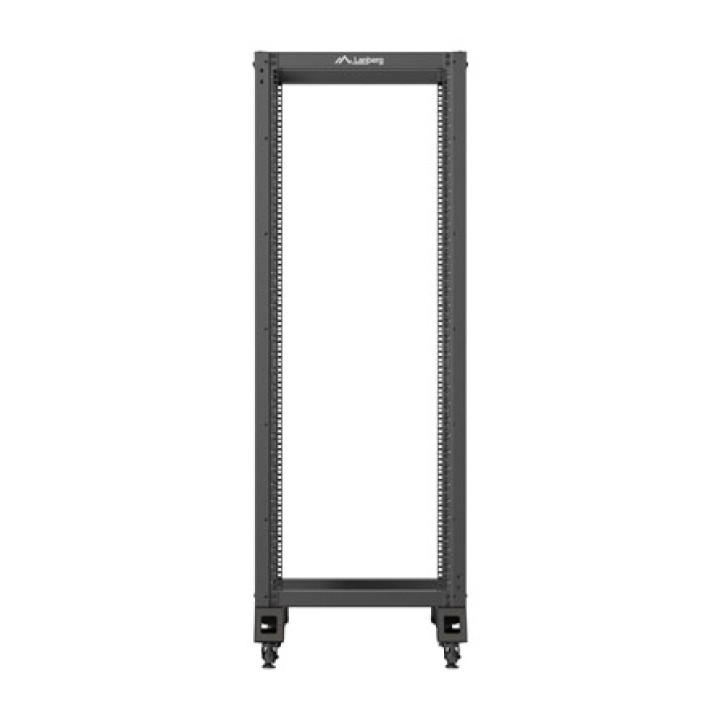

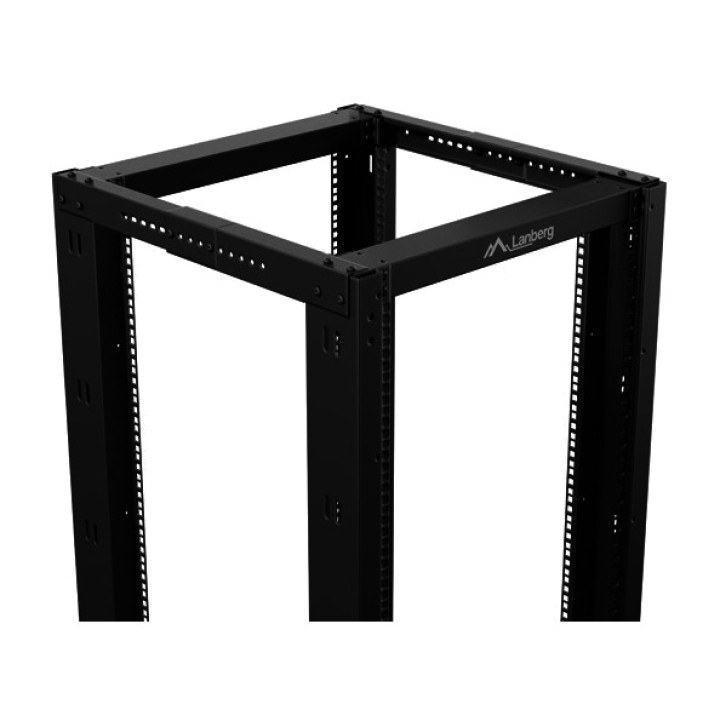

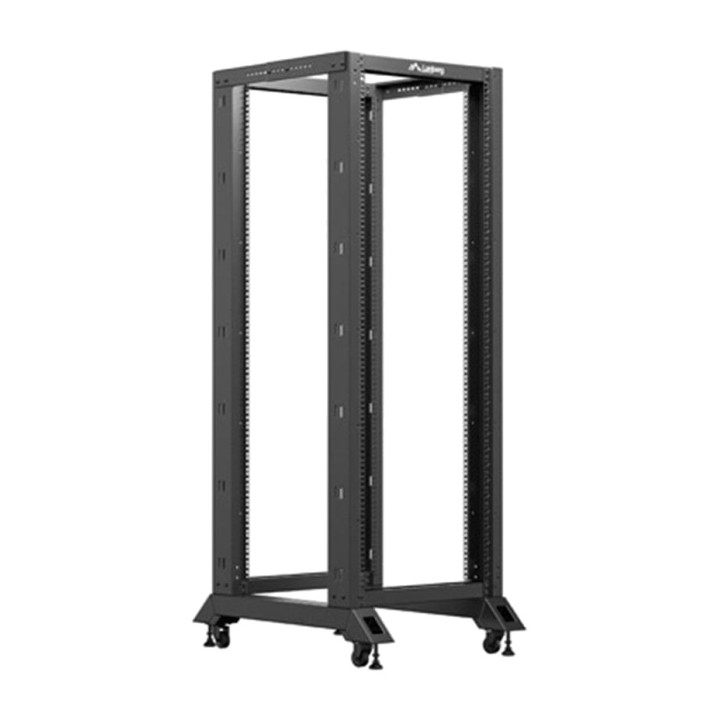

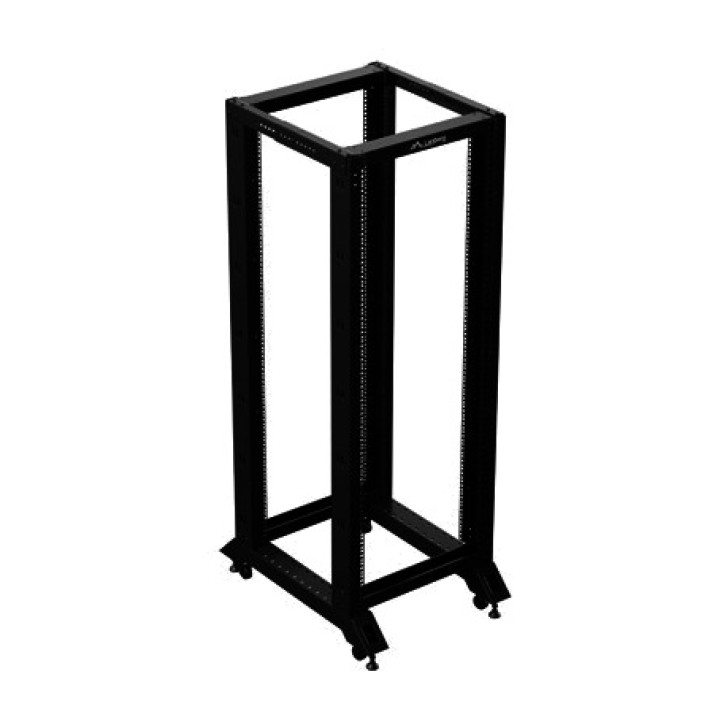

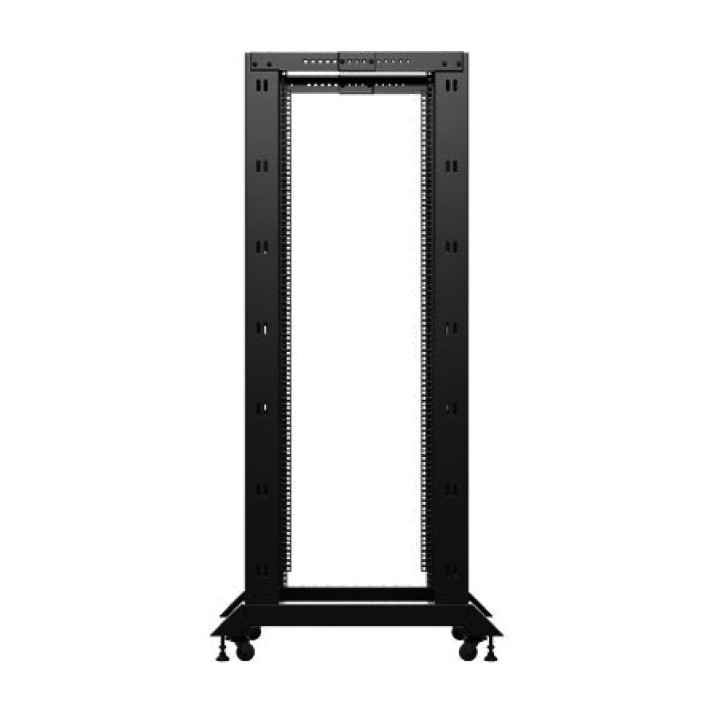

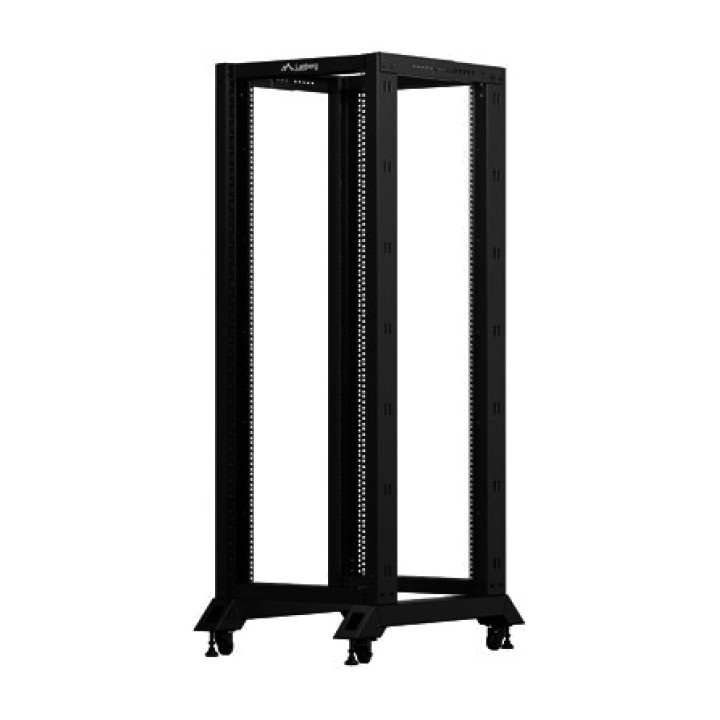

LANBERG Open floor-standing rack cabinet 19" 32U 600X800MM OR01-6832-B DSP0000042394

Features of the Lanberg OR01-6832-B 32U 600x800 mm Black Open Rack V2
The Lanberg OR01-6832-B open rack is designed for the professional organisation and management of servers, network equipment and other devices compatible with the 19" format. Its 32U structure, adjustable mounting depth and static load capacity of up to 600 kg make it a suitable solution for IT installations, server rooms and environments where convenient access to equipment is required.

FORMAT: 19"
Usable height: 32U
Dimensions: 600 x 800 x 1673,5 mm
COLOUR: BLACK RAL9004
Maximum static load: 600 kg

Adjustable mounting depth from 430 to 590 mm
The adjustable mounting depth allows the rack to be adapted to different types of servers, switches and other 19" devices. The available range of 430 to 590 mm makes it easy to configure the interior space according to the dimensions of the equipment and cabling requirements.

Adjustable mounting depth: 430 - 590 mm
Maximum mounting depth: 590 mm
Total rack depth: 800 mm
Total width: 600 mm

Robust structure with a load capacity of up to 600 kg
The rack is made of cold-rolled steel and designed to provide stability during equipment installation. Its vertical rails and frame are 1,5 mm thick, while the maximum static load is 600 kg.

Maximum static load: 600 kg
Number of vertical rails : 4
Mounting rail thickness: 1,5 mm
Frame thickness: 1.5 mm
Thickness of other components: 1.5 mm
Side panel thickness: 1,5 mm

Open design for easy access to the equipment
Its Open Rack configuration provides direct access to the installed equipment, making installation, maintenance and cable management easier. This design also promotes airflow around the devices and simplifies future infrastructure modifications.

Cabinet type: Open Rack
Supported format: 19"
HEIGHT: 32U
STANDARD : ANSI/EIA RS-310-D
Grounding: frame

Design for self-assembly and simplified transport
The Lanberg OR01-6832-B is supplied disassembled for self-assembly, a configuration that makes storage and transport easier before installation. Assembly instructions and the necessary components to complete the rack installation are included.

Assembly: self-assembly
Total height: 1673.5 mm
Height without wheels: 1601.5 mm
Weight: 28kg
Included accessories: operating instructions, feet, castors with brakes and screws M6

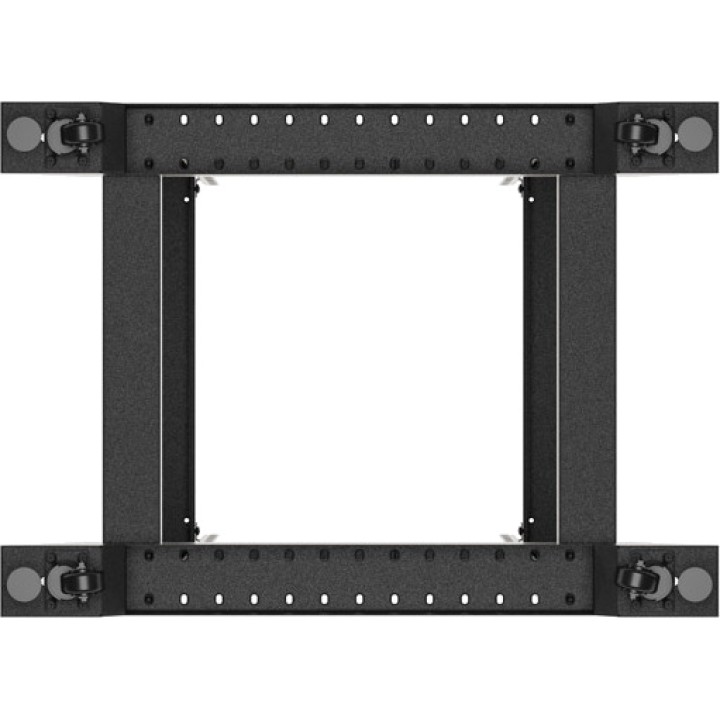

Mobility and stability during installation
The included castors with brakes allow the rack to be moved when necessary and kept stable once positioned in its final location. This configuration makes installation and access to the equipment easier in professional environments where changes or periodic maintenance may be required.

Wheels with brakes included
Feet included
Reinforced base
Four vertical rails for equipment installation

Compatibility with accessories for rack installations
The Lanberg Open Rack series can be complemented with accessories for organisation, power supply, cooling and cable management. This allows the installation to be adapted to different network or server configurations according to the requirements of the environment.

Compatible with universal, fixed, side-mounted and sliding shelves
Compatible with brush panels and cable managers
Compatible with cooling accessories, ventilation panels and thermostats
Compatible with patch panels and Keystone panels
Compatible with PDU power strips and other mounting accessories

Other specifications

Model: Lanberg OR01-6832-B
Manufacturer code: OR01-6832-B
Ean: 5901969409680
Warranty: 36 months
COLOUR: BLACK
RAL colour: RAL9004
WIDTH: 600 MM
Depth: 800 mm
Height: 1673.5 mm
Height without wheels: 1601.5 mm
Weight: 28kg
