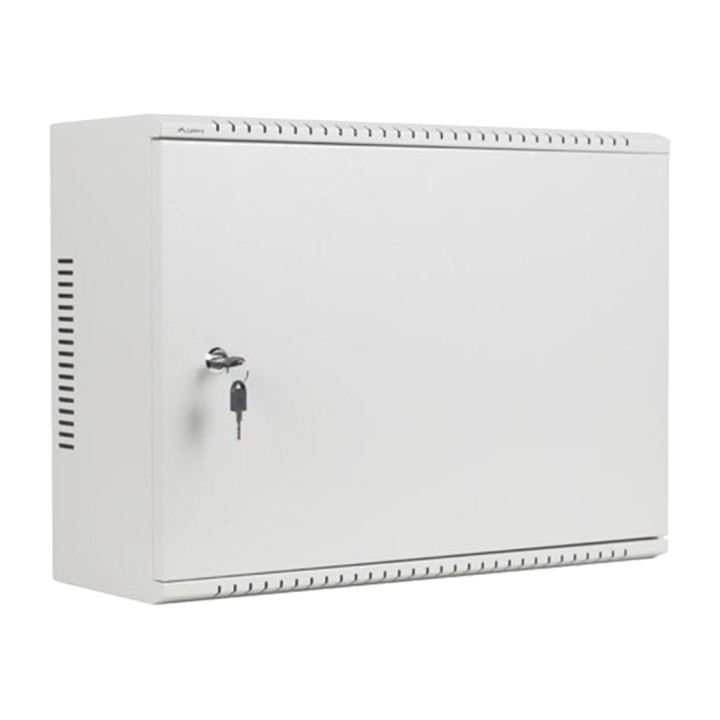

LANBERG Low-profile rack cabinet for wall mounting 19" 4U+3U 540X200MM WAF1-5203-04-00S MGS0000034356

Features of the Lanberg 19" Wall-Mount 4U+3U Rack Cabinet WAF1-5203-04-00S
The low-profile Lanberg WAF1 wall-mount rack cabinet is designed for professional network, CCTV and low-voltage system installations that require a compact, secure and functional solution. Thanks to its 19" wall-mount format and pre-assembled design, it allows equipment such as DVRs, PoE switches, PDU power strips or DIN devices to be installed and organised efficiently and securely, even in confined spaces.
Compact design, ready to install
The WAF1 series stands out for its low-profile format, ideal for environments where space is limited. The cabinet is delivered fully assembled, allowing quick and easy installation straight out of the box.

Wall-mount format of 19"
Pre-assembled cabinet, ready to use
Compact dimensions: 540 x 400 x 200 mm
Gray RAL7035
Wall installation using the included anchors

Flexible configuration for network and CCTV equipment

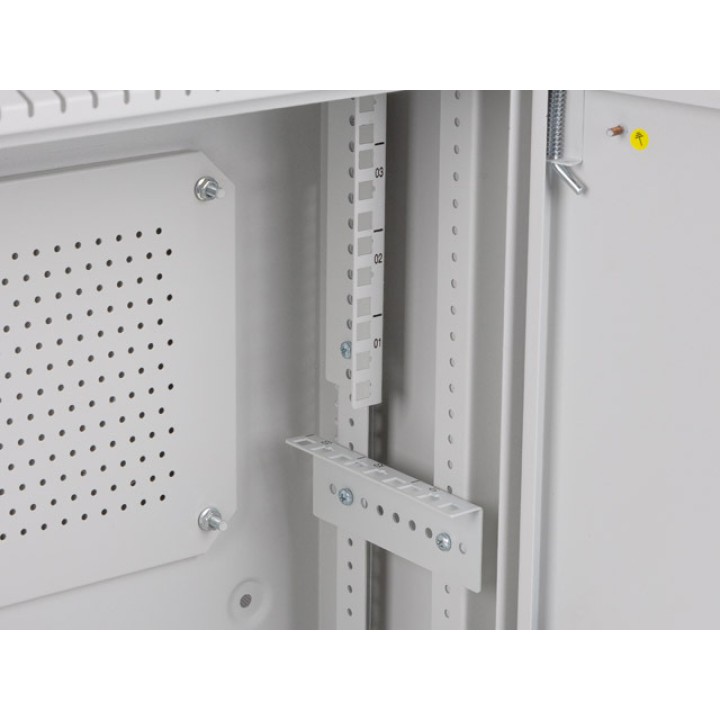

Its structure incorporates utility rails that allow devices to be installed in either a vertical or horizontal arrangement, offering greater configuration flexibility. It is a highly practical option for video surveillance, networking and automation systems.

Rack height of 4U
ICT depth of 3U
2 vertical rails and 2 horizontal rails
Mounting depth of 143 mm
TS-35 DIN rail included

Easy access and simple maintenance

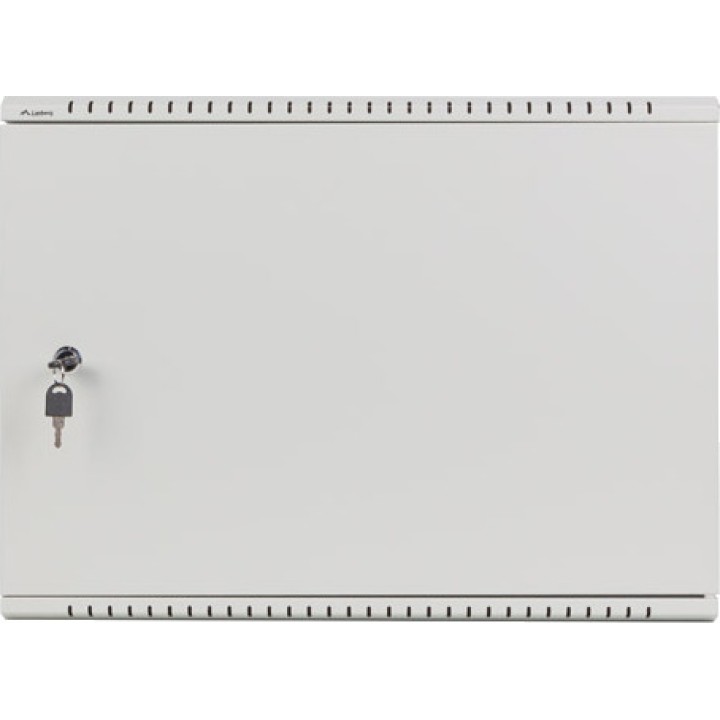

The cabinet features a single-panel metal front door that opens up to 220°, providing easy access to the interior for maintenance or reorganising cables and equipment.

Metal front door
Maximum opening angle of 220°
Front lock included

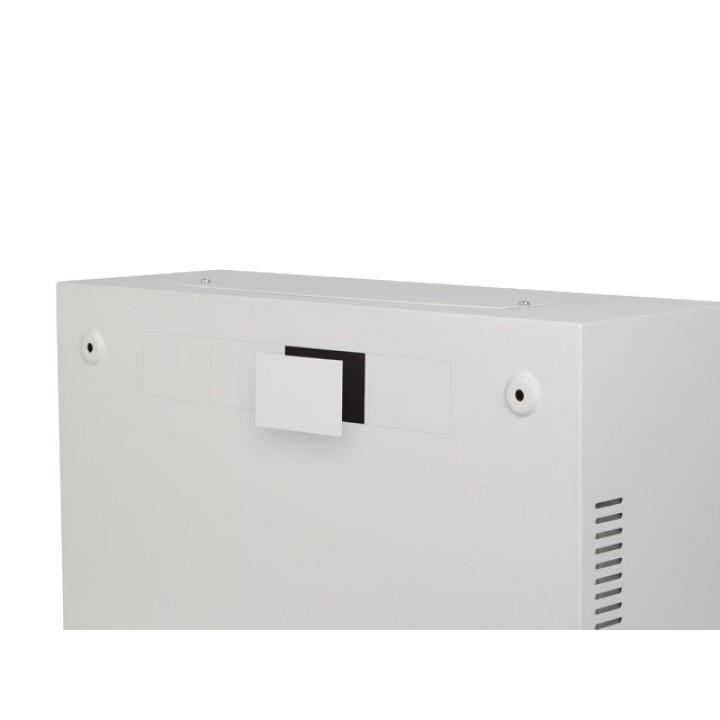

Rear panel with 8 removable cable glands
Interior mesh panel for mounting components

Efficient ventilation and cable management

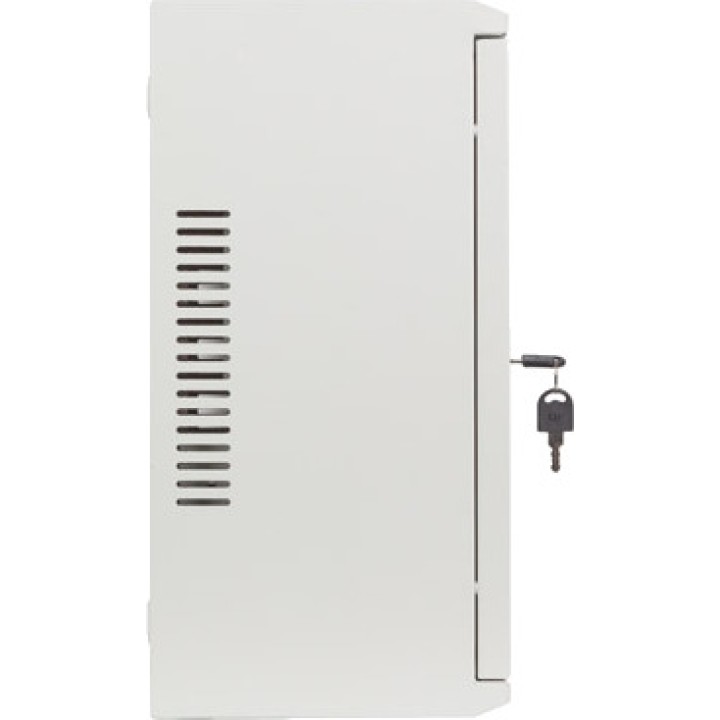

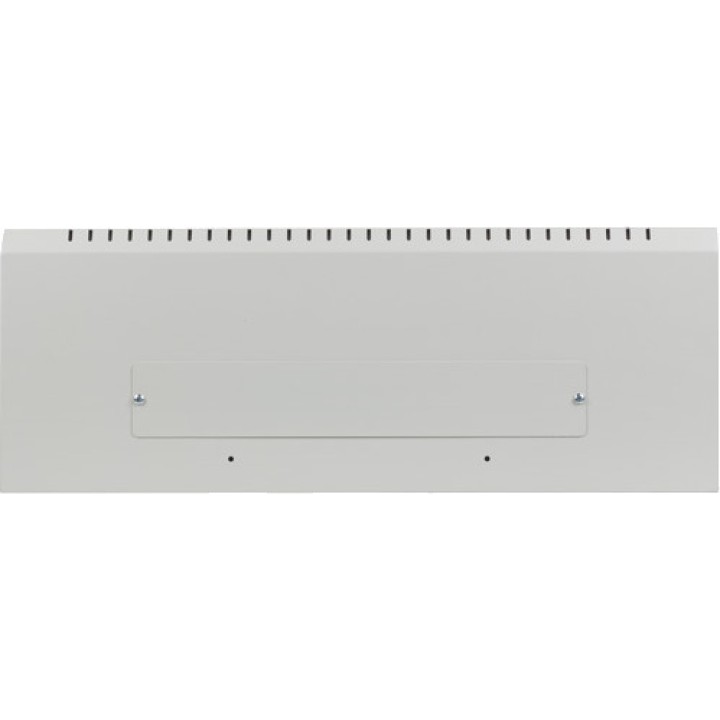

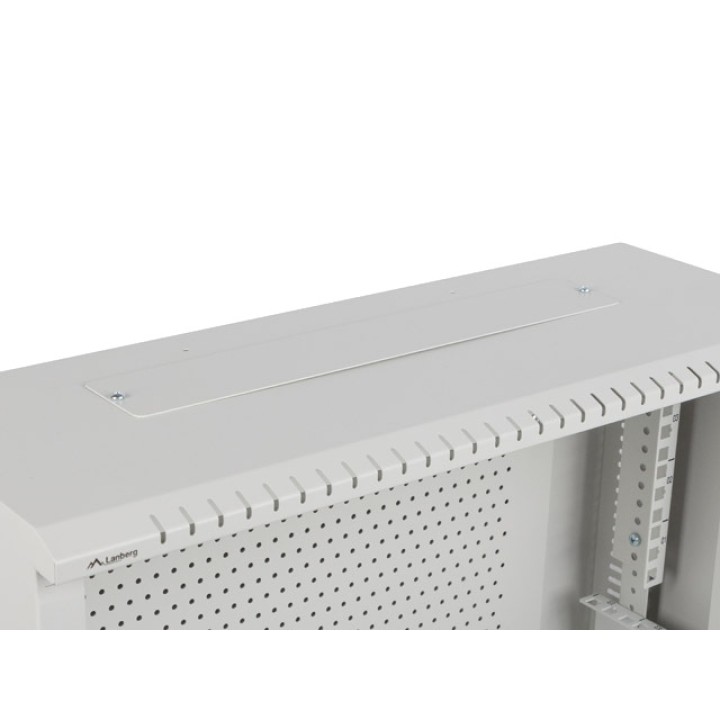

The top, bottom and side panels feature ventilation holes that help maintain proper air circulation inside the cabinet. It also has cable openings that simplify the organisation and routing of connections.

Integrated ventilation holes
Cable entry and exit openings
Compatible with Lanberg brush panels
Improved cable organisation and management
Designed for neat and secure installations

Robust structure and reliable protection
Made from durable materials, the cabinet offers a stable structure capable of safely supporting professional network and electronic equipment. Its design ensures good protection for installations intended for continuous use.

Maximum static load of 60 kg
Protection rating IP20
Frame thickness: 1.2 mm
Mounting rail thickness: 1,5 mm
Earth cable included

Other specifications

Weight: 9.3 kg
Door type: single-panel
Mounting type: assembled
No thermostat or LCD panel
Grounding details on the bottom panel and main door
Compatible with ANSI/EIA RS-310-D, DIN 41491 PART 1, DIN 41494 PART 7, ETSI and standards IEC297-2:1982
36-month warranty
Includes M6 screws and assembly instructions
