LANBERG Wall-mounted rack cabinet with glass door 19" 6U 540X350MM WF03-5306-10B DSP0000042402

Features of the Lanberg WF03 19" 6U 540x350 Black Installation Rack with Glass Door
The Lanberg WF03 19" 6U wall-mounted rack cabinet offers a compact solution for organising, installing and protecting network, telecommunications and low-voltage equipment. Its dimensions of 540 x 350 x 370 mm make it suitable for making the most of limited space, and it is ideal for LAN networks, CCTV installations, small and medium-sized businesses, professional environments and home use.
Compact 19" format and 6U
Its wall-mounted design combines a standard 19" format with a height of 6U and a mounting depth of 305 mm. This allows devices and cabling to be organised while keeping the overall dimensions compact.

FORMAT: 19"
HEIGHT: 6U
Dimensions: 540 x 350 x 370 mm
Mounting depth: 305 mm
Cabinet type: wall-mounted
Assembly: self-assembly

Durable structure with a load capacity of up to 60 kg
The Lanberg WF03 features a metal structure designed to provide stability and strength. Its frame is 1.2 mm thick, while the mounting rails are 1.5 mm thick. The unit supports a maximum static load of 60 kg.

Maximum static load: 60 kg
Frame thickness: 1,2 mm
Mounting rail thickness: 1,5 mm
Thickness of the top and bottom panels: 1 mm
Side panel thickness: 1 mm
Thickness of other components: 1 mm
Weight: 11.3 kg

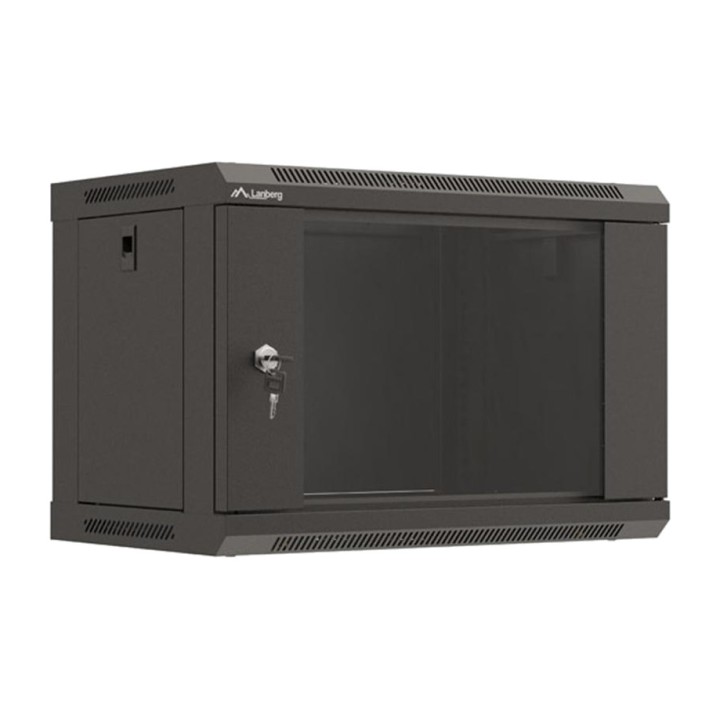

Glass front door and convenient access
The front features a single-leaf glass door with a lock, making it easy to monitor the installed equipment while helping protect it from accidental tampering. Its maximum opening angle of 220° provides wide access during installation and maintenance.

Front door type: glass
Configuration: single-leaf
Front door thickness: 5 mm
Maximum opening angle: 220°
Front lock included
Removable side panels
Removable rear panel

Flexible organisation of equipment and cabling

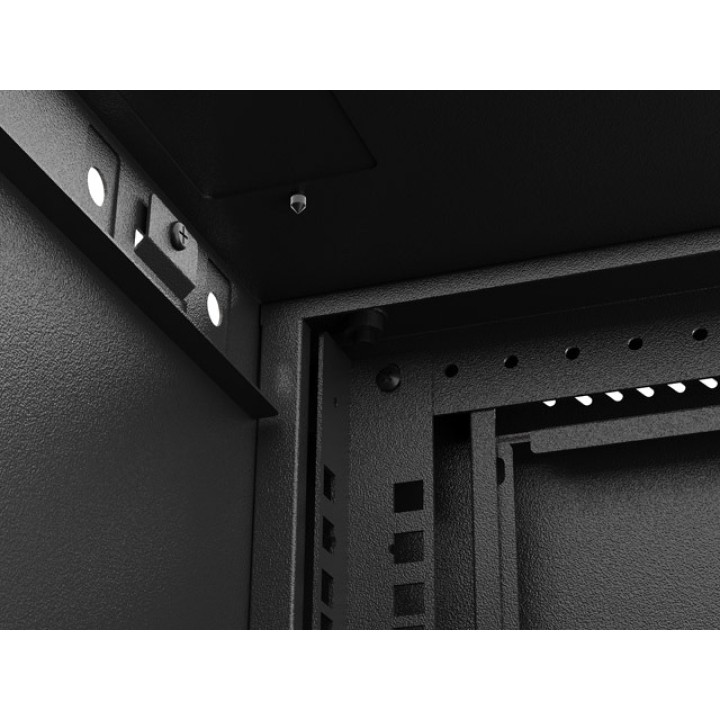

The interior features four numbered vertical rails to facilitate the placement of compatible devices. The top and bottom panels have 315 x 55 mm cable openings, providing greater flexibility when routing connections and keeping the installation organised.

4 vertical rails
315 x 55 mm cable openings
Openings located in the top and bottom panels
M10 holes in the bottom panel for installing compatible feet or wheels
Compatible with standard-format devices of 19"

Ventilation designed to protect equipment

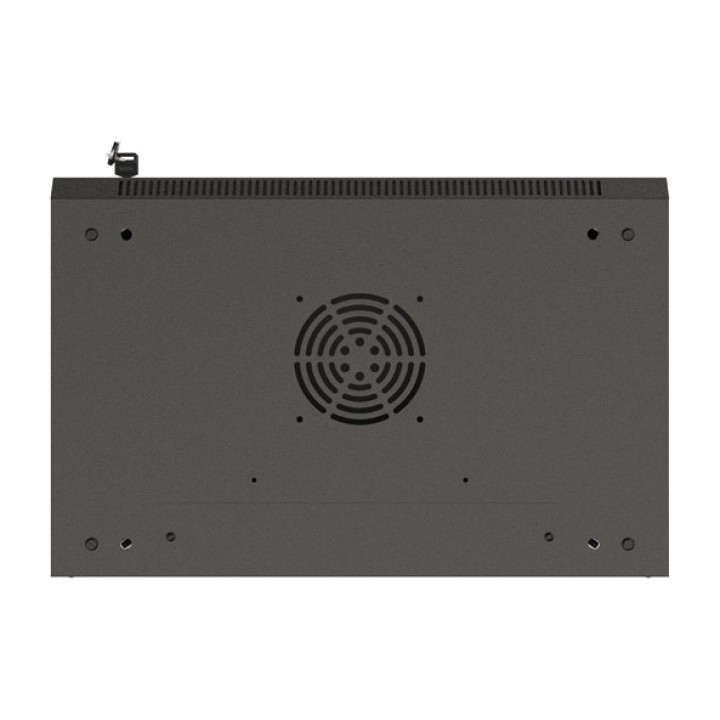

To promote suitable operating conditions, the cabinet has ventilation openings in the top and bottom panels. It also has space for installing 120 x 120 mm fans, helping to improve airflow around the devices.

2 spaces for fans
Compatible with 120 x 120 mm fans
Top and bottom ventilation openings

Wall mounting and simplified assembly

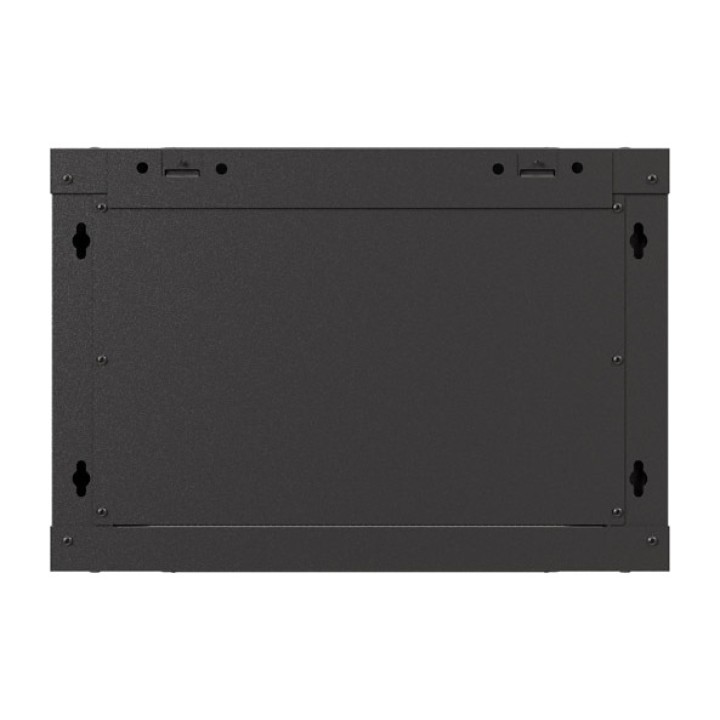

The WF03 is designed for direct wall mounting, either using the holes in the frame or the included mounting bracket. It is supplied with instructions and the essential components to facilitate assembly and subsequent installation of the equipment.

Installation: wall-mounted
Mounting bracket included
M6 screws included
assembly instructions included
Ground cable included

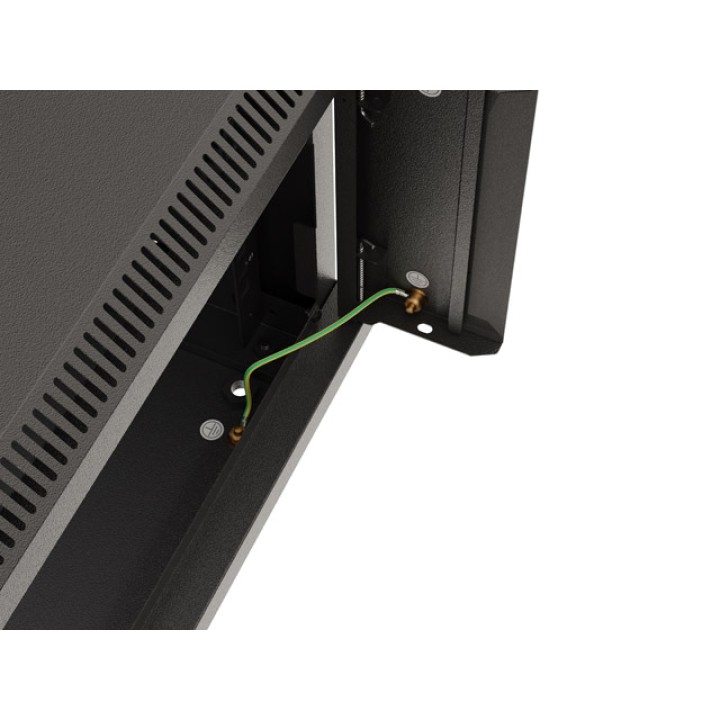

Ground connection on the bottom panel and main door

Flat Pack format for easy transport

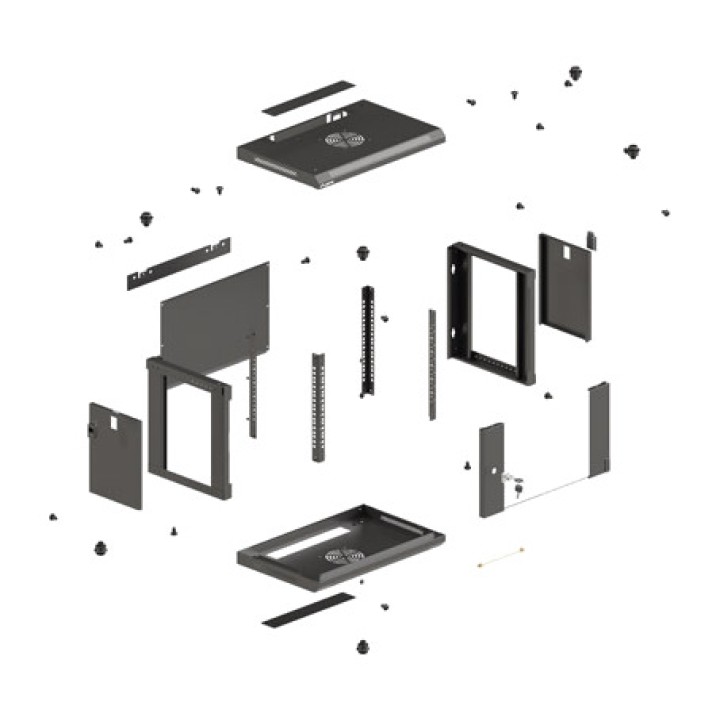

This cabinet is supplied in Flat Pack format, with its various components disassembled and protected inside compact packaging. This system makes it easier to transport and handle before final assembly.

Supplied in Flat Pack format
Disassembled components for easy transport
Assembly by the user
Mounting kit included

Black finish and protection IP20
The cabinet has a RAL9004 black finish that makes it easy to integrate into professional installations, offices, technical rooms and other environments. It also has an IP20 protection rating.

COLOUR: BLACK
RAL colour: RAL9004
Protection rating: IP20

Compatibility with Rack accessories of 19"
The standard 19" format allows the cabinet to be complemented with various compatible accessories to adapt the installation to each project’s requirements, including solutions for cable management, cooling, power supply and device mounting.

Compatible with rack shelves
Compatible with brush panels and cable managers
Compatible with patch panels and Keystone panels
Compatible with PDU power strips
Compatible with accessories and ventilation panels

Other specifications

Manufacturer code: WF03-5306-10B
Ean: 5901969446890
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Included accessories: ground cable, front lock, assembly instructions, mounting bracket and screws M6
Volume (m ³): 0.0568
