LANBERG Rack cabinet with metal door for wall mounting 19" 12U 600X450MM WF01-6412-00S DSP0000042416

Features of the Lanberg WF01 12U 600 x 450 mm Grey 19" Wall-Mount Rack Cabinet
The Lanberg WF01 12U wall-mount rack cabinet is designed to organise and protect network equipment and ICT infrastructure in professional, business or home installations. Its 19" format, steel construction and load capacity of up to 60 kg provide a robust solution for centralising devices and cabling, while its flat-pack packaging makes transport and subsequent assembly easier.
12U wall-mount format for equipment 19"
This cabinet is designed for wall mounting and standard 19" equipment, offering 12U of height for arranging the various components of the installation. Its external dimensions of 600 x 450 x 645,7 mm provide a functional structure without the need for a floor-standing cabinet.

Cabinet type: wall-mounted
FORMAT: 19"
Usable height: 12U
WIDTH: 600 MM
Depth: 450 mm
External height: 645,7 mm
Mounting depth: 379,5 mm
Maximum static load: 60 kg

Robust steel construction
The Lanberg WF01 series uses cold-rolled steel and a structure designed to provide strength and stability. The various components have thicknesses suited to their function, including 1,5 mm mounting rails and a 1 mm metal front door. The RAL7035 grey finish gives it a discreet, professional appearance.

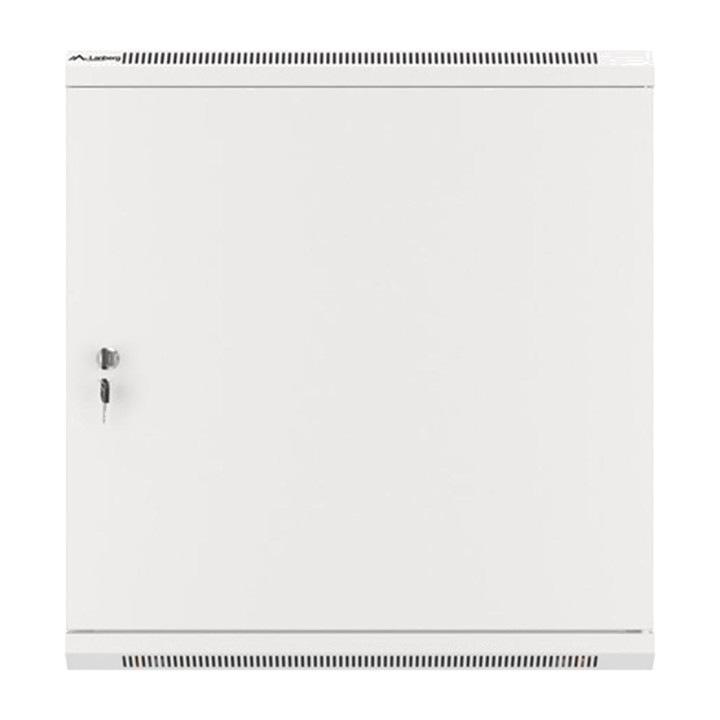

Single-leaf metal front door
Front door thickness: 1 mm
Top and bottom panel thickness: 1 mm
Side panel thickness: 1 mm
Mounting rail thickness: 1,5 mm
Frame thickness: 1,2 mm
Thickness of other elements: 1.2 mm
Gray RAL7035

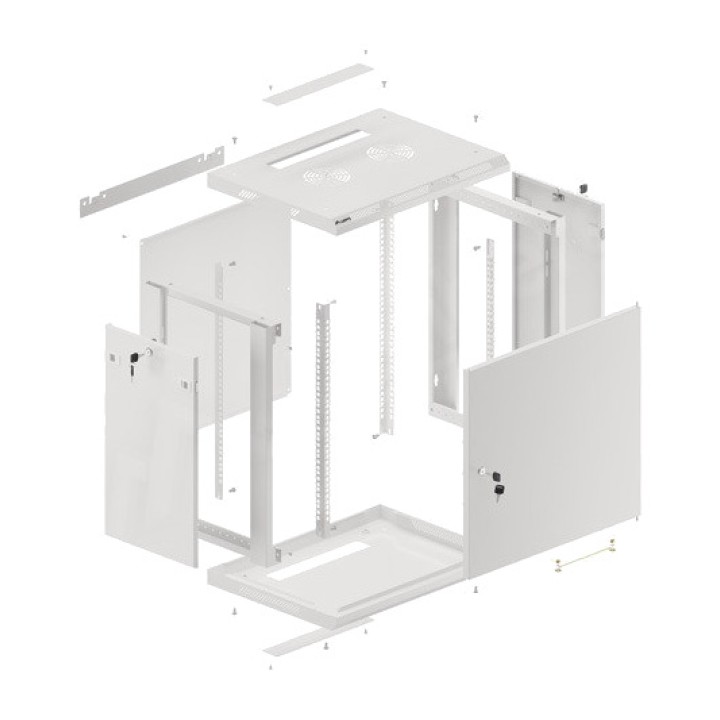

Flat-pack packaging for easier transport and assembly
The cabinet is supplied in flat-pack format for self-assembly. This configuration reduces the space required during transport and makes it easier to move before final installation. Both the components required for assembly and the operating instructions are included.

Supplied disassembled for self-assembly
Assembly hardware set included
Mounting bracket included
M6 screws included
Operating instructions included
Weight: 24,35 kg

Ventilation designed for efficient cooling

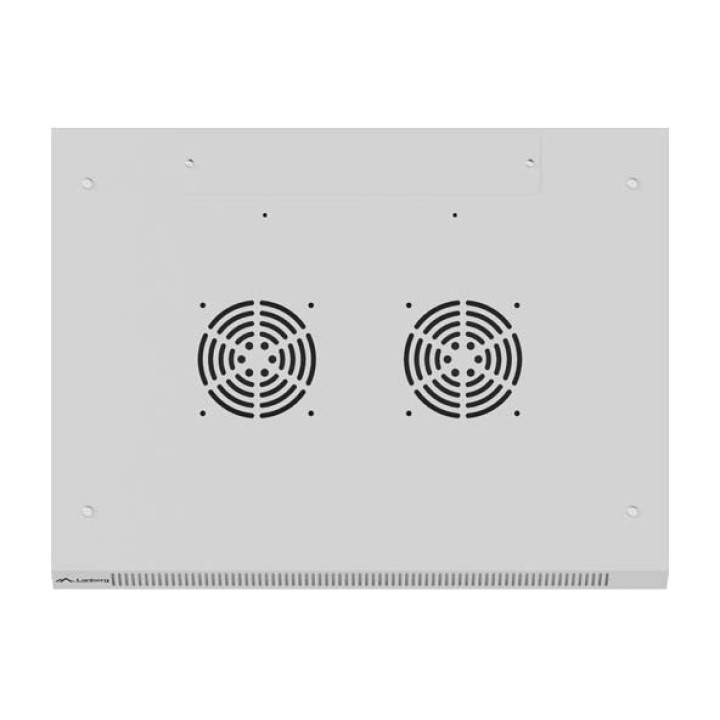

To ensure suitable operating conditions for the installed devices, the cabinet has 2 spaces for fans. This configuration can improve internal airflow by adding suitable cooling accessories.

Number of fan slots : 2
Thermostat: no
LCD panel: no

Organisation, security and earthing
The structure incorporates 4 vertical rails for installing and organising equipment. It also features a front lock and side latches to control access to the interior. Grounding is provided for both the bottom panel and the main door.

4 vertical rails
Front lock included
Side latches included
Ground cable included
Ground connection: bottom panel and front door
Protection rating: IP20

Compatibility with accessories for rack installations
The Lanberg range lets you complement the cabinet with accessories designed for cable management, cooling and equipment distribution. Series options include shelves, cable managers, brush panels, ventilation accessories and PDU units, allowing you to adapt the installation to different requirements.

Compatible with different types of rack shelves
Cable management and organisation options
Cooling accessories available for the series
Compatible with PDU power distribution solutions

Standards and other specifications
The cabinet has been developed in accordance with various standards used in rack and telecommunications infrastructures, facilitating its integration into compatible ICT installations.

Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Manufacturer code: WF01-6412-00S
Ean: 5901969430165
Warranty: 36 months
Volume (m ³): 0.1559
