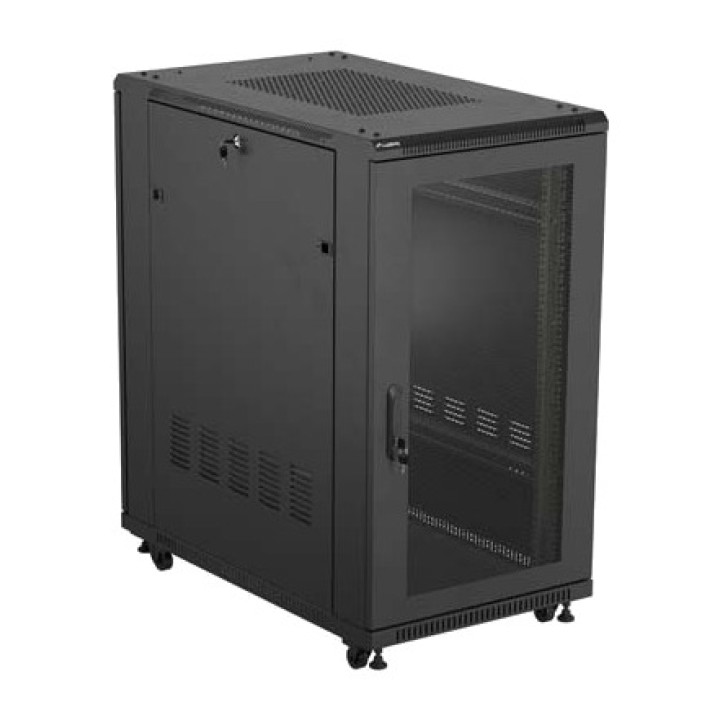

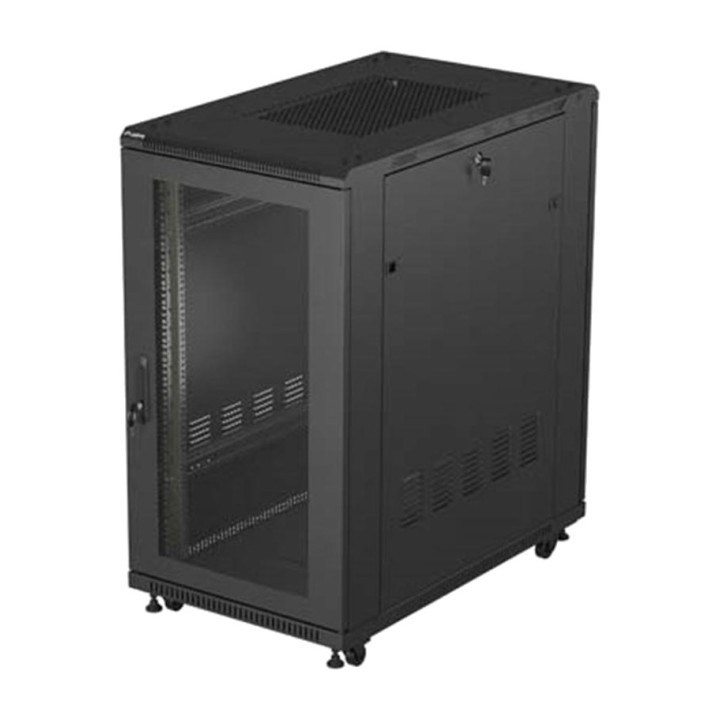

LANBERG Floor-standing rack cabinet with perforated door 19" 22U 600X1000MM FF01-6022-23B DSP0000042405

Features of the Lanberg FF01 19" 22U 600 x 1000 mm Black Installation Rack with Perforated Door
The Lanberg FF01 22U rack cabinet is designed for installing and organising servers, network equipment and other devices compatible with 19" racks. With dimensions of 600 x 1000 mm, a steel structure and a maximum static load of 800 kg, it offers a robust solution for professional ICT infrastructure, server rooms and data centres.
22U format with high installation capacity
This cabinet provides 22U of height and a mounting depth of 880 mm, allowing various server, communications and network devices to be organised within a compact, functional structure. Its four vertical rails and four horizontal rails make it easy to position and secure the devices correctly.

Mounting height: 22U
Mounting depth: 880 mm
Working height: 978 mm
Number of vertical rails : 4
Number of horizontal rails : 4
Maximum static load: 800 kg

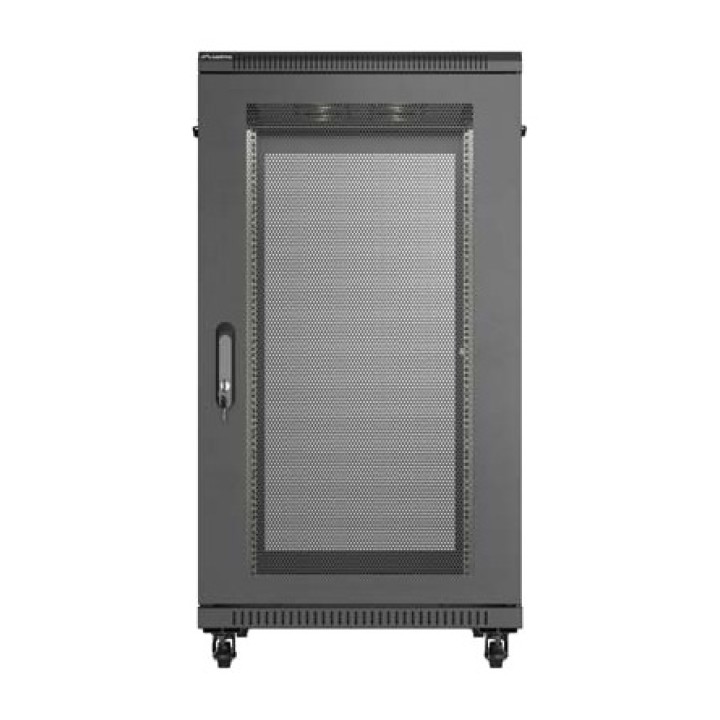

Perforated doors to promote ventilation

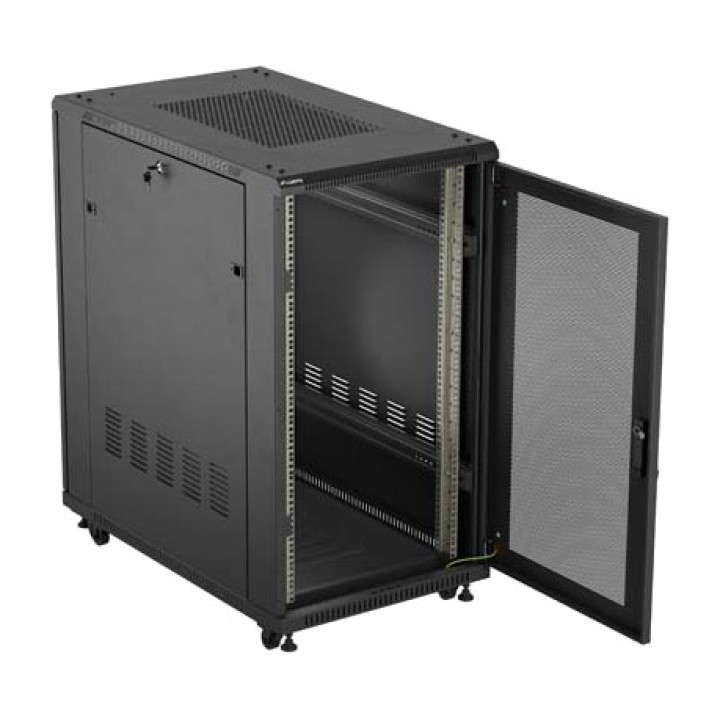

The structure features perforated front and rear doors with a perforation rate of over 60%, promoting airflow around the installed equipment. The front door also has a maximum opening angle of 210°, providing easy access to the interior during installation and maintenance.

Front door: perforated
Rear door: perforated
Door type: single-panel
Perforation rate: > , 60 %
Maximum front door opening angle: 210°

Designed for efficient cooling

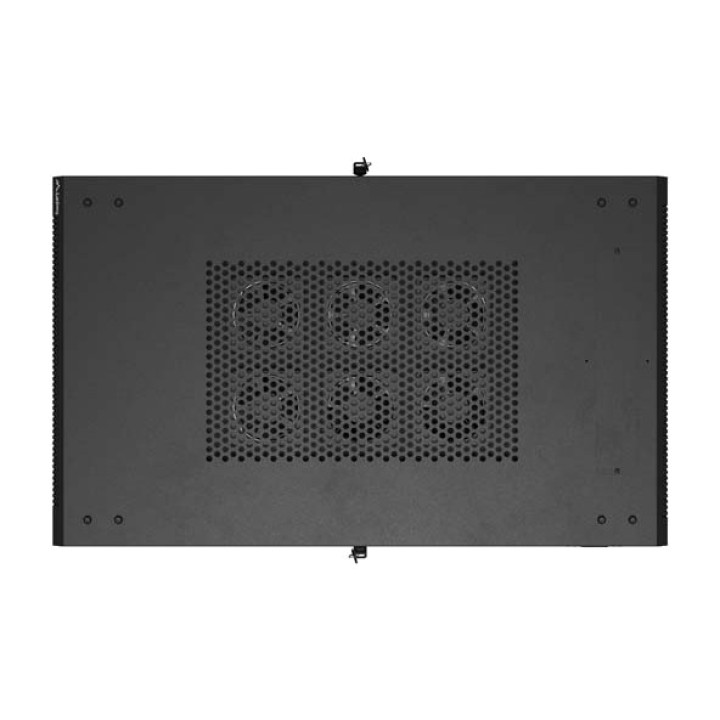

The Lanberg FF01 is designed to maintain adequate airflow in installations with numerous devices. It has six fan positions and includes a ventilation panel for six fans, helping to manage the temperature inside the rack.

Number of fan slots : 6
Ventilation panel for 6 fans: included
Thermostat: not included
LCD panel: no

Robust steel construction
The cabinet’s structural components are made of cold-rolled steel, providing stability and strength for professional installations. The rack uses different thicknesses depending on the component, reaching 2 mm for the mounting rails.

Front door thickness: 1,2 mm
Rear door thickness: 1.2 mm
Top and bottom panel thickness: 1,2 mm
Side panel thickness: 1.2 mm
Mounting rail thickness: 2 mm
Frame thickness: 1,2 mm
Thickness of other elements: 1.2 mm

Grounding system
The cabinet has grounding connections on the frame, main door and rear door, helping ensure the safe installation of the equipment housed inside. The supplied accessories also include the corresponding grounding cable.

Frame earthing
Main door grounding connection
Rear door grounding connection
Grounding cable: included
Protection rating: IP20

Flat Pack format for easy transport and assembly
This model is supplied disassembled in Flat Pack format, making it easier to transport and allowing it to be assembled directly at the installation site. It includes assembly instructions and the components required to complete the cabinet installation.

Mounting type: for assembly
Supply format: flat pack
Assembly instructions: included
Operating instructions: included
M6 screws: included

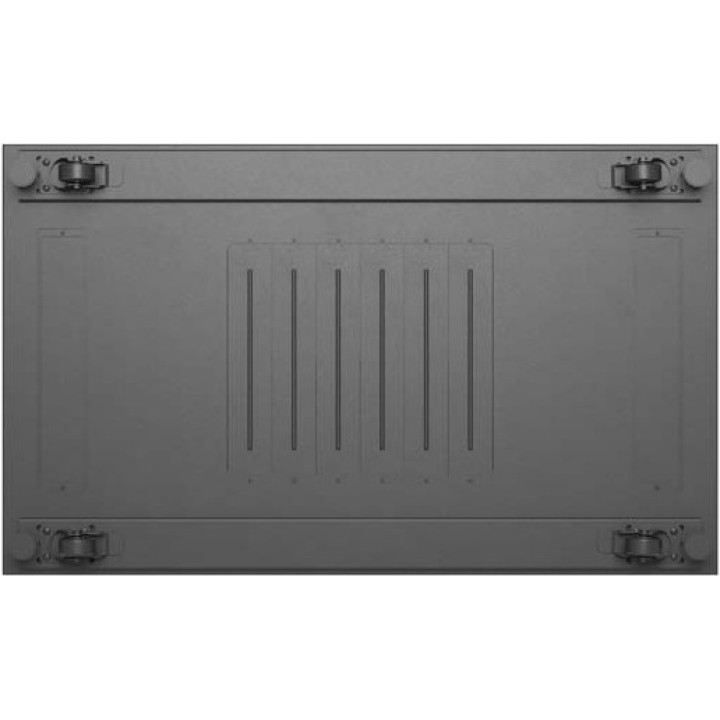

Mobility and stability during use
To make positioning easier, the rack is fitted with castors with brakes and feet. This allows the structure to be moved during installation and then kept stable in its final position.

Castors with brakes: included
Feet: included
Front lock: included
Rear lock: included
Side locks: included

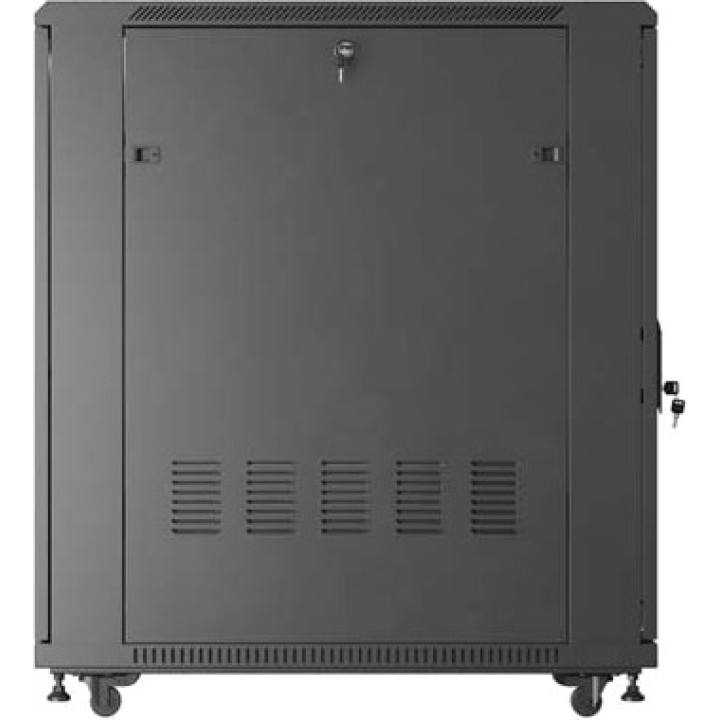

Dimensions and finish
The cabinet has a RAL9004 black finish and external dimensions of 600 mm wide, 1000 mm deep and 1200 mm high. Without the castors, its height is 1128 mm, while the complete unit weighs 72 kg.

WIDTH: 600 MM
Depth: 1000 mm
Height: 1200 mm
Height without wheels: 1128 mm
Weight: 72 kg
COLOUR: BLACK
RAL colour: RAL9004

Compliance with professional standards
The Lanberg FF01 is designed in accordance with standards commonly used in rack and telecommunications infrastructure, making it easy to integrate into compatible professional installations.

ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC297-2:1982

Accessories and expansion options
The FF01 series supports various accessories for organising, expanding and managing the installed infrastructure, such as shelves, cable managers, patch panels, cooling accessories and PDU power strips. This allows the rack to be adapted to the needs of each installation.

Compatible with universal, side and sliding shelves
Compatible with brush panels and cable managers
Compatible with patch panels and Keystone panels
Compatible with PDU power strips
Compatible with cooling accessories

Other specifications
The Lanberg FF01-6022-23B model is supplied with the main components required for assembly and comes with a 36-month warranty.

Manufacturer code: FF01-6022-23B
Ean: 5901969447170
Warranty: 36 months
Included accessories: earth cable, front lock, rear lock, side locks, operating instructions, assembly instructions, ventilation panel for 6 fans, feet, castors with brakes and M6 screws
Volume (m ³): 0.4306
