PHASAK Floor-standing rack cabinet for servers and networks 19" 22U 600X600MM PRO PHO-6622 MGS0000034588

Features of the Phasak Pro 19" Floor-standing Rack Cabinet 22U 600x600 PHO 6622

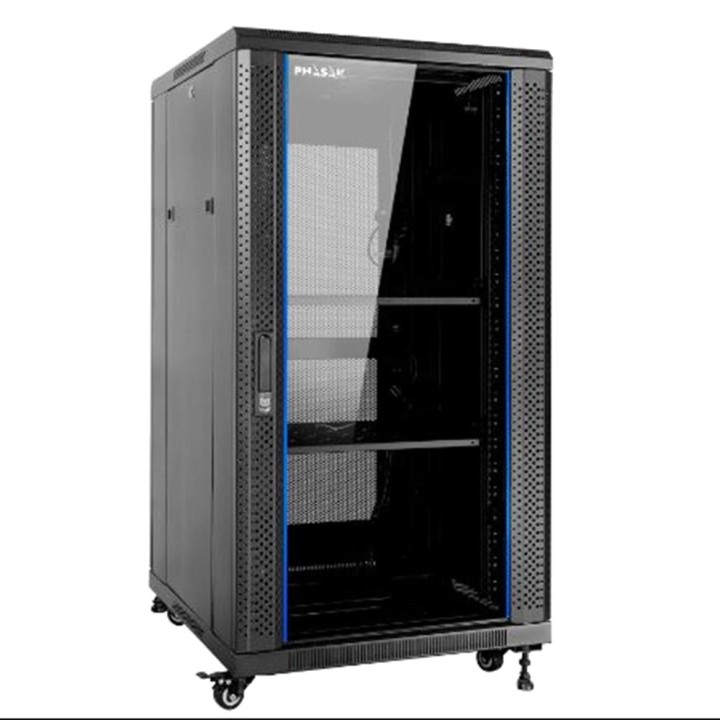

The Phasak Pro 22U rack cabinet is designed for the professional integration of network, telecommunications, data centre and broadcasting systems. Its robust 600 x 600 mm structure provides a secure and efficient solution for organising servers, switches, patch panels and other 19" rack-mount devices. Thanks to its functional design, it allows convenient installation, proper ventilation and easy access to cabling and maintenance.
Robust structure designed for professional environments
Made from SPCC cold-rolled steel, this rack cabinet provides high strength and stability for demanding network installations. Its bevelled tempered-glass front door gives it a professional finish and makes it easy to visually inspect the inside of the rack.

19" floor-standing rack format
Capacity of 22U
Dimensions: 600 x 600 x 1075 mm
Made from SPCC cold-rolled steel
5 mm tempered glass front door
Load capacity of up to 800 kg

Convenient access and flexible configuration
The rack design makes installation and maintenance easier thanks to its removable side panels, configurable front-door opening and top and bottom cable entries. It also features castors and adjustable feet for easy transport and levelling.

Front door opening angle of 180°
Configurable opening to the left or right
Removable side access panels
Top and bottom cable entries
Heavy-duty castors and adjustable feet
Fixings included for installing peripherals

Optimised ventilation and interior organisation
This rack cabinet is designed to maintain proper air circulation thanks to its integrated ventilation system and perforated rear door. It includes accessories designed to improve internal organisation and facilitate the deployment of network equipment and servers.

4 x 120 mm fans included
Perforated steel rear door
Integrated 6-outlet power strip
2 fixed shelves, 600 x 600 mm
Prepared for optional plinth installation

Compatibility and professional standards
The Phasak rack cabinet complies with various international regulations to ensure compatibility, safety and reliability in professional installations. Its design is compatible with standard 19" equipment used in networks and data centres.

Compatible with international standards 19"
ETSI compatible
Standards ANSI/EIA RS-310-D, DIN41491, IEC297-2 and GB/T3047.2-92
Protection rating IP20

Internal rack dimensions

Distance between front profiles: 470 mm
Distance between front and rear profiles: 365 mm
Distance between rear profiles and rear panel: 80 mm
Distance between front profiles and front door: 67 mm
Distance between side profiles: 45 mm
Volume (m ³): 0.1408
