PHOENIX Empty 48-port patch panel for rack CAT6 1U DSP0000042436

Features of the 48-Port CAT.6 UTP Phoenix PHTN30148 Patch Panel

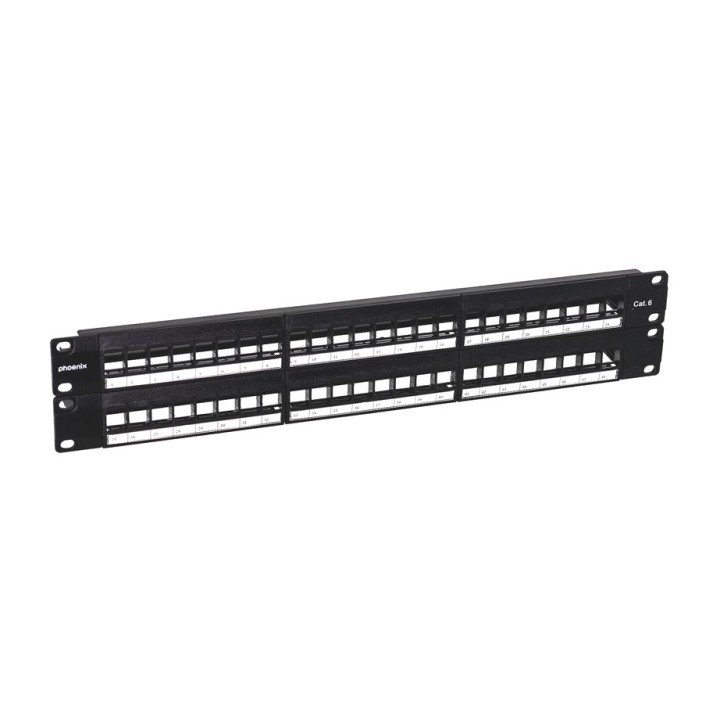

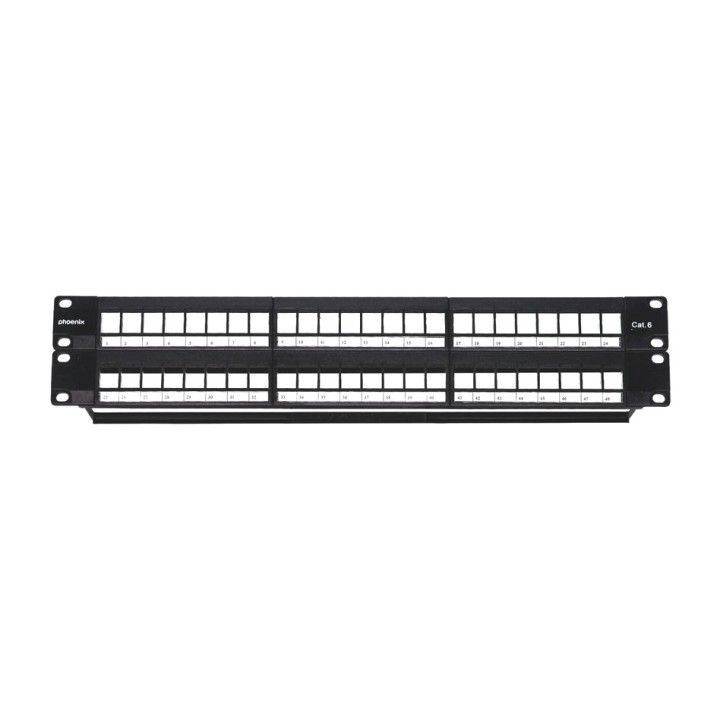

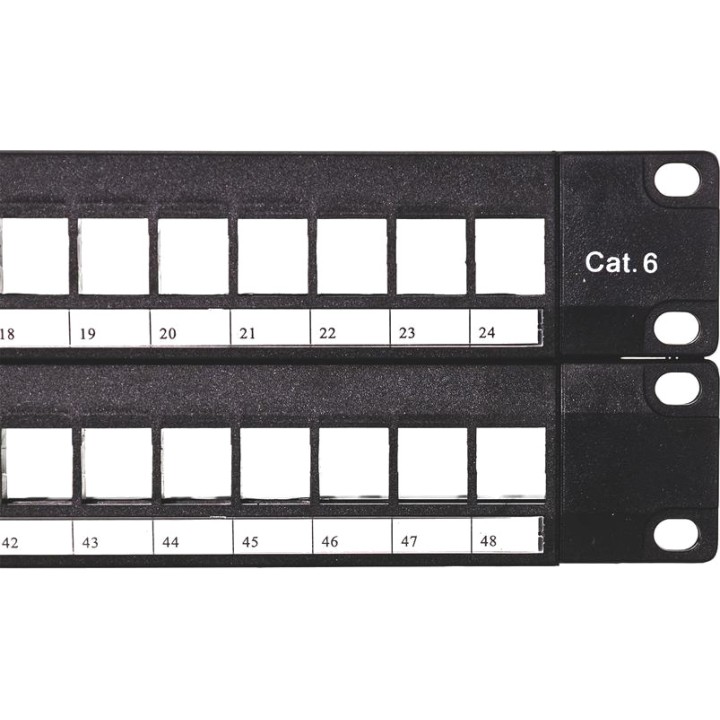

The Phoenix PHTN30148 Patch Panel is a high-density patch panel designed for terminating and organizing cabling in structured networks. It integrates 48 Category 6 UTP RJ45 ports in a single rack unit, allowing a large number of connections to be concentrated while making better use of the available space in 19" communications cabinets.
High density with 48 ports in 1U
Its high-density design allows twice as many connections as a conventional 24-port panel using just 1U. This configuration is particularly suitable for main and intermediate distribution points with a large number of network connections.

Number of ports: 48
Connector type: RJ45
Rack units: 1U
Format: standard 19"
High-density design to optimize rack space

CAT.6 connectivity for high-speed networks
The 48 RJ45 ports are compatible with Category 6 UTP cabling, a solution suited to network installations that require stable transmission and professional cable management. As an unshielded panel, it is designed for infrastructures based on UTP cable.

Category: CAT.6
Shielding: UTP
Unshielded configuration
Suitable for structured cabling networks
Compatible with high-speed installations based on CAT.6

Termination using IDC and LSA connections
The panel features IDC and LSA-type connections for terminating the twisted pairs. This system enables a secure and organised connection of the conductors at the rear of the panel, simplifying installation and subsequent maintenance.

Connection type: IDC / LSA
Direct termination of the twisted pairs
Stable cabling connection
Suitable for professional installations

Compatible with the T568A and wiring schemes T568B
The Phoenix PHTN30148 includes a colour code for the T568A and T568B connection schemes. This visual identification makes it easier to position each conductor correctly and helps maintain a consistent wiring standard throughout the infrastructure.

Compatible with the scheme T568A
Compatible with the scheme T568B
Identification by colour coding
Facilitates correct conductor termination
Helps maintain a consistent, documented installation

Reinforced rear bar for cable management

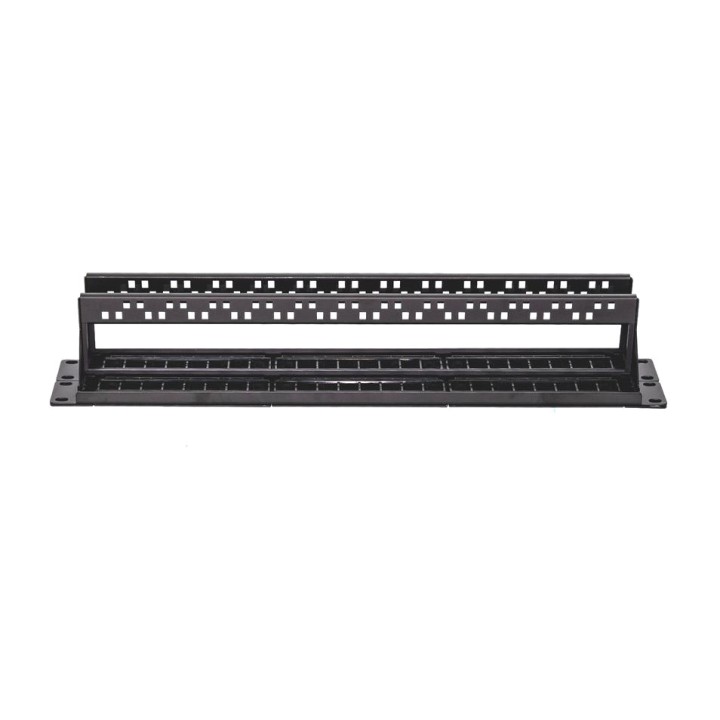

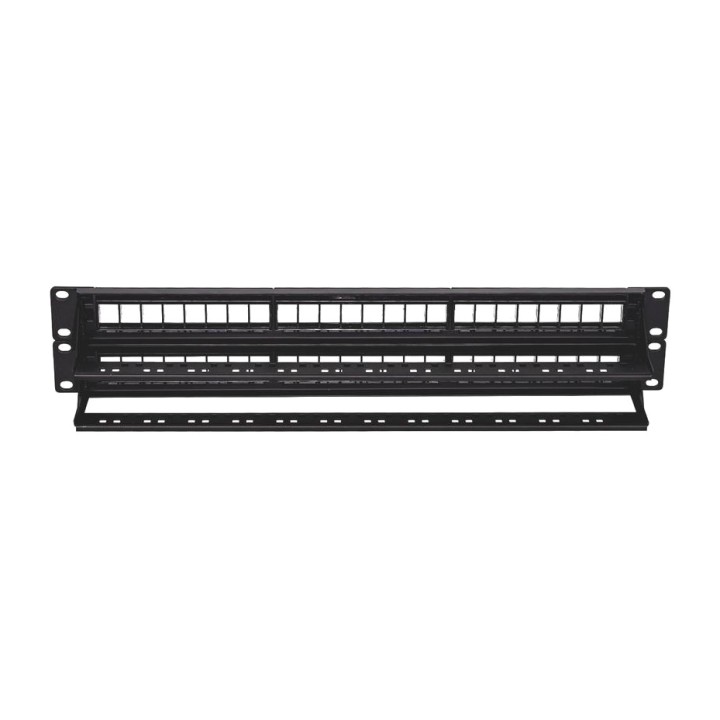

The reinforced rear bar allows cables to be secured and organised before they are connected to the panel. As well as improving cable distribution, it provides mechanical stability to the assembly and helps reduce the strain on the termination points.

Rear bar for cable management
Reinforced structure
Improves cable retention
Reduces strain on IDC / LSA connections
Facilitates neat installation inside the rack

Metal construction for communications cabinets
The panel is made of sheet steel with a black finish, providing a suitable structure for integration into professional cabinets and racks. Its standard 19" format allows it to be combined with other cable distribution and management components.

Material: sheet steel
COLOUR: BLACK
Format compatible with racks of 19"
Suitable for main and intermediate distribution points
Designed for cable termination and management

Technical specifications

Phoenix reference: PHTN30148
EAN Code: 8436626133471
Type: patch panel CAT.6 UTP
Number of ports : 48 × RJ45
Category: CAT.6
Shielding: UTP, unshielded
Connection type: IDC / LSA
Connection schemes: T568A and T568B
Connection identification: colour coding
Cable management: reinforced rear bar
Rack units: 1U
Format: standard 19"
Material: sheet steel
COLOUR: BLACK
Certifications: CE and RoHS
Volume (m ³): 0.0030
