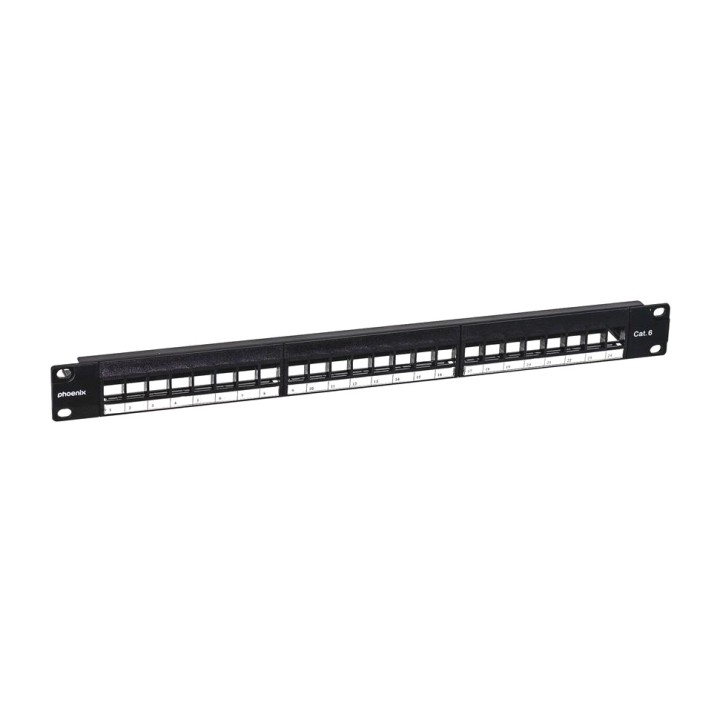

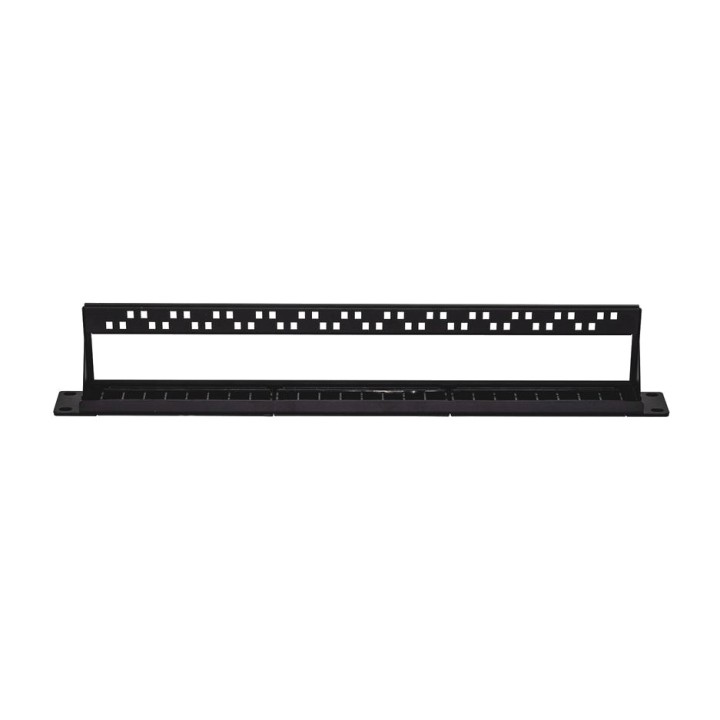

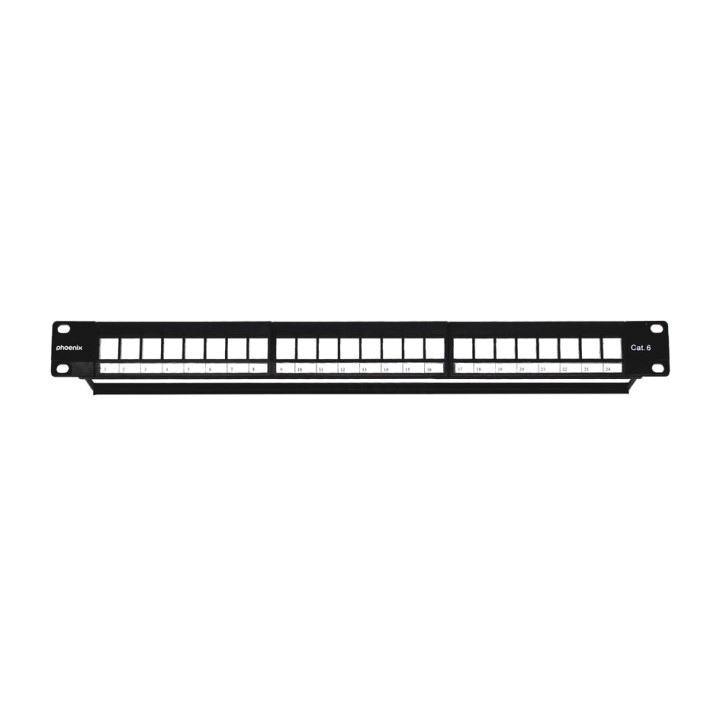

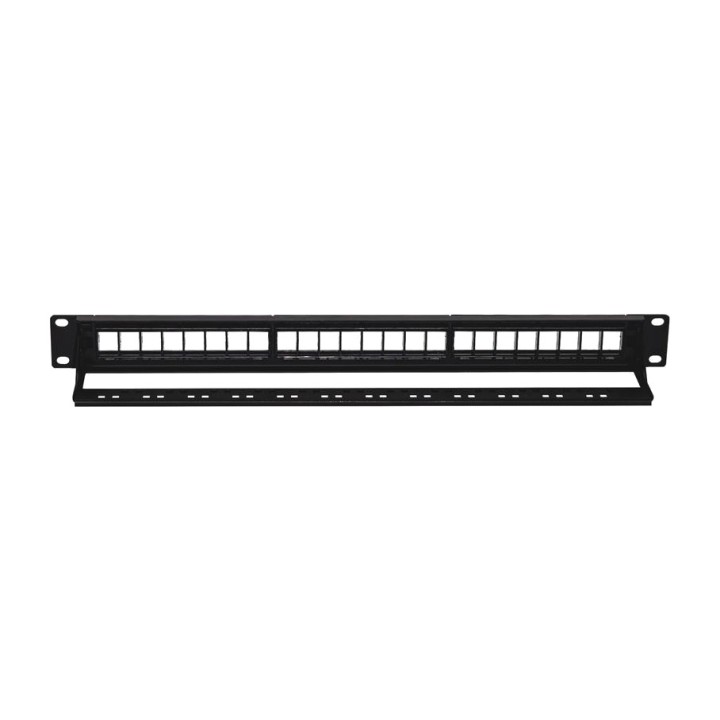

PHOENIX Empty 24-port patch panel for rack CAT6 1U DSP0000042435

Features of the 24-Port Phoenix PHTN30124 Patch Panel
The Phoenix PHTN30124 Patch Panel is an empty modular patch panel that lets you configure connectivity for each installation using the required Keystone modules. Its 24 independent slots accept network, telephone, audio, video and data connectors, providing a flexible solution for offices, professional networks, audiovisual installations and telecommunications cabinets.
Custom modular configuration
Supplied without connectors, the panel lets you independently select the type and category of each Keystone module. This makes it possible to create a uniform configuration with a single connection type or combine different formats in the same rack unit.

Modular panel with 24 ports
Compatible with snap-in Keystone modules 180°
Custom configuration for each installation
Supplied empty, without Keystone modules
Lets you choose each connector independently

Compatible with network, audio, video and data connections
The Phoenix PHTN30124 supports different types of Keystone connectors, so it can be used in structured cabling installations as well as audiovisual or telecommunications projects. Its design allows RJ45, telephone, HDMI, USB, coaxial and other compatible formats to be integrated.

Compatible with connectors RJ45
Compatible with RJ11 connectors and RJ12
Supports HDMI and USB modules
Compatible with F and BNC connectors
Suitable for network, telephone, audio, video and data connections

24 ports in a single rack unit
Its standard 19" format allows up to 24 connections to be concentrated in just 1U, making efficient use of the available cabinet space. This configuration makes it easy to expand and reorganise connectivity without replacing the entire panel.

Number of ports: 24
Rack units: 1U
Format: standard 19"
Compatible with cabinets and racks of 19"
Compact design to optimise rack space

Quick tool-free installation
The Keystone modules are installed using a click-in system, with no tools required to secure them to the panel. This solution speeds up initial installation and makes it easier to replace or reorganise the connectors later.

Click-in module installation
Tool-free mounting
Module fitment a 180°
Individual replacement of each connector
Simple and expandable configuration

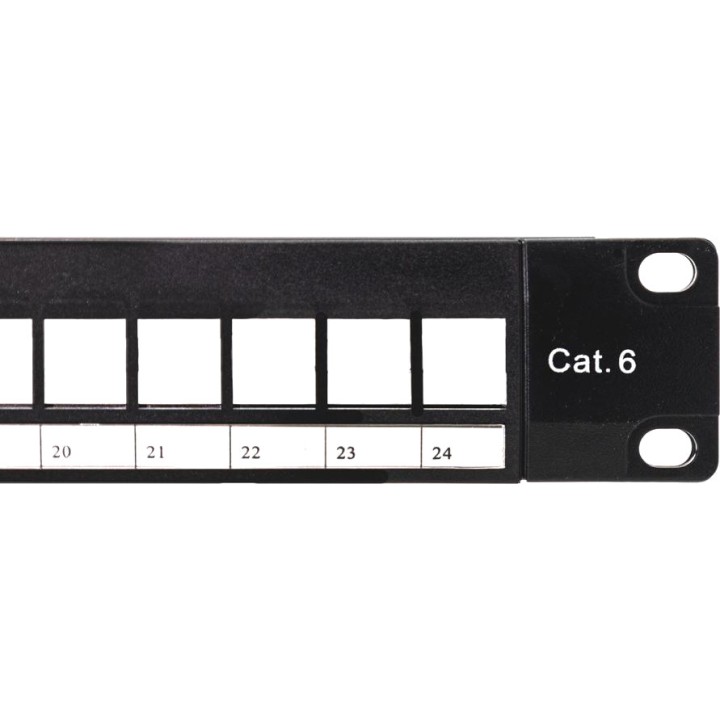

Numbered port identification
Each housing has numbered fields to identify the ports, making it easier to label, document and maintain the installation. The numbering makes it quick to locate each connection and link it to the corresponding sockets or equipment.

Numbered identification fields
Makes it easier to label connections
Helps document the network infrastructure
Makes it possible to locate each port quickly

Metal housing for professional installations
The panel is made with a black metal housing, suitable for integration into professional communications cabinets and racks. Its finish maintains a uniform appearance with other 19" rack components and accessories.

Material: metal housing
COLOUR: BLACK
Designed for communications cabinets and racks
Format compatible with professional installations of 19"

Technical specifications

Phoenix reference: PHTN30124
EAN Code: 8436626133464
Type: empty modular patch panel
Number of ports: 24
Compatibility: Keystone modules with snap-in fitment a 180°
Supported connectors: RJ45, RJ11, RJ12, HDMI, USB, F and BNC
Equipped: no, supplied empty
Rack units: 1U
Format: standard 19"
Material: metal housing
COLOUR: BLACK
Port identification: Numbered fields
Installation: quick snap-in, no tools required
Certifications: CE and RoHS
Volume (m ³): 0.0030
