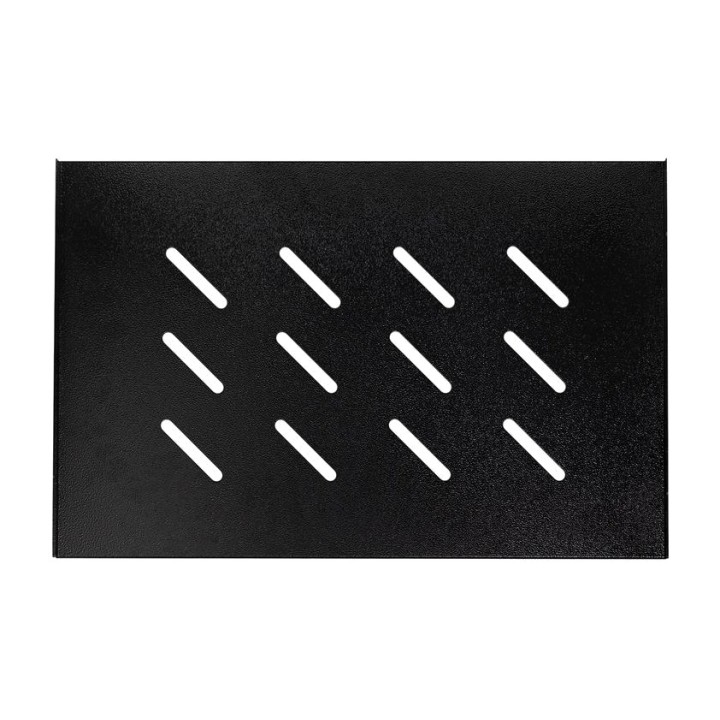

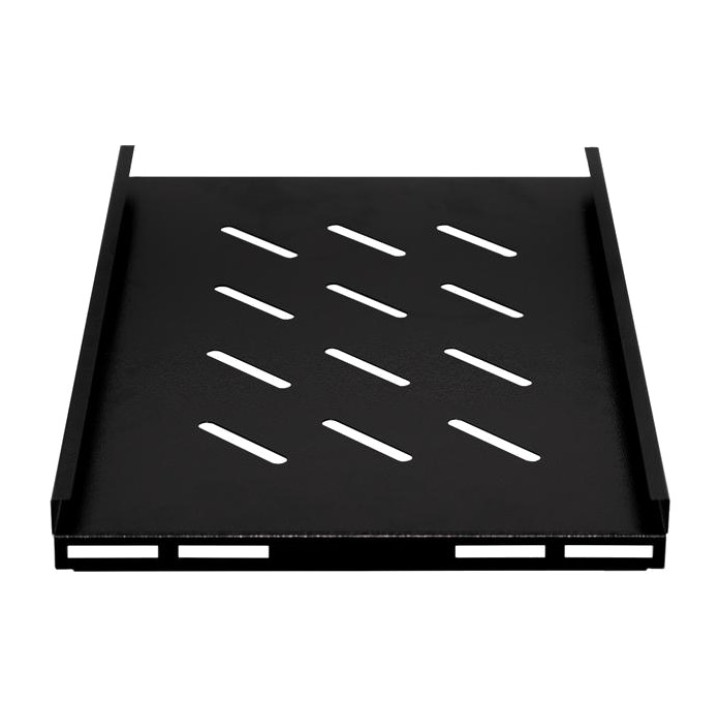

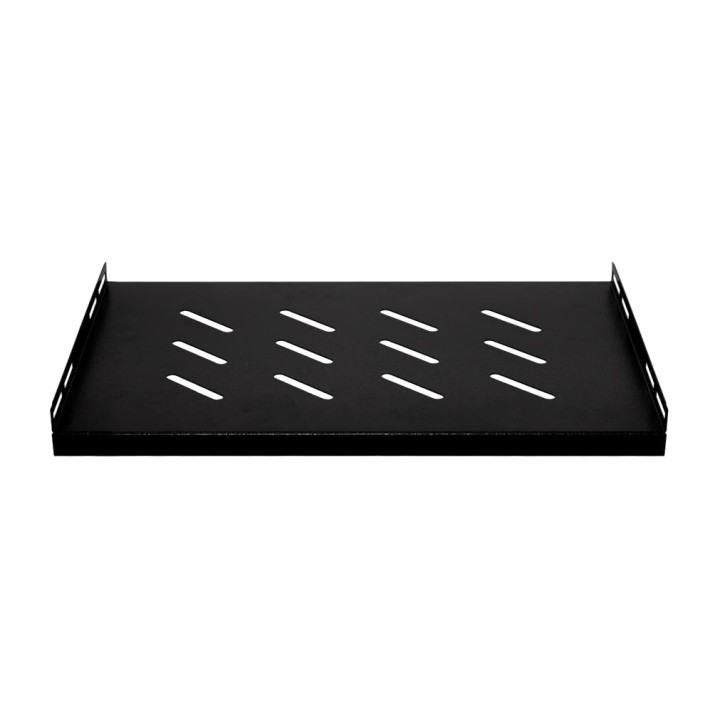

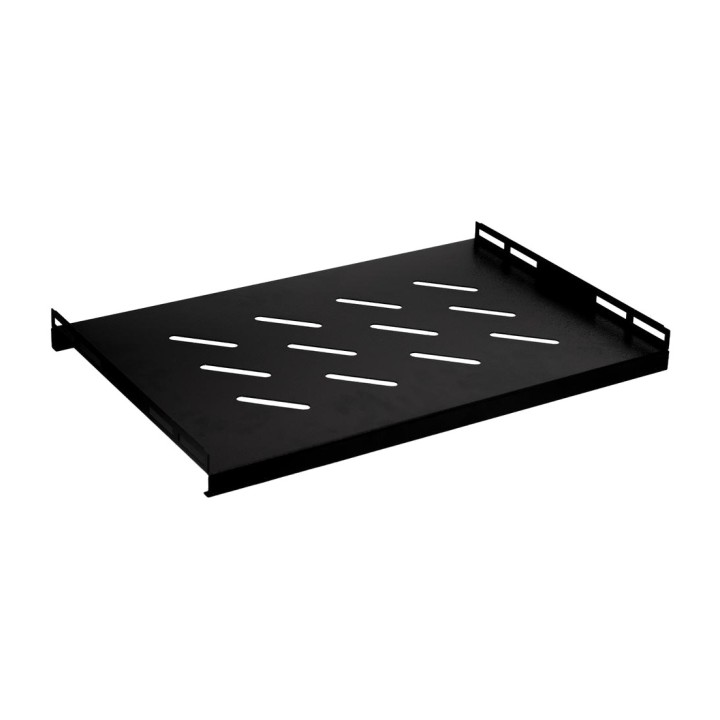

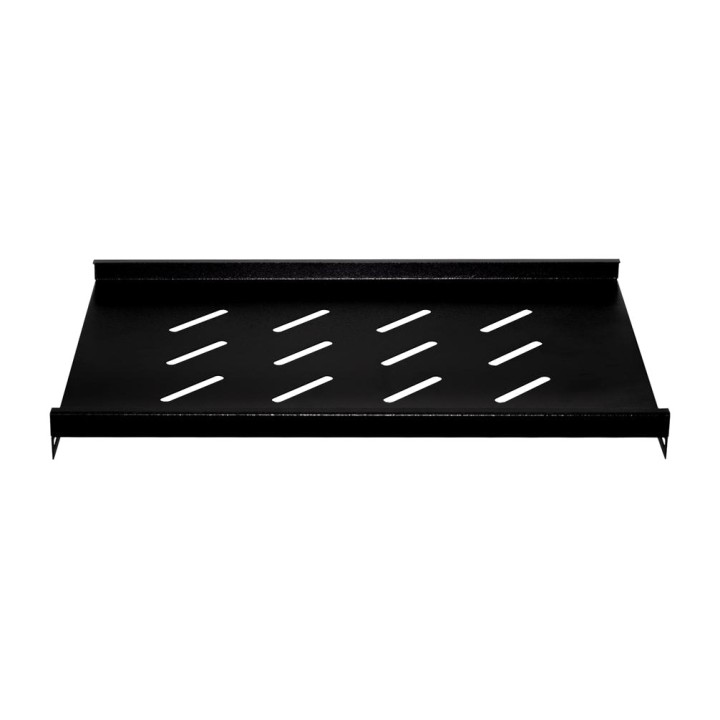

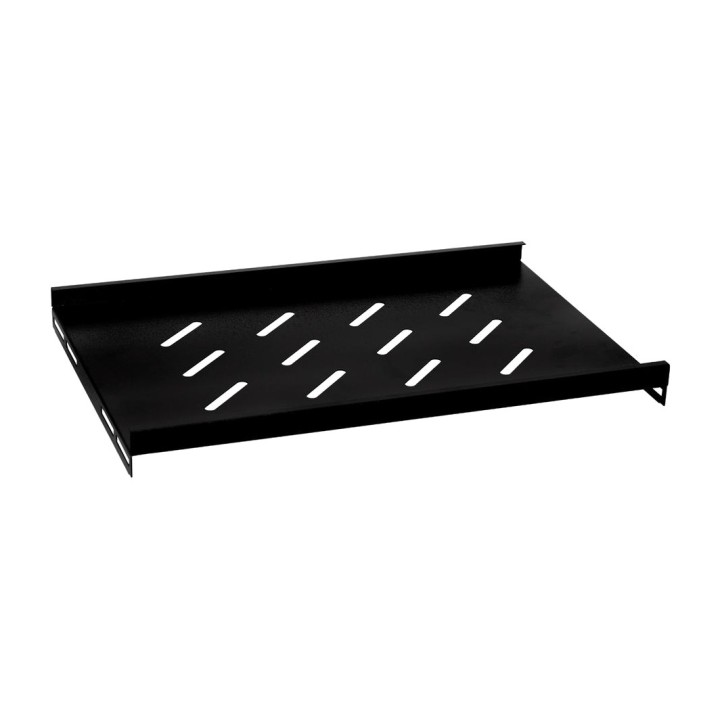

PHOENIX Fixed shelf for rack cabinet 19" 1U 483X315MM MAX-25KG DSP0000042434

Features of the Phoenix PHTN301 Fixed Rack Shelf 19"
The Phoenix PHTN301 Fixed Shelf allows devices without mounting ears for direct installation to be fitted in a 19" rack. It occupies just 1U of height and is suitable for housing home routers, non-rack-mountable switches, external drives, modems, compact UPS systems and other compatible equipment.
Installation of non-rack-mountable equipment
Its surface provides a stable base for adding devices without a rack-mounting system, making it easier to organise different pieces of equipment in the same communications cabinet.

Compatible with home routers
Suitable for non-rack-mountable switches
Can accommodate external drives and modems
Compatible with compact UPS systems
Occupies 1U of rack height

Usable surface and load capacity
The shelf offers a usable surface of 483 × 315 mm and supports a maximum load of up to 25 kg. These dimensions allow various devices and accessories to be placed and kept organised inside the cabinet.

Usable surface: 483 × 315 mm
Height: 44.5mm
Space occupied: 1U
Maximum load capacity: 25 kg

Four-point fixing
The front and rear anchoring system to the rack rails provides four fixing points. This configuration improves the shelf’s stability, distributes the weight and reduces the risk of tilting or tipping when placing heavy equipment.

4-point fixing system
Anchoring to the front and rear rails
Stable load distribution
Secure fastening inside the cabinet

Sturdy steel construction
The Phoenix PHTN301 is made of cold-rolled steel, providing a sturdy structure to support equipment weighing up to 25 kg. Its black powder-coated finish maintains a uniform look with standard rack cabinets and accessories.

Material: Cold-rolled steel
Finish: Powder coating
COLOUR: BLACK
Designed for network and communications installations

Compatible with racks with 19"
This shelf uses the standard 19" format and is compatible with wall-mounted cabinets and floor-standing racks with a depth of 450 mm or more. Four-point mounting requires compatible front and rear rails.

Format: standard 19"
Compatible with wall-mounted cabinets
Compatible with floor-standing racks
Minimum rack depth: 450 mm
Front and rear mounting

Mounting and accessories included
The shelf is supplied disassembled with mounting hardware included, making it easy to install on the rails of a compatible cabinet or rack.

Supplied disassembled
Mounting hardware included
Installation on front and rear rails

Technical specifications

Phoenix reference: PHTN301
EAN Code: 8436626133457
Type: fixed rack shelf
Rack units: 1U
Format: standard 19"
Usable width and depth: 483 × 315 mm
Height: 44.5mm
Load capacity: 25kg
Mounting system: 4 points, front and rear
Material: Cold-rolled steel
Finish: Powder coating
COLOUR: BLACK
Compatibility: 19" racks with a depth of 450 mm or more
Mounting: supplied disassembled
Certifications: CE and RoHS
Volume (m ³): 0.0050
