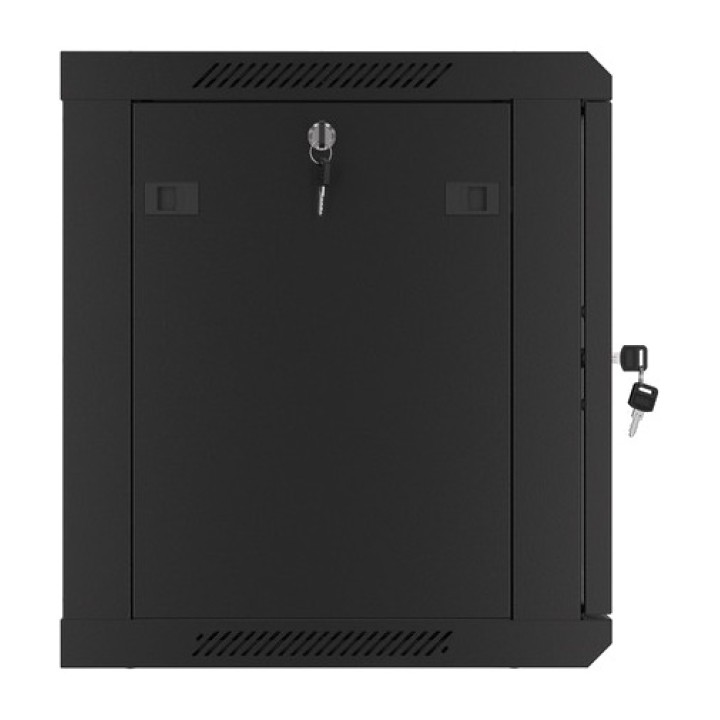

PHOENIX 19-inch self-assembly rack cabinet 9U 600X450X501MM MAX-60KG DSP0000041220

Features of the Phoeni Wall-Mount Cabinet x PHTN79U 9U 19"
The Phoenix PHTN79U Wall-Mount Cabinet is a versatile solution for centralising and protecting network equipment in professional installations. Its 9U capacity in the standard 19" format allows you to install a managed switch, a patch panel, a router, cable management accessories and a compact UPS, all mounted on the wall without taking up floor space.
Versatile capacity in a wall-mounted format
Thanks to its 9 rack units and 450 mm depth, this cabinet provides the space needed to create a complete, organised communications infrastructure. It is suitable for offices, shops, educational establishments and technical rooms that need to house several devices while maintaining a compact wall-mounted format.

9U capacity for rack equipment of 19"
Dimensions: 600 × 450 × 507 mm
Maximum load capacity of 60 kg

Robust construction and protection IP20
The Phoenix PHTN79U is made of cold-rolled steel, providing structural strength and durability for continuous use. Its black powder-coated finish protects the surface and gives it a professional appearance, while its IP20 protection rating makes it suitable for indoor installations.

Cold-rolled steel structure
Black powder-coated finish
Protection rating IP20

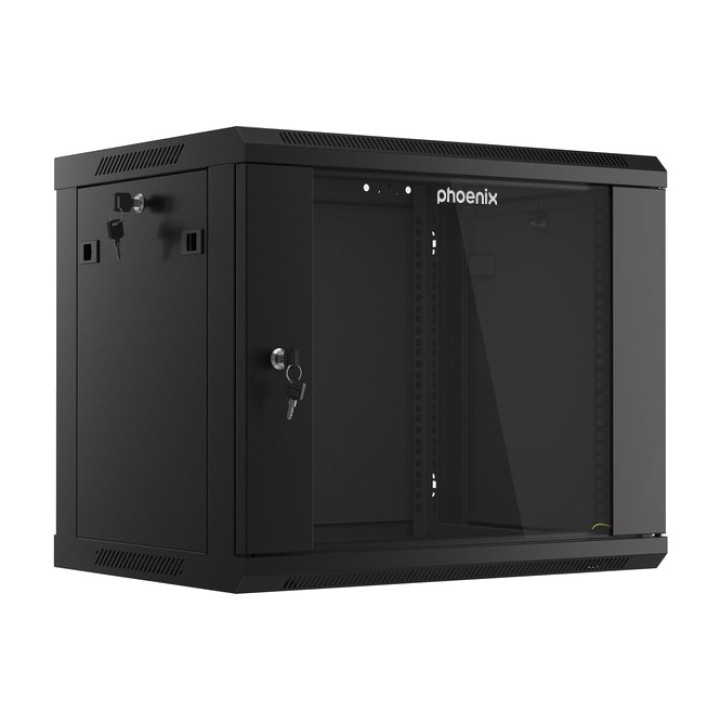

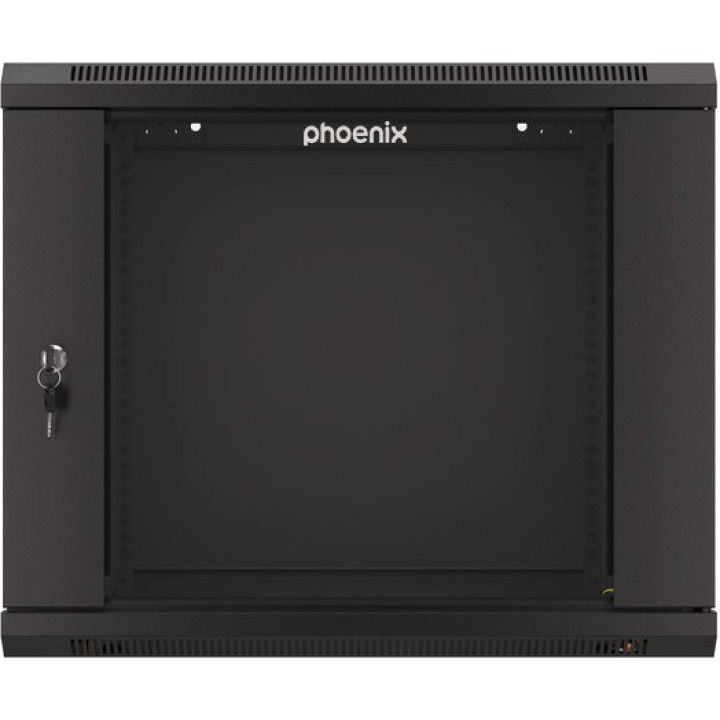

Tempered glass front door
The tempered-glass front door allows you to visually check the equipment without opening the cabinet. Its opening angle of over 180° facilitates installation and maintenance, while the key lock helps restrict access to the equipment.

Tempered glass front door
Opening angle of over 180°
Front lock with key

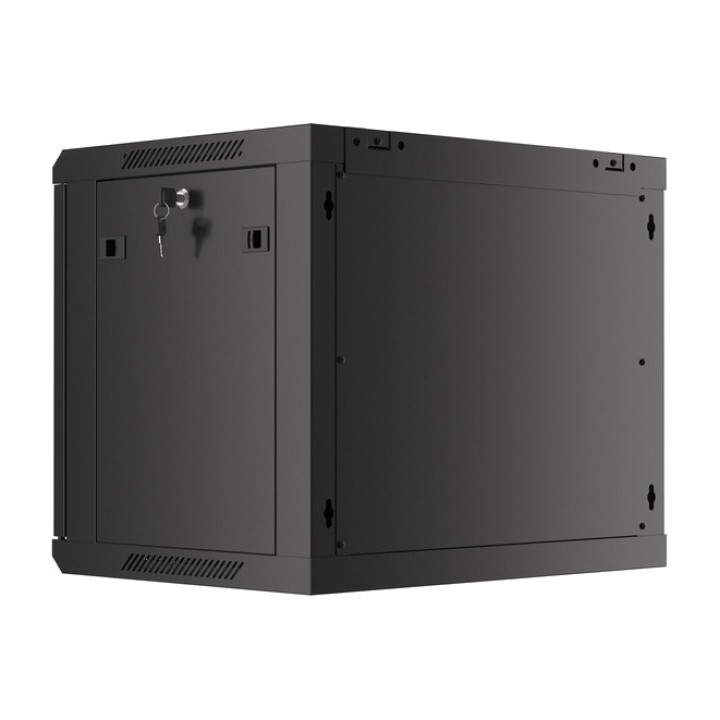

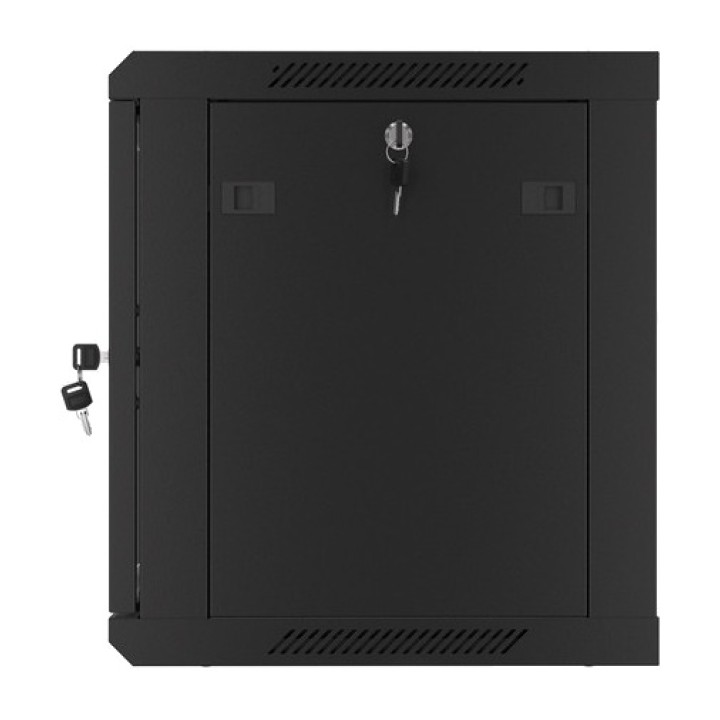

Removable side panels
The removable side panels provide convenient access to the inside of the cabinet during assembly, cable connection or maintenance. They also feature security locks to protect the installed equipment.

Removable side panels
Side security locks
Easy access to equipment and cabling

Flexible cable management
The cabinet has pre-drilled cable entry holes in three positions, allowing the cable entry and exit points to be adapted to the requirements of each installation. This layout facilitates neat organisation of network and power connections.

Cable entry in the top panel
Cable entry in the bottom panel
Cable entry in the rear panel

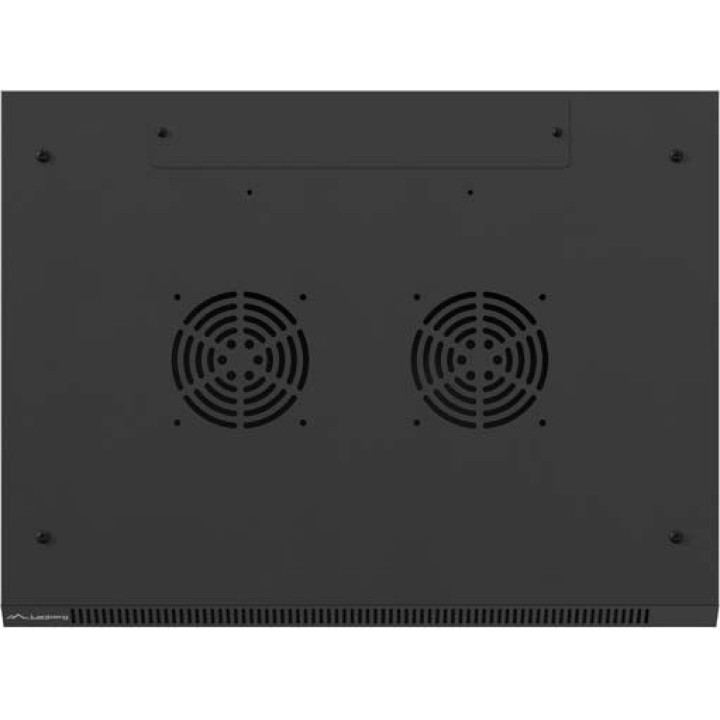

Ready for active ventilation
The two fan openings in the top cover allow active ventilation to be added when the number of devices or the thermal load of the installation requires it. This makes it possible to improve air circulation inside the cabinet.

2 fan openings in the top panel
Ready for enhanced cabinet ventilation
Suitable for configurations with several active devices

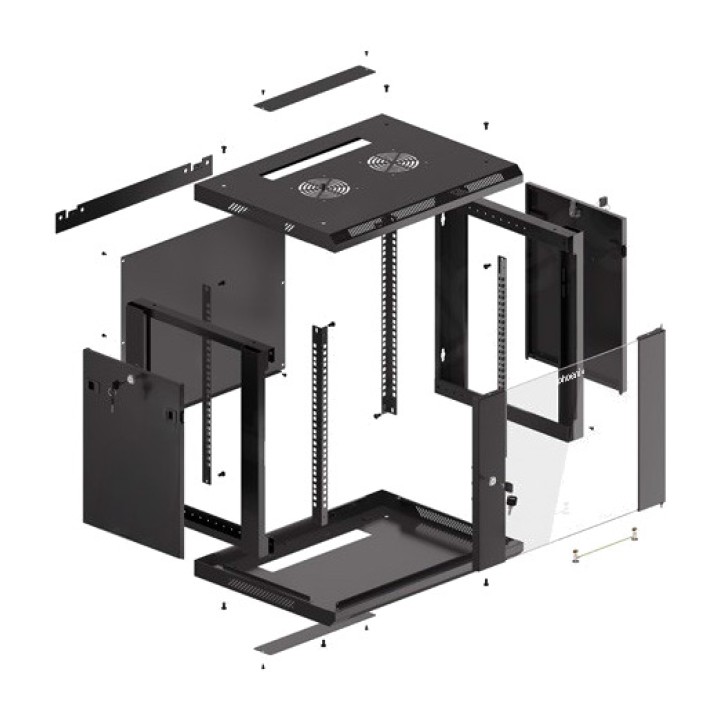

Supplied disassembled with accessories included
The Phoenix PHTN79U is supplied disassembled in Flat Pack format, making it easier to transport and store before installation. It includes the essential accessories for mounting the equipment and ensuring proper earthing.

Front lock with key
Side security locks

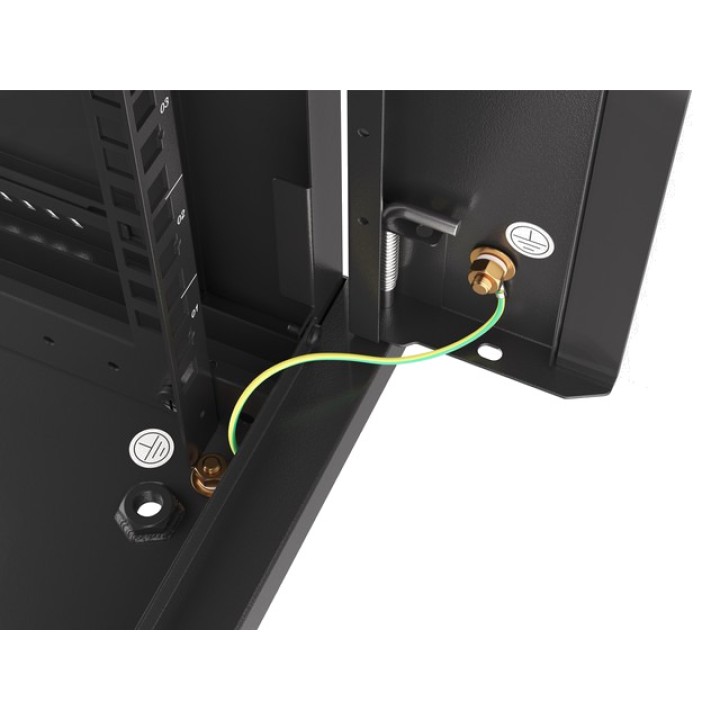

Grounding cable
20 screws and nuts M6

Other specifications

Phoenix reference: PHTN79U
EAN Code: 8436626132481
Rack units: 9U
Format: standard 19"
Dimensions: 600 × 450 × 507 mm
Load capacity: 60 kg
Material: Cold-rolled steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and locks with a key
Side panels: removable with security lock
Cable openings: top, bottom and rear panels
Ventilation: 2 fan openings in the cover
Mounting: wall-mounted
Supply: disassembled in flat-pack packaging
Certifications: CE and RoHS
Applicable standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI e IEC 297-2:1982
Volume (m ³): 0.0692
