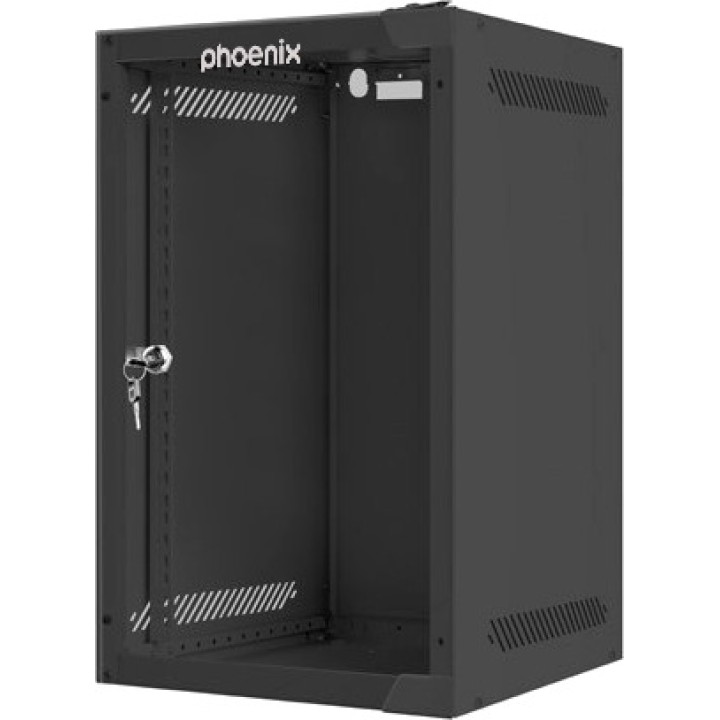

PHOENIX 10-inch wall-mount rack cabinet 9U 280X310X470MM MAX-20KG DSP0000041219

The Phoenix PHTN109U Wall-Mount Cabinet is the highest-capacity model in 10" format: with 9U and a width of just 280 mm, it can be wall-mounted to house an 8-port managed switch, a 12-port patch panel, a small router and up to 3 additional compact equipment units, all in minimal space.
Its 5 mm tempered glass front door, with an opening angle of over 180° and a key lock, securely protects all equipment, while cable entry holes in multiple positions and a fan opening in the top allow for an orderly installation and adequate airflow. It has an IP20 protection rating. Supplied disassembled in flat-pack packaging, with a load capacity of up to 20 kg and M6 screws included.
MAIN FEATURES

Greater capacity in a 10" format: 9U — ideal for complete installations in a compact space
Only 280 mm wide for discreet wall mounting
Protection rating IP20

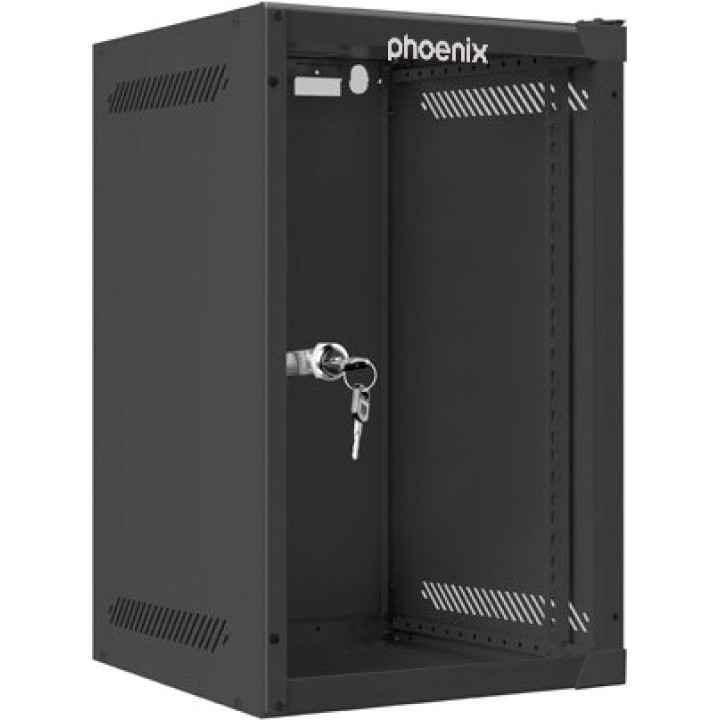

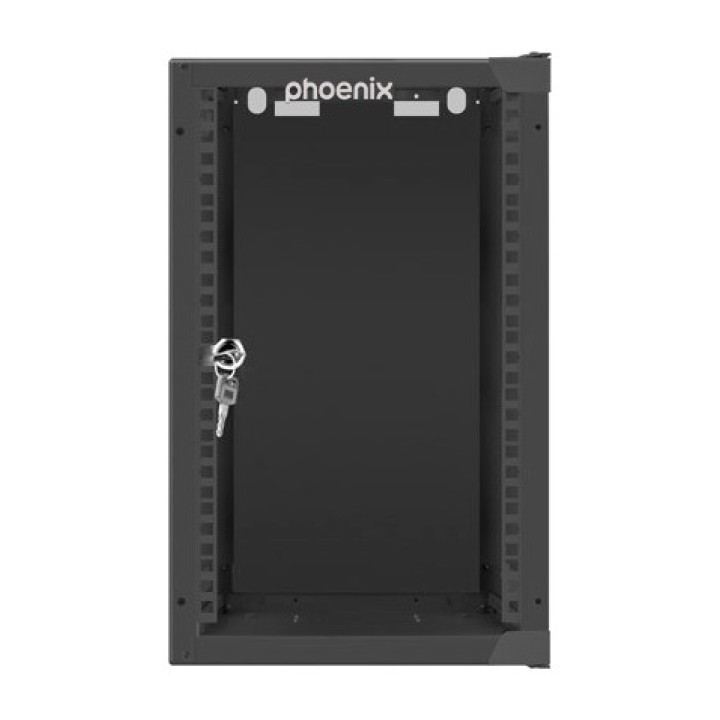

5 mm tempered glass front door with key lock

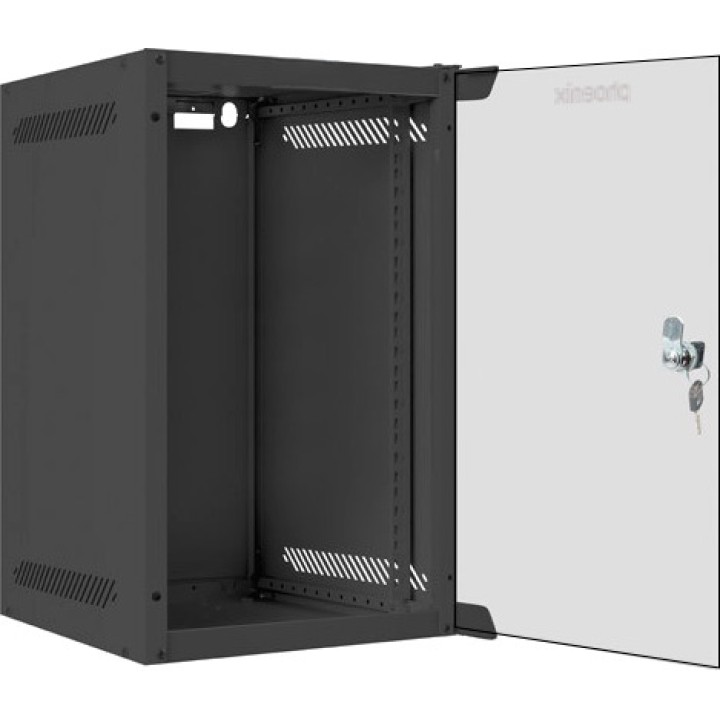

Door opening greater than 180°

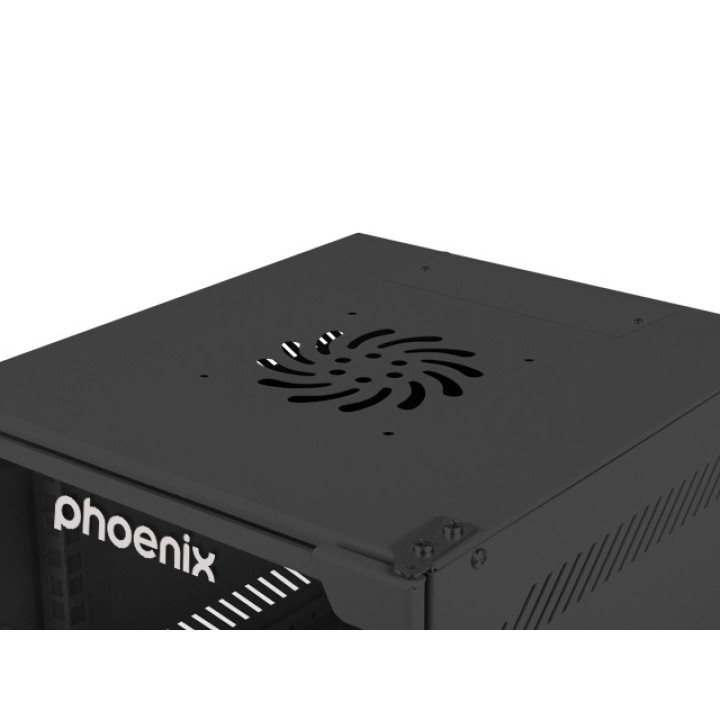

1 fan opening in the top panel

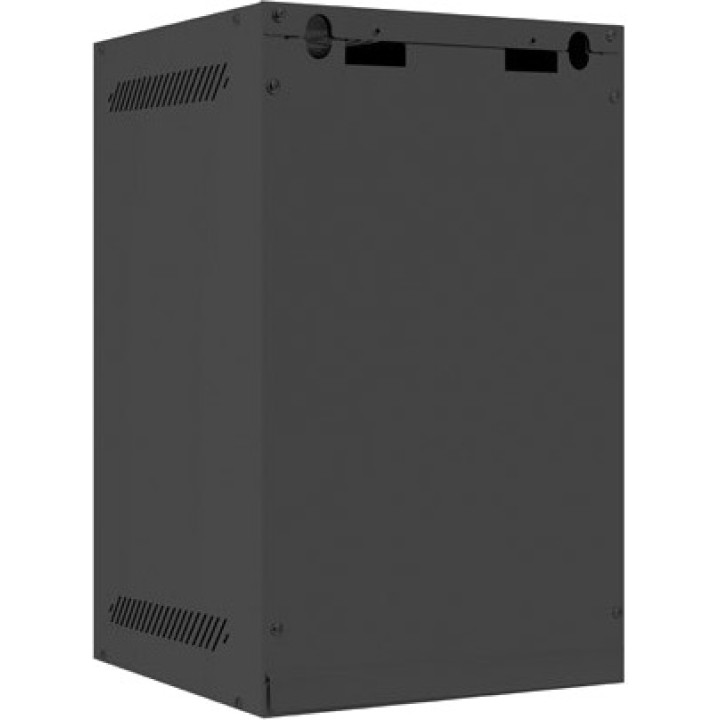

Cable holes in multiple positions
Maximum load capacity: 20 kg
Supplied disassembled in flat-pack packaging (Flat Pack)
Includes: front key lock · 10 M6 screws and nuts · wall-mounting hardware

Technical specifications



Phoenix reference
PHTN109U

EAN Code
8436626132566

Rack units
9U

FORMAT
Compact 10"

Dimensions (W × D × H)
280 × 310 × 470 mm

LOADING CAPACITY
20 kg

MATERIAL
Cold-rolled steel

FINISH
Powder coating

Protection
IP20

COLOR
BLACK

Front door
5 mm tempered glass · opening >,180° · key lock

Cable holes
Multiple positions

VENTILATION
1 fan opening in the top cover

MOUNTING
Wall-mounted · supplied disassembled

Certifications
CE / RoHS

Applicable standards
ANSI/EIA RS-310-D · DIN 41491/PART 1 · DIN 41494/PART 7 · ETSI · IEC 297-2:1982
Volume (m ³): 0.0189
