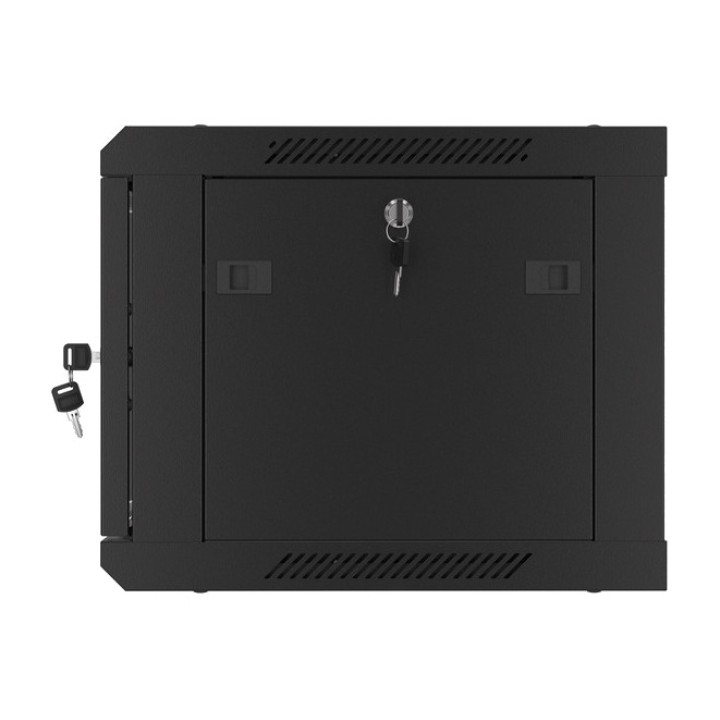

PHOENIX 19-inch self-assembly rack cabinet 6U 600X450X368MM MAX-60KG DSP0000041218

Features of the Phoeni Wall-Mount Cabinet x PHTN76U 6U 19"
The Phoenix PHTN76U Wall-Mount Cabinet is a compact, functional solution for network, telecommunications and small IT infrastructure installations. Its 6U, 19" wall-mounted format provides the space needed to house switches, patch panels, cable managers and other communications equipment, while keeping the installation neat and protected.
Optimised capacity for network installations
Thanks to its 6U design in the standard 19" format, this cabinet offers an excellent balance between capacity and size. It is ideal for offices, shops, educational establishments or small technical rooms where network equipment needs to be centralised while taking up as little space as possible.

6U capacity for rack equipment 19"
Dimensions: 600 x 450 x 379 mm
Maximum load capacity of 60 kg

Robust construction and reliable protection
Made of cold-rolled steel and finished with black powder coating, the Phoenix PHTN76U provides mechanical strength and durability for continuous use. It also has an IP20 protection rating, suitable for indoor installations where equipment needs to be protected against accidental contact.

Cold-rolled steel structure
Black powder-coated finish
Protection IP20

Secure access and easy maintenance

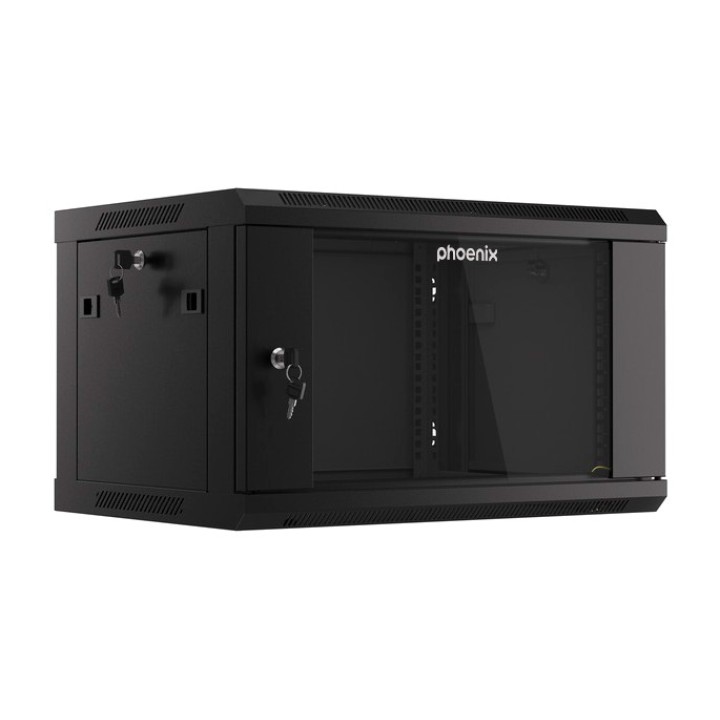

The tempered glass front door allows visual inspection of the installed equipment without opening the cabinet. Its opening angle of over 180° makes installation and maintenance easier, while the key lock helps restrict unauthorised access.

Tempered glass front door

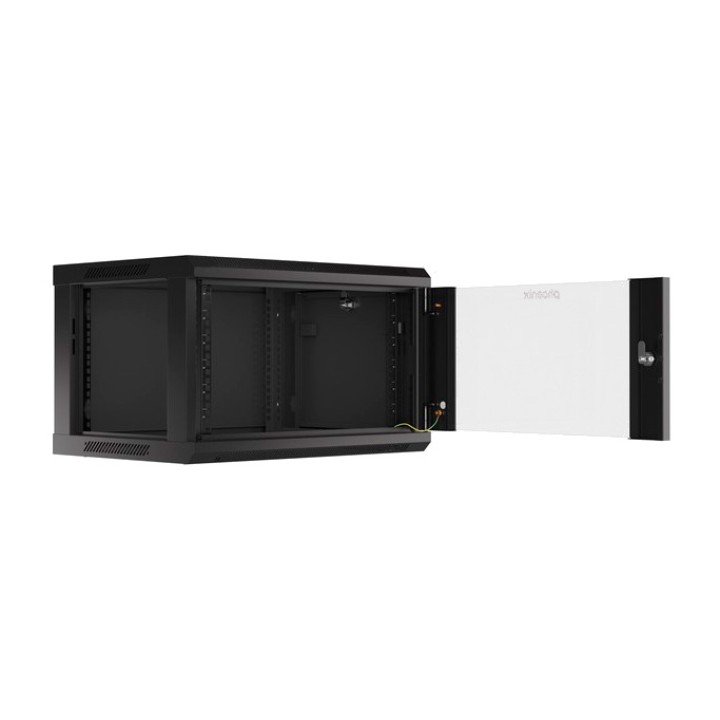

Opening angle of over 180°
Front lock with key

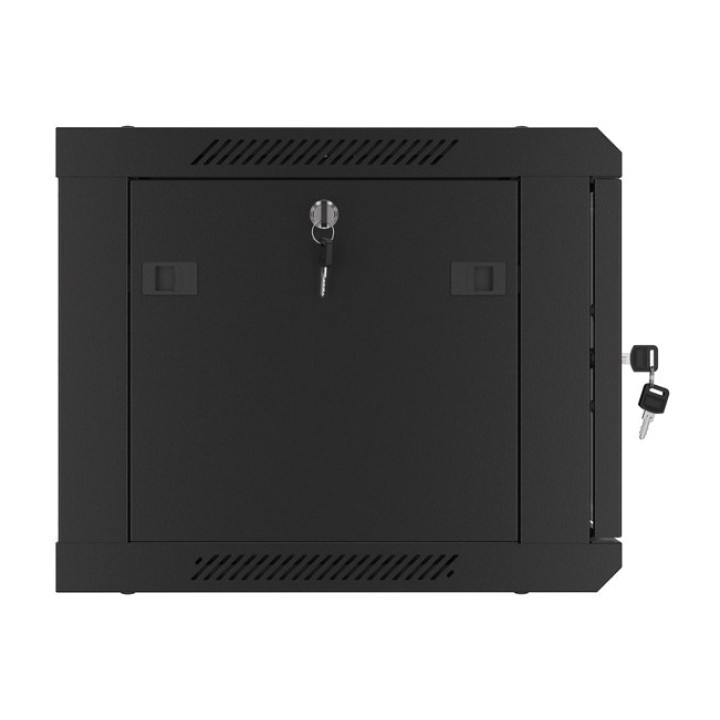

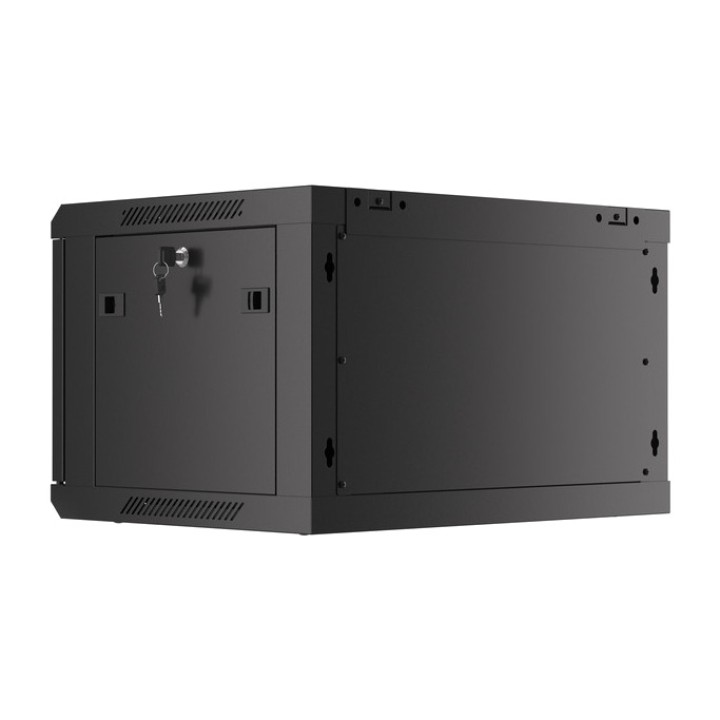

Removable side panels
The side panels feature a removable system that simplifies access to the equipment and cabling during installation or maintenance. They also have a security lock for greater protection of the installation.

Removable side panels
Integrated security lock
Convenient access to the installed equipment

Designed for efficient cable management and ventilation
The cabinet features several cable entries located on the top, bottom and rear panels, allowing the installation to be adapted to different configurations. It also has two fan openings at the top to improve cooling when necessary.

Cable entry holes in three positions

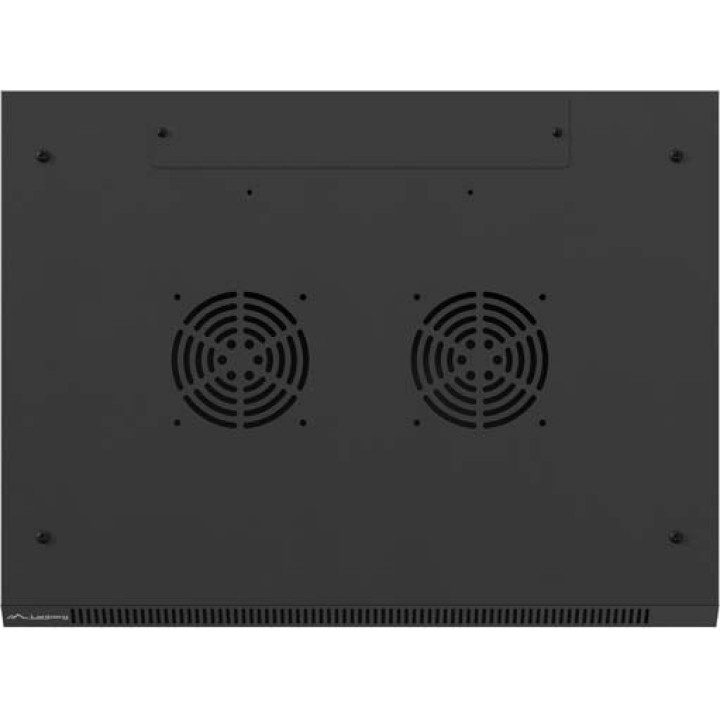

2 fan openings in the top cover
Neat network cabling layout

Complete supply for assembly

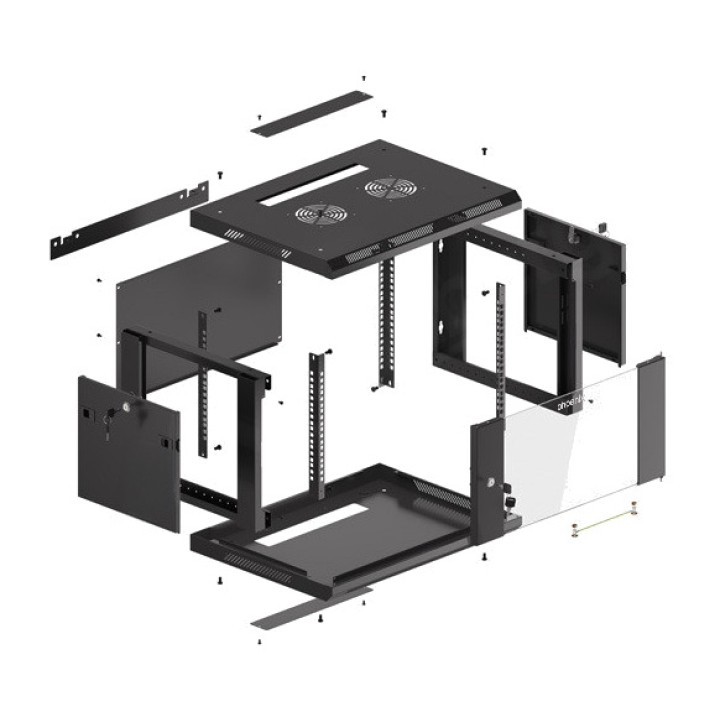

The Phoenix PHTN76U is supplied disassembled in Flat Pack format, optimising transport and storage. It includes the essential accessories to facilitate installation and commissioning.

Front lock with key
Side security locks

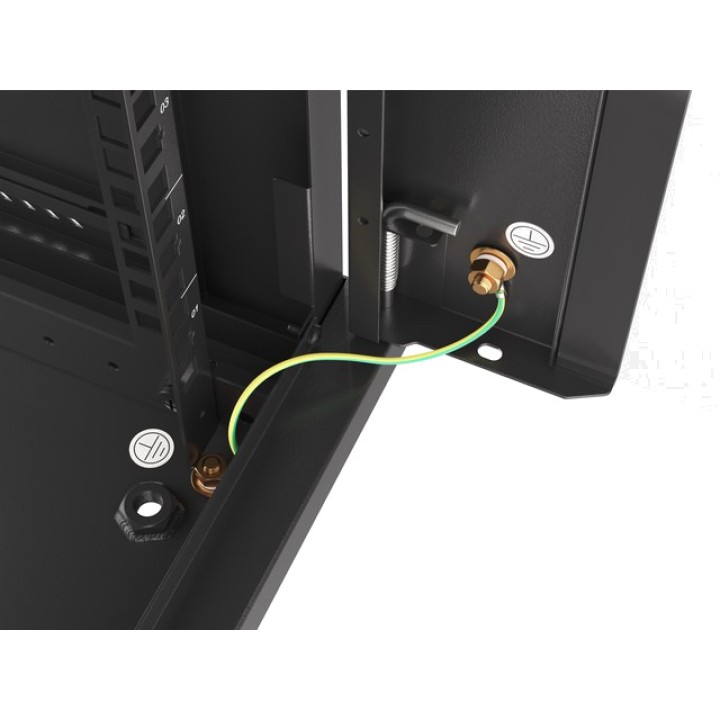

Earth cable included
20 M6 screws and nuts included

Other specifications

Phoenix reference: PHTN76U
EAN Code: 8436626132474
Standard rack format 19"
Wall mounting
COLOUR: BLACK
CE and RoHS certifications
Compatible standards: ANSI/EIA RS-310-D, DIN 41491 Part 1, DIN 41494 Part 7, ETSI e IEC 297-2:1982
Volume (m ³): 0.0659
