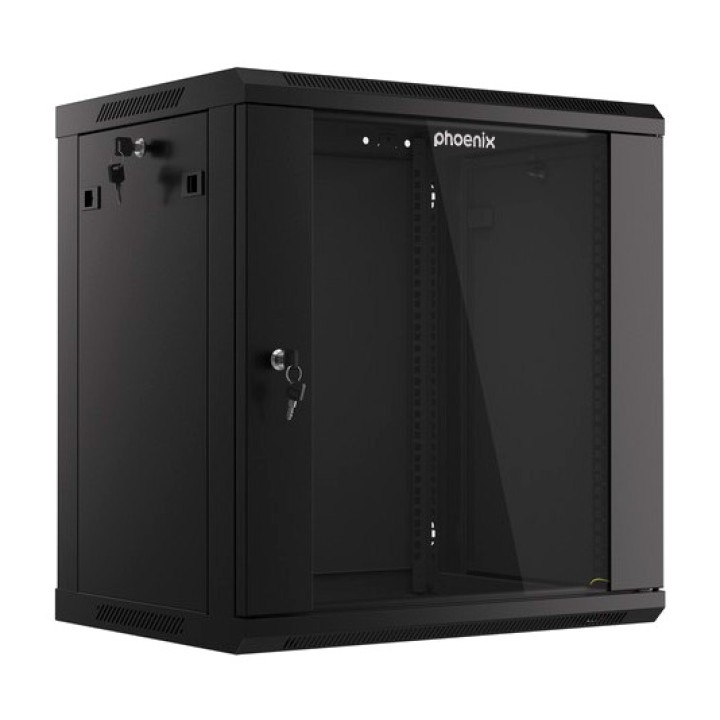

PHOENIX 19-inch self-assembly rack cabinet 12U 600X450X640MM MAX-60KG DSP0000041215

Features of the Phoeni Wall-Mount Cabinet x PHTN712U 12U 19"
The Phoenix PHTN712U Wall-Mount Cabinet is the highest-capacity model in the Phoenix wall-mount range, with a depth of 450 mm. Its 12U provide ample space for growing network installations, allowing switches, patch panels, routers, UPS systems and cable management accessories to be integrated into a single wall cabinet.
Greater capacity for network installations
With 12 rack units and a standard 19" format, this cabinet allows different communications devices to be organised in a compact structure. Its load capacity of up to 60 kg makes it easy to securely mount network devices and accessories.

CAPACITY: 12U
Standard format: 19"
Depth: 450 mm
Maximum load capacity: 60 kg
Dimensions: 600 × 450 × 640 mm

Durable construction and professional finish
The cabinet is made of cold-rolled steel with a black powder-coated finish, providing a sturdy structure for installing network equipment. Its IP20 protection rating helps prevent accidental contact with the components housed inside.

Material: Cold-rolled steel
Finish: Powder coating
COLOUR: BLACK
Protection rating: IP20

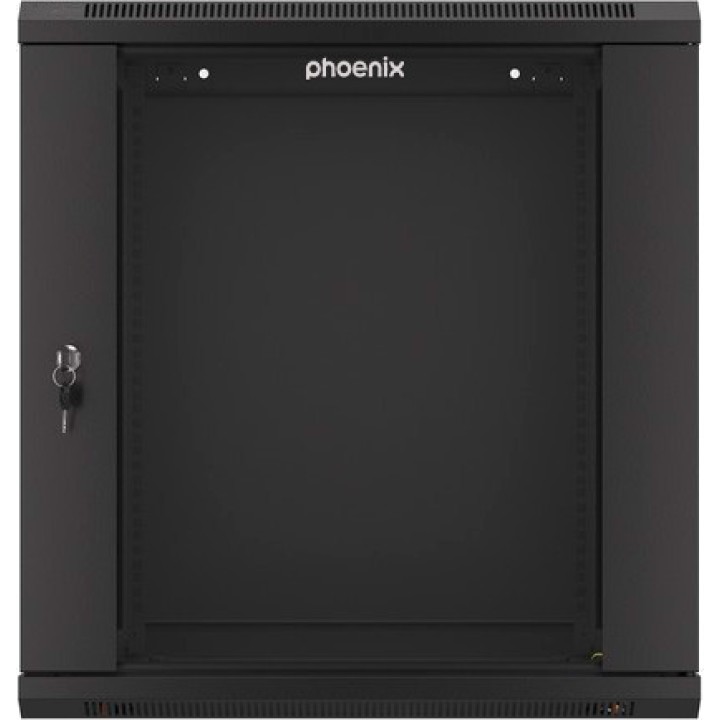

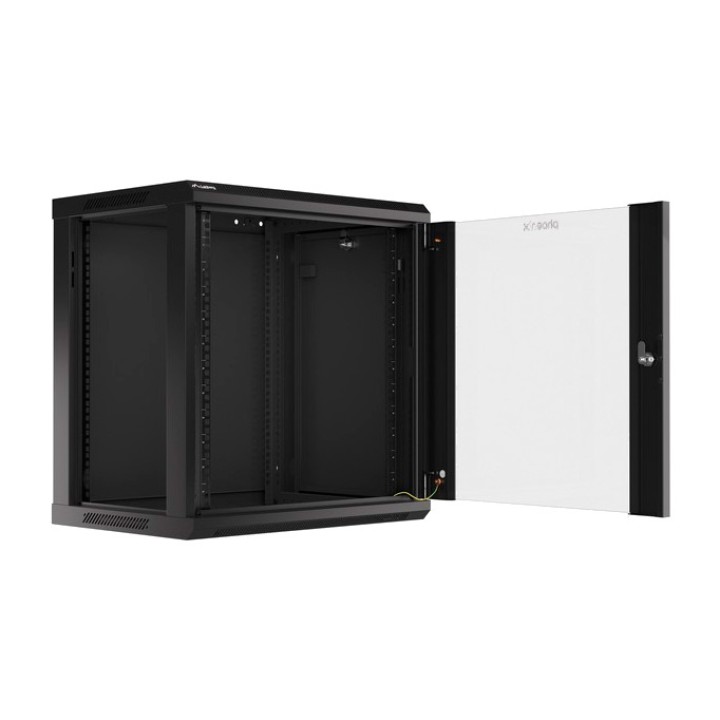

Tempered glass front door
The tempered glass front door allows the equipment to be visually monitored without opening the cabinet. It opens to more than 180°, making installation and maintenance easier, and is fitted with a key lock to restrict access to the interior.

Tempered glass front door
Opening angle of over 180°
Front lock with key
Convenient access for installation and maintenance

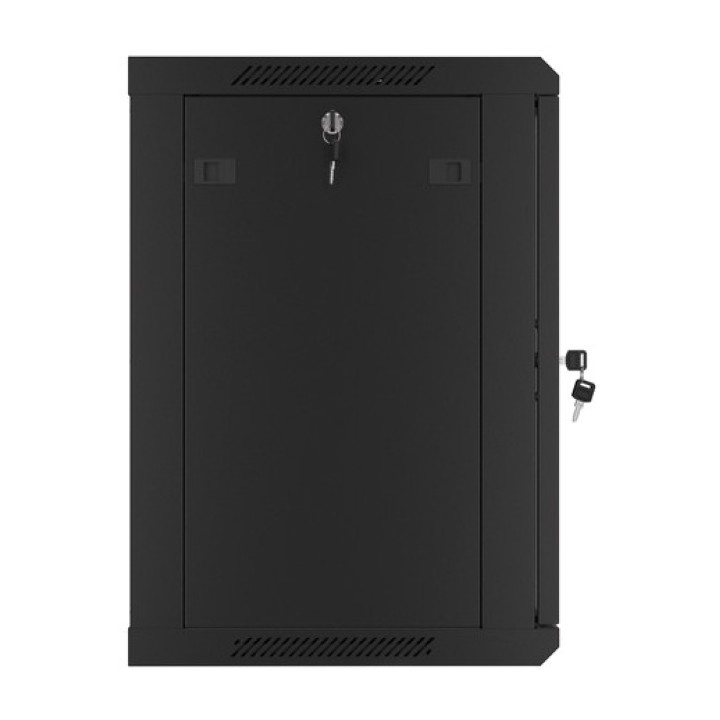

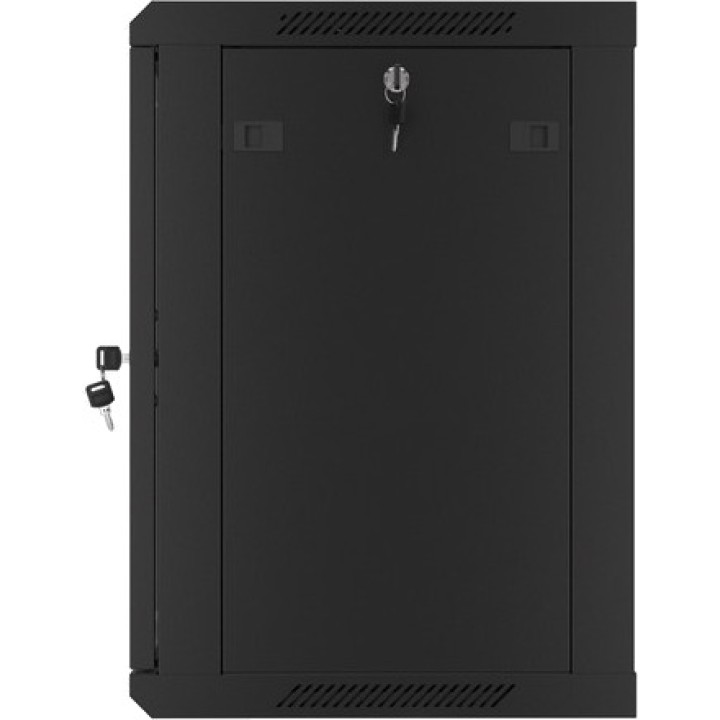

Removable side panels with security locks
The removable side panels make it easier to access the equipment and cabling from both sides of the cabinet. Their security locks help protect the installed components and make technical work more convenient.

Removable side panels
Side security locks
Side access for maintenance

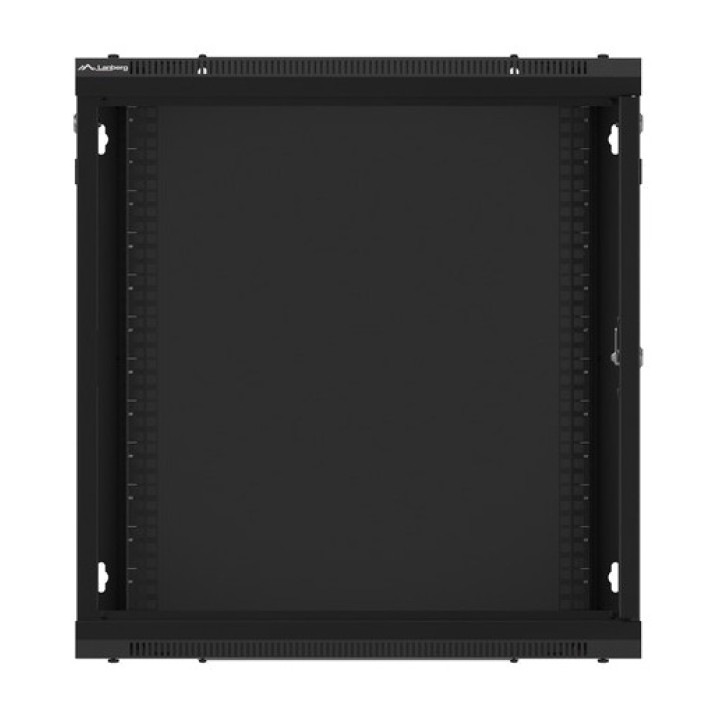

Flexible cable management
The Phoenix PHTN712U features pre-drilled cable entry holes in three positions. The openings in the top, bottom and rear panels allow the installation to be adapted to the cable layout while keeping the inside of the cabinet tidy.

Cable entry in the top panel
Cable entry in the bottom panel
Cable entry in the rear panel
Flexible and orderly cable routing

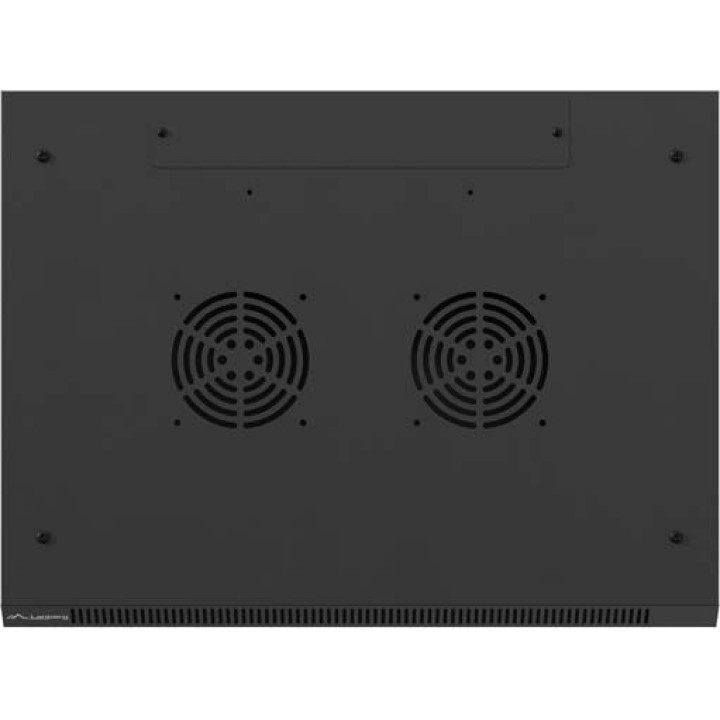

Ready for active ventilation
The top cover has two openings for installing fans, allowing active ventilation to be added when the number of devices or operating conditions require improved airflow.

2 fan openings in the top panel
Ready for cooling expansion
Suitable for equipment in continuous operation

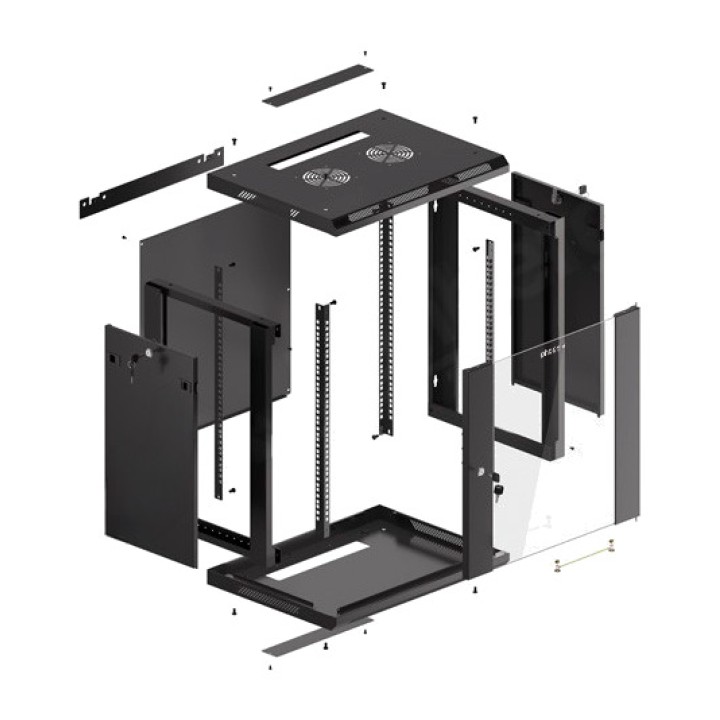

Wall mounting and Flat Pack supply
This model is designed for wall mounting and is supplied disassembled in flat-pack packaging. The Flat Pack format makes it easier to transport and store before assembly at the final installation location.

Mounting type: wall-mounted
Supplied disassembled
Flat Pack packaging

Included accessories
The cabinet includes the basic components for safety, grounding and equipment mounting, making it easier to prepare the installation initially.

Front lock with key
Side security locks

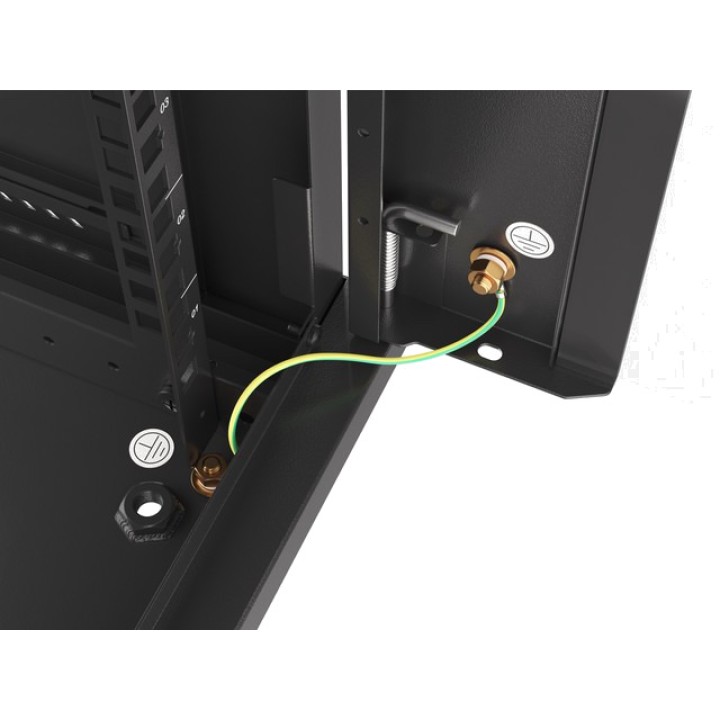

Grounding cable
20 screws and nuts M6

Technical specifications

Phoenix reference: PHTN712U
EAN Code: 8436626132498
Rack units: 12U
Format: standard 19"
Dimensions: 600 × 450 × 640 mm
Load capacity: 60 kg
Material: Cold-rolled steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and locks with a key
Side panels: removable with security lock
Cable openings: top, bottom and rear panels
Ventilation: 2 fan openings in the cover
Mounting: wall-mounted
Presentation: supplied disassembled in flat-pack packaging
Certifications: CE and RoHS

Applicable standards
The Phoenix PHTN712U Wall-Mount Cabinet complies with the main standards applicable to 19" rack cabinets and telecommunications equipment.

ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC 297-2:1982
Volume (m ³): 0.0867
