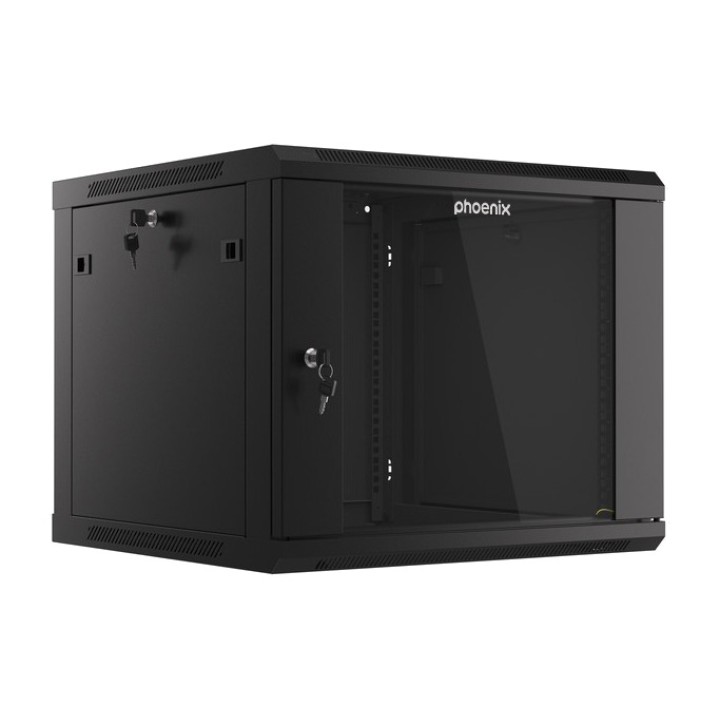

PHOENIX 19-inch self-assembly rack cabinet 9U 600X600X501MM MAX-60KG DSP0000041214

Features of the Phoeni Wall-Mount Cabinet x PHTN79U600 9U 19"
The Phoenix PHTN79U600 Wall-Mount Cabinet extends the depth of the wall-mount range to 600 mm, providing space for longer equipment that will not fit in 450 mm cabinets. Its 9U capacity accommodates compact 1U servers, rack-mounted NAS systems, switches, patch panels and security equipment with integrated power supplies.
Extended depth for longer equipment
The 600 mm usable internal depth makes it easy to install network devices and compact systems with a greater-than-usual depth. This configuration lets you benefit from a wall-mount cabinet without limiting installation to shallow equipment.

Usable internal depth: 600 mm
CAPACITY: 9U
Standard format: 19"
Compatible with compact 1U servers and rack-mounted NAS systems
Suitable for security equipment with integrated power supplies

Wall-mount format with a load capacity of 60 kg
The 9U format for 19" rack equipment lets you organise various communications devices in a compact structure mounted on the wall. Its maximum load capacity of 60 kg provides the support needed to install network equipment, accessories and compact storage systems.

Rack units: 9U
Format: standard 19"
Dimensions: 600 × 600 × 507 mm
Maximum load capacity: 60 kg
Installation type: wall-mounted

Durable construction and professional finish
The cabinet is made of cold-rolled steel with a black powder-coated finish, providing a sturdy structure to protect and organise the equipment. Its IP20 protection rating helps prevent accidental contact with the components installed inside.

Material: Cold-rolled steel
Finish: Powder coating
COLOUR: BLACK
Protection rating: IP20

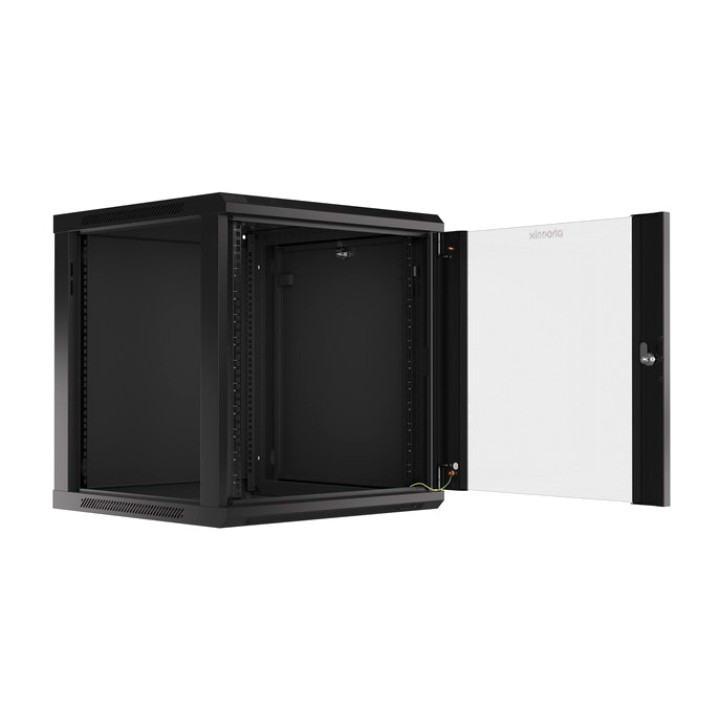

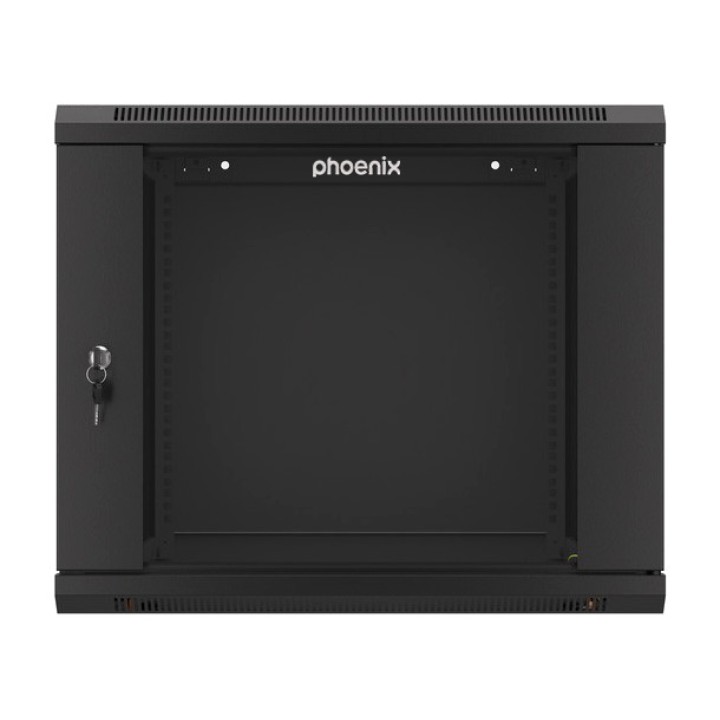

Tempered glass front door
The tempered-glass front door allows you to visually monitor the equipment without opening the cabinet. Its opening angle of over 180° facilitates installation and maintenance work, while the key lock helps control access to the equipment.

Tempered glass front door
Opening angle of over 180°
Front lock with key
Convenient access for installation and maintenance

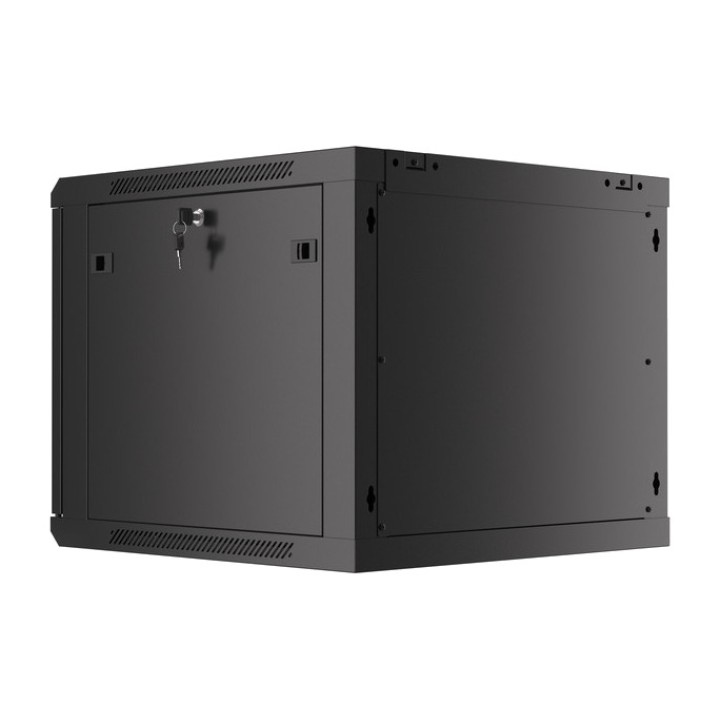

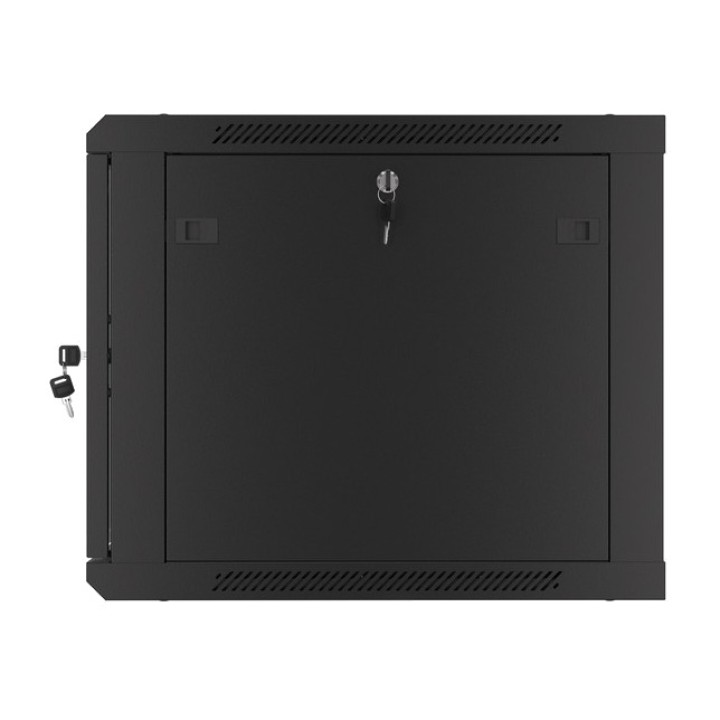

Removable side panels with security locks
The removable side panels provide easy access to the interior from both sides of the cabinet. This design simplifies equipment installation, cable connections and maintenance, while the security locks keep the sides protected.

Removable side panels
Side security locks
Side access to equipment and cabling
Greater convenience during installation and maintenance

Flexible cable management
The Phoenix PHTN79U600 features pre-drilled cable openings in three positions, allowing the cable entry and exit points to be adapted to the requirements of each installation. The top, bottom and rear access points help keep network and power cables separate and organised.

Cable entry in the top panel
Cable entry in the bottom panel
Cable entry in the rear panel
Organised routing of network and power cables

Ready for active ventilation

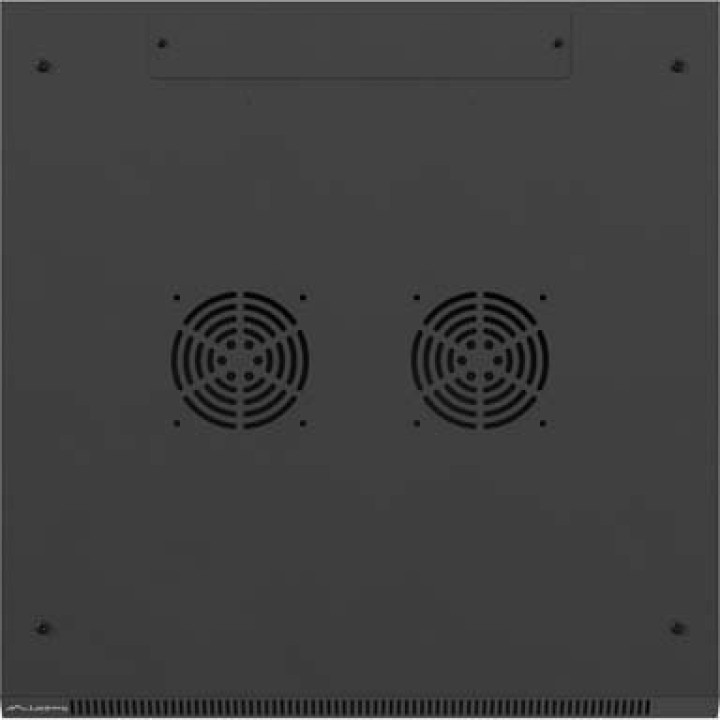

The top cover has two openings for installing fans, allowing active ventilation to be added when the number of devices or their operating conditions make it necessary to improve the circulation of air inside.

2 fan openings in the top panel
Ready for cooling expansion
Suitable for installations with equipment in continuous operation

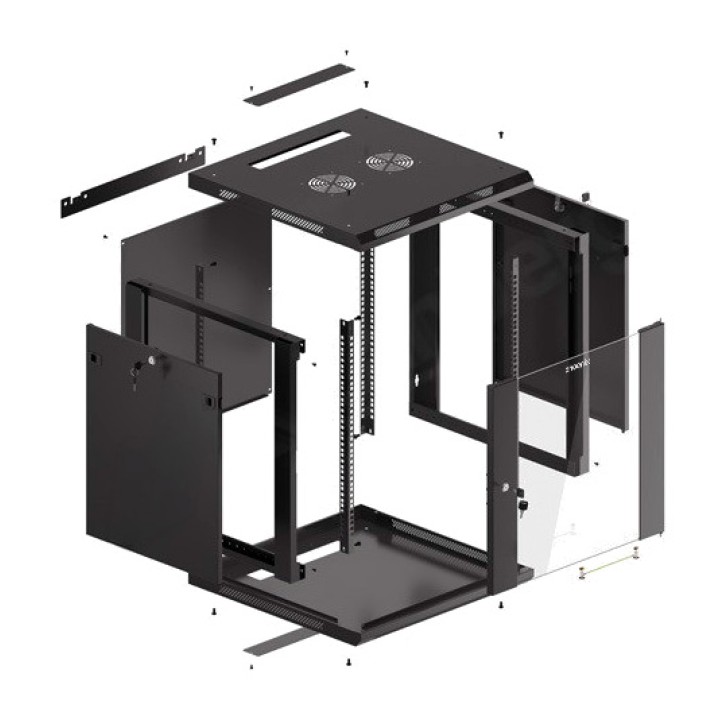

Supplied disassembled in Flat Pack format
The cabinet is supplied disassembled in flat-pack packaging, making it easier to transport, handle and store before it is permanently installed on the wall.

Wall mounting
Supplied disassembled
Flat Pack packaging

Included accessories
The Phoenix PHTN79U600 includes the basic components for locking, earthing and mounting equipment, helping to complete the initial cabinet setup.

Front lock with key
Side security locks

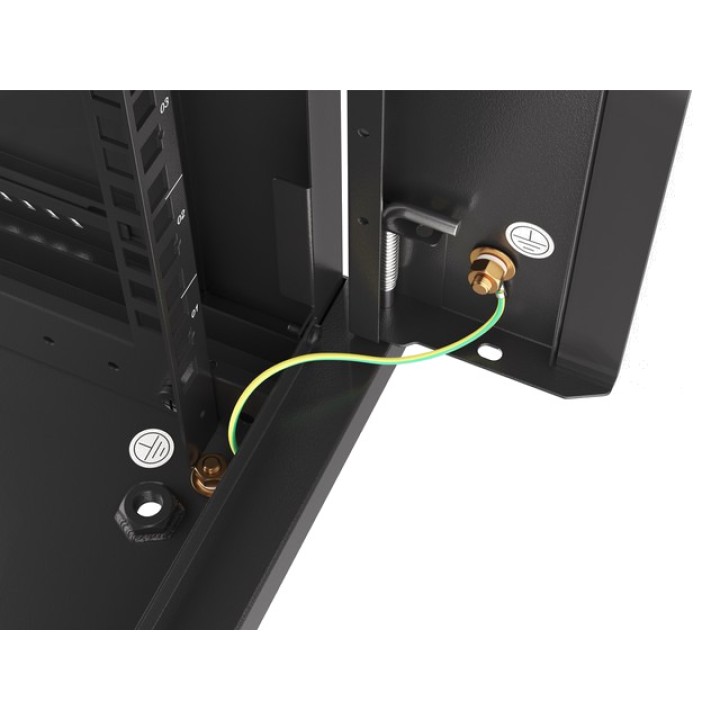

Grounding cable
20 screws and nuts M6

Technical specifications

Phoenix reference: PHTN79U600
EAN Code: 8436626132504
Rack units: 9U
Format: standard 19"
Width, depth and height dimensions: 600 × 600 × 507 mm
Usable internal depth: 600 mm
Load capacity: 60 kg
Material: Cold-rolled steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and locks with a key
Side panels: removable with security lock
Cable openings: top, bottom and rear panels
Ventilation: 2 fan openings in the cover
Mounting type: wall-mounted
Packaging: supplied disassembled in flat-pack packaging
Certifications: CE and RoHS

Applicable standards
The Phoenix PHTN79U600 Wall-Mount Cabinet complies with the main standards applicable to 19" rack cabinets and telecommunications equipment.

ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC 297-2:1982
Volume (m ³): 0.0946
