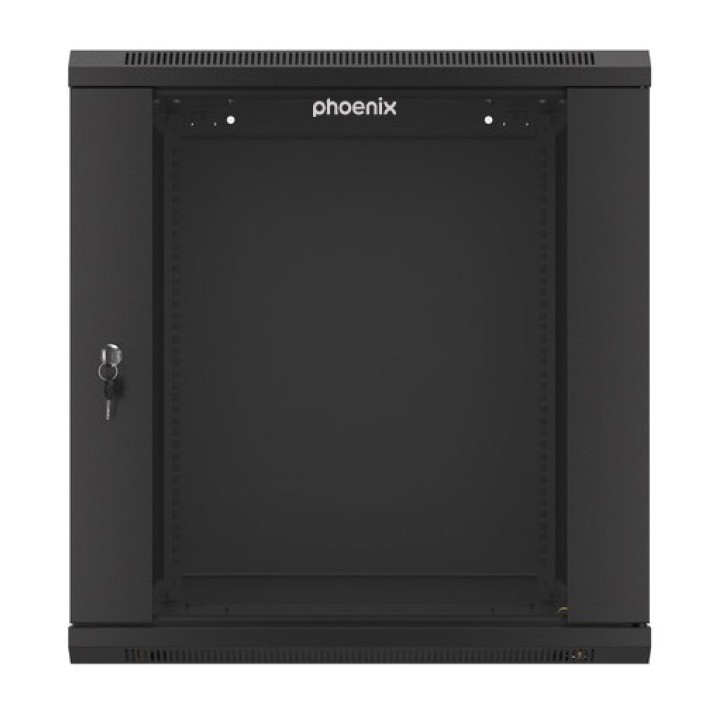

PHOENIX 19-inch self-assembly rack cabinet 12U 600X600X640MM MAX-60KG DSP0000041213

Features of the Phoeni Wall-Mount Cabinet x PHTN712U600 12U 19"
The Phoenix PHTN712U600 Wall-Mount Cabinet combines the largest capacity in the wall-mount range, with 12U and a depth of 600 mm, to accommodate larger network equipment. It is suitable for 1U servers up to 550 mm, rack-mounted NAS systems, UTM appliances, switches and IP video surveillance equipment with integrated power supplies.
Maximum capacity in a wall-mount format
Its 12 rack units in the standard 19" format provide space to organise a complete network installation on a wall. The increased depth allows equipment to be installed that cannot fit in conventional 450 mm-deep wall cabinets.

CAPACITY: 12U
Standard format: 19"
Usable internal depth: 600 mm
Dimensions: 600 × 600 × 640 mm
Maximum load capacity: 60 kg

Extended depth for larger equipment
The 600 mm depth accommodates devices up to 550 mm, expanding installation options compared with shallower wall cabinets. This makes it possible to integrate compact servers, network storage and security equipment without giving up wall mounting.

Compatible with 1U servers up to 550 mm
Suitable for rack-mount NAS systems
Space for UTM appliances
Compatible with IP video surveillance equipment
Suitable for devices with integrated power supplies

Robust construction with protection IP20
The cabinet is made of cold-rolled steel with a black powder-coated finish, providing a sturdy structure to protect and organise the installed equipment. Its IP20 protection rating helps prevent accidental contact with the components housed inside.

Material: Cold-rolled steel
Finish: Powder coating
COLOUR: BLACK
Protection rating: IP20

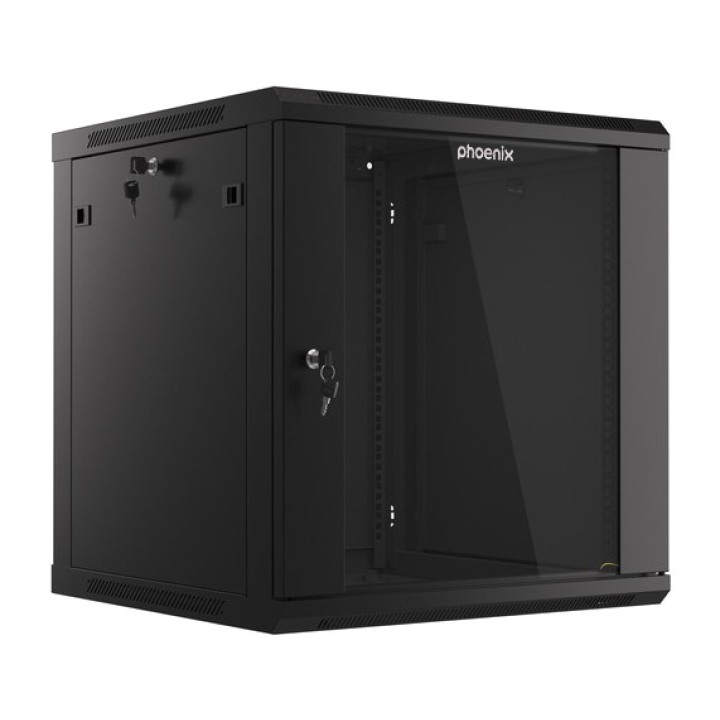

Tempered glass front door

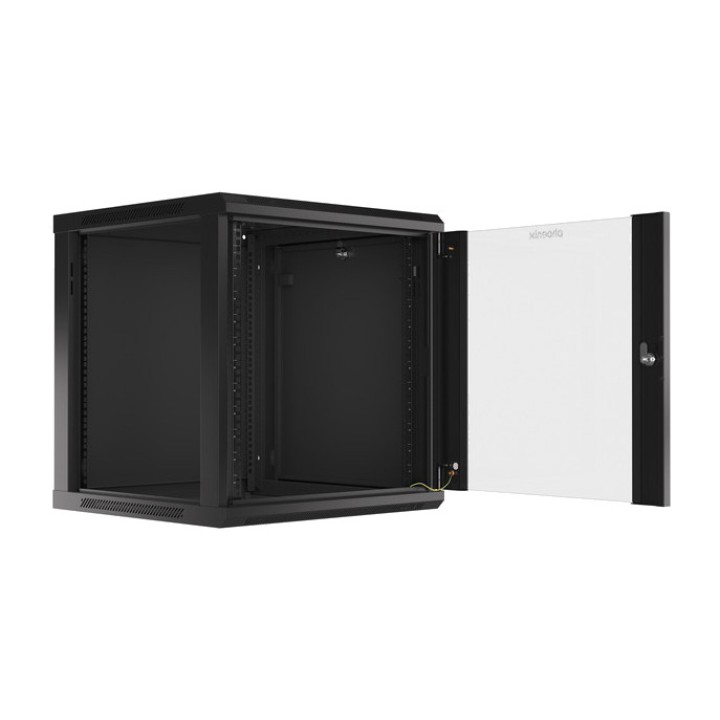

The tempered glass front door allows you to view the equipment without opening the cabinet. Its opening angle of over 180° facilitates installation and maintenance, while the key lock allows access to the equipment to be controlled.

Tempered glass front door
Opening angle of over 180°
Front lock with key
Visual monitoring of installed equipment
Convenient access for installation and maintenance

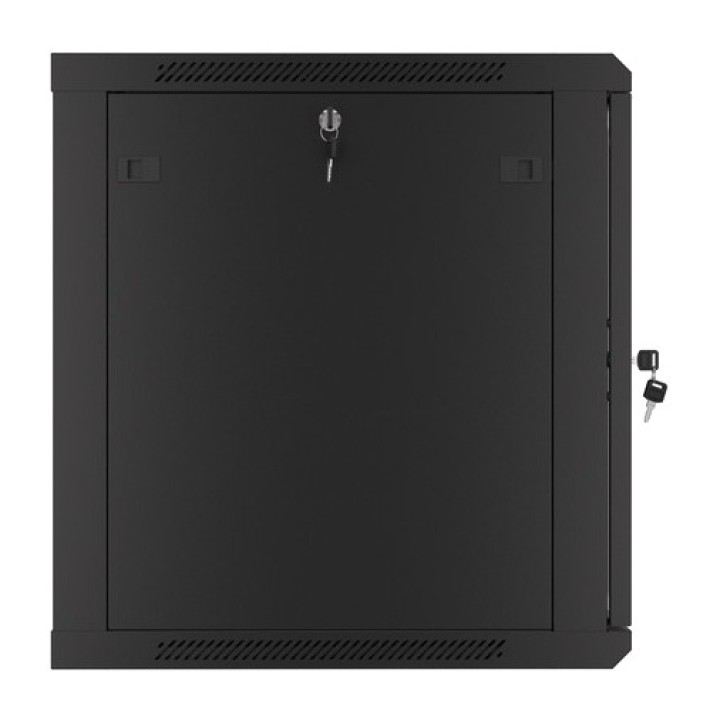

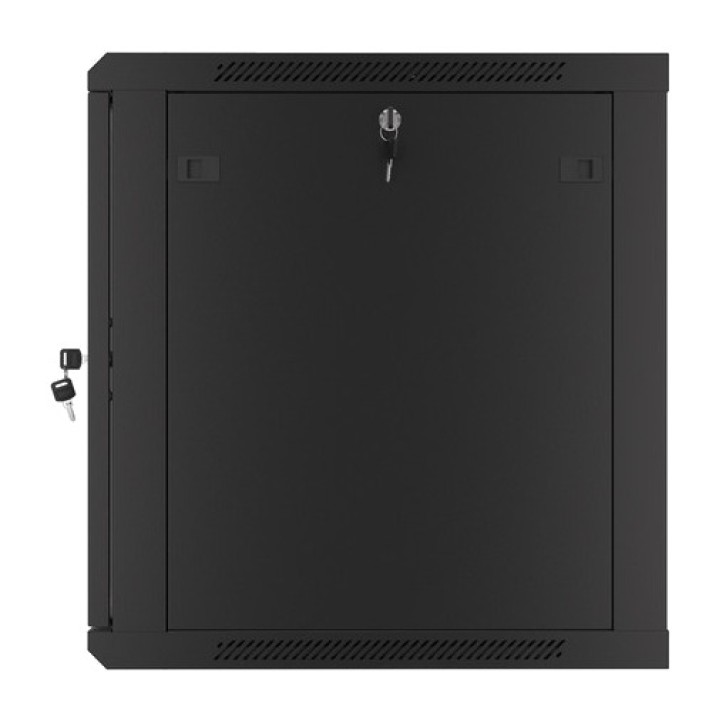

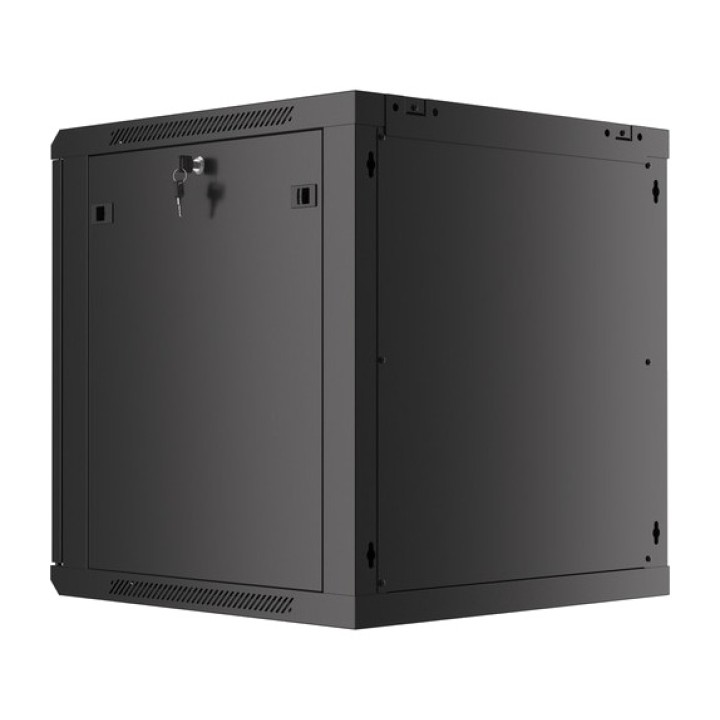

Removable side panels with security locks
The removable side panels provide easy access to the inside of the cabinet from both sides. This configuration simplifies device installation, cable connections and maintenance work, while keeping access protected by security locks.

Removable side panels
Side security locks
Side access to the equipment
Easier cable and connection organisation

Flexible cable management
The Phoenix PHTN712U600 features pre-drilled cable entry holes in three panels. The top, bottom and rear access points allow cable entry and exit to be adapted to the requirements of each installation, helping to keep network and power connections neatly organised.

Cable entry in the top panel
Cable entry in the bottom panel
Cable entry in the rear panel
Flexible cable routing
Organisation of network and power connections

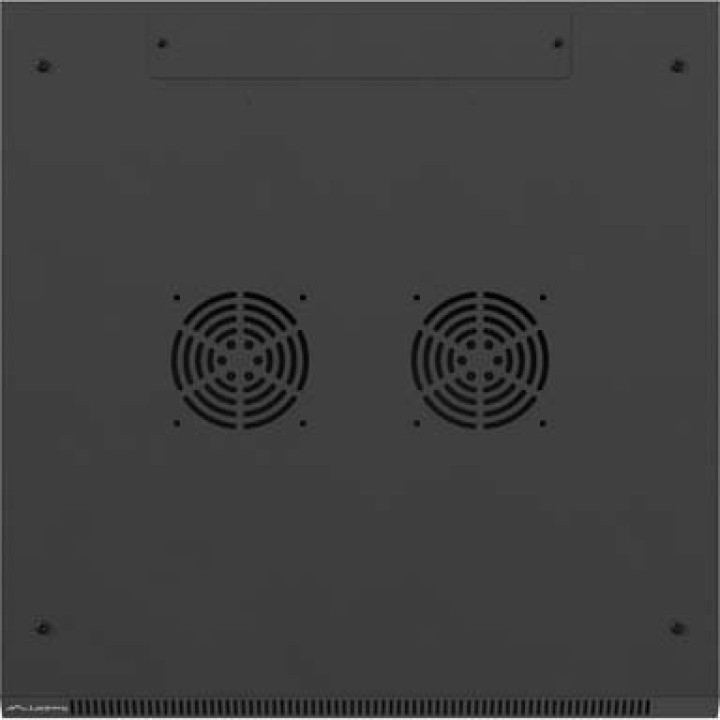

Ready for active ventilation
The top cover has two openings for installing fans, allowing active ventilation to be added when the number of devices or their operating conditions require improved air circulation inside.

2 fan openings in the top panel
Ready for cooling expansion
Suitable for equipment in continuous operation
Helps dissipate heat from inside

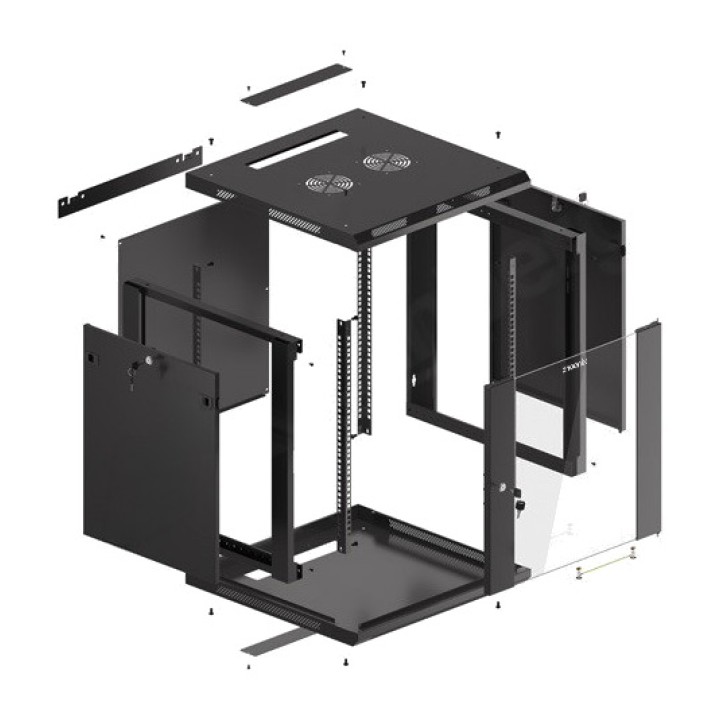

Wall mounting and Flat Pack supply
The cabinet is designed for wall mounting and is supplied disassembled in flat-pack packaging. The Flat Pack format makes it easier to transport, handle and store before assembly at the final location.

Mounting type: wall-mounted
Supplied disassembled
Flat Pack packaging

Included accessories
The Phoenix PHTN712U600 includes the basic components for locking, earthing and securing equipment, making it easier to prepare the cabinet initially and install compatible devices.

Front lock with key
Side security locks

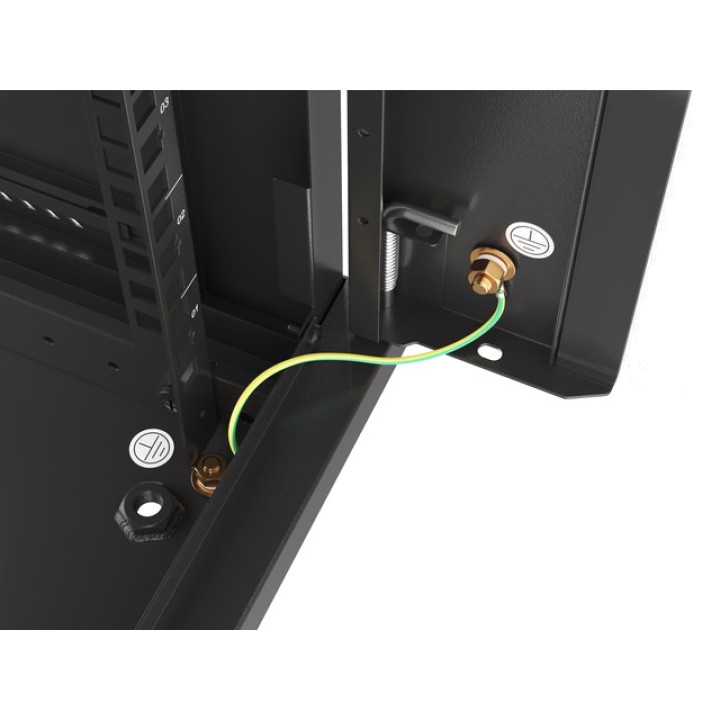

Grounding cable
20 screws and nuts M6

Technical specifications

Phoenix reference: PHTN712U600
EAN Code: 8436626132511
Rack units: 12U
Format: standard 19"
Width, depth and height dimensions: 600 × 600 × 640 mm
Usable internal depth: 600 mm
Maximum length specified for 1U servers: 550 mm
Load capacity: 60 kg
Material: Cold-rolled steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and locks with a key
Side panels: removable with security lock
Cable openings: top, bottom and rear panels
Ventilation: 2 fan openings in the cover
Mounting: wall-mounted
Packaging: supplied disassembled in flat-pack packaging
Certifications: CE and RoHS

Applicable standards
The Phoenix PHTN712U600 Wall-Mount Cabinet complies with the main standards applicable to 19" rack cabinets and telecommunications equipment.

ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC 297-2:1982
Volume (m ³): 0.0941
