LANBERG Floor-standing rack cabinet with perforated door and LCD display 19" 37U 600X600MM FF01-6637-23BL DSP0000042414

Features of the Lanberg FF01 19" 37U 600x600 LCD Black Rack Installation Cabinet with Perforated Door
The Lanberg FF01 19" 37U rack cabinet is designed for professional server, network and ICT equipment installations that require a robust, organised structure capable of supporting heavy loads. Its freestanding 600 x 600 mm format, perforated doors, LCD panel and static load capacity of up to 1200 kg make it possible to create a secure, functional infrastructure in data centres, technical rooms and business environments.
Robust structure with a capacity of up to 1200 kg
The FF01 series features a cold-rolled steel construction with reinforced thicknesses in the main structural elements. The frame, covers and beams are designed to provide stability even when servers or other heavy devices are installed, with a maximum static load of 1200 kg.

Maximum static load: 1200 kg
Frame thickness: 1.5 mm
Mounting rail thickness: 2 mm
Top and bottom panel thickness: 1,5 mm
Thickness of other components: 1.5 mm

19" rack format with a capacity of 37U
This model provides 37 height units for installing devices compatible with the 19" rack standard. Its four vertical rails allow servers, network equipment, panels, power systems and other ICT infrastructure accessories to be organised and secured.

Cabinet type: freestanding
FORMAT: 19"
Mounting height: 37U
Number of vertical rails : 4
Mounting depth: 480 mm

LCD panel with thermostat and ventilation control
The integrated LCD panel facilitates monitoring and control of the cabinet’s internal conditions. It includes a thermostat, timer and manual fan control, allowing you to set the temperature at which cooling should be activated.

LCD panel: yes
Thermostat: Yes
Manual fan control
Setting the activation temperature
Integrated timer

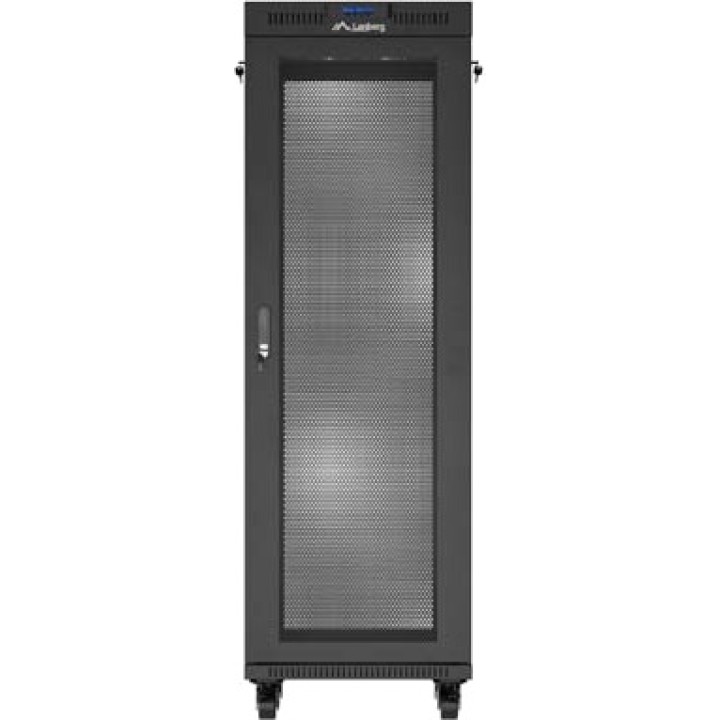

Efficient cooling with perforated doors

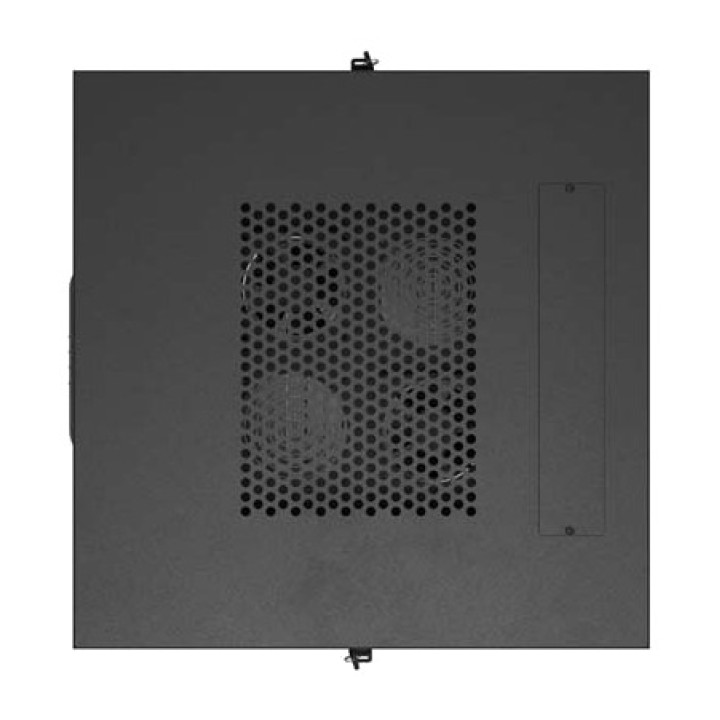

Ventilation is essential in installations with servers and network equipment. For this reason, this Lanberg FF01 has perforated front and rear doors with a perforation rate of over 65 %, promoting airflow through the interior. It also incorporates a ventilation panel equipped with two fans.

Front door: perforated
Rear door: perforated
Perforation rate: > , 65 %
Number of fan slots : 2
Ventilation panel included with 2 fans

Single-leaf doors with a wide opening angle

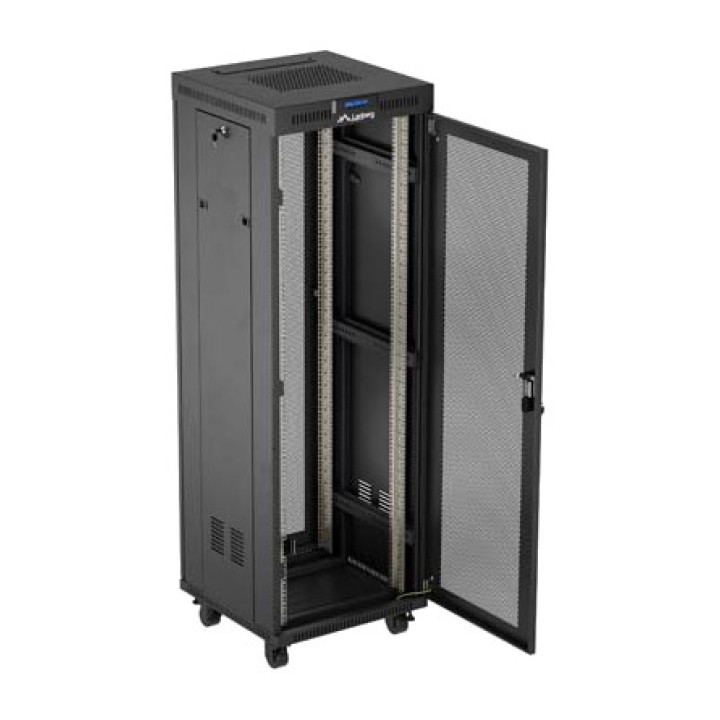

The door configuration facilitates installation, maintenance and access to the equipment housed in the rack. The front door can open to a maximum angle of 210°, providing ample space to work inside the cabinet.

Door type: single-panel
Maximum front door opening angle: 210°
Front door thickness: 1,2 mm
Rear door thickness: 1,2 mm
Side panel thickness: 1,2 mm

Flat Pack design for easy transport and assembly
The cabinet is supplied as a Flat Pack for self-assembly, a solution that facilitates transport and handling before installation, especially where space or access is limited. The components are individually packaged to reduce the risk of damage during transit.

Assembly: self-assembly
Supply format: flat pack or Flat Pack
M6 screws included
Feet included
Wheels with brakes included

Mobility and stability for professional installations

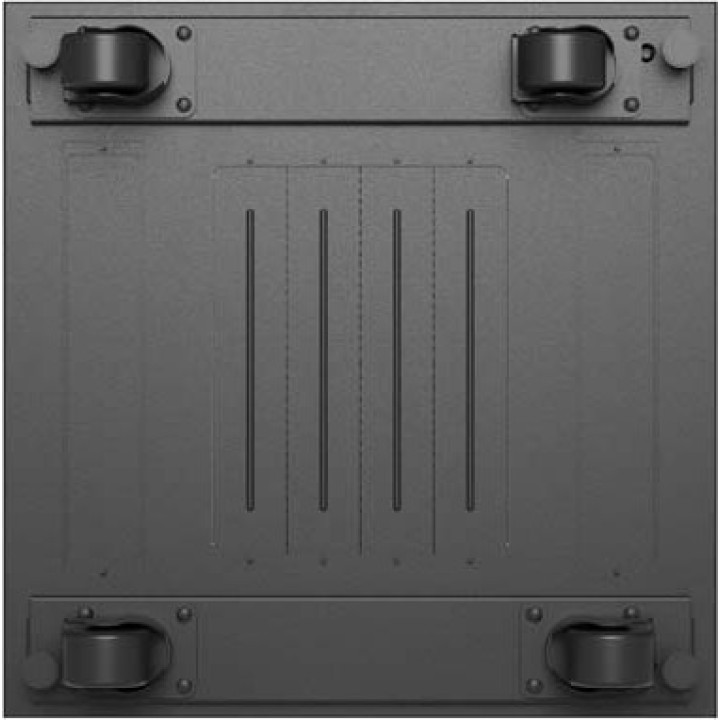

Weighing 85 kg and featuring a structure designed for heavy loads, the cabinet includes castors with brakes and feet to adapt its installation to the requirements of the environment. The castors make it easier to move during installation or maintenance, while the braking system helps keep it stable once in position.

WIDTH: 600 MM
Depth: 600 mm
Total height: 1898 mm
Height without castors: 1795 mm
Weight: 85kg

Grounding and protection IP20
The Lanberg FF01 features grounding connections on the frame, main door and rear door, providing an additional measure of protection for the installed equipment. It also has an IP20 protection rating.

Protection rating: IP20
Frame earthing
Main door grounding connection
Rear door grounding connection
Ground cable included

Security and included accessories
To facilitate a complete installation from the outset, the cabinet includes locking systems, mounting components, cooling and grounding accessories. Its configuration allows both the equipment and auxiliary rack components to be organised safely.

Front lock
Rear lock
Side locks
Ventilation panel with 2 fans
Ground wire
Feet
Wheels with brakes
Thermostat
Screws M6

Compatible with accessories for rack infrastructure
The FF01 series can be complemented with accessories designed to improve organisation, cooling, power supply and cable management. This makes it possible to adapt the cabinet to different server, network and telecommunications configurations.

Universal, side-mounted and sliding shelves
Cable organizers and management panels
Brush panels and covers
Ventilation panels and thermostats
Patch panels and keystone panels
PDU power strips
Accessories and tools to support installation

Standards and finish
The cabinet is manufactured in accordance with various standards used in rack and telecommunications installations. Its RAL9004 black finish provides a uniform, professional appearance for server rooms and other technical installations.

COLOUR: BLACK
RAL colour: RAL9004
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Manufacturer code: FF01-6637-23BL
Ean: 5901969446821
Warranty: 36 months
Volume (m ³): 0.5720
