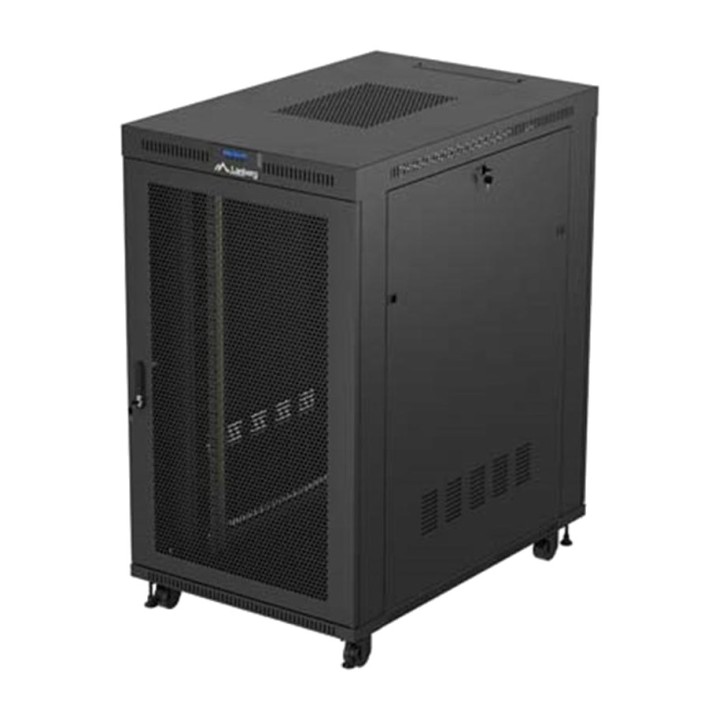

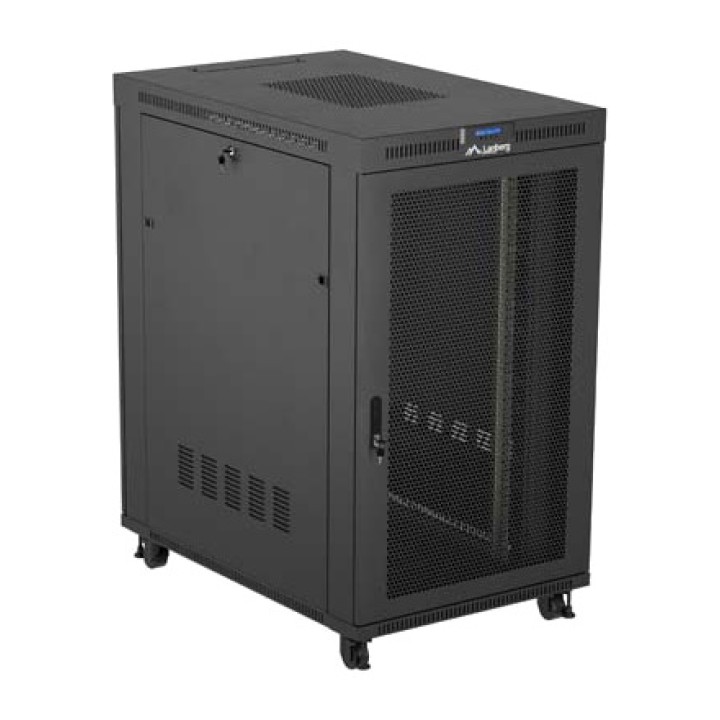

LANBERG Floor-standing rack cabinet with perforated door and LCD display 19" 27U 800X1200MM FF01-8227-23BL DSP0000042410

Features of the Lanberg FF01 27U 800 x 1200 Freestanding 19" Rack Cabinet with LCD Panel, Black
The Lanberg FF01 27U rack cabinet is designed to store and organise ICT infrastructure and server equipment in professional installations. Its freestanding 19" format, 800 x 1200 mm dimensions and maximum static load of 1200 kg provide a structure suited to demanding configurations, while the perforated doors, ventilation system and LCD panel make it easy to monitor internal conditions.
Robust structure with a capacity of up to 1200 kg
The FF01 series uses cold-rolled steel construction and different thicknesses in its structural elements to provide stability and strength. This model supports a maximum static load of 1200 kg, allowing heavy servers and other infrastructure equipment to be installed.

Maximum static load: 1200 kg
Mounting rail thickness: 2 mm
Top and bottom panels: 1.5 mm
Front and rear doors: 1.2 mm
Side panels: 1.2 mm
Frame thickness: 1,2 mm
Thickness of other components: 1.5 mm

19" rack format and 27U
With a height of 27U and a mounting depth of 1120 mm, this cabinet provides space for organising equipment compatible with the 19" rack format. Its four vertical rails allow the various infrastructure components to be configured.

Type: freestanding cabinet
FORMAT: 19"
Rack height: 27U
Mounting depth: 1120 mm
Number of vertical rails : 4

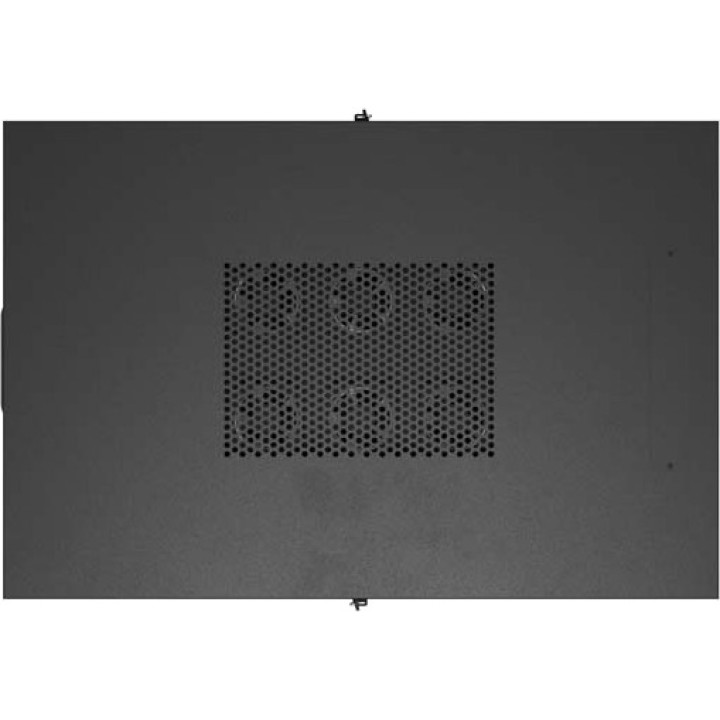

Cooling with 6 fans
To promote suitable operating conditions, the cabinet includes a ventilation panel with 6 fans. The perforated front and rear doors, with a perforation rate of over 65%, help facilitate airflow through the inside of the rack.

Number of fan slots : 6
Ventilation panel included: 6 fans

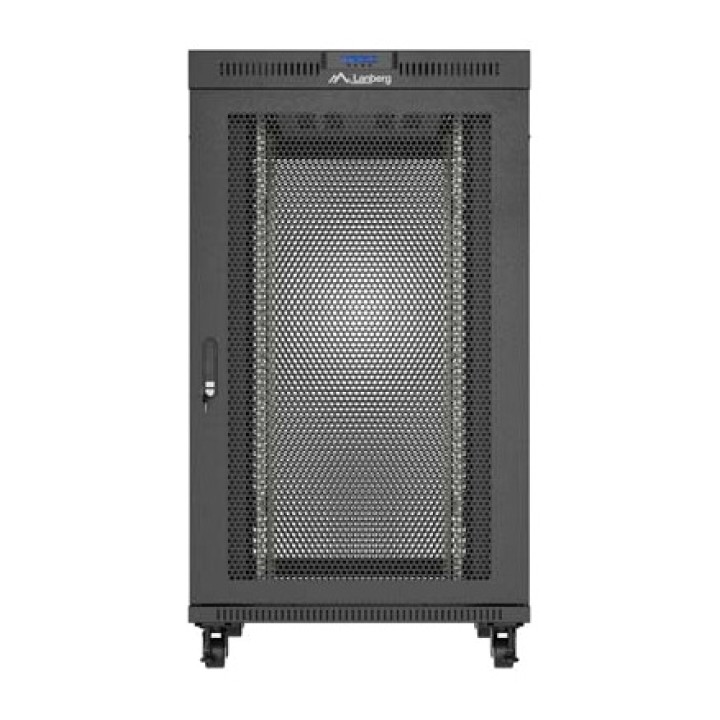

Front door: perforated

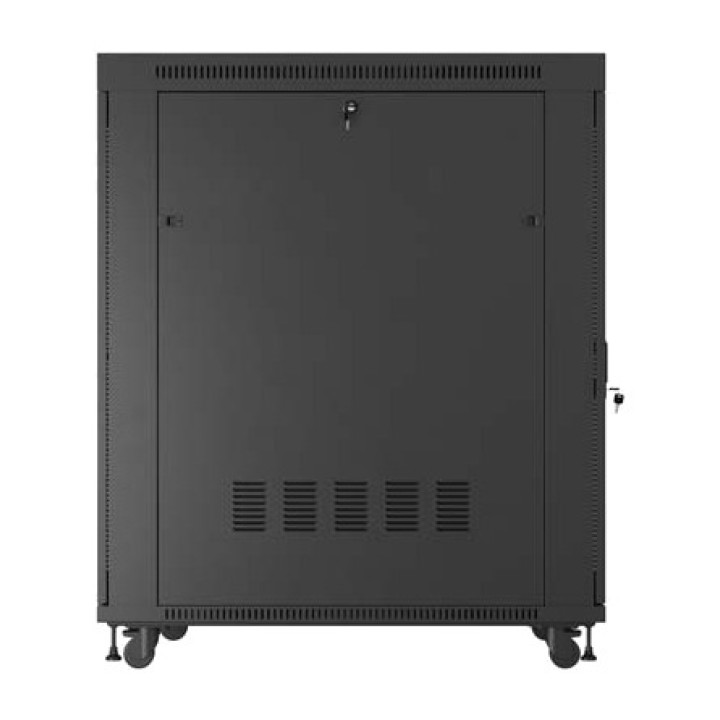

Rear door: perforated
Perforation rate: over 65 %

LCD panel with thermostat
The integrated LCD panel makes it easier to manage the cabinet’s cooling conditions. It features a thermostat and timer, and allows the fans to be switched on and off manually and the temperature at which they start operating to be set.

LCD panel: yes
Thermostat: Yes
Integrated timer
Manual fan on/off control
Set the temperature at which ventilation is activated

Perforated doors and access to equipment

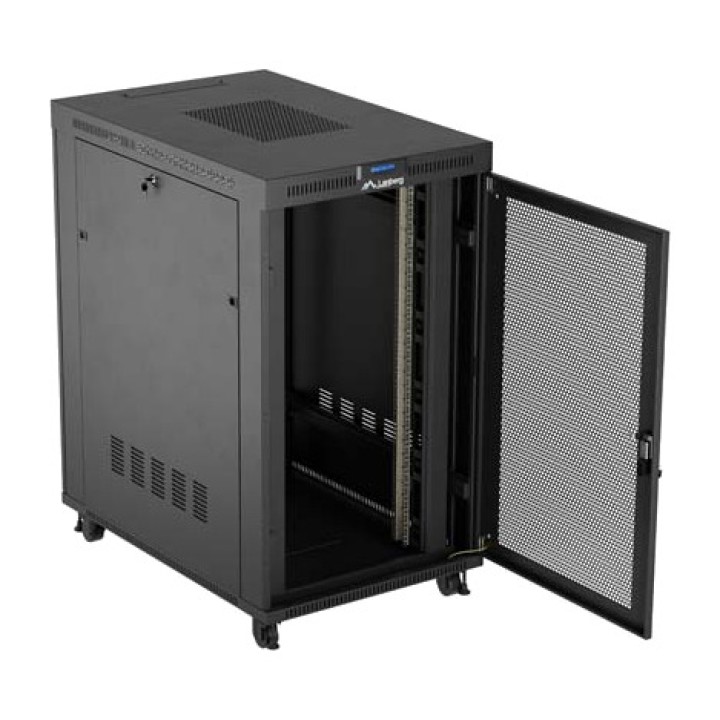

The single-panel front and rear doors feature a perforated design, combining access to the equipment with airflow. The front door opens to a maximum angle of 215°, making installation and maintenance easier.

Door type: single-panel
Front door: perforated
Rear door: perforated
Maximum front door opening angle: 215°
Front lock included
Rear lock and side locks included

Flat Pack design for easy transport
The cabinet is supplied in Flat Pack format for assembly, reducing the space required during transport and allowing assembly at the installation site. The components are supplied protected to minimise the risk of damage during transit.

Assembly: self-assembly
Packaging format: Flat Pack
Installation instructions available
M6 screws included

Mobility, stability and earthing

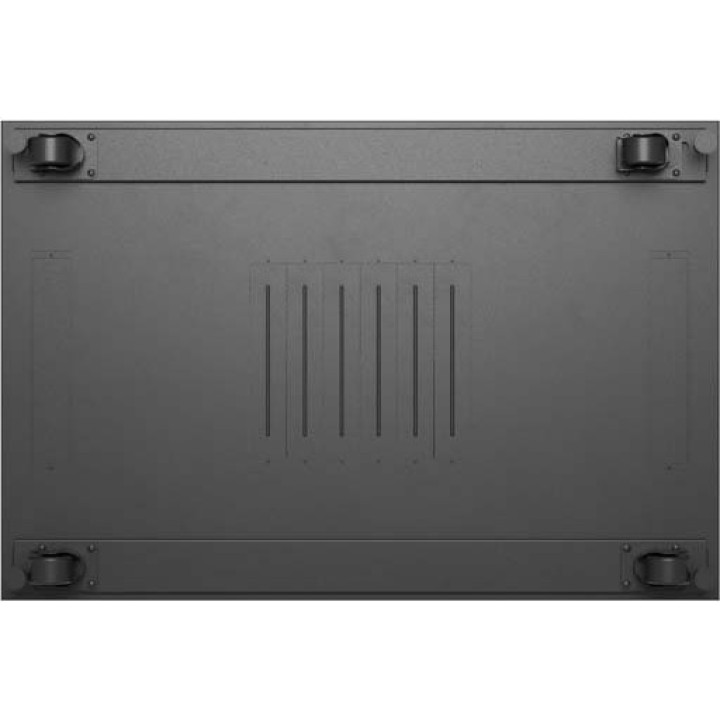

The included equipment makes both positioning and using the rack easier. It has castors with brakes and support legs, while earthing the frame and doors provides additional protection for the installation.

Castors with brakes: included
Legs: included
Earthing connections: frame, main door and rear door
Earthing cable and nuts

Cable management and expansion options
To keep the infrastructure organised, the cabinet includes two vertical cable management panels. The FF01 series also supports various types of rack accessories, such as shelves, cable managers, brush panels, cooling accessories, patch panels and PDU units.

Vertical cable management panels : 2
Compatible with rack organisation and management accessories
Expansion options with shelves and cooling accessories

Dimensions and finish
This model features a RAL9004 black finish and measures 800 mm wide, 1200 mm deep and 1456 mm high. Without the castors, its height is 1354 mm.

WIDTH: 800MM
Depth: 1200 mm
Height: 1456 mm
Height without wheels: 1354 mm
Weight: 111 kg
COLOUR: BLACK
RAL colour: RAL9004
Protection rating: IP20

Additional standards and specifications
The Lanberg FF01 rack cabinet is designed in accordance with various standards applicable to rack systems and ICT infrastructure, facilitating its integration into professional installations.

Manufacturer code: FF01-8227-23BL
Ean: 5901969438000
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Included accessories: front lock, rear lock, side locks, 2 vertical cable management panels, ventilation panel with 6 fans, legs, castors with brakes, thermostat and M6 screws
Volume (m ³): 0.6027
