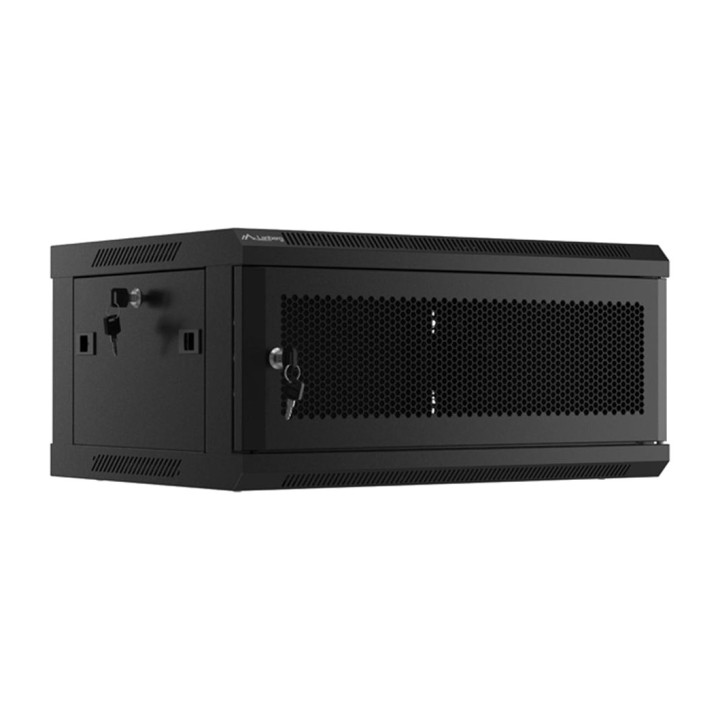

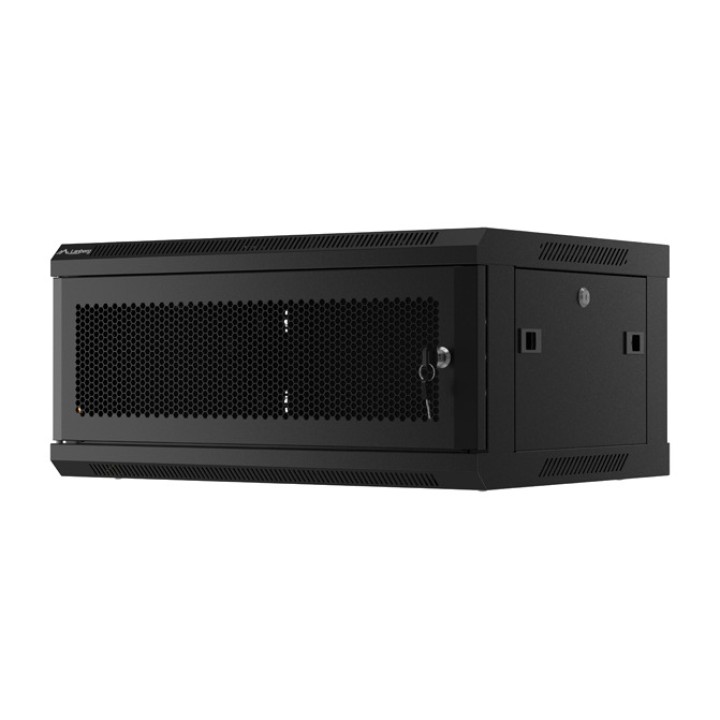

LANBERG Rack cabinet with perforated door for wall mounting 19" 4U 600X450MM WF01-6404-23B DSP0000042398

Features of the Lanberg WF01 19" Wall-Mount Rack Cabinet, 4U, 600 x 450 mm, with Perforated Door, Black
The Lanberg WF01 19" 4U wall-mount rack cabinet is designed to organise and protect network equipment and ICT infrastructure in both professional and home environments. Its robust construction, wall-mount format and static load capacity of up to 60 kg make it possible to create a compact, tidy and functional installation.
19" wall-mount format and capacity of 4U
This model features a standard 19" format with a height of 4U, suitable for housing compatible equipment in a network installation. Its external dimensions of 600 x 450 x 290,1 mm and mounting depth of 379,5 mm make it easy to integrate into spaces where the available area needs to be used efficiently.

Cabinet type: wall-mounted
FORMAT: 19"
HEIGHT: 4U
WIDTH: 600 MM
Depth: 450 mm
External height: 290,1 mm
Mounting depth: 379,5 mm
Maximum static load: 60 kg

Robust construction and durable finishes
The cabinet is made of cold-rolled steel, with different thicknesses for each component, providing a sturdy structure to protect the installed equipment. The black RAL9004 finish gives it a discreet, professional appearance, while its IP20 protection rating completes the structure's features.

COLOUR: BLACK
RAL colour: RAL9004
Protection rating: IP20
Front door thickness: 1,5 mm
Rear door thickness: 1 mm
Top and bottom panel thickness: 1,2 mm
Side panel thickness: 1 mm
Mounting rail thickness: 1,5 mm
Frame thickness: 1,2 mm
Thickness of other elements: 1.2 mm

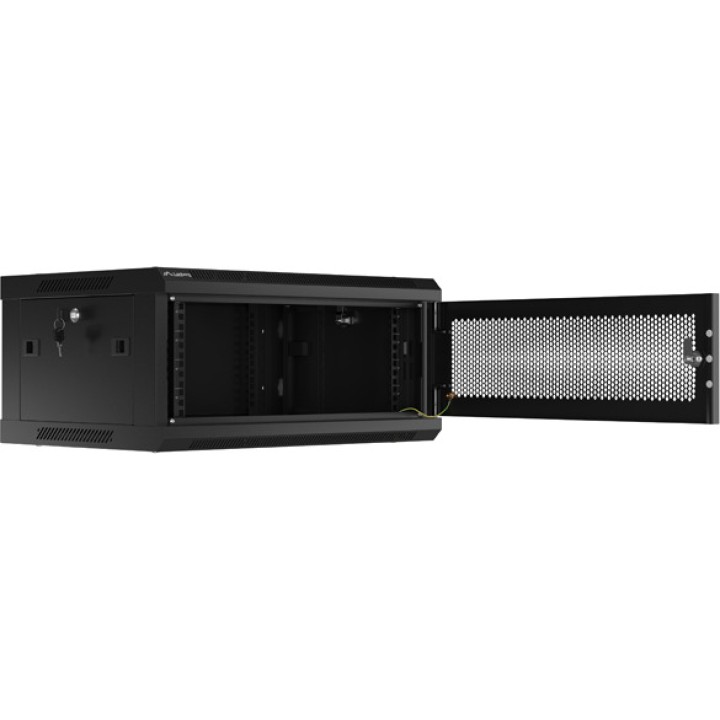

Perforated front door and efficient cooling

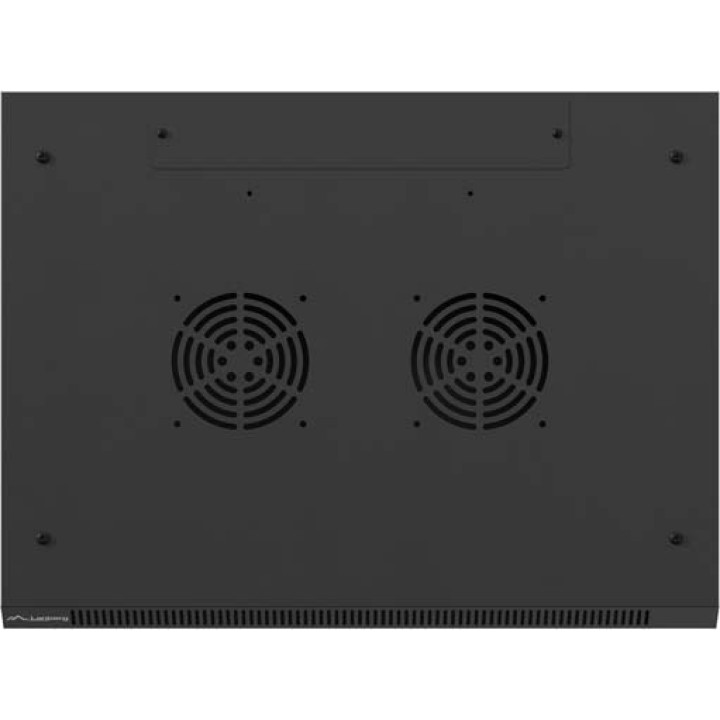

The single-leaf perforated front door promotes air circulation around the installed devices. In addition, the top panel has space for up to 2 fans, allowing you to enhance cooling inside the cabinet when installation requirements call for it.

Front door type: perforated
Door configuration: single leaf
Number of fan slots : 2
Thermostat: no
LCD panel: no

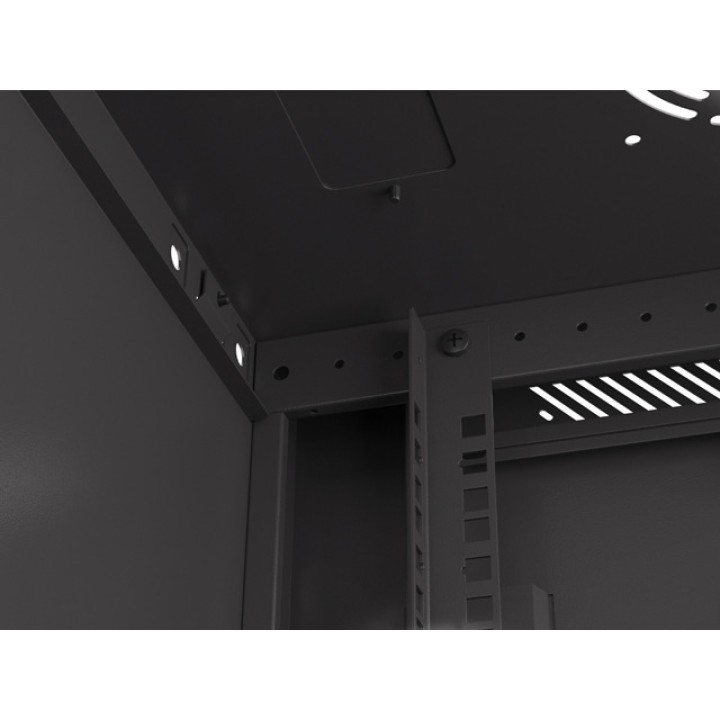

Four vertical rails for organised installation
The interior has 4 vertical rails that make it easy to mount compatible equipment and organise the various infrastructure components. The cabinet also includes an earth connection on the bottom panel and the main door, together with the corresponding earth cable.

Number of vertical rails : 4
Ground connection: bottom panel and front door
Ground cable included
M6 screws included

Flat Pack format for easy transport and assembly
The Lanberg WF01 is supplied as a Flat Pack for self-assembly, reducing the space required during transport. The necessary assembly components, mounting bracket and instructions are included to ensure the installation can be completed correctly.

Assembly: self-assembly
Packaging format: flat pack
Assembly hardware set included
Mounting bracket included
Operating instructions included

Security and included accessories
To help keep the equipment protected and correctly installed, the cabinet features a front lock and side latches. The Lanberg WF01 series also supports various types of accessories to adapt the installation to organisational, cabling, power supply or cooling requirements.

Front lock included
Side latches included
Compatible with accessories such as shelves and cable organisers
Compatible with patch panels and Keystone panels
Compatible with PDU power distribution units
Compatible with cooling accessories

Standards and other specifications
The rack cabinet is designed in accordance with various standards applicable to rack installations and telecommunications equipment. Weighing 13 kg and backed by a 36-month warranty, it brings together the specifications required for organised, functional ICT installations.

Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
WEIGHT: 13KG
Warranty: 36 months
Manufacturer code: WF01-6404-23B
Ean: 5901969439915
Volume (m ³): 0.0480
