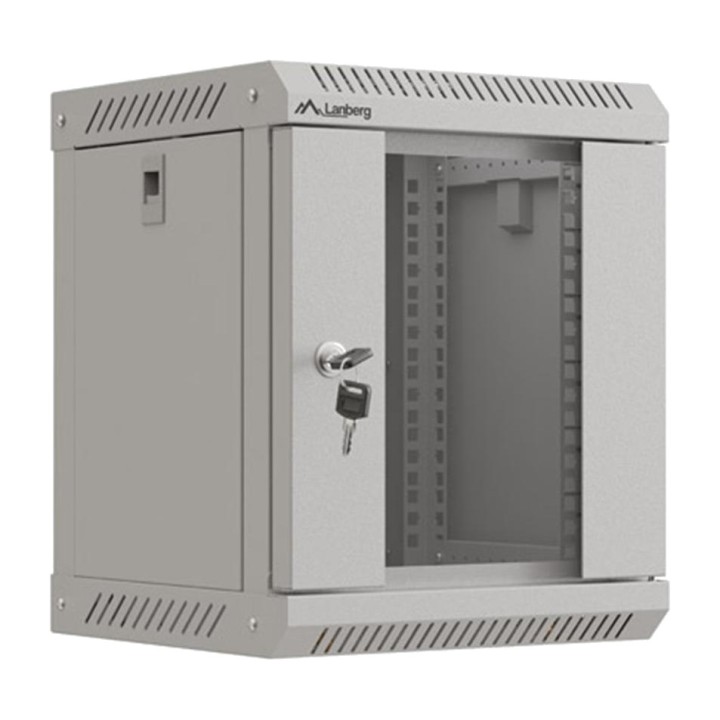

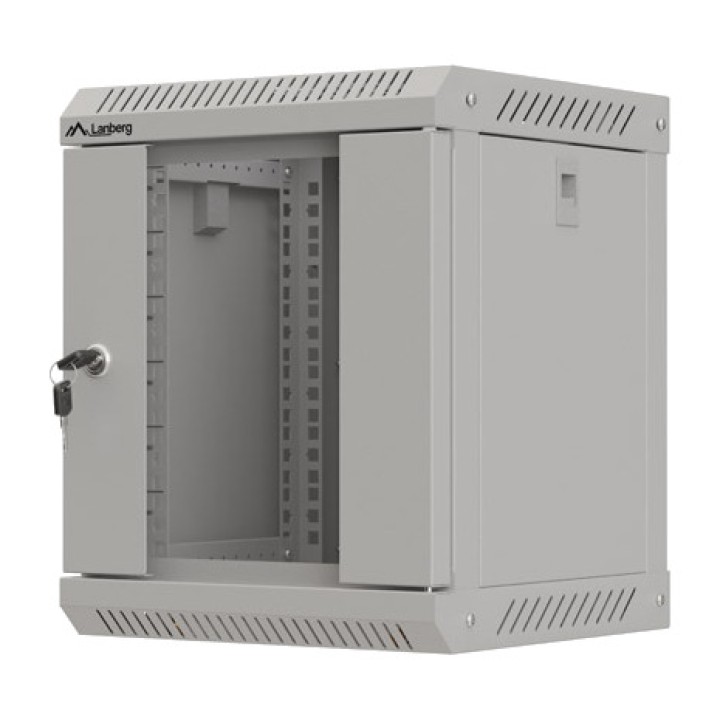

LANBERG Wall-mounted rack cabinet with glass door 10" 6U 300X300MM WF11-3306-10S DSP0000042397

Features of the Lanberg WF11-3306-10S 10" 6U 300 x 300 mm Grey Installation Rack
The Lanberg WF11-3306-10S 10" 6U wall-mounted rack is designed to organise and protect network equipment, telecommunications equipment, CCTV systems, alarms and other IT infrastructure components. Its compact 300 x 300 mm format, glass front door and steel construction make it suitable for creating tidy installations in both domestic environments and small and medium-sized businesses.
10" wall-mounted format with a capacity of 6U
This cabinet offers 6 height units in a 10" rack format, providing space to install various compatible devices without taking up excessive floor space. Its wall-mounted design makes better use of the available space and is especially practical in installations where network equipment needs to be kept properly organised.

FORMAT: 10"
Installation height: 6U
External dimensions: 300 x 300 x 370 mm
Mounting depth: 231 mm
Cabinet type: wall-mounted

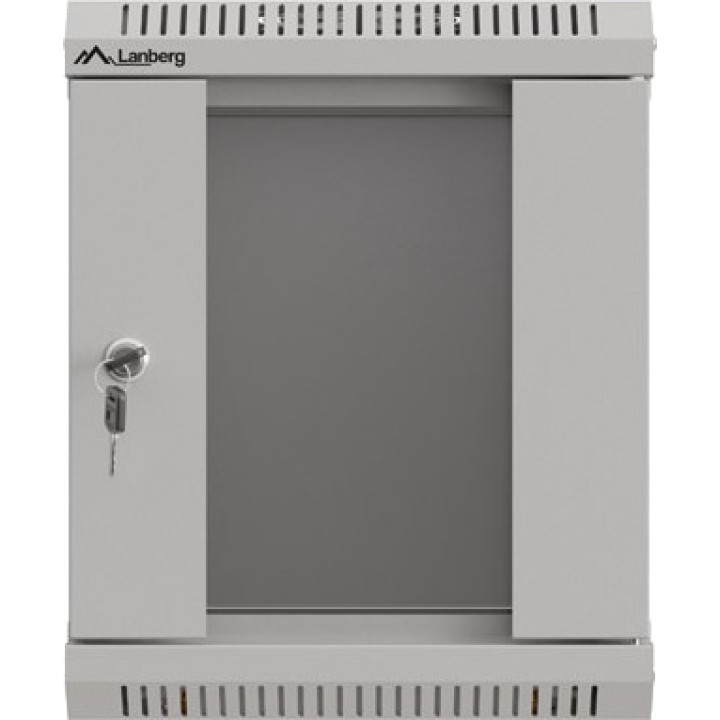

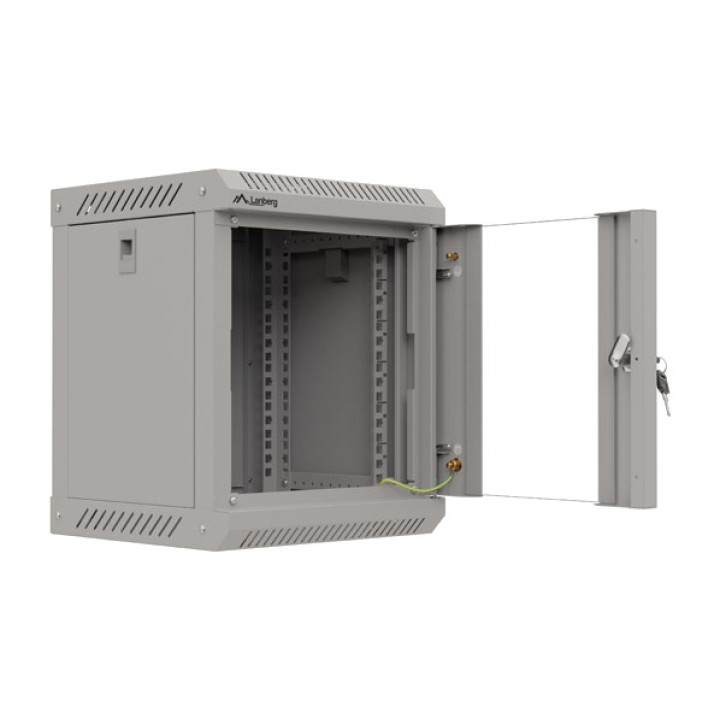

Glass front door with flexible opening
The single-leaf glass front door makes it easy to view the installed devices without opening the cabinet. It can be configured to provide access from the most convenient side and offers a maximum opening angle of 215°, simplifying equipment installation, maintenance and connection.

Front door: glass
Door type: single-panel
Maximum opening angle: 215°
Front lock included

Four vertical rails for stable installation
The rack features 4 vertical mounting rails, including additional rails at the rear to improve the stability of the installed devices. This configuration facilitates the installation of various components and helps keep the infrastructure more stable and organised.

Number of vertical rails : 4
Mounting rail thickness: 1,5 mm
Maximum static load: 30 kg
M6 screws included

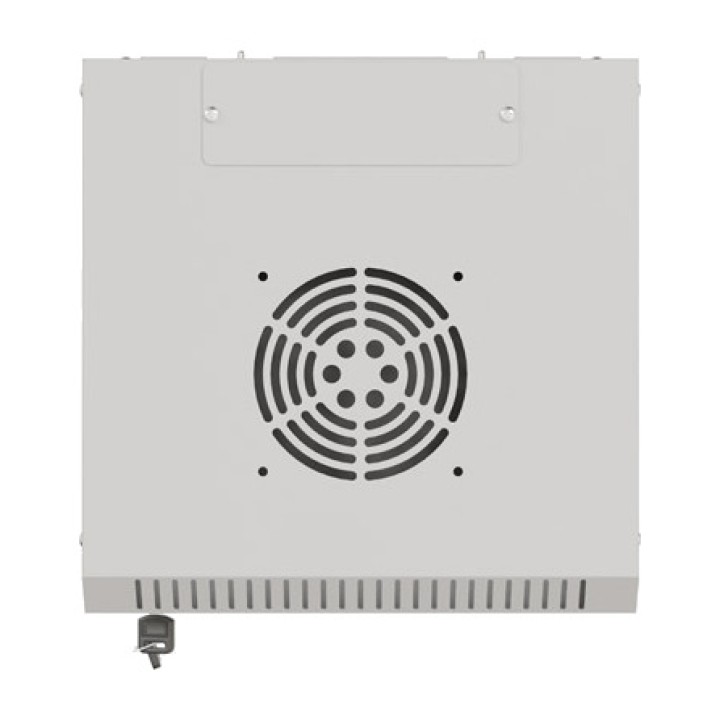

Optimized ventilation without taking up mounting space
The WF11 series is designed to provide efficient ventilation inside the cabinet. Its design allows a fan to be installed without using the space reserved for rack devices, while the ventilation openings in the top and bottom panels promote air circulation.

Number of fan slots : 1
Ventilation through the top and bottom panels
Integrated thermostat: no
LCD panel: no

Easy access for installation and maintenance
The design of the Lanberg WF11 simplifies assembly thanks to side access and the included wall-mounting bracket. The side panels provide convenient access to the interior, while the structure is designed to simplify installation or subsequent modification of the cabling and devices.

Installation: for mounting
Mounting bracket included
Side access to the interior
Rear panel can be removed

Robust steel construction
The cabinet is made of rolled steel and components of varying thicknesses to provide a stable structure suitable for network installations. Its static load capacity of up to 30 kg allows it to accommodate various compatible equipment configurations.

Front door thickness: 1,2 mm
Rear door thickness: 1 mm
Top and bottom panel thickness: 1 mm
Side panel thickness: 1 mm
Frame thickness: 1 mm
Thickness of other elements: 1.2 mm

Cable management and grounding
The cable openings in the top and bottom panels facilitate cable entry and routing inside the cabinet. It also includes a grounding cable to improve installation safety, with connection points provided on the bottom panel and the main door.

Cable entries in the top and bottom panels
Ground cable included
Ground connection: bottom panel and front door

Compact design in grey RAL7035
With a width of 300 mm and a depth of 300 mm, this rack is designed for installations where space is limited. Its RAL7035 grey finish provides a discreet, professional appearance, suitable for offices, technical rooms, home installations and small network infrastructures.

Gray
RAL colour: RAL7035
WIDTH: 300MM
depth: 300mm
External height: 370 mm
Weight: 8,2 kg

Flat Pack format for easy transport and storage
The Lanberg WF11-3306-10S is supplied as a flat pack for self-assembly, a solution that reduces the space required for transport and storage. The set includes the main components needed to facilitate assembly and wall installation.

Supplied as a flat pack
Designed for self-assembly
Operating instructions included
Mounting bracket included

Compatible with rack accessories
The WF11 series allows the installation to be expanded with various compatible accessories for 10" racks. This makes it easy to adapt the cabinet to the needs of each infrastructure using cable management, power, cooling or mounting components.

Shelves
Brush panels and cable organisers
Connection covers and panels
Keystone panels
PDU power strips
Compatible fans and thermostats
Wheels and feet using the M10 holes in the bottom cover
Installation support accessories and tools

Other specifications
The Lanberg WF11-3306-10S has an IP20 protection rating and complies with various standards applicable to cabinets and rack systems. It also comes with a stated 36-month warranty.

Manufacturer code: WF11-3306-10S
Ean: 5901969441611
Warranty: 36 months
Protection rating: IP20
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, IEC297-2:1982
Included accessories: earth cable, front lock, operating instructions, mounting bracket and screws M6
Volume (m ³): 0.0218
