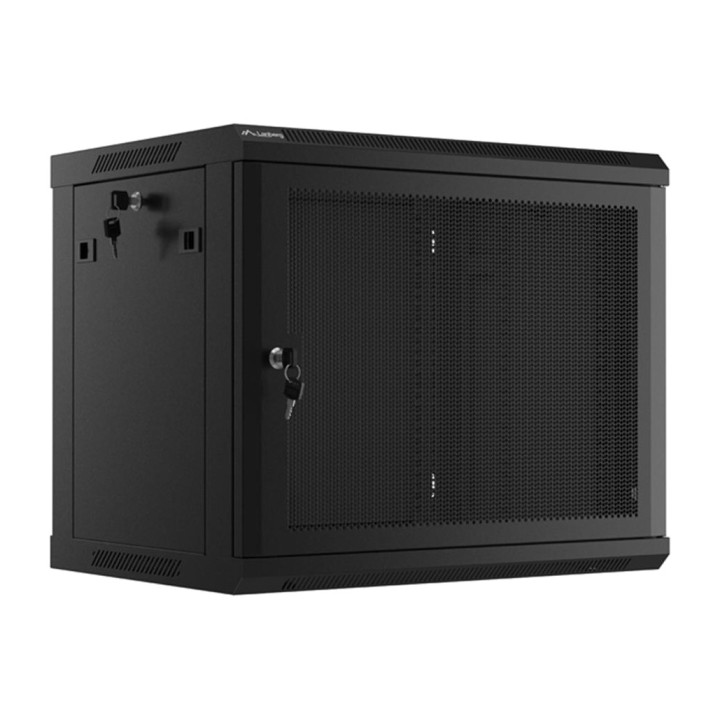

LANBERG Rack cabinet with perforated door for wall mounting 19" 9U 600X450MM WF01-6409-23B DSP0000042393

Features of the Lanberg WF01 9U 600 x 450 mm 19" Wall-Mount Rack Cabinet with Perforated Door, Black
The Lanberg WF01-6409-23B wall-mount rack cabinet is designed to organise, protect and install network and telecommunications equipment in professional environments, offices or home installations. Its standard 19" format, 9U height and 600 x 450 mm dimensions make it possible to make the most of available space with wall mounting, while its cold-rolled steel construction provides a sturdy enclosure for IT infrastructure devices and accessories.
19" wall-mount format and capacity of 9U
This model is designed for wall mounting, making it easy to create an organised network infrastructure without taking up floor space. Its 9U height provides capacity for installing various 19" rack-compatible devices, while its four vertical rails ensure stable component placement.

Cabinet type: wall-mounted
FORMAT: 19"
Usable height: 9U
Number of vertical rails : 4
Mounting depth: 379.5 mm

Sturdy construction and load capacity of up to 60 kg
The Lanberg WF01 cabinet features a cold-rolled steel structure with different thicknesses for each component to provide stability and strength during use. It supports a maximum static load of 60 kg, allowing it to house various network devices, panels, organisers and other compatible accessories.

Maximum static load: 60 kg
Front door thickness: 1.5 mm
Rear door thickness: 1 mm
Top and bottom panel thickness: 1.2 mm
Side panel thickness: 1 mm
Mounting rail thickness: 1.5 mm
Frame thickness: 1.2 mm
Thickness of other elements: 1.2 mm

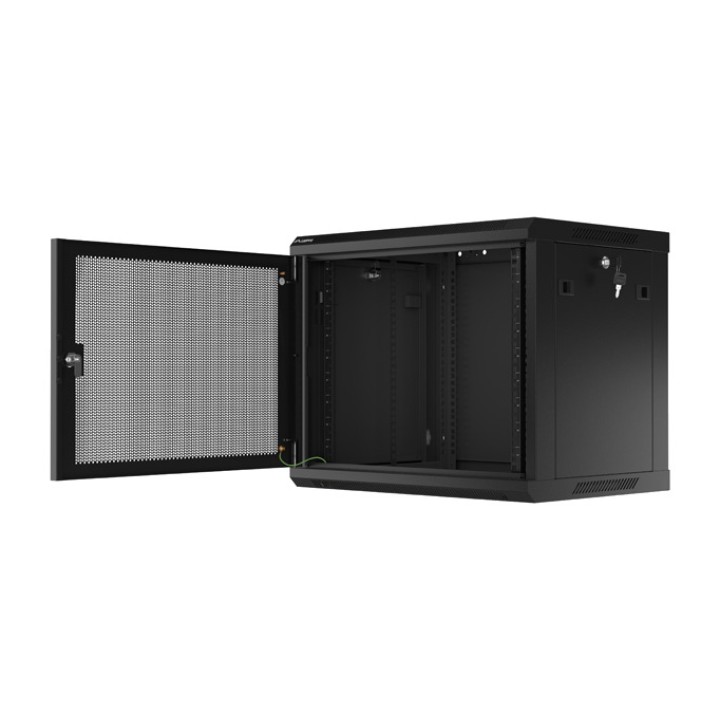

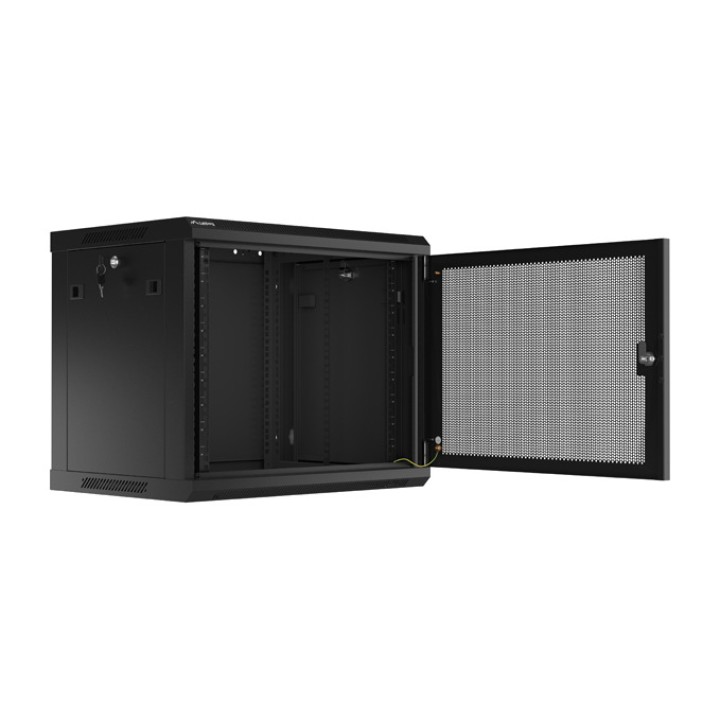

Perforated front door and efficient ventilation

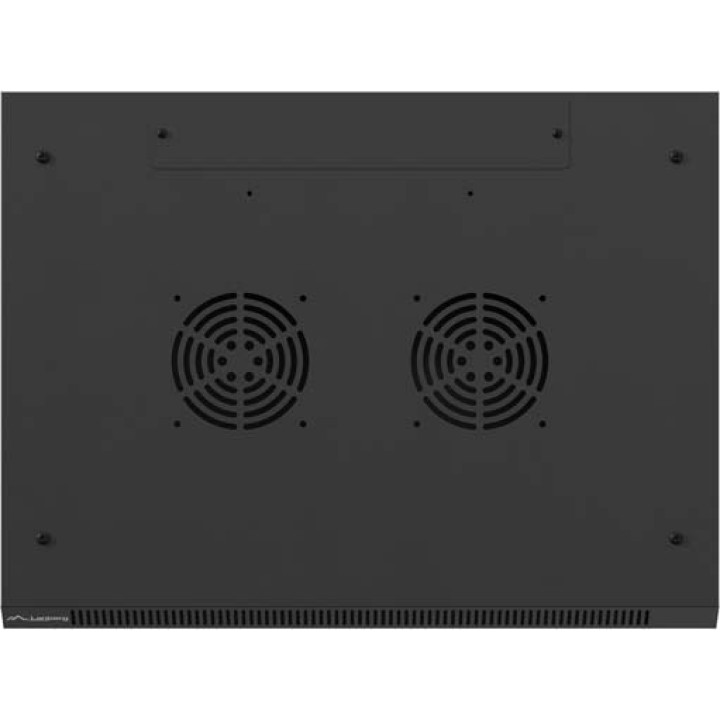

The single-leaf perforated front door promotes air circulation inside the cabinet. In addition, the top panel has space for up to 2 fans, allowing cooling capacity to be increased when required by the installed configuration.

Front door type: perforated
Door configuration: single leaf
Number of fan slots : 2
Integrated thermostat: no
LCD panel: no

Flat Pack design for easy transport and assembly
The cabinet is supplied as a Flat Pack for self-assembly. This system reduces the volume required during transport and makes it easier to handle before installation. The package includes the components required to assemble and securely fasten the structure.

Assembly: self-assembly
Packaging format: flat pack
Includes assembly hardware set
Includes mounting bracket
Includes screws M6
Includes operating instructions

Protection, locking and grounding

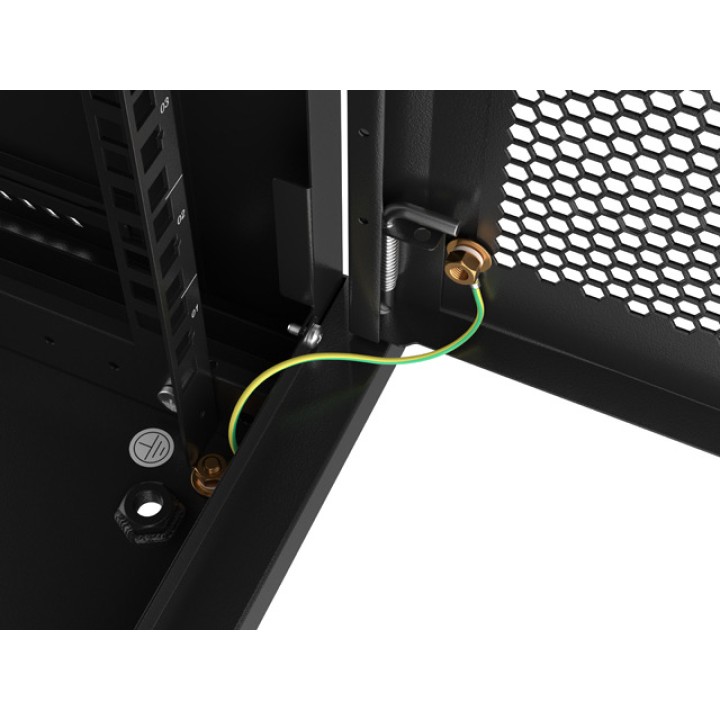

The Lanberg WF01 features a front lock and side locks to control access to the installed equipment. It also includes a grounding cable and grounding points on the bottom panel and main door, helping ensure the installation is properly prepared for network infrastructure equipment.

Protection rating: IP20
Ground connection: bottom panel and front door
Ground cable included
Front lock included
Side latches included

Dimensions and black finish
With external dimensions of 600 mm wide, 450 mm deep and 512.35 mm high, this cabinet combines a 9U capacity with a format suitable for wall-mounted installations. Its RAL9004 black finish provides a discreet, professional appearance for technical rooms, offices and other IT installations.

WIDTH: 600 MM
Depth: 450 mm
Height: 512.35 mm
Weight: 18kg
COLOUR: BLACK
RAL colour: RAL9004

Compatibility with accessories for rack installations
The WF01 series can be used with compatible rack cabinet accessories, allowing the installation to be adapted to the requirements of each infrastructure. Options specified by the manufacturer include shelves, cable management panels, panels, cooling components and power distribution units.

Universal, flush-mount, side-mount and pull-out shelves
Brush panels and cable organisers
Compatible ventilation panels and thermostats
Patch panels and keystone panels
PDU power distribution units
Tools and accessories to assist with assembly

Standards and other specifications
The cabinet has been developed in accordance with various standards used in rack and telecommunications installations, making it easy to integrate into infrastructures based on compatible 19" equipment.

Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Manufacturer code: WF01-6409-23B
Ean: 5901969439939
Warranty: 36 months
Included accessories: ground cable, front lock, side locks, assembly hardware set, operating instructions, mounting bracket and M6 screws
Volume (m ³): 0.0758
