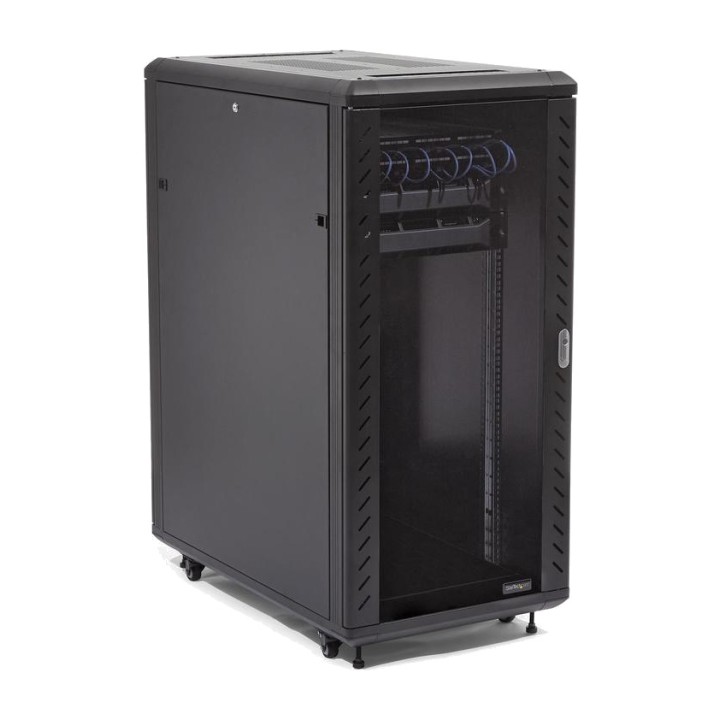

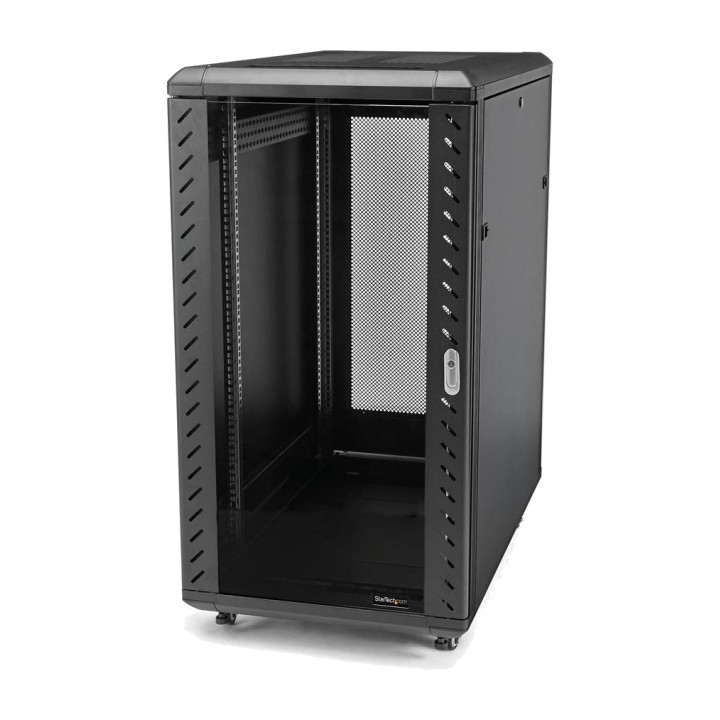

STARTECH.COM Enclosed floor-standing rack cabinet with 4 posts and adjustable depth 32U 19" RK3236BKF DSP0000042308

Features of the 32U 19in Enterprise Rack Cabinet RK3236BKF
The 32U, 19-inch RK3236BKF enterprise rack cabinet is designed to securely house servers, network equipment and telecommunications devices. Its enclosed 4-post structure combines adjustable mounting depth, lockable panels, ventilation and a high load capacity, providing a versatile solution for professional IT installations.
32U rack with adjustable mounting depth
The four vertical mounting rails allow the cabinet interior to be adapted to equipment with different depths. The available range is from 144 to 838 mm of mounting depth, making it easy to install servers, switches and other devices compatible with 19-inch racks.

Rack height: 32U
Format: 19 inches
Design: enclosed 4-post rack
Minimum mounting depth: 144 mm
Maximum mounting depth: 838 mm
Mounting rail profile: G-shaped
Square mounting holes for cage nuts
Compatible with the standard EIA/ECA-310-E

Enclosed, secure and ventilated structure

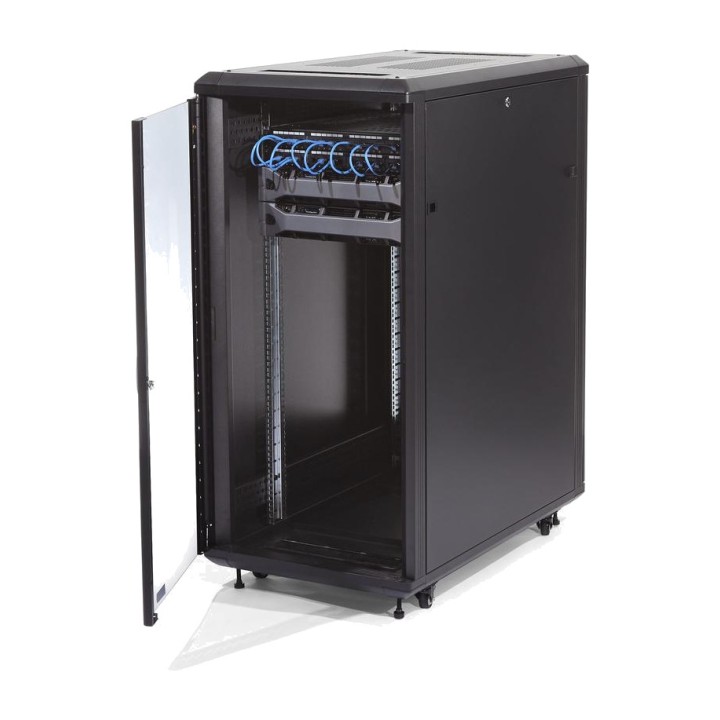

The cabinet features a steel structure designed to protect the installed equipment. The front door has a glass window, while the rear door features a steel mesh design to promote airflow. The front and rear doors are removable and reversible, and have key locks; the side panels also feature security locks.

Steel front door with glass window
Steel mesh rear door
Reversible and removable front and rear doors
Security lock with key on the doors
Lockable steel side panels

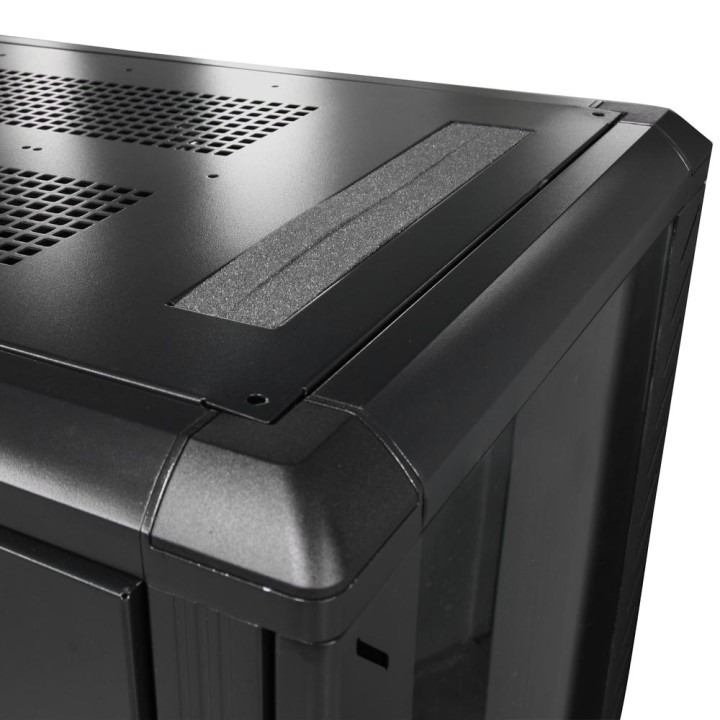

Ventilated top for improved air circulation
Integrated grounding terminals

Mobility and stability for professional installations

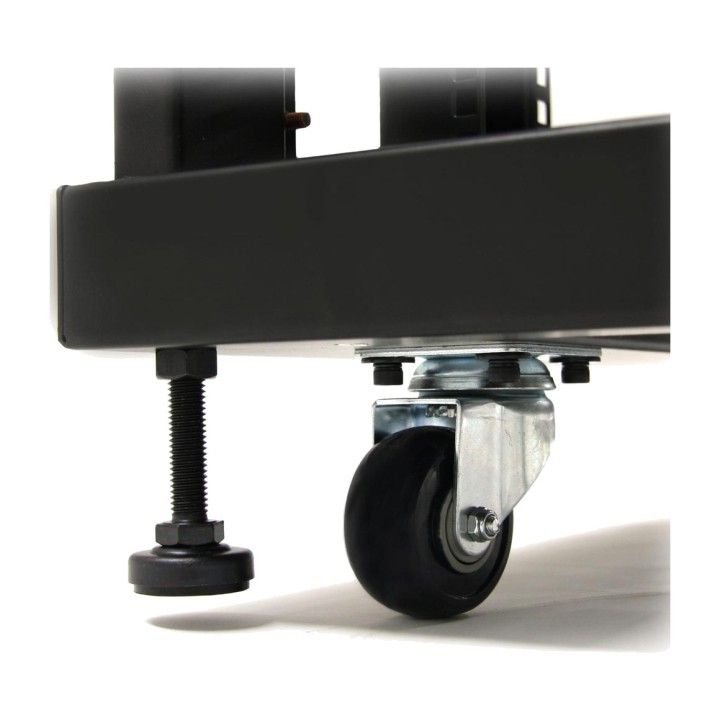

The RK3236BKF includes wheels and levelling feet, allowing the installation to be adapted to the needs of the environment. It features two standard wheels and two braked wheels for easy movement, while the four levelling feet provide a stable base when the cabinet remains installed in a fixed location.

2 standard wheels included
2 braked wheels included
4 levelling feet
Weight capacity in motion: 150 kg
Load capacity specified in fixed position: 800 kg
U-shaped brackets to facilitate equipment installation

Flat-pack format for easy transport
This cabinet is supplied flat-packed and requires assembly, a format designed to simplify transport and reduce the risk of damage during shipping. Once fitted with the wheels, it reaches a total height of 1620 mm.

Flat-packed: yes, assembly required
Product height: 1552 mm
Height with wheels: 1620 mm
Product width: 600 mm
Product length: 1000 mm
Internal width: 580 mm
Internal depth: 990 mm
Product weight: 101 kg

Accessories and assembly components included
The package includes the main components and accessories needed to assemble and configure the cabinet, including panels, wheels, levelling feet, fasteners and keys for the various locks.

1 front door frame
1 rear door frame
2 side panels
1 top panel
1 bottom panel
2 bottom panels with cable management system
8 corner protectors
4 crossbars
2 castors and 2 braked castors
4 levelling feet
2 door hinge pins
40 cage nuts M6
40 cage screws M6
40 cup washers M6
2 keys for the front and rear doors
2 keys for the side panels
1 hex key for screws M6
8 M8 x 20 mm screws and 8 washers M8
1 hex key for screws M8
16 M6 x 10 mm screws
4 M6 x 12 mm screws
8 M4 x 10 mm screws
6 M5 x 12 mm screws

Other specifications
The RK3236BKF is designed for professional IT, networking and telecommunications installations, with a design that facilitates both equipment organisation and its maintenance and management.

Product ID: RK3236BKF
UPC: 065030888431
COLOUR: BLACK
Quantity per package : 1
Wall-mountable: no
Special features: castors, easy assembly, grounding terminals, levelling feet and U markings
Package width: 1065 mm
Package depth: 1615 mm
Package height: 360 mm
Shipping weight: 101 kg
Volume (m ³): 0.6327
