STARTECH.COM 2-post open wall rack with adjustable depth 15U 19" RK15WALLOA DSP0000042306

Features of the StarTech.com RK15WALLOA Server Rack 15U

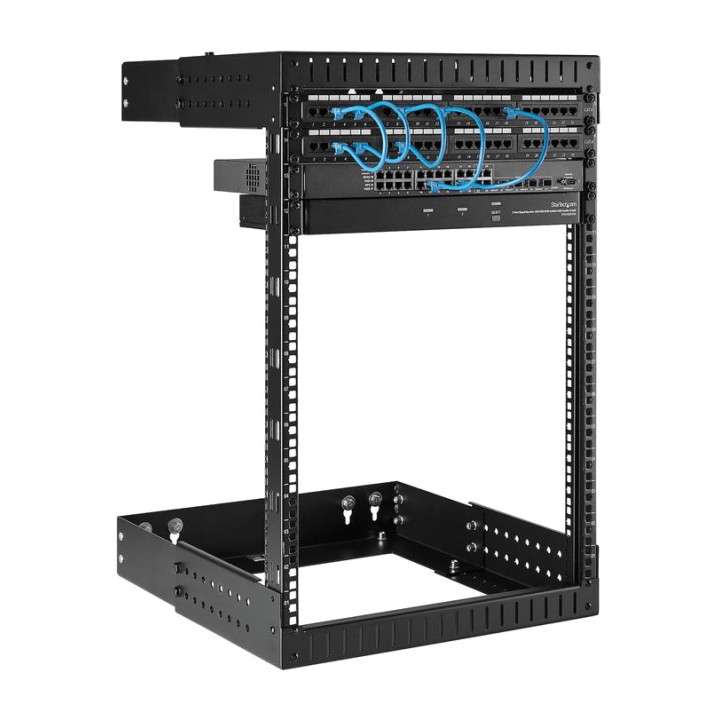

The StarTech.com RK15WALLOA is a 15U, 19-inch open wall rack designed to install networking, telecommunications and AV equipment in an organized and accessible way. Its 2-post structure with adjustable mounting depth allows it to accommodate equipment of different dimensions, while its steel construction provides a load capacity of up to 90 kg.
Adjustable depth for different equipment
Thanks to its adjustable mounting rails, this rack allows you to configure the depth according to the installed equipment. Its internal range facilitates the mounting of servers, switches, patch panels, PDUs and various audio and video devices.

Rack height: 15U
Format: 19 inches
Maximum mounting depth: 508 mm
Internal depth range: 30 cm to 50.3 cm
Specified adjustable mounting depth: 30.5 to 50.8 cm
Mounting rail profile: L-shaped
Adjustable mounting rails with U markings

Open steel frame with a capacity of up to 90 kg

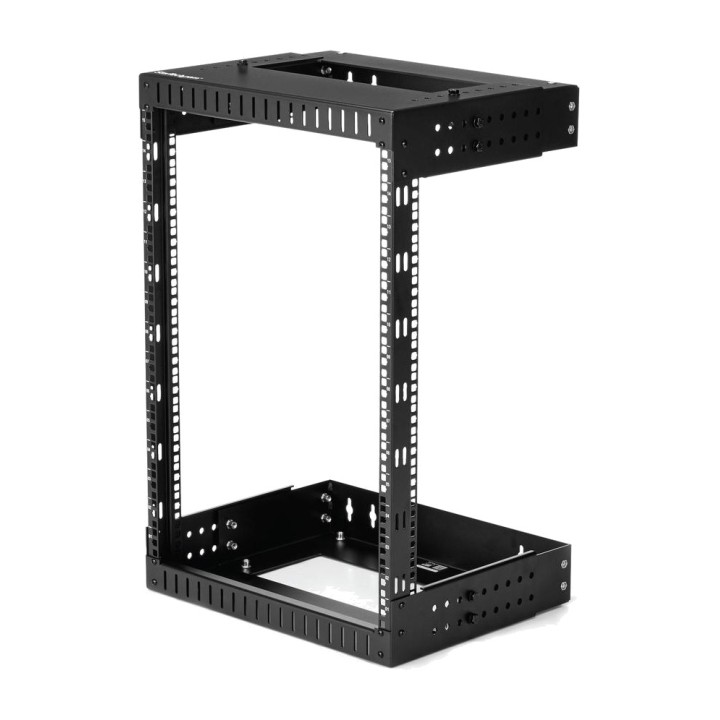

Its structure is made of SPCC cold-rolled steel and supports a weight capacity of up to 90 kg without casters. The Open Frame design also promotes unobstructed airflow around the devices, helping maintain adequate ventilation for the installed equipment.

Manufacturing material: steel
Rack type: 2-Post
Frame type: Open Frame
Weight capacity without wheels: 90 kg
COLOUR: BLACK
Industry standard: EIA/ECA-310-E

Wall mounting and easy access to equipment

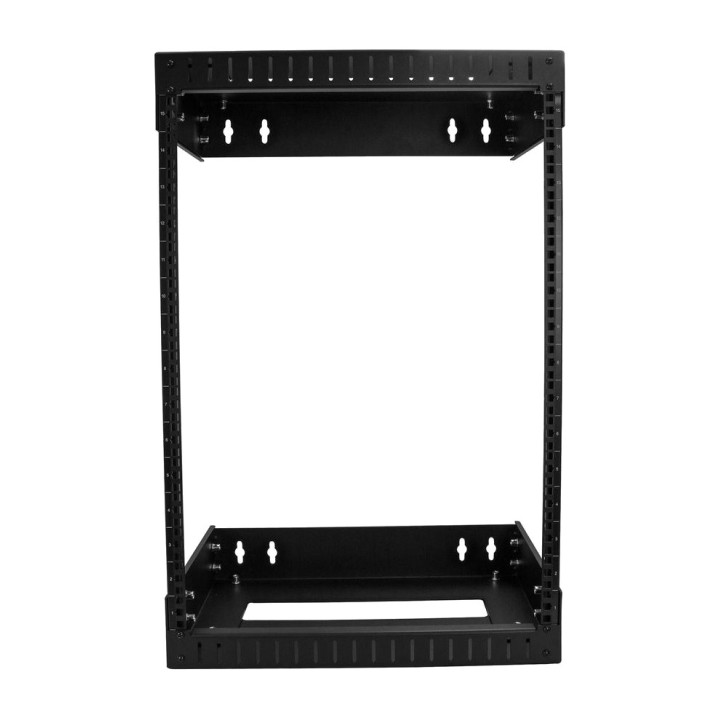

The StarTech.com RK15WALLOA is designed for wall installation, a particularly practical configuration for communications rooms and other installations where available space needs to be maximized. Its open-frame design provides easy access to cabling and devices during installation and maintenance.

Wall mounting: yes
2-post design
Square mounting holes for cage nuts
Easy Assembly feature for easier assembly

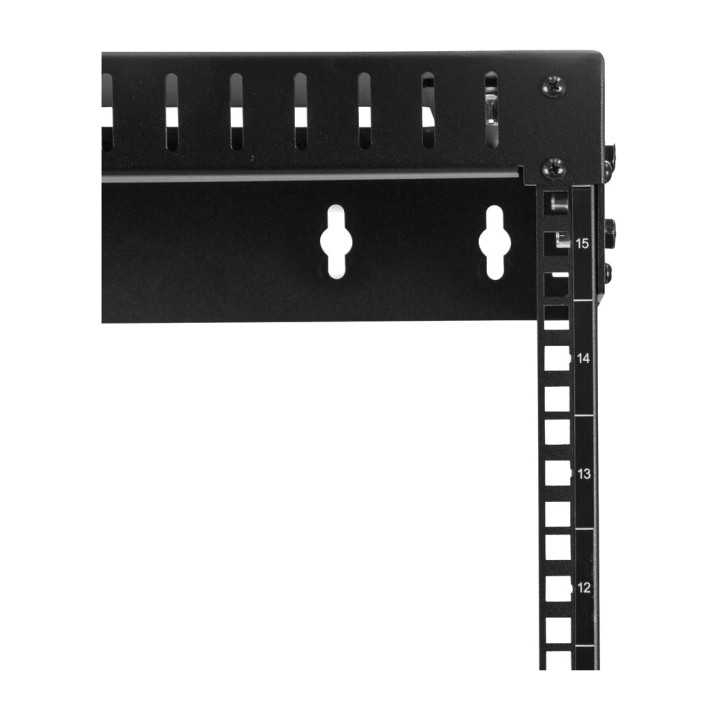

U markings for easy equipment placement

Installation hardware included

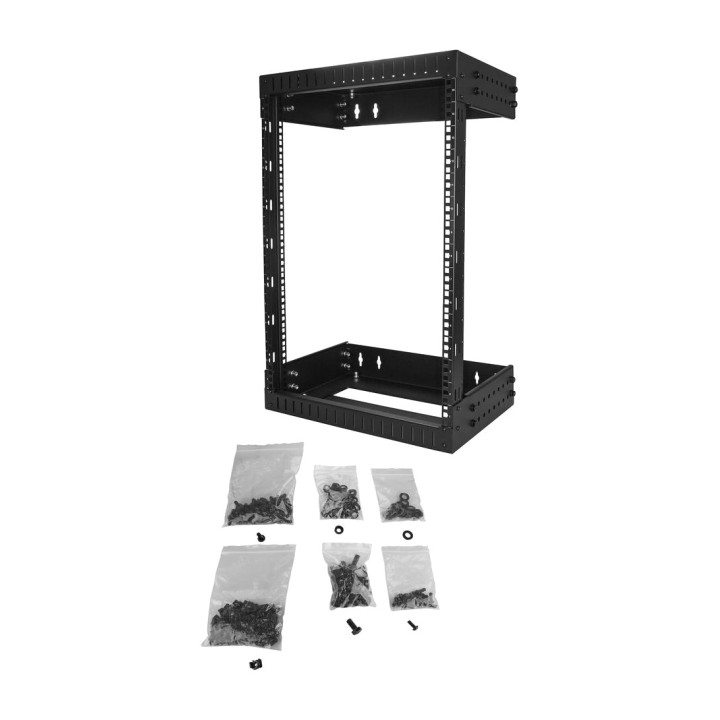

The rack includes a complete set of mounting hardware for securely installing compatible equipment. The supplied accessories include 60 M6 cage nuts, 60 M6 screws and their corresponding plastic washers, as well as the components required to assemble the frame.

2 vertical rails
2 front horizontal supports
2 rear horizontal supports
60 cage nuts M6
60 screws M6
60 plastic washers
16 mounting screws
24 flat washers
24 nuts
1 INSTRUCTION MANUAL

Flat-pack design for transport
The rack is supplied flat-packed and requires assembly. Its packaging is ISTA-6 certified, and complete assembly instructions are included, making it easy to prepare the structure before installing it in its final location.

Flat-packed: yes, assembly required
Certified packaging ISTA-6
Instruction manual included
Package width: 537 mm
Package depth: 817 mm
Package height: 147 mm
Shipping weight: 16.78 kg

Dimensions and physical specifications
With dimensions of 508 x 504 x 772.8 mm, this rack provides 15U of space for organizing compatible equipment in an open mounting structure. It weighs 15.25 kg and is designed for professional network, server, telecommunications and audiovisual system installations.

LENGTH: 508MM
Width: 504 mm
Height: 772.8 mm
Product weight: 15.25 kg
Quantity per package: 1 unit
UPC: 065030873758
Product ID: RK15WALLOA
Volume (m ³): 0.0558
