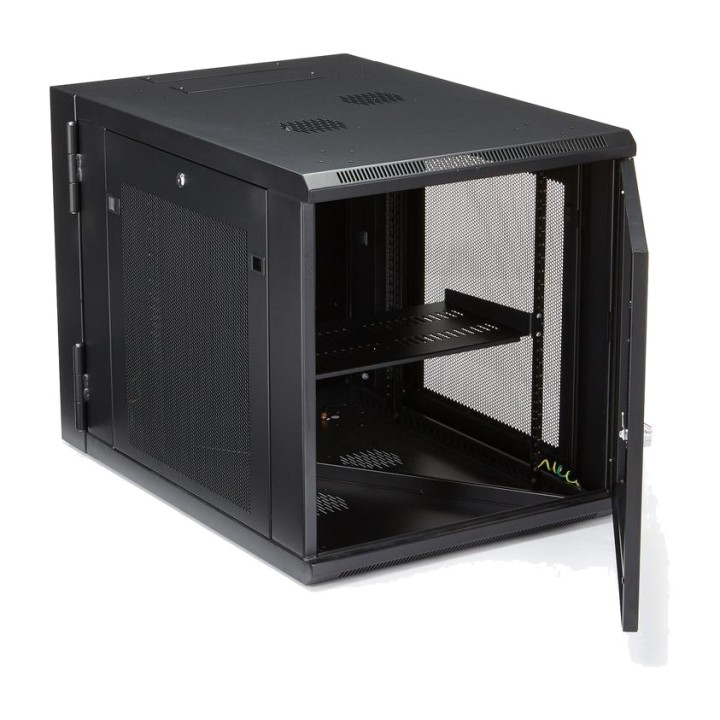

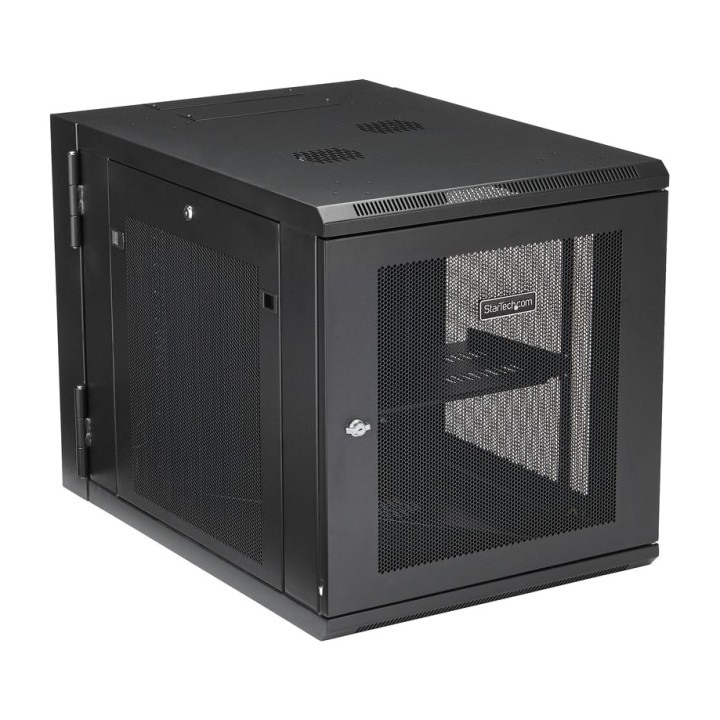

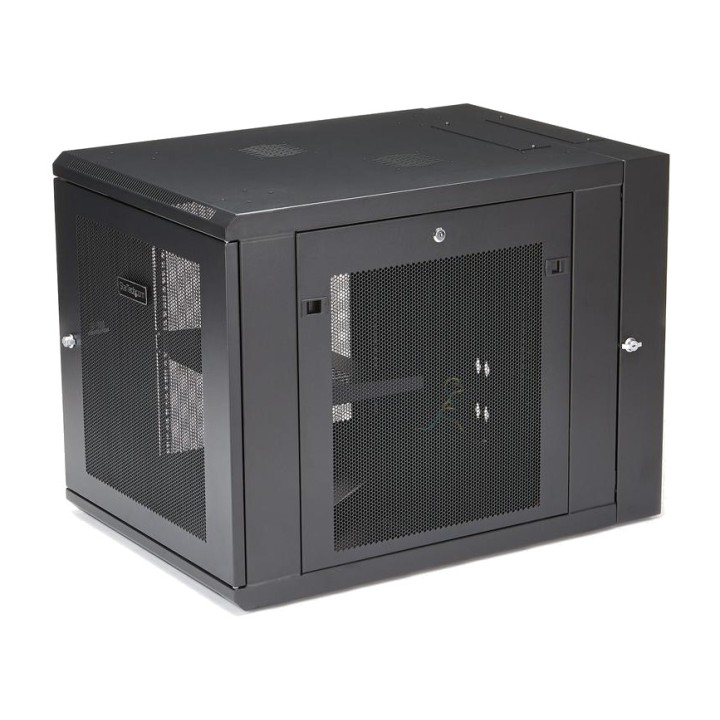

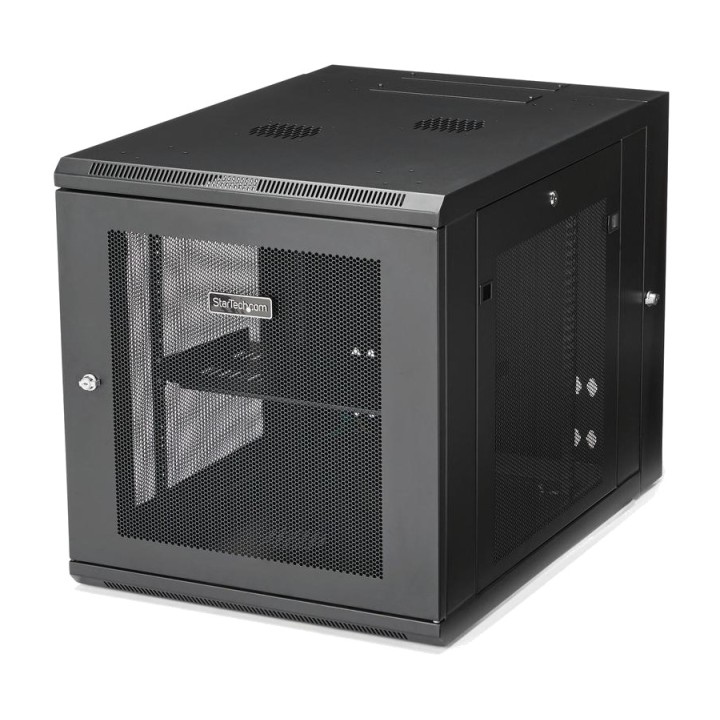

STARTECH.COM Deep wall-mounted rack cabinet with 4 columns and shelf 12U 19" 32" RK1232WALHM DSP0000040402

Features of the 12U 19" 4-Post Wall-Mounted Server Rack Cabinet with Shelf 1U

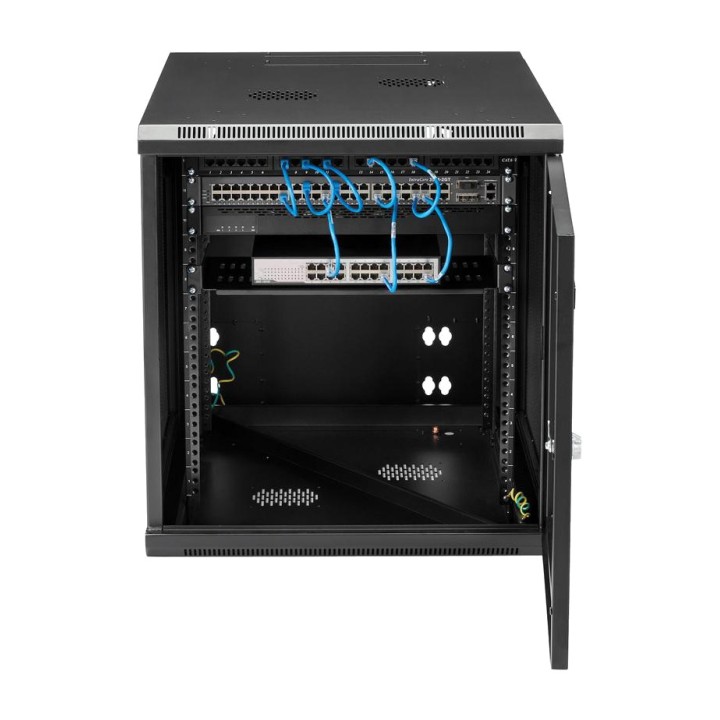

The 12U 19" Wall-Mounted Server Rack Cabinet is designed to securely install servers, switches, patch panels and other network equipment in professional or home environments. Its wall-mounted format with a hinged frame provides easy access to the cabling and the rear of the devices, optimizing daily maintenance.
12U 4-column rack with adjustable depth
Thanks to its 4-column design, this cabinet provides stable support for 19" rack-mount equipment. Its adjustable depth of 6 to 60,9 cm allows it to accommodate different network devices, compact servers or patch panels.

Rack format: 12U
Compatibility: equipment from 19"
Adjustable mounting depth: 6–60.9 cm

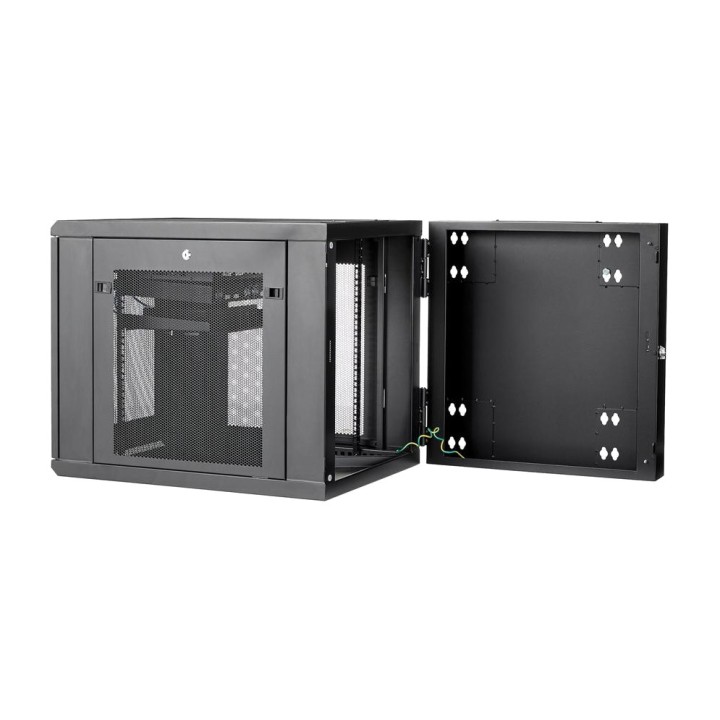

Fold-down design for easier access
The 180° fold-down hinged structure provides easy access to the rear of installed equipment, reducing the time required for installation, inspection or maintenance tasks. It also features a reversible, removable front door and removable side panels.

Swing-out frame to 180°
Enclosed, lockable design
Reversible, removable front door
Removable side panels

Durable SPCC steel construction
Made from cold-rolled SPCC steel, this rack cabinet is built to provide strength and durability in demanding network installations. Its reinforced structure supports a maximum weight capacity of 90 kg, providing a reliable base for professional equipment.

Material: SPCC cold-rolled steel
4-post structure
Maximum load capacity: 90 kg

Easy installation with included accessories

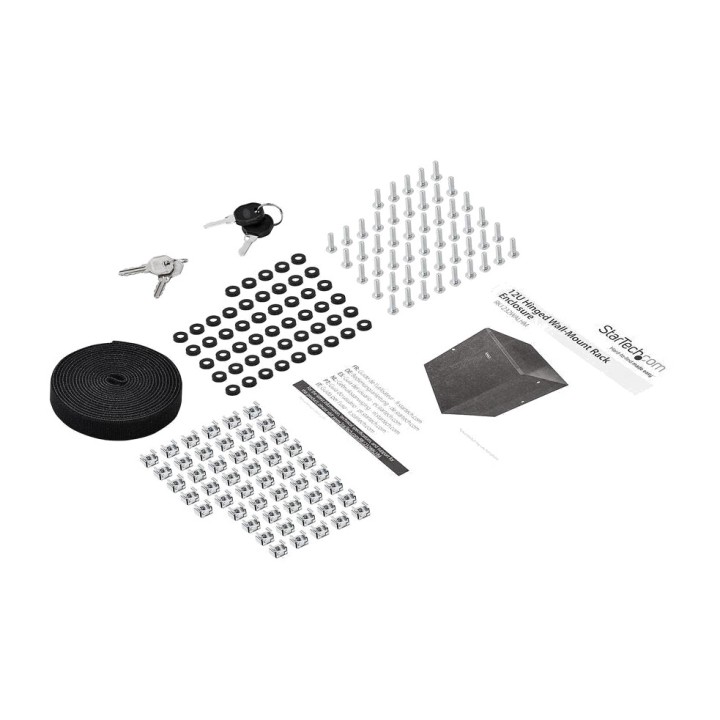

The cabinet is delivered fully assembled, speeding up setup. It includes the screws and cage nuts required to install the equipment, as well as a 1U shelf and a roll of hook-and-loop tape for better internal organisation.

Delivered fully assembled
Includes screws and cage nuts
Shelf included 1U
Roll of hook-and-loop tape included
Compliant with regulations EIA/ECA-310-E

Optimized ventilation for network equipment
The mesh front doors and side panels promote fresh airflow to help maintain a suitable temperature inside the rack. It also supports active cooling with up to four optional 120 mm fans.

Ventilated front doors
Mesh side panels
Compatible with up to 4 optional 120 mm fans

Other specifications

Product ID: RK1232WALHM
Installation type: wall-mounted
Recommended use: warehouse, home, office or server room
Applications: servers, network switches, patch panels and rack equipment
Volume (m ³): 0.4471
