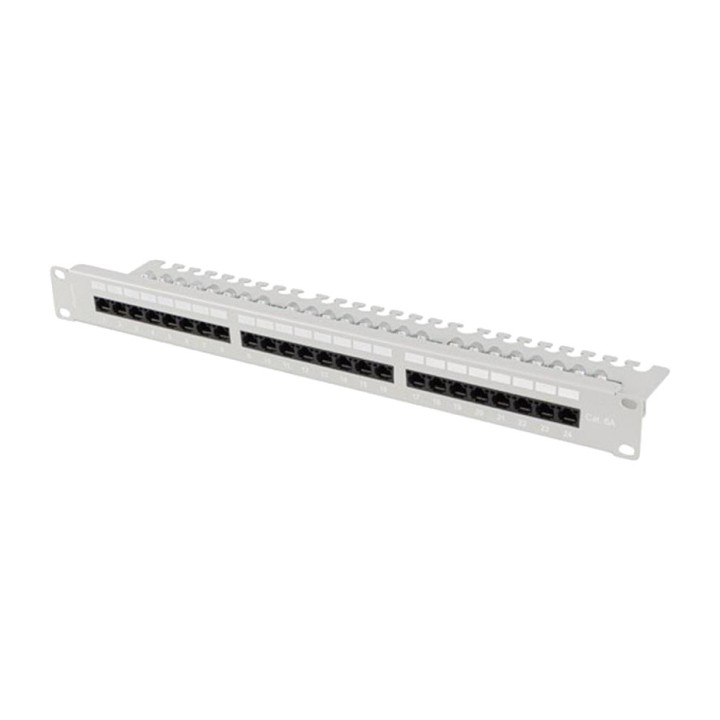

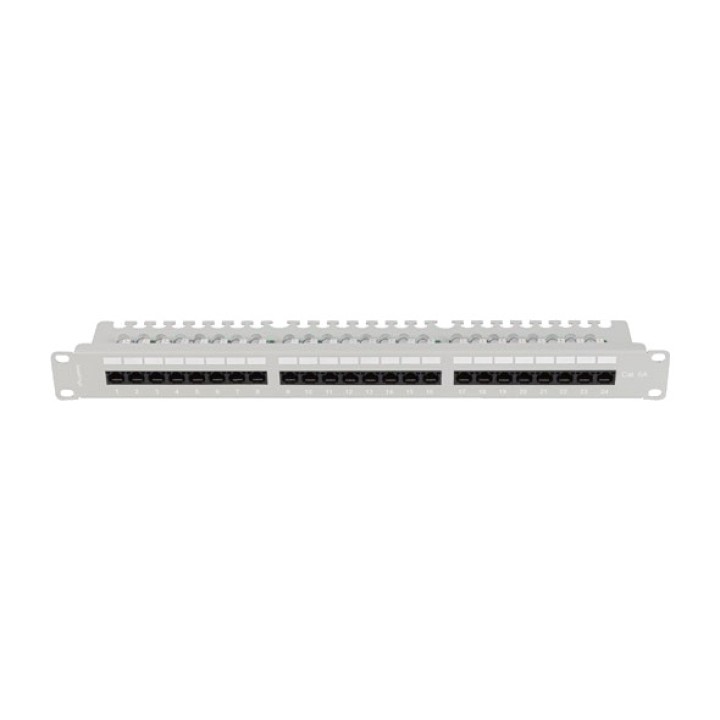

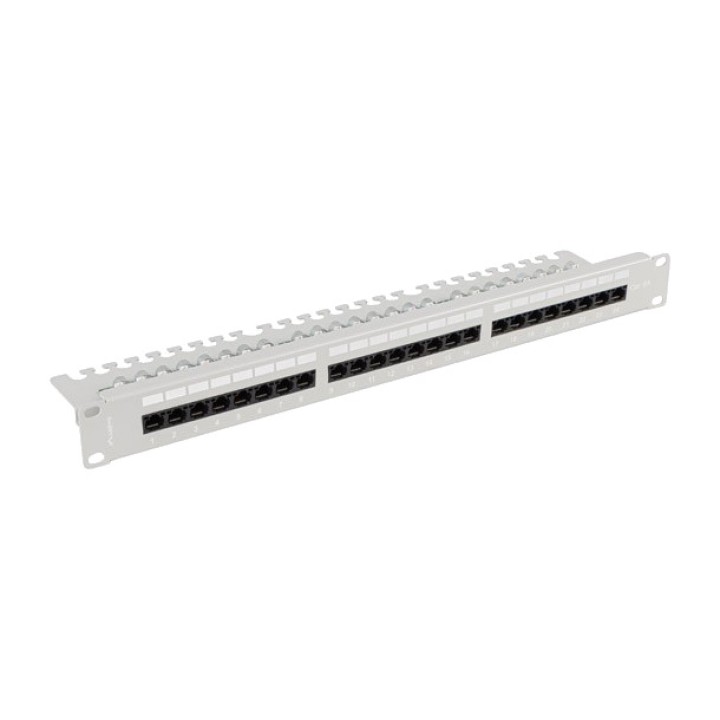

LANBERG 24-port patch panel with integrated cable manager for rack cabinet 19" 1U CAT.6A UTP PPUA-1124-S DSP0000032132

Features of the Lanberg 24-Port 1U 19" Cat.6A UTP Patch Panel with Cable Manager, Grey
The Lanberg Cat.6A 24-port patch panel is a solution designed for professional structured cabling installations that require efficient and organized network distribution. Compatible with standard 19-inch racks and 1U format, it provides easy access to connections thanks to its clearly identified RJ-45 ports and integrated cable management system. Its steel construction with a grey RAL7035 finish provides a durable structure for professional environments.
Cat.6A connectivity for high-performance networks

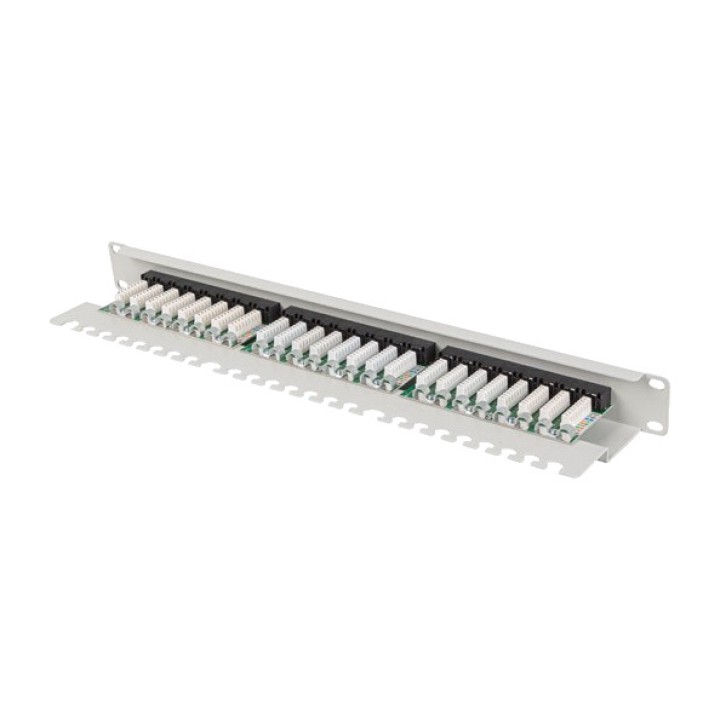

This panel features 24 Cat 6A UTP RJ-45 ports, designed for installations requiring high performance and efficient connection management. The IDC/LSA connectors are compatible with T568A and T568B wiring schemes, facilitating integration into different network infrastructures.

24 Cat UTP RJ-45 ports .6A
IDC/LSA connectors compatible with T568A and T568B
Operating frequency from 0 to 500 MHz
Suitable for cables from 20 to 26 AWG

Professional cable management
Thanks to its integrated cable manager and the additional shelf included, this patch panel keeps cables neatly arranged, simplifying network installation, maintenance and expansion. The individual port numbering and description areas make connection management easier.

Integrated cable management
Shelf for cable management

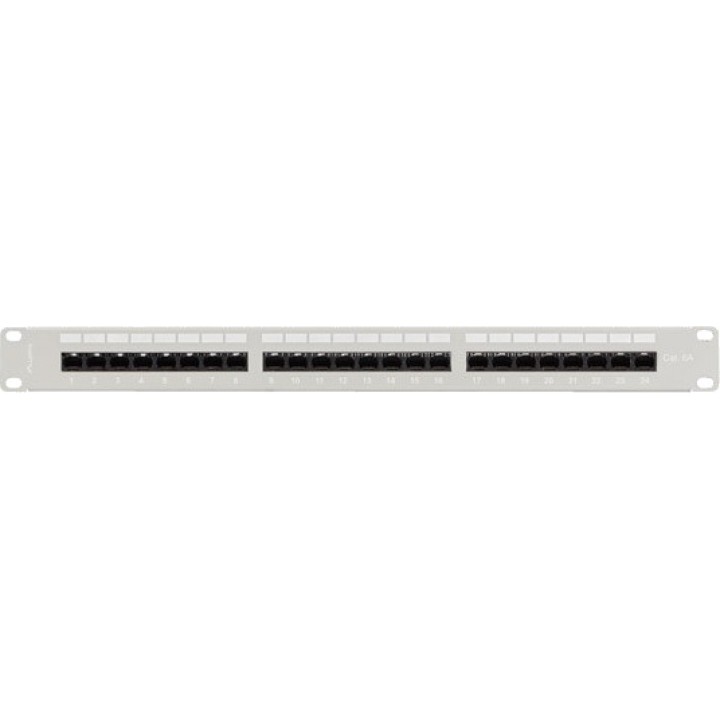

Individual numbering on each port
Labelling areas for connection identification

Robust design for racks 19"
Made of durable steel with a RAL7035 grey finish, this panel is designed for installation in standard 19" rack cabinets. Its compact 1U format optimises available space without compromising on high connection capacity.

Rack format 19"
Height 1U
Steel construction
Grey finish RAL7035

Reliability for professional environments
Designed to operate reliably in demanding network environments, this patch panel offers an insertion loss of less than 0.2 dB and connector durability of up to 200 cycles, ensuring consistent performance throughout its service life.

Connector durability: 200 cycles
Insertion loss: <, 0.2 dB
Impedance: 75 Ohm
Operating temperature: -10 to 60 °C

Other specifications

Shielding: No
Grounding: No
LENGTH: 98MM
Width: 482.6 mm
Height: 44.45 mm
Weight: 0.9kg
Includes M6 screws for installation
Volume (m ³): 0.0033
