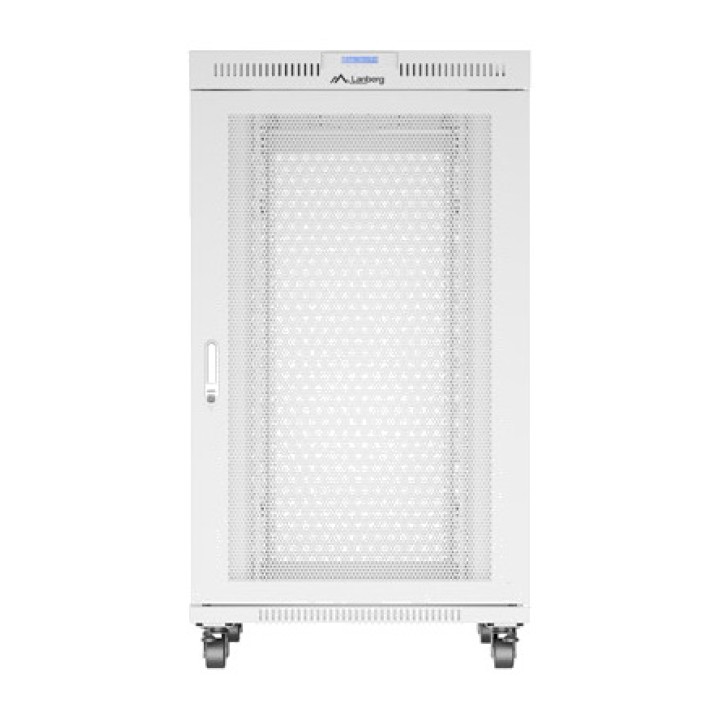

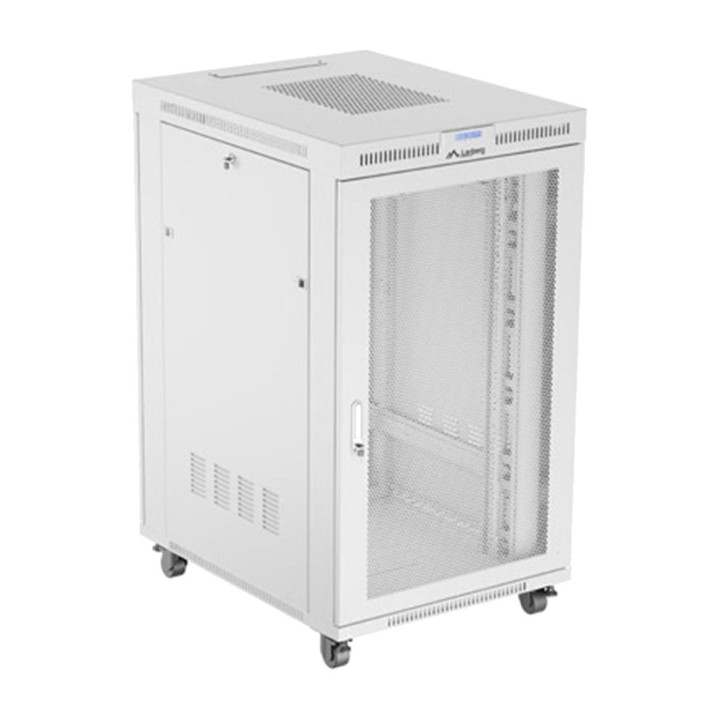

LANBERG Floor-standing rack cabinet with perforated door and LCD display 19" 27U 800X1000MM FF01-8027-23 DSP0000032033VAR

Features of the Lanberg FF01 19" 27U 800x1000 LCD Grey Perforated Door Rack Installation Cabinet
The Lanberg FF01 19" 27U rack cabinet is designed to house, organize and protect server, network and telecommunications infrastructure in professional environments. Its freestanding steel structure, perforated doors, ventilation system with 6 fans and LCD panel with thermostat make it easier to manage equipment that requires a stable, organized and properly cooled installation.
Professional 19" format with 27U capacity
This model offers a standard 19" format and a usable height of 27U, providing space for installing servers, network devices and other compatible equipment. Its 4 vertical rails and 810 mm mounting depth allow the infrastructure to be configured according to the needs of each installation.

FORMAT: 19"
HEIGHT: 27U
Mounting depth: 810 mm
Number of vertical rails : 4
Cabinet type: freestanding

Perforated doors to promote airflow

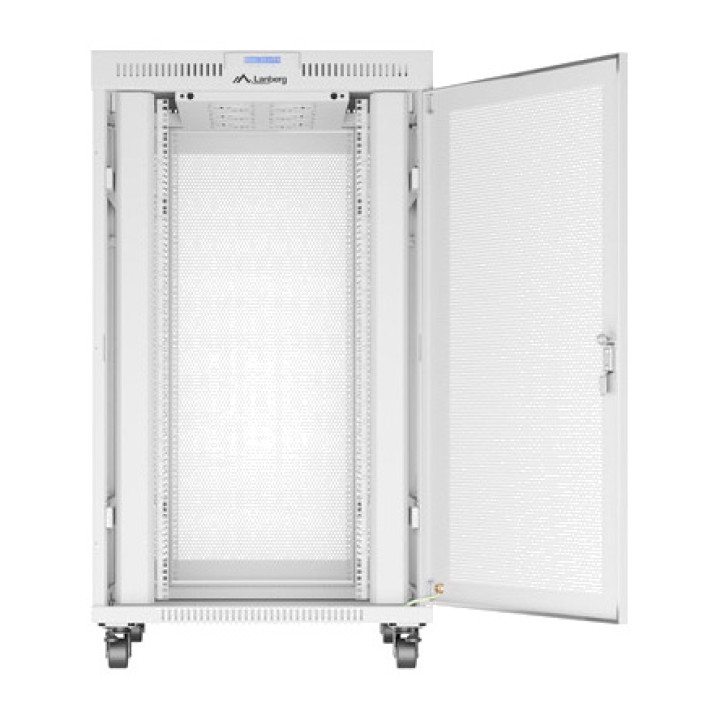

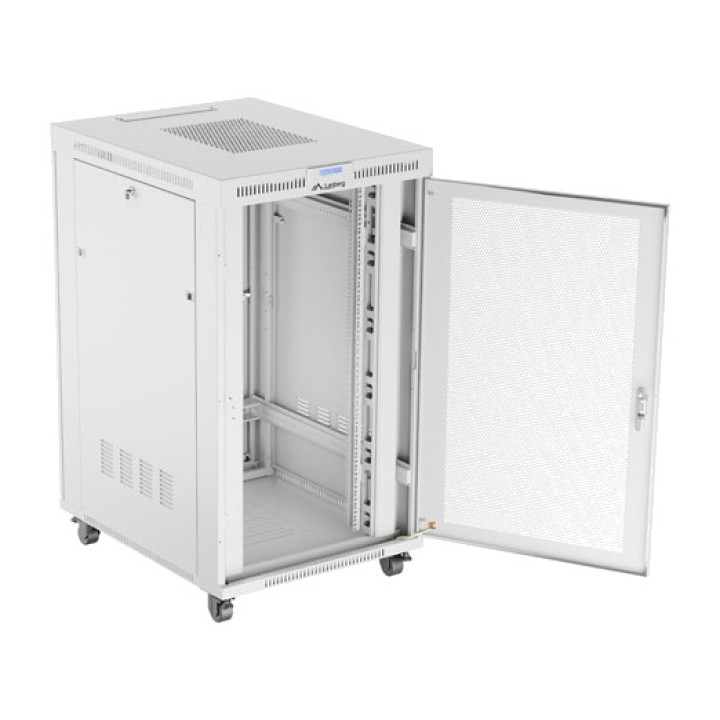

The front and rear doors are perforated, with a perforation rate of over 65%, promoting airflow around the installed devices. The single-leaf front door opens to a maximum angle of 215°, providing easier access to the interior during installation and maintenance.

Front door: perforated

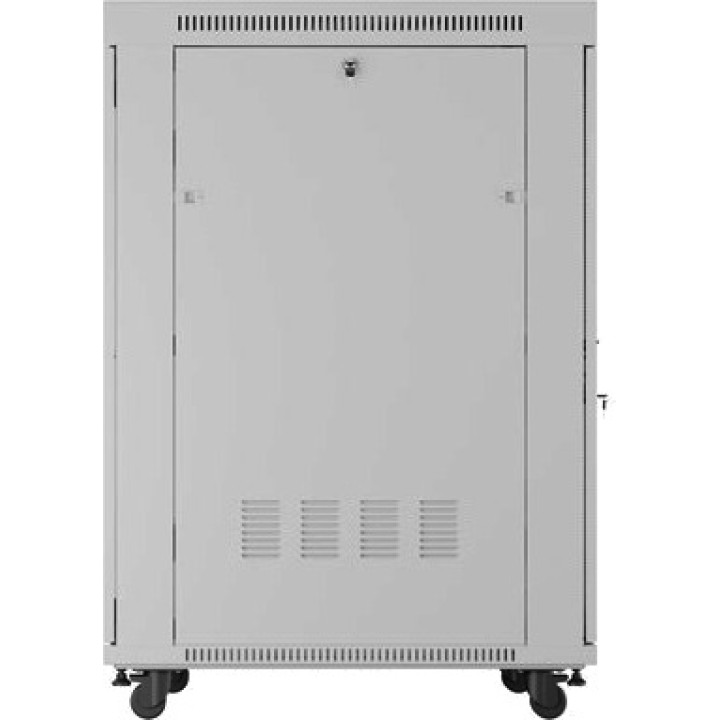

Rear door: perforated
Door type: single-panel
Perforation rate: > , 65 %
Maximum front door opening angle: 215°

Cooling with 6 fans and LCD panel
The cabinet includes a ventilation panel with 6 fans, a thermostat and an LCD panel, allowing more precise management of the interior thermal conditions. The system allows you to set the fan activation temperature, use a timer and manually control the fans’ on/off operation.

6 fan slots
Ventilation panel with 6 fans included
Integrated LCD panel
Thermostat included
Timer and manual fan control

Robust construction with a load capacity of up to 1200 kg
The FF01 series uses cold-rolled steel and a reinforced structure capable of supporting a maximum static load of 1200 kg. The different thicknesses used for the doors, frame, panels and mounting rails provide the strength required for professional installations with a large amount of equipment.

Maximum static load: 1200 kg
Front door thickness: 1,2 mm
Rear door thickness: 1,2 mm
Top and bottom panel thickness: 1,5 mm
Side panel thickness: 1,2 mm
Mounting rail thickness: 2 mm
Frame thickness: 1.5 mm
Thickness of other elements: 1.2 mm

Dimensions designed for high-capacity installations
With external dimensions of 800 mm wide, 1000 mm deep and 1461 mm high, this cabinet provides space to organise both the devices and their associated cabling. Its height without wheels is 1354 mm and the complete unit weighs 96 kg.

WIDTH: 800MM
Depth: 1000 mm
Height: 1461 mm
Height without wheels: 1354 mm
Weight: 96 kg
Gray RAL7035

Mobility and access for maintenance

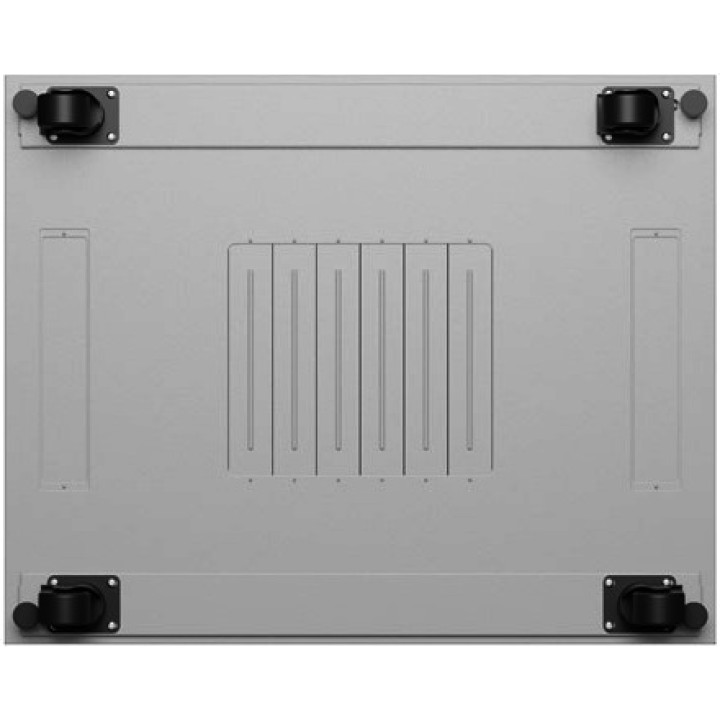

The cabinet includes lockable castors and feet, offering different placement options. The castors make it easy to move during installation or infrastructure reorganisation, while the front, rear and side locks help keep the equipment protected and organised.

Wheels with brakes included
Feet included
Front lock
Rear lock
Side locks

Cable management and earthing

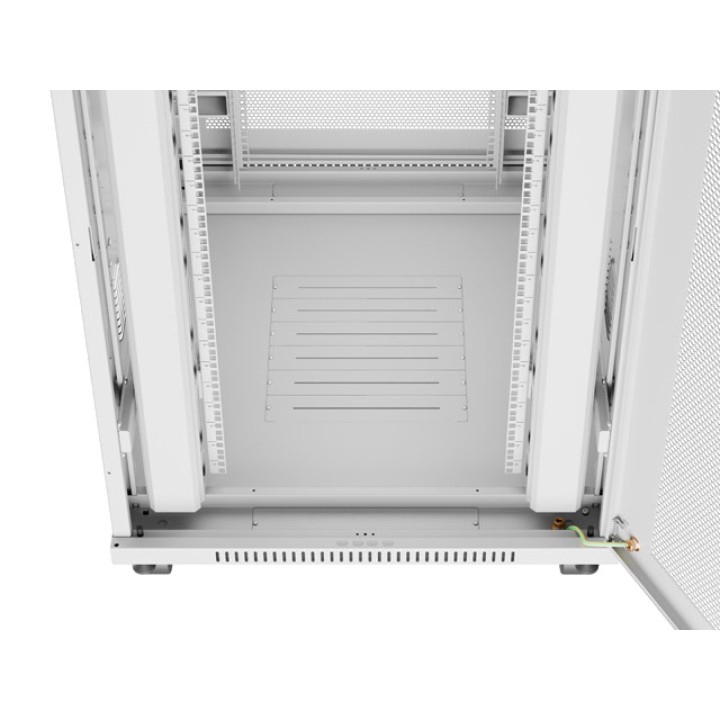

To facilitate an orderly installation, 2 vertical cable management panels are supplied. The earthing system comprises the frame, the main door and the rear door, and includes the corresponding earth cable to increase installation safety.

2 vertical cable management panels
Frame earthing
Main door grounding connection
Rear door grounding connection
Ground cable included

Flat Pack design for easy transport and assembly
The Lanberg FF01 is supplied in Flat Pack format for self-assembly, reducing the space required during transport and making it easier to handle before installation. The various components are supplied protected and ready for cabinet assembly at the installation site.

Assembly: self-assembly
Flat Pack packaging format
M6 screws included
Designed to facilitate transport before assembly

Compatible with rack accessories
The FF01 series can be complemented with accessories for organising and expanding a rack installation, including shelves, cable managers, brush panels, cooling solutions, patch panels, Keystone panels, PDU power strips and other compatible mounting components.

Compatible with different types of rack shelves
Supports cable managers and cable management accessories
Compatible with patch panels and Keystone panels
Can accommodate PDU power strips and additional cooling accessories

Protection and standards
The cabinet has an IP20 protection rating and has been designed in accordance with various standards applicable to rack installations, facilitating its integration into professional technology and communications infrastructures.

Protection rating: IP20
ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC297-2:1982

Included accessories
The set includes the main components required to complete assembly and prepare the cabinet for equipment installation, including ventilation, mobility, security, cabling and fastening components.

Ground wire
Front lock
Rear lock
Side locks
2 vertical cable management panels
Ventilation panel with 6 fans
Feet
Wheels with brakes
Thermostat
Screws M6

Other specifications
The Lanberg FF01-8027-23SL combines load capacity, active ventilation, LCD control and a 27U format designed to centralise ICT infrastructure in a single cabinet.

Manufacturer code: FF01-8027-23SL
Ean: 5901969441420
Warranty: 36 months
Gray
RAL colour: RAL7035
Volume (m ³): 0.5355
Volume (m ³): 0.3120
