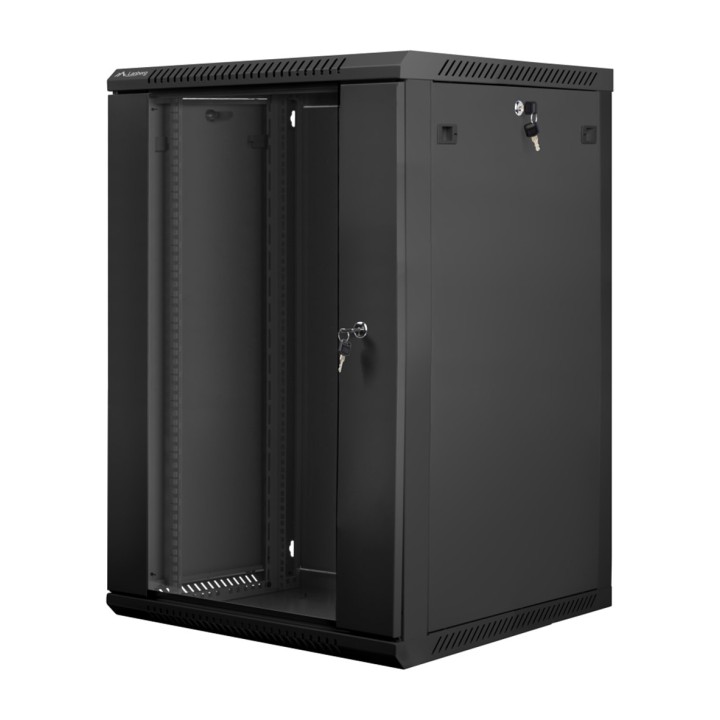

LANBERG Wall-mounted rack cabinet with glass door 19" 18U 600X600MM WF01-6618-10B DSP0000019364

Features of the Lanberg wall-mounted rack cabinet WF01-6618-10B 18U

Versatility and professional security. The Lanberg WF01-6618-10B wall-mounted rack stands out with its self-assembly, single-section structure, which streamlines the work of telecommunications technicians, electrical installers and IT systems managers. It supports up to 60 kg of static load and is compatible with standard 19" equipment and cabling, enabling impeccable management in technical rooms, small businesses, communications cabinets and critical IT environments.

Quick, adaptable installation. Thanks to its flat-pack, self-assembly design, transport and assembly are very straightforward, reducing deployment time even in locations with limited access. It includes all the necessary accessories: M6 screws, cage nuts, an earthing kit and rails, simplifying the professional’s work.

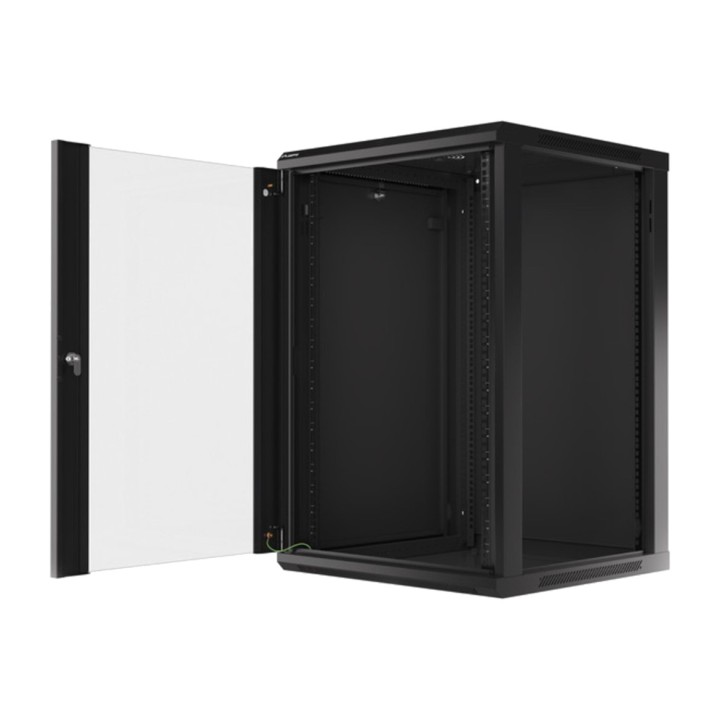

Enhanced protection and optimal accessibility. The 5 mm tempered-glass front door with 180° hinge and lock, removable side panels with locks and IP20 protection ensure physical security, easy access to the infrastructure and protection against dust or unauthorised tampering. Cable routing is optimised with entries at both the top and bottom, offering maximum flexibility for cable runs.

Cold-rolled steel construction. Its high-quality steel structure with black powder coating (RAL9004) ensures durability and electromechanical stability, and complies with international standards (ANSI/EIA RS-310-D, IEC297-2, ETSI and DIN). It can accommodate up to two 120 mm fans, facilitating heat dissipation and protecting the most sensitive equipment.

Trust the Lanberg WF01-6618-10B rack for your most demanding projects and take your communications infrastructure to the next level. Discover the solution that meets all your technical needs without compromising on robustness or accessibility.

Lanberg Wall-Mount Rack Specifications WF01-6618-10B 18U

Specification Details
Rack type Wall-mounted, single-section, self-assembly
Usable height (U) 18U
Maximum load capacity 60 kg static
Net weight 30 kg
Standard rack compatibility 19" (ANSI/EIA RS-310-D, IEC297-2, DIN41494, ETSI)
Material Cold-rolled steel, powder-coated RAL9004
Dimensions (W x D x H) 600 x 600 x 907 mm
Maximum usable depth 529,5 mm
Protection IP20 (5 mm tempered-glass front door with lock, removable side panels with locks)
Included accessories Grounding kit, M6 screws and nuts, locks, user guide
Number of vertical rails 4
Cable entries Top and bottom, removable panels

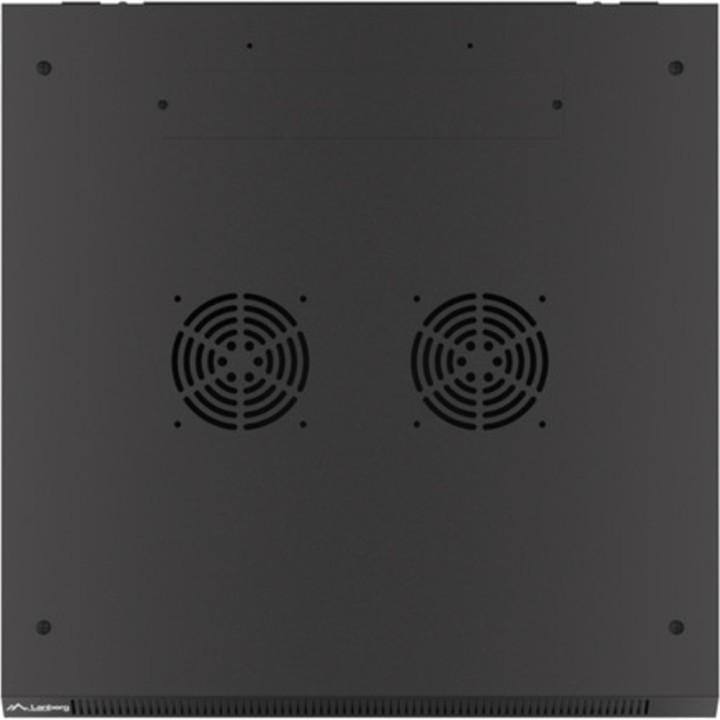

Fan-ready 2 slots for 120 mm fans (not included)
Color Black (RAL9004)
Volume (m ³): 0.1413
