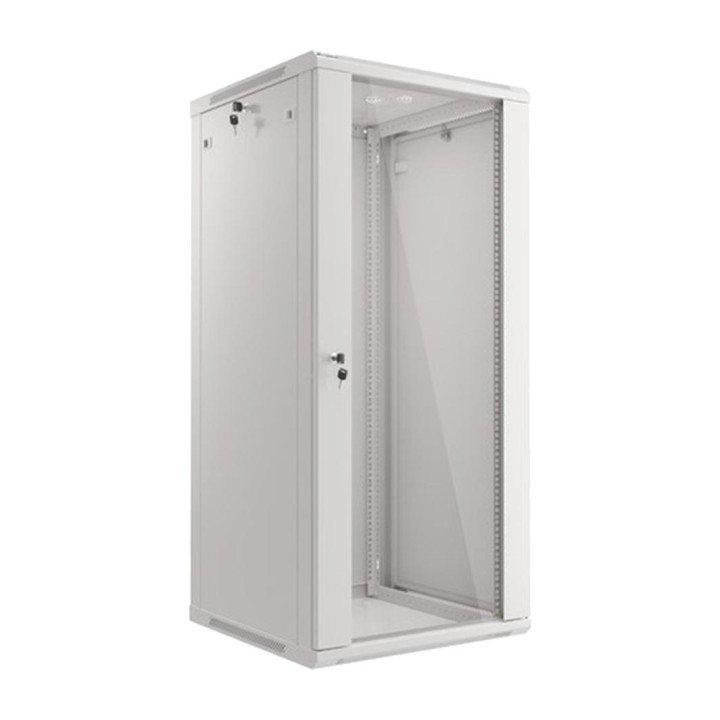

LANBERG Wall-mounted rack cabinet with glass door 19" 27U 600X600MM WF01-6627-10 DSP0000012864VAR

Features of the Lanberg WF01 27U 600x600 Grey 19" Wall-Mounted Rack Cabinet V2
The Lanberg WF01 19" 27U wall-mounted rack cabinet is designed to organise, install and protect network equipment and ICT infrastructure in both professional and home environments. Its cold-rolled steel structure, glass front door and load capacity of up to 60 kg provide a robust, functional solution for centralising servers, network devices, patch panels and other compatible components.

Format: 19" rack and 27U
Dimensions: 600 x 600 x 1307 mm
Mounting depth: 529,5 mm
Maximum static load: 60 kg
Gray RAL7035
Protection rating: IP20

Robust cold-rolled steel construction
The Lanberg WF01 series features a sturdy structure made of cold-rolled steel, providing the stability required to house network infrastructure equipment. Its various components have thicknesses suited to their function, including 1.5 mm mounting rails and 1.2 mm top and bottom panels.

Mounting rail thickness: 1,5 mm
Frame thickness: 1.2 mm
Thickness of the top and bottom panels: 1,2 mm
Side panel thickness: 1 mm
Thickness of other elements: 1.2 mm

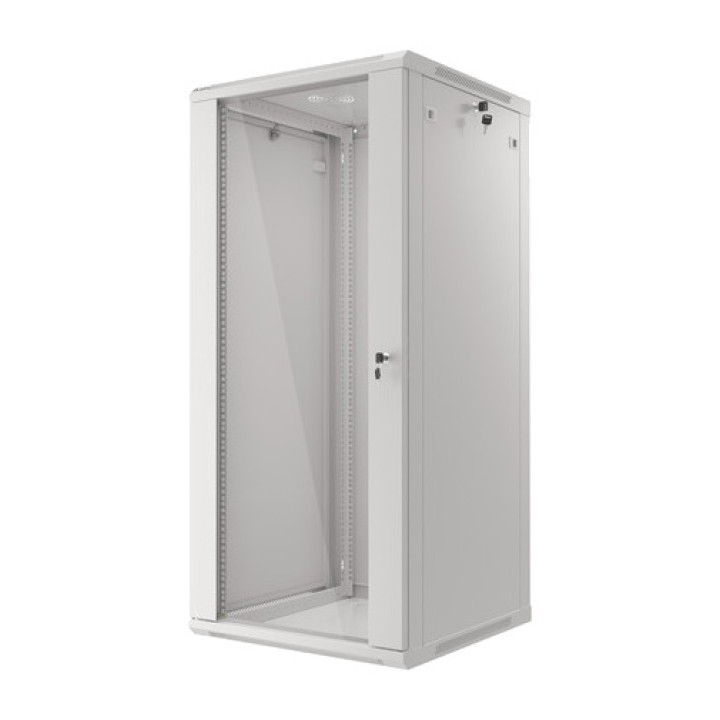

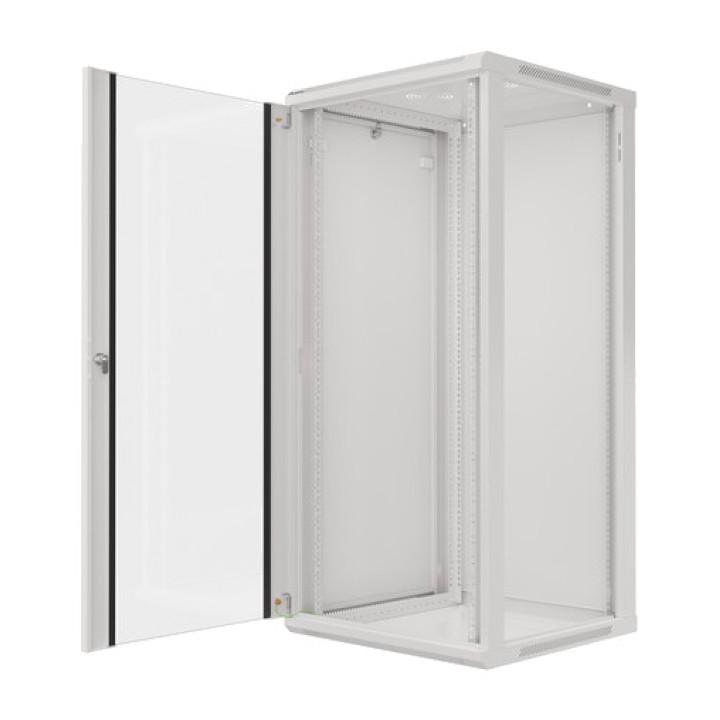

Glass front door and protected access
The cabinet features a single-leaf glass front door, which allows the installed equipment to be viewed while keeping it protected. The front door is 5 mm thick and includes a front lock, while the side panels have their own locks.

Glass front door
Single-leaf design
Front door thickness: 5 mm
Rear door thickness: 1 mm
Front lock and side locks included

Flat Pack format for easy transport and assembly
This model is supplied in Flat Pack format for self-assembly, a configuration that makes it easier to transport by taking up less space before installation. Lanberg includes the components required for assembly and provides instructions to guide the installation process.

Cabinet supplied disassembled
Assembly hardware set included
Mounting bracket included
M6 screws included
Operating instructions included

Cooling and airflow management

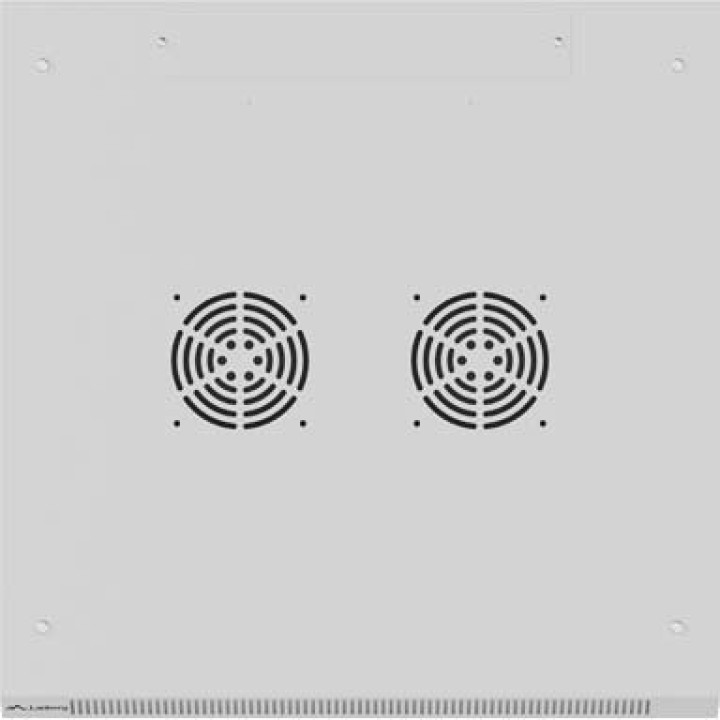

To promote suitable conditions inside, the cabinet has two spaces for installing fans in the top section. This configuration helps improve airflow and allows the cooling to be adapted to the needs of the installed equipment.

Number of fan slots : 2
Ready for cooling expansion
Thermostat: not included
LCD panel: not included

Flexible equipment organisation

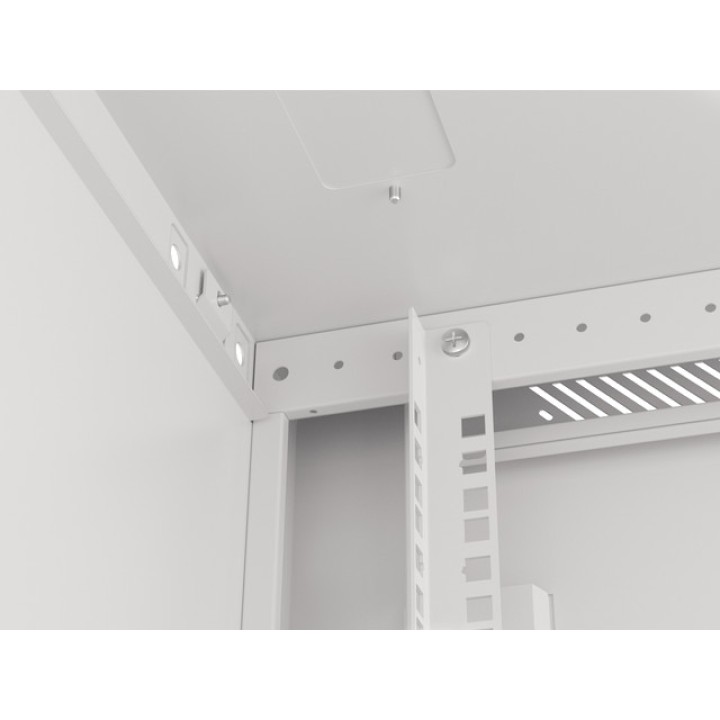

Its four vertical rails and standard 19" format make it easy to arrange equipment within the 27U available. The Lanberg range can be complemented with compatible accessories such as shelves, cable managers, patch panels, keystone panels, PDU power strips or cooling solutions.

Usable height: 27U
Number of vertical rails : 4
Mounting depth: 529,5 mm
Compatible with accessories for organization, cabling and cooling in the range

Grounding and compatible standards
The Lanberg WF01 has grounding points on the bottom panel and front door, and includes the corresponding grounding cable. Its design complies with various standards used in rack installations, making it easy to integrate into compatible ICT infrastructures.

Ground connection: bottom panel and front door
Ground cable included
ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC297-2:1982

Dimensions and other specifications
With external dimensions of 600 mm wide, 600 mm deep and 1307 mm high, this cabinet provides space for installations of up to 27U. Its RAL7035 grey finish gives it a neutral, professional appearance for technical rooms, offices and other network installations.

Cabinet type: wall-mounted
Size: 19"
HEIGHT: 27U
WIDTH: 600 MM
Depth: 600 mm
External height: 1307 mm
Weight: 41 kg
Gray
RAL colour: RAL7035
Protection rating: IP20
Included accessories: earth cable, front lock, side locks, assembly hardware set, operating instructions, mounting bracket and M6 screws
Volume (m ³): 0.1663
Volume (m ³): 0.1774
