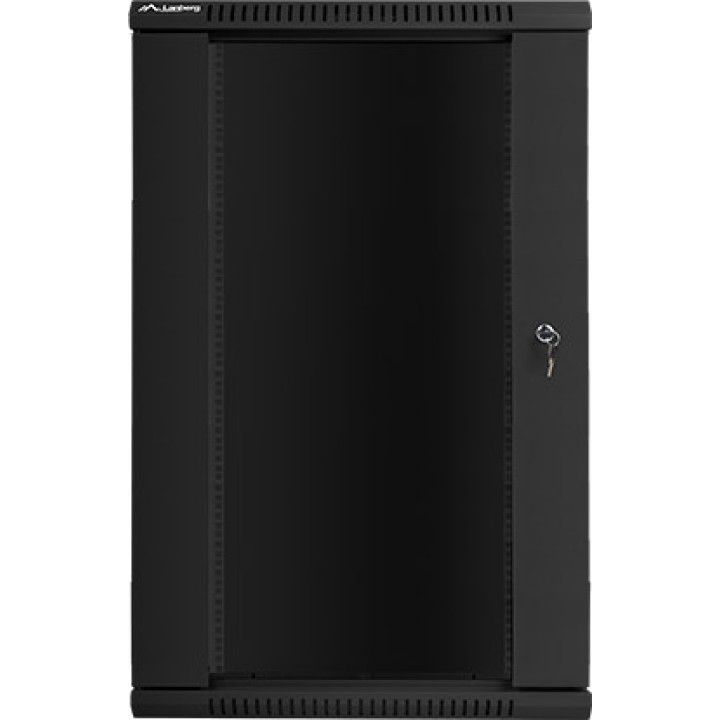

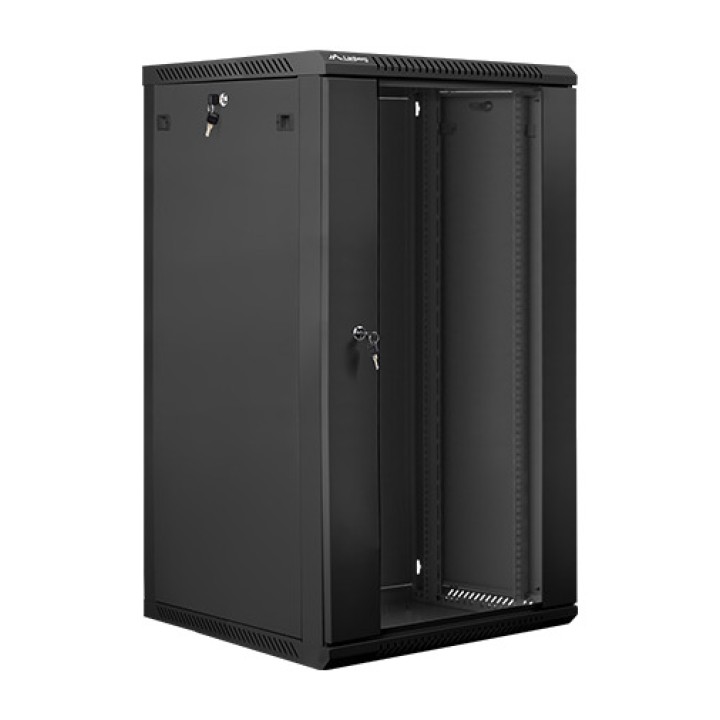

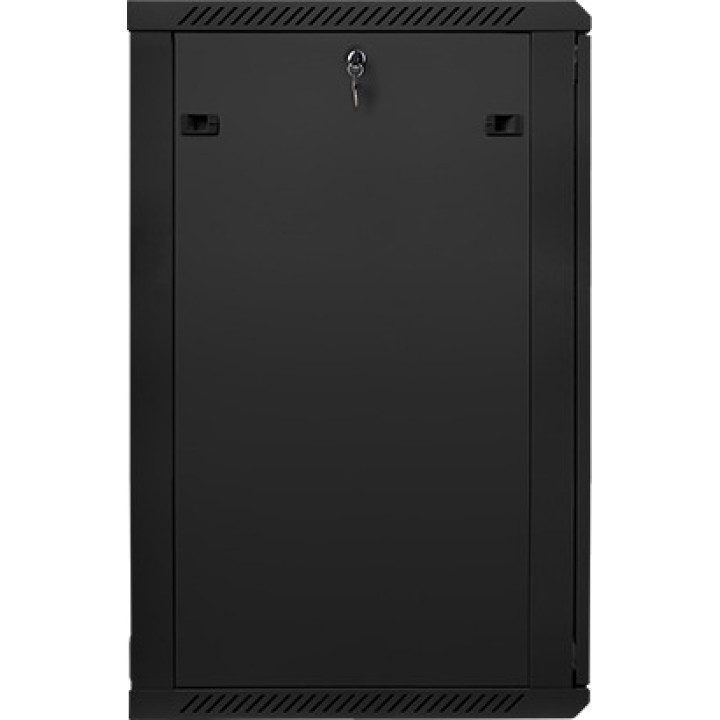

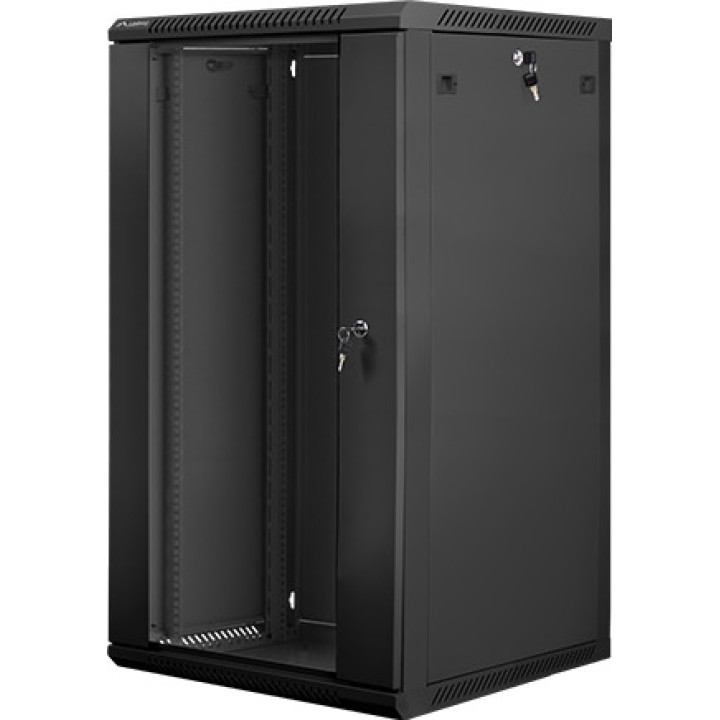

LANBERG Wall-mounted rack cabinet with glass door 19" 22U 600X600MM WF01-6622-10B DSP0000002743

Features of the Lanberg 22U 600x600 mm Rack Cabinet WF01-6622-10B
The Lanberg WF01-6622-10B 22U wall-mounted rack cabinet is designed for installing and protecting network, telecommunications and IT equipment in professional environments. Its structure, made from high-quality cold-rolled steel, together with its tempered glass front door, provides a balanced combination of strength, security and ease of monitoring the installed equipment. With a load capacity of up to 60 kg, it is an efficient solution for small- and medium-scale installations.
22U wall-mounted design for professional installations
This wall-mounted rack cabinet offers a compact, functional format for housing servers, switches, patch panels and other devices compatible with 19" rack standards. Its design optimises the available space while maintaining efficient organisation of the cabling and equipment.

22U rack format for wall mounting.
Cabinet dimensions: 600 x 600 x 1085 mm.
COLOR BLACK RAL9004.
Compatible with rack equipment of 19".
Maximum load capacity of 60 kg.

Robust structure and quality materials
The cold-rolled steel construction with powder coating ensures high mechanical strength and a long service life. It also features a 5 mm tempered glass front door, providing protection and visibility of the installed equipment.

High-quality cold-rolled steel.
Protective powder coating.
Front door with 5 mm tempered glass.
Vertical mounting rails with a thickness of 1.50 mm.
Top, bottom and side panels: 1.00 mm.

Efficient cable management and ventilation
The cabinet is designed to facilitate cable management and improve air circulation. It has cable entries at both the top and bottom, as well as slots for installing fans to help maintain a suitable temperature inside.

Cable entries in the top and bottom panels.
Slots for 120 mm fans.
Compatible with 110 V fans or 230 V.
Design focused on improved cable management.

Security and accessibility
To protect the installed equipment, it features a lock on the front door and removable side panels with locks. It also includes the accessories needed to make installation easy from the outset.

Lock on the front door.
Two side panels with locks.
Grounding kit included.
Accessory bag included.
10 M6 cage nuts included.

Compatibility with international standards
The WF01-6622-10B model complies with various recognised industry standards, ensuring compatibility with a wide range of rack equipment and accessories used in professional installations.

ANSI / EIA RS-310-D.
IEC297-2.
DIN41494 Part 1 and Part 7.
ETSI.
Protection rating IP20.

Other specifications

MAKER: Lanberg.
Manufacturer code: WF01-6622-10B.
Usable height: 22U.
Height between top and bottom panels: 1078 mm.
Overall height including screws: 1085 mm.
Packaging dimensions: 62 x 120 x 18 cm.
Internal width between rails: 450 mm.
Width between rail holes: 475 mm.
External width between rails: 500 mm.
Volume (m ³): 0.1318
