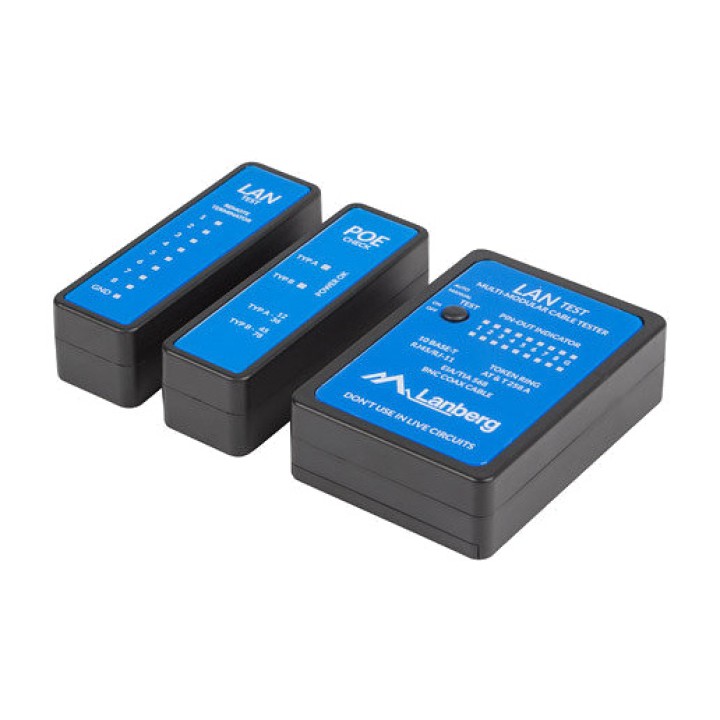

LANBERG Tester for network and coaxial cables with PoE detector RJ45 RJ12 RJ11 NT-0404 DSP0000001349

The Lan tester can easily read the correct pin configuration of 10Base-
T cable, 10Base-2 cable, RJ45 / RJ11 modular cables, 258A cable, TIA-568A / 568B and
Token Ring cable, etc., by comparing one transmitting end with the corresponding receiving end.
With the remote kit, you can test a cable installed at a distance, either at the wall plate
or at the patch panel. It is easy to check cable continuity, open circuit, short circuit and
crossed.

SPECIFICATION
- Test the correct pin configuration of 10Base-T Ethernet cable, 10Base-2, RJ45 / RJ11 modular cables,
258A, TIA 568A / 568B and Token Ring cable, etc.
- Easily read cable status and check cable continuity, open circuit, short circuit and
incorrect wiring.
- With the remote kit, you can test the cable remotely at the wall plate or patch panel
connection.
- Tests grounding
- With automatic or manual scanning
- Operates on a 9-volt block battery (not included)

package contents
- 1 x Main test unit
- 1 x remote unit
- 2 x BNC adapter cables
- 1 x BNC male-to-male adapter
- 3 x RJ45 to adapters RJ11
- 1 x user manual

connectors BNC, RJ-11, RJ-45
Operation signal LED
Weight 140 g
Black, blue color
Number of ports POE 1
weight 0.14kg
PoE PoE power supply type
Network tool type
Power requirements 9V
Volume (m ³): 0.0009
