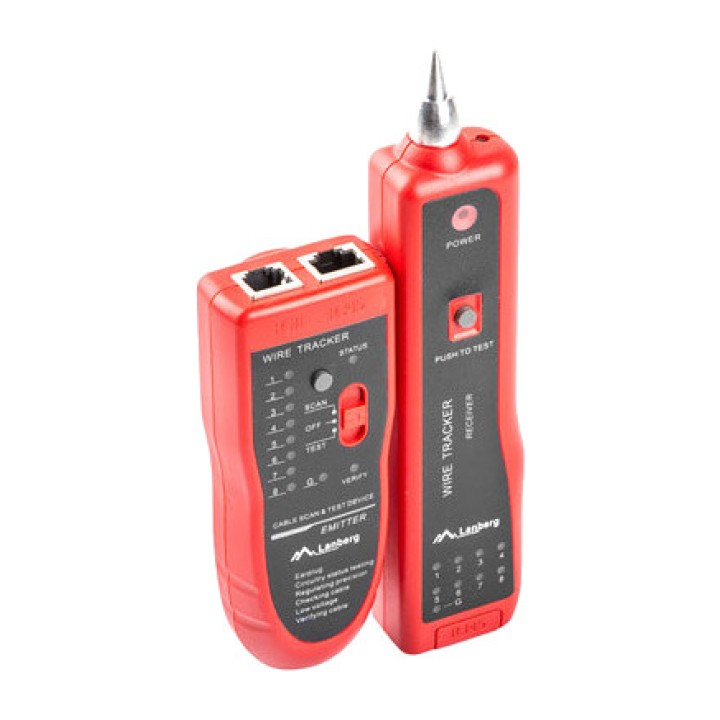

LANBERG Tracker and pair tester for Ethernet or coaxial cable RJ45 RJ12 RJ11 NT-0501 DSP0000001343

Features of the Lanberg Cable Tester NT-0501
The Lanberg NT-0501 is a multifunction tester designed to scan, locate and check ICT network cables. It is a highly practical tool for installers, telecommunications technicians and network professionals, as it allows them to check cable continuity, identify pairs and detect problems such as short circuits, open circuits or incorrect connections. It helps save time when working on LAN installations, server rooms, low-voltage networks and surveillance or access control systems.
Cable testing and locating
This tester can locate cables, identify pairs and check the overall condition of an installation. It is particularly useful for working with data networks, low-voltage electrical wiring and environments where a specific connection needs to be located quickly.

Locates cables within an installation
Identifies and checks cable pairs
Checks the overall condition of the cabling
Suitable for LAN installations, telecommunications and ICT networks

Detection of cabling faults
The Lanberg NT-0501 helps detect common faults in network installations, such as short circuits, open circuits or incorrect pairings. This function makes it easier for technicians to diagnose connection faults and work directly on the affected point.

Cable continuity test
Short-circuit detection
Open-circuit test
Verification of incorrect connections between pairs

Compatible with multiple work environments
This tester can be used at various points in a network, such as switches, routers, computers, patch panels, surface-mount boxes and wall outlets. It is also suitable for low-voltage installations, including cable TV networks, fire alarms, access control, IP surveillance and CCTV systems.

For use with switches, routers and PCs
Compatible with patch panels and surface-mount boxes
Suitable for plugs and wall outlets
Suitable for cable TV, CCTV, IP surveillance and access control networks

Built-in functions for installers
The device features several functions designed to make installers’ daily work easier. In addition to cable testing, it allows automatic and fast scanning, DC level testing, cable comparison and use with an earpiece. It also includes volume adjustment and a flashlight function, which are very useful in communications cabinets or poorly lit areas.

Automatic and fast scanning
DC level test
Cable locating and comparison test
Earpiece function
Volume adjustment
Flashlight function

Transmitter and receiver included
The Lanberg NT-0501 consists of a transmitter and receiver, allowing remote cable locating and signal verification. Its multi-frequency pulse transmission format and maximum transmission distance of over 250 m make it suitable for installations of various sizes.

Transmitter and receiver included
Signal transmission format: multi-frequency pulse
Signal output electrical level: 8 Vp-p
Maximum signal transmission distance: over 250 m

Included accessories
The tester is supplied with several accessories that allow you to start working with different types of cabling. It includes RJ-11 and RJ-45 cables, a cable with an alligator clip and headphones, providing a complete solution for installation, maintenance and diagnostic tasks.

RJ-11 telephone cable included
RJ-45 Ethernet cable included
Cable with alligator clip included
Headphones included
Battery listed among the accessories

Power supply and consumption
The device is powered by a 9 V battery. Its low power consumption makes it suitable as a portable tool for field work, communications rooms or installations where a power outlet is not always available nearby.

Power supply: battery 9 V
9 V battery not included as specified
Maximum operating current of the transmitter: <,10 mA
Maximum operating current of the receiver: <,30 mA
Operation signal LED

Compact and portable design
With its lightweight, compact design, the Lanberg NT-0501 tester is convenient to carry and use during installation. Its black and red colors make it easy to identify in a technician’s tool kit.

Color: Black and red
Transmitter dimensions: 126 x 49 x 34 mm
Transmitter net weight: 60 g
Receiver dimensions: 175 x 42 x 27 mm
Receiver net weight: 72 g

Other specifications

Model: Lanberg NT-0501
Product type: network tool
Main use: cable testing, locating and verification
CE standards compliant
Specified weight: 72 g
Applications: telecommunications, internet cafés, engineering companies, Internet networks, low-voltage electrical networks and server rooms
Volume (m ³): 0.0020
