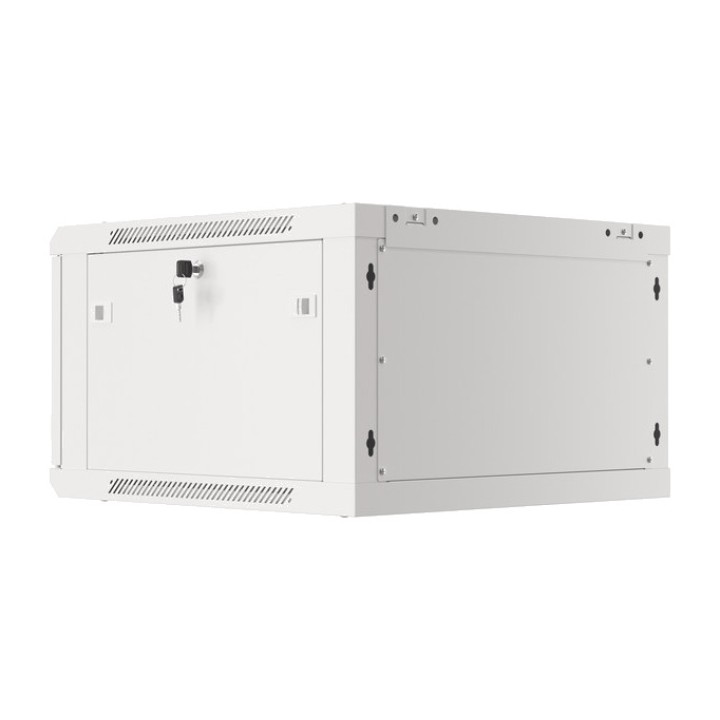

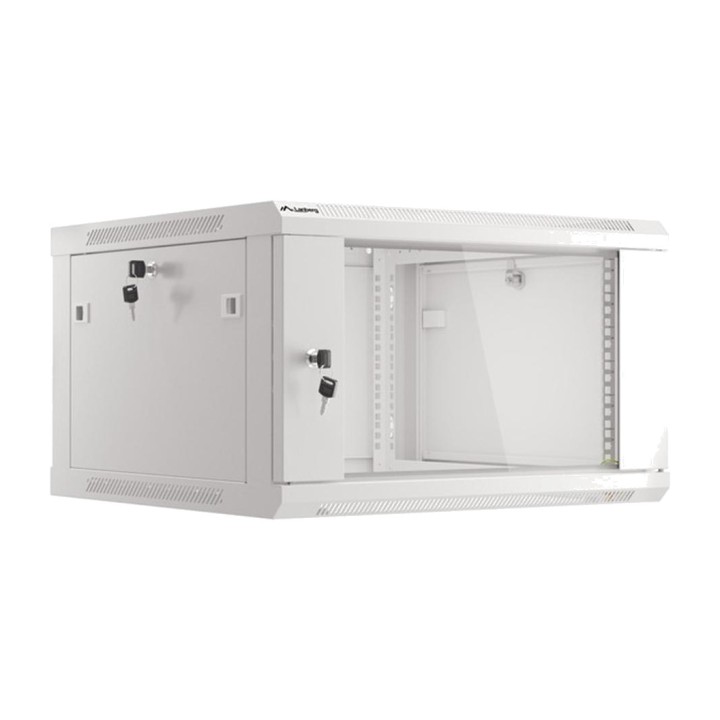

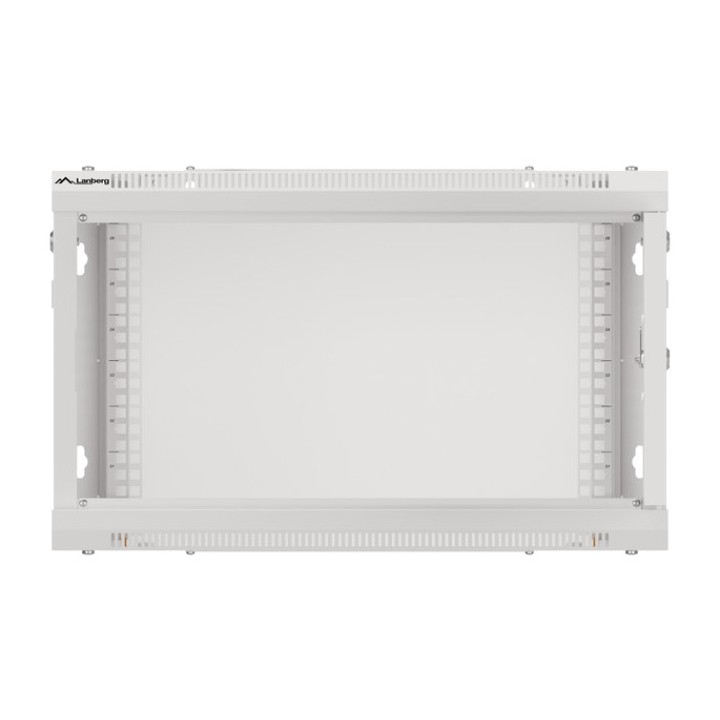

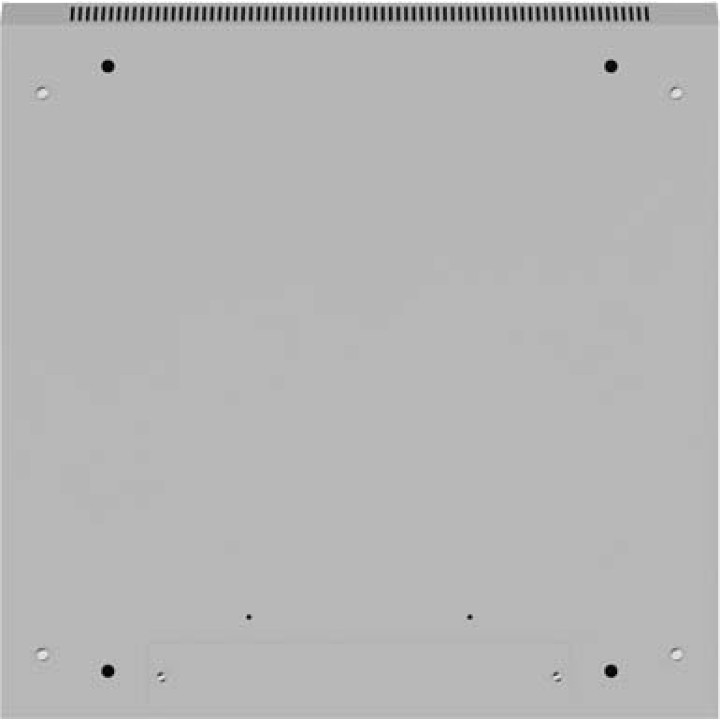

LANBERG Wall-mounted rack cabinet with glass door 19" 6U 600X600MM WF01-6606-10 DSP0000001327VAR

Features of the Lanberg WF01 6U 600x600 Grey 19" Wall-Mount Rack Cabinet V2
The Lanberg WF01-6606-10S wall-mount rack cabinet is designed to house and organise network and telecommunications equipment in professional, business or home installations. Its standard 19" format, 6U capacity and 600 x 600 mm dimensions provide a compact, organised infrastructure, while its robust construction and glass front door protect the installed equipment and make it easy to monitor.
19" wall-mount format and capacity of 6U
This model is designed for wall installation, offering a practical alternative when network equipment needs to be organised without using a floor-standing cabinet. It has 4 vertical mounting rails and a mounting depth of 529.5 mm to facilitate the installation of compatible devices.

Cabinet type: wall-mounted
FORMAT: 19"
Usable height: 6U
Mounting depth: 529,5 mm
Number of vertical rails : 4
Maximum static load: 60 kg

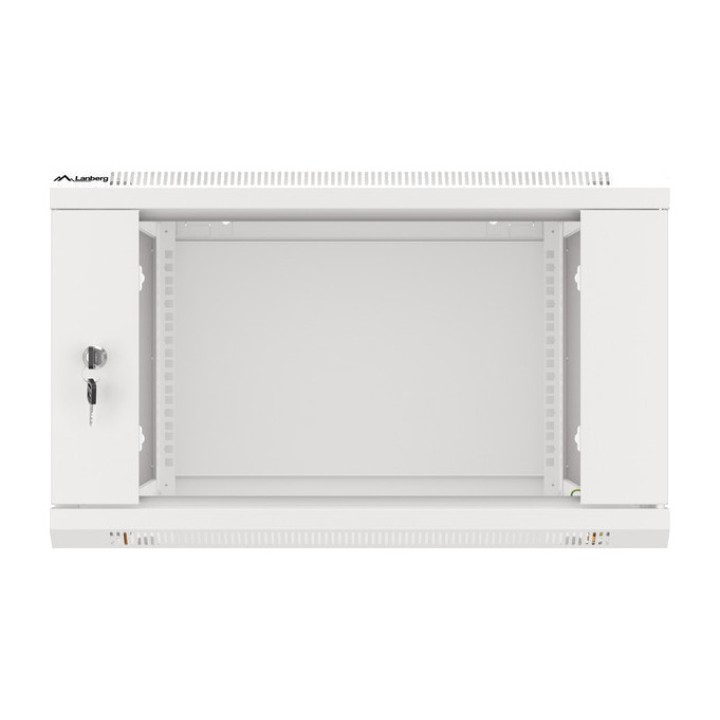

Robust construction and glass front door
The Lanberg WF01 series uses cold-rolled steel to create a sturdy structure suitable for protecting the installed devices. It features a single-panel glass front door, allowing the equipment inside to be visually checked without opening the cabinet.

Front door: 5 mm glass
Door type: single-panel
Frame thickness: 1,2 mm
Mounting rail thickness: 1,5 mm
Thickness of the top and bottom panels: 1,2 mm
Side panel thickness: 1 mm
Rear door thickness: 1 mm
Thickness of other elements: 1.2 mm

Ventilation designed to protect the equipment

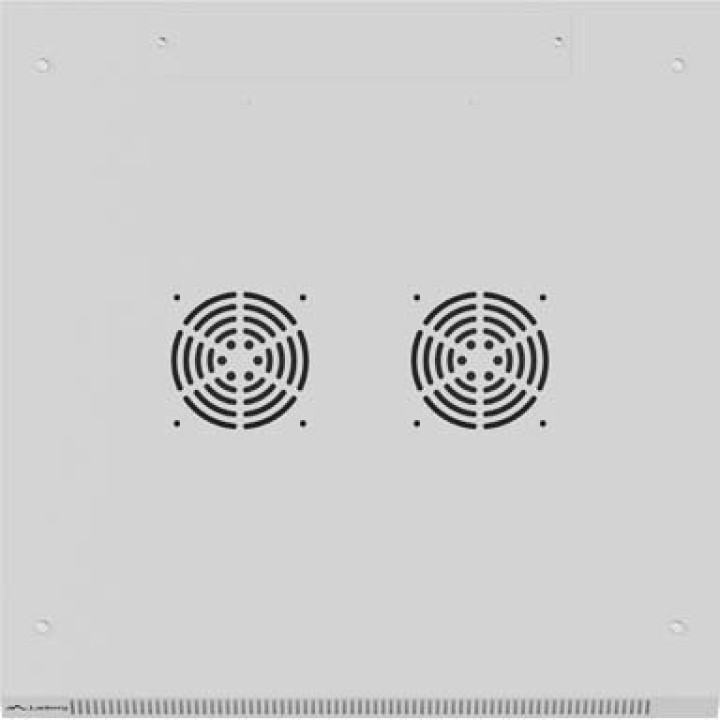

To ensure suitable operating conditions, the cabinet has 2 fan spaces in the top panel. This configuration facilitates airflow and allows cooling accessories to be added when required by the equipment.

Number of fan spaces : 2
Integrated thermostat: no
LCD panel: no
Protection rating: IP20

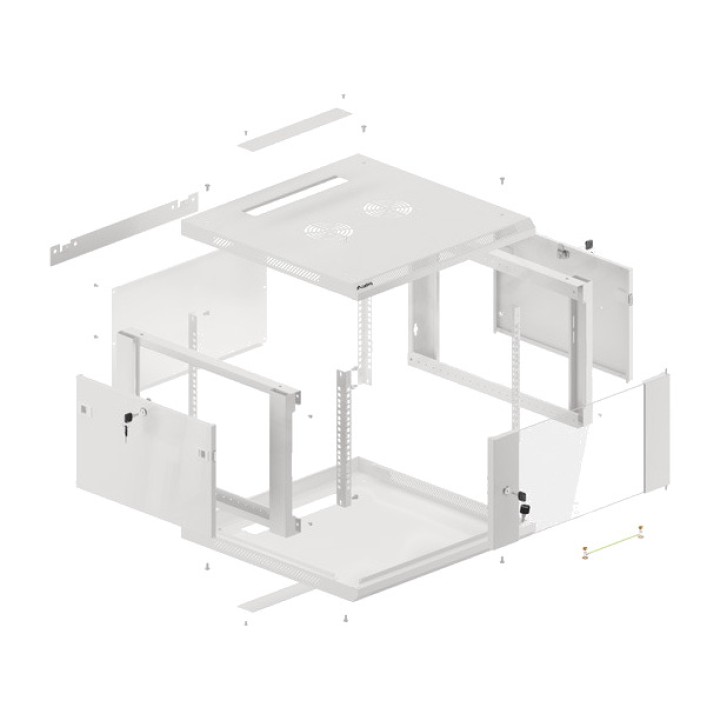

Flat Pack design for easy transport and assembly
The cabinet is supplied in Flat Pack format for self-assembly, reducing the space required during transport. It includes the components needed for assembly and assembly instructions to help prepare the rack before installing the equipment.

Mounting type: for assembly
Mounting bracket included
Assembly hardware set included
M6 screws included
Operating instructions included

Security, access and grounding
To help keep the equipment protected, the cabinet features a front lock and side latches. It also has grounding points on the bottom panel and the main door, and includes the corresponding ground cable.

Front lock included
Side latches included
Ground cable included
Ground connection: bottom panel and front door

Dimensions and finish
With external dimensions of 600 mm wide, 600 mm deep and 379 mm high, this cabinet offers a compact format for wall-mounted installations. It features a grey RAL7035 finish, suitable for network, telecommunications and technical installation environments.

WIDTH: 600 MM
Depth: 600 mm
Height: 379 mm
Weight: 18kg
Gray
RAL colour: RAL7035

Compatibility with Rack accessories
The Lanberg range allows the cabinet to be complemented with various accessories for organisation, mounting, power supply and cooling. This enables the installation to be adapted to the specific equipment requirements and helps ensure an orderly layout of cabling and devices.

Compatible with shelves and cable organisers suitable for the cabinet
Can be used with compatible brush panels, patch panels and keystone panels
Compatible with cooling accessories suitable for the model
Compatible PDU power strips can be added

Standards and other specifications
The Lanberg WF01-6606-10S has been developed in accordance with various standards applicable to rack systems, offering a solution designed to integrate network infrastructure compatible with the 19" format.

Manufacturer code: WF01-6606-10S
Ean: 5901969403084
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Volume (m ³): 0.1024
Volume (m ³): 0.1036
