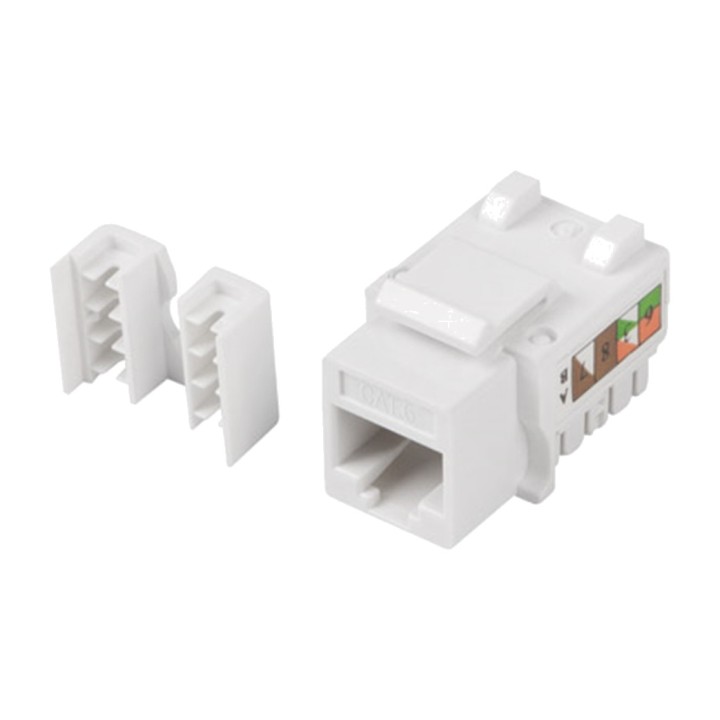

LANBERG Punch-down female keystone connector RJ45 CAT.6 UTP 90º KSU6-1090 DSP0000001297

Features of the Lanberg Cat Keystone .6 UTP RJ45
The Lanberg Cat.6 UTP RJ45 keystone is a connection module designed for structured cabling installations in data networks. Thanks to its standard format and dimensions of 16,10 x 14,50 mm, it can be mounted in compatible adapters, modular panels, electrical accessory frames or 45 x 45 installation solutions. It is a practical option for creating neat, secure network points ready for Cat.6 connections.
Cat.6 RJ45 connection for structured networks
This keystone module is designed for use with Cat.6 category cabling, providing a suitable connection for network installations in offices, shops, homes or communications cabinets. Its external 8P/8C female RJ45 connector makes it easy to connect network patch cables neatly.

ICT category: Cat.6
External connector: 1 x female RJ45 8P/8C
Connector type: RJ-45
Designed for structured cabling installations

Versatile mounting in adapters and panels
The keystone can be installed in any adapter with connectors compatible with its dimensions. This allows it to be integrated into adapters for 45 x 45 sockets, electrical equipment frames or modular panels, expanding its range of uses in different installation environments.

Trapezoidal port width: 14,5 mm
Trapezoidal port height: 16,1 mm
Compatible with 45 x 45 mm adapters
Suitable for modular panels and electrical accessory frames

LSA internal termination compatible with a tool
On the inside, the module features an LSA connection, making it easy to insert and secure the cable using a compatible tool. Its universal slotted joints allow precise installation, helping maintain a firm and orderly connection within the network system.

Internal connector: LSA
Connectors: LSA and RJ-45
Universal slotted joints compatible with LSA tool
IDC connector cap included

Compatible with 568A and sequences 568B
The keystone includes a colour-coded 568A / 568B connection sequence designation, allowing wiring to be carried out according to the required scheme for each installation. This compatibility makes the installer's work easier and helps maintain consistency with the network standard used.

Compatible with sequence 568A
Compatible with sequence 568B
Colour coding for easy connection
Suitable for stranded or solid cable

Unshielded UTP design
This module is an unshielded UTP type, a common configuration in many network installations where additional shielding is not required. Its PCBA printed circuit board construction contributes to a stable, orderly connection within the keystone itself.

Wiring type: unshielded UTP
Manufactured using a PCBA printed circuit board
Product colour: White
Module type: keystone

Wiring and standards compatibility
The Lanberg keystone meets Cat.6 requirements and reference standards for structured cabling, making it suitable for professional installations that need to maintain compatibility and organisation criteria. It is designed for stranded or solid cable with gauges from 22 to 26 AWG.

Meets Cat requirements .6
Compatible standards : EIA/TIA 568
Compatible standards : EN 50173
Compatible standards : ISO/IEC 11801
Compatible with stranded or solid cable
Compatible with cabling up to 0,644 mm
Compatible gauge : 22 - 26 AWG

PoE support for network installations
The module offers PoE support in the keystone up to 36 V, allowing it to be used in installations where power is supplied through the network cable itself to compatible devices, such as access points, IP cameras or other low-voltage equipment.

PoE support in keystone: up to 36 V
Suitable for networks with devices compatible with Power over Ethernet
Practical solution for data and low-voltage installations

Other specifications

Brand: Lanberg
Product: Cat keystone .6 UTP RJ45
External connector: RJ45 female 8P/8C
Internal connector: LSA
Category: Cat.6
Shielding: unshielded UTP
WHITE COLOR
Trapezoidal port width: 14,5 mm
Trapezoidal port height: 16,1 mm
Connection sequences: 568A and 568B
Cable compatibility: stranded, solid , 22 - 26 AWG
PoE support: up to 36 V
Volume (m ³): 0.0000
