LANBERG Network and coaxial cable tester RJ45 RJ12 RJ11 UTP FTP SFTP NT-0401 DSP0000001146

Lanberg’s network cable tester is a multifunctional device for
testing ICT network cables. The device is an indispensable tool
for all installers and significantly helps save time when
checking network cable pairs. The product’s main application
is measuring LAN cable continuity and checking connections, along
with detecting potential wiring problems, such as short circuits or
incorrect cable pairings.

With this tool, you can test telephone cable connections
terminated with an RJ-11 connector, and UTP, FTP, SFTP twisted-pair cable terminated with

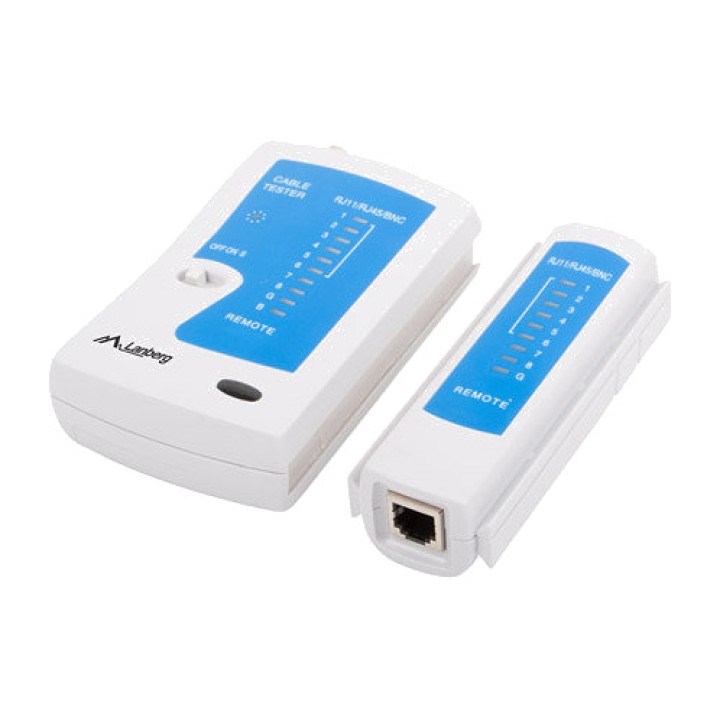

RJ-45 plugs, or cables terminated with a coaxial connector. This particular device
consists of two parts, each of which must be properly attached
to the ends of the cable being tested:

- Cable tester equipped with RJ-45, RJ-12 / RJ-11 and coaxial connector LEDs, with a power switch.
connectors with a power switch.
- Terminator (accessory) equipped with RJ-45 connector LEDs and RJ-12 / RJ-11.

The tester checks each wire individually (using two different speed modes)
and checks that the shield is correctly connected to the modular plug when
testing FTP (shielded) cable.

Using this particular device, users can successfully locate cables in
most types of compatible terminals, such as network switches,
routers, PCs, patch panels, surface-mount boxes, sockets,
etc. In addition, Lanberg’s cable tester has many features
practices such as:

- Automatic validation of connections in RJ-45 cables and RJ-11.
- Slow test option.
- Measurement and monitoring of signals using 9 LED.
- Two different speed modes (automatic scanning) with the option to
set the normal or slow speed.

The tool can be used in telecoms, internet cafés, engineering companies,
Internet and electrical networks or server rooms, located in both small and
large companies or corporations. The Lanberg cable tester
also works well in low-voltage installations, such as cable television networks,
fire alarms, access control or IP surveillance systems
and CCTV. In addition, the product allows its users to perform the following
testing:

- Detection of incorrect connections.
- Detection of short circuits and breaks in wiring.
- Detection of cable pair connections.
- Detection of cable pair reversals.

Specification:

- Power supply: 9V battery (not included).
- Current: 2.5 mA.
- Maximum current: 20 mA.
- Max. signal transmission distance: >, 250 m.
- Complies with CE standards.
- Overall dimensions (L x W x H): 28 mm x 102 mm x 105 mm.
- Net weight: 100g.

28mm length
Width 102 mm
Height 105 mm
connectors RJ-45
Power supply Battery 9V
Operation signal LED
Weight 100 g
Color white, blue
Network tool type
Volume (m ³): 0.0006
