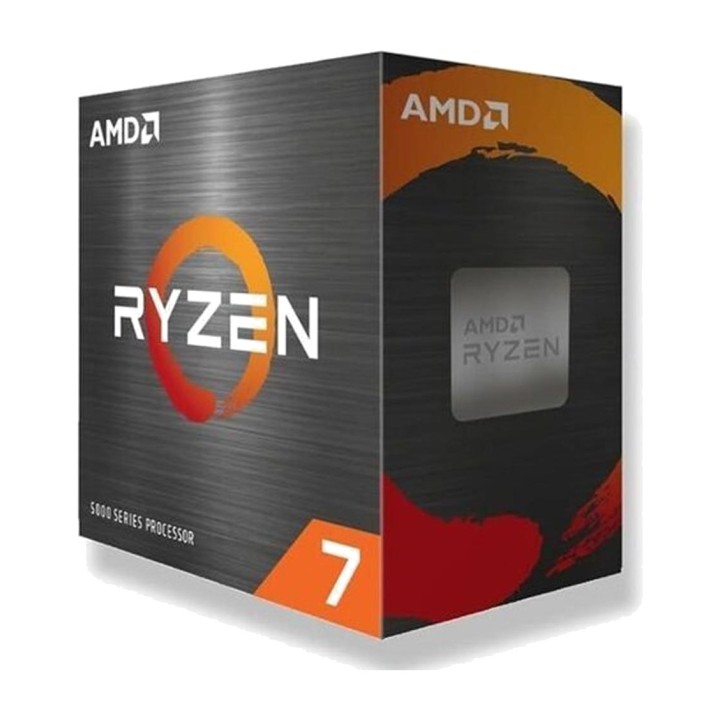

AMD Desktop processor without heatsink RYZEN 7 5800XT AM4 BOX DSP0000043146

Features of the AMD Ryzen 7 5800XT 4.80 GHz 8-Core Socket Processor AM4
The AMD Ryzen 7 5800XT is a high-performance desktop processor designed to deliver excellent responsiveness in gaming, multitasking and demanding applications. Part of the AMD Ryzen 5000 series, it features 8 cores and 16 threads, a base frequency of 3.80 GHz and a maximum speed of up to 4.80 GHz. Its 7 nm manufacturing process and AM4 socket compatibility make it an interesting option for building or upgrading high-performance systems.
Processing power with 8 cores and 16 threads
Thanks to its 8 processing cores and 16 threads, the Ryzen 7 5800XT can efficiently run multiple tasks, from demanding video games to multimedia editing and professional applications. Its 3.80 GHz base frequency can reach up to 4.80 GHz through automatic boosting, delivering dynamic performance adapted to the system's needs.

Cores: 8 (Octa-Core).
Processing threads: 16.
Base frequency: 3.80 GHz.
Maximum boost frequency: up to 4.80 GHz.
Processing architecture: 64-bit.

36 MB cache memory for faster response
The processor features 36 MB of combined L2 and L3 cache memory, which helps reduce access times for frequently used data. This capacity improves system responsiveness in tasks requiring intensive processing, such as video games, productivity applications and working with several programs simultaneously.

Air Filter L1: 512 KB.
Air Filter L2: 4 MB.
Air Filter L3: 32 MB.
Combined cache L2 + L3: 36 MB.

7 nm manufacturing and optimized performance
Developed using a 7 nm manufacturing process, the AMD Ryzen 7 5800XT combines high processing capacity with power management suited to high-performance desktop systems. Its thermal design power of 105 W requires an appropriate cooling solution to maintain stable operating conditions.

Manufacturing technology: 7 nm.
Thermal design power (TDP): 105 W.
Specified maximum temperature : 90 °C.

DDR4 memory support up to 128 GB
The Ryzen 7 5800XT supports DDR4 SDRAM memory up to 3200 MHz, providing a platform ready for high-capacity memory configurations. It supports up to 128 GB of RAM, allowing systems to be configured for gaming, advanced multitasking and applications requiring large amounts of memory.

Compatible memory type : DDR4 SDRAM.
Supported memory speed: 3200 MHz (3.20 GHz).
Memory standard : DDR4-3200 / PC4-25600.
Maximum supported memory capacity : 128 GB.

AM4 socket for desktop computers
Equipped with the AMD AM4 socket, this processor is designed for desktop computers and lets you use motherboards compatible with the Ryzen 5000 platform. It is an option for those who want to upgrade their processor without necessarily changing the entire platform, provided the motherboard and its BIOS version support this model.

Socket: AMD Socket AM4.
Family: AMD Ryzen 7.
Series: AMD Ryzen 5000.
Model: Ryzen 7 5800XT.
Compatible device: desktop computer.

Configuration with dedicated graphics card
The AMD Ryzen 7 5800XT does not have integrated graphics, so it requires a dedicated graphics card to provide video output. This configuration is suitable for gaming PCs and workstations that use a separate GPU for video games, content creation and applications with graphics acceleration.

Integrated graphics: no.
Dedicated graphics card: required for video output.

Other specifications
The processor is supplied in a boxed (BOX) format and belongs to AMD’s Ryzen 7 range, designed for users seeking processing power for desktop computers.

Brand: AMD.
Manufacturer: Advanced Micro Devices, Inc.
KIND OF PRODUCT: procesador.
Trade name: AMD Ryzen 7 5800XT.
Manufacturer code: 100-100001582WOF.
Packaging: box (BOX).
Manufacturer's website:
Volume (m ³): 0.0000
