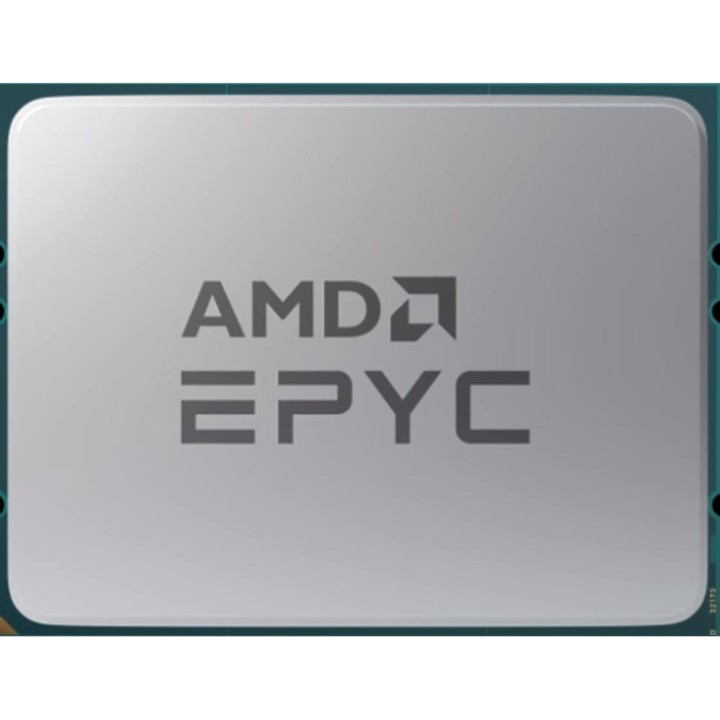

AMD Server processor without heatsink EPYC-9224 SP5 TRAY DSP0000043145

AMD EPYC 9224 2.5 GHz processor features 64 MB L3
ARTICULO TRAY. SIN DISIPADOR NI EMBALAJE
The AMD EPYC 9224 is a processor designed for servers and workstations that need high processing capacity and a platform ready for demanding workloads. It features 48 cores and 48 threads, a base frequency of 2.5 GHz and a turbo frequency of up to 3.7 GHz. Its compatibility with twelve-channel DDR5 memory and PCI Express 5.0 connectivity makes it an option for professional infrastructures.
48 cores for server environments
Thanks to its 48 processing cores, the AMD EPYC 9224 can distribute tasks across multiple computing resources, facilitating the execution of business applications, server services and simultaneous processes. Its turbo frequency of up to 3.7 GHz provides additional processing capacity when operating conditions allow.

48 processing cores and 48 threads.

2.5 GHz base frequency.
Turbo frequency of up to 3.7 GHz.
64 MB cache memory L3.
Manufacturer: AMD, family: AMD EPYC, model : 9224.

Twelve-channel DDR5 memory with high bandwidth
The processor supports DDR5-SDRAM memory at 4800 MHz through a twelve-channel memory architecture. With a maximum bandwidth of 460.8 GB/s, it offers high data transfer capacity between memory and processor, especially useful in applications that require intensive memory access.

Compatible memory type: DDR5-SDRAM.

Supported memory speed: 4800 MHz.
Memory configuration: 12 channels.
Maximum memory bandwidth: 460.8 GB/s.

PCI Express 5.0 connectivity for professional expansion
PCI Express 5.0 support and its 128 PCI Express lanes make it possible to integrate high-performance expansion devices into compatible systems. This capability is particularly useful for servers requiring high-speed storage, network adapters and other expansion cards.

PCI Express version: 5.0.

Maximum number of PCI Express lanes: 128.
Designed for server and workstation platforms.

SP5 socket and thermal power of 200 W
The AMD EPYC 9224 uses the SP5 socket and therefore requires a motherboard compatible with this platform. Its 200 W thermal design power (TDP) must be taken into account when selecting the server's cooling system and components, in order to maintain suitable operating conditions.

Processor socket: SP5.

Thermal design power (TDP): 200 W.
Component intended for a server or workstation.
Market segment: servidor.

Other specifications
This processor does not include an integrated graphics adapter, and the technical specifications do not include a discrete graphics card either. For systems requiring video output or graphics processing, check the platform's capabilities and ensure a compatible graphics solution is available where necessary.

Integrated graphics adapter: no.

Discrete graphics adapter included: no.
Graphics card model: not available.
Volume (m ³): 0.0015
