INTEL Server processor XEON-E5-2609 LGA2011 TRAY DSP0000043136

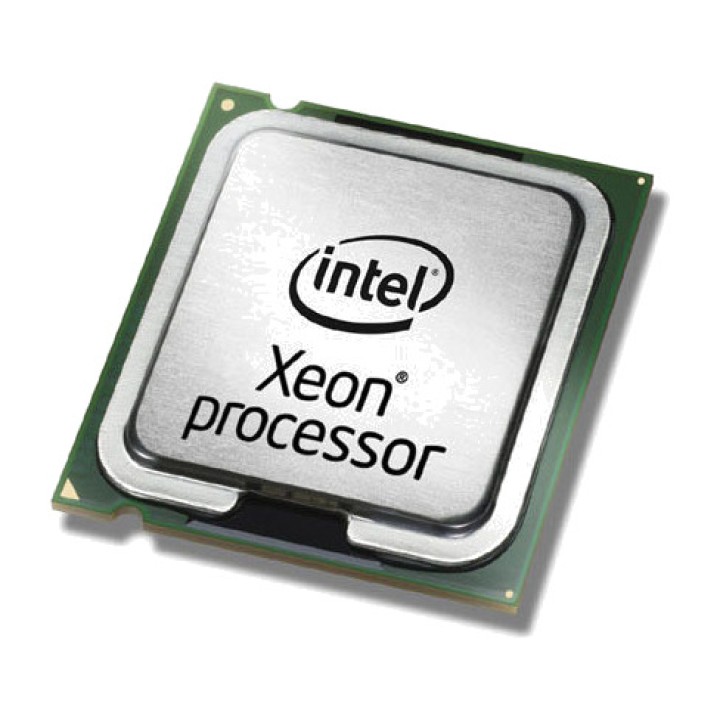

IBM Intel Xeon E5-2609 2,4 GHz processor features 10 MB L3
The IBM Intel Xeon E5-2609 is a processor designed for servers and workstations that require stability and processing capacity for professional tasks. It features 4 cores and 4 threads, a base frequency of 2,4 GHz and 10 MB of L3 cache. Its compatibility with quad-channel memory and ECC technology makes it a suitable option for compatible professional systems.
Quad-core processing for professional environments
The Intel Xeon E5-2609 belongs to the Intel Xeon E5 family and uses a 64-bit architecture with 32 nm lithography. Its four physical cores can run compatible server workloads and professional applications, while its 10 MB L3 cache facilitates access to frequently used data.

Model: Intel Xeon E5-2609.
Family: Intel Xeon E5.
Base frequency: 2,4 GHz.
cores: 4.
Processing threads: 4.
Air Filter : 10 MB L3.
Architecture: 64-bit.
Lithography: 32 nm.
Bus/core ratio : 24.
Revision (stepping) : M1.

Quad-Channel memory with ECC support
Thanks to its quad-channel memory controller (Quad-Channel), this processor allows systems to be configured with high memory bandwidth. It supports speeds of 800 and 1066 MHz, a maximum memory capacity of 750 GB and ECC support, which can detect and correct certain memory errors when compatible components are used.

Memory channels: Quad-Channel (4 channels).
Maximum supported memory capacity : 750 GB.
Compatible memory frequencies: 800 and 1066 MHz.
Maximum memory bandwidth: 34,1 GB/s.
ECC memory support: sí.

Compatible with server and workstation platforms
The processor features an LGA 2011 (Socket R) socket, designed for motherboards compatible with this Xeon processor family. Its bus transfer rate of 6,40 GT/s enables communication with the platform components. It is important to check motherboard and BIOS compatibility before installation.

Socket: LGA 2011 (Socket R).
Application: servers and workstations.
Bus transfer rate: 6,40 GT/s.
Boxed packaging: no.

Power consumption and thermal conditions
With a thermal design power (TDP) of 80 W, the Intel Xeon E5-2609 allows the cooling system to be sized according to its thermal requirements. Its VID voltage range of 0,6 to 1,35 V and its specified maximum temperature of 70 °C are relevant data for planning its integration into compatible equipment.

TDP: 80 W.
Voltage range VID: 0,6 - 1,35 V.
Specified maximum temperature : 70 °C.
Volume (m ³): 0.0015
