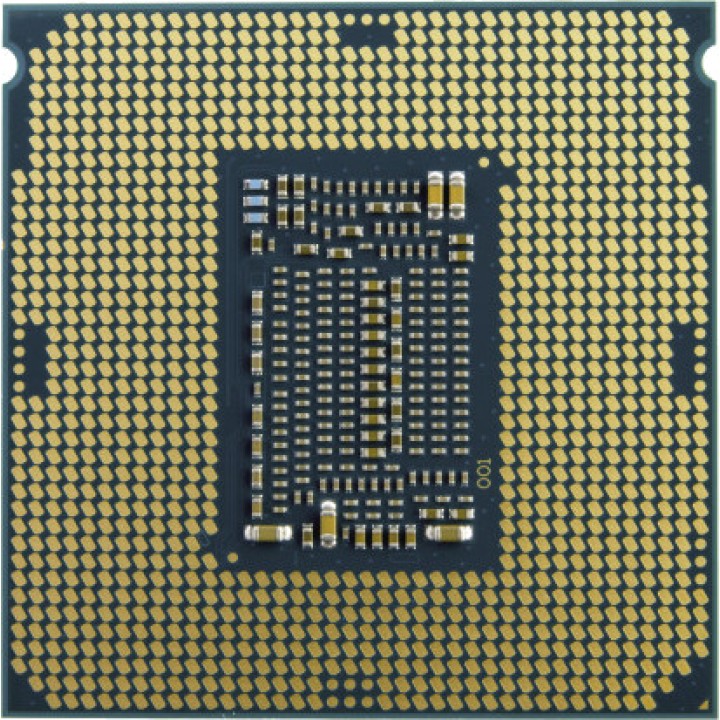

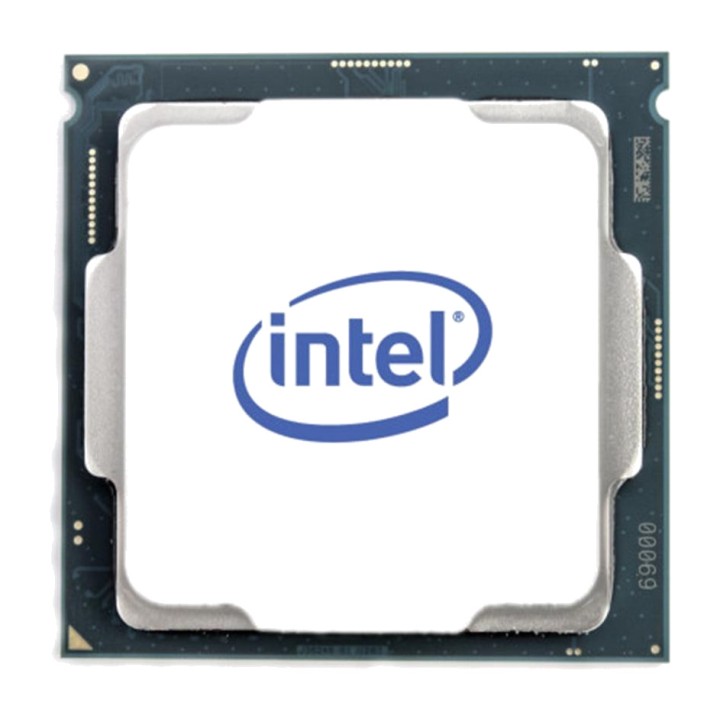

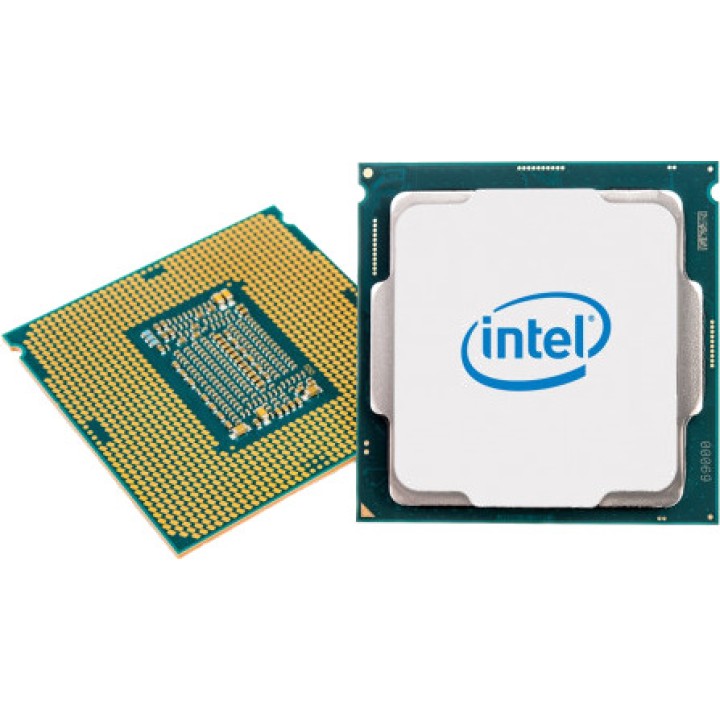

INTEL Server processor XEON-GOLD-6248R LGA3647 TRAY DSP0000043132

Intel Xeon 6248R Processor Features 3 GHz 35,75 MB
The Intel Xeon 6248R is a processor designed for servers and workstations that need high performance for professional applications, virtualization and intensive data processing. It features 24 cores and 48 threads, a base frequency of 3 GHz and up to 4 GHz with Intel Turbo Boost 2.0, providing parallel processing capacity for demanding work environments. Its Cascade Lake architecture, 35.75 MB cache and compatibility with DDR4 ECC memory make it a solution for enterprise infrastructures.
Professional performance with 24 cores and 48 threads
Thanks to its 24 physical cores and Intel Hyper-Threading technology, the Xeon 6248R can handle up to 48 simultaneous execution threads. This makes it possible to distribute workloads across multiple processes and improve processor utilisation in servers, computing applications and professional workstations.

24 cores and 48 processing threads.
3 GHz base frequency and turbo frequency of up to 4 GHz.
35.75 MB of cache memory.
Cascade Lake architecture with 14 nm lithography.
Intel 64 processing with support for 64-bit systems.

Intel Turbo Boost 2.0 technology and intelligent power management
Intel Turbo Boost 2.0 technology dynamically increases the processor frequency when the workload requires it, within the available thermal and power limits. In addition, enhanced Intel SpeedStep and Intel Speed Shift adjust processor operation to balance responsiveness and power consumption.

Intel Turbo Boost 2.0 with a maximum frequency of 4 GHz.
Support for enhanced Intel SpeedStep.
Intel Speed Shift technology.
Thermal design power (TDP) of 205 W.
Tcase temperature of 75 °C.

Up to DDR4 ECC memory 1 TB
The Intel Xeon 6248R supports up to 1024 GB of DDR4-SDRAM memory at speeds of up to 2933 MHz and a six-channel memory architecture. ECC support helps detect and correct certain memory errors, a particularly important feature in servers that require stability and reliability during extended operation.

Maximum memory capacity of 1024 GB (1 TB).
DDR4-SDRAM memory up to 2933 MHz.
Hexa-channel memory architecture (6 channels).
ECC memory support.
Support for Intel Optane DC persistent memory.

Advanced virtualisation for servers and enterprise environments
Intel VT-x, VT-d and Extended Page Tables (EPT) technologies facilitate the execution and management of virtual machines, helping to improve hardware utilisation. Intel VT-d extends virtualisation capabilities to input and output devices, while EPT optimises memory management in virtualised applications.

Intel Virtualization Technology (VT-x).
Intel Virtualization Technology for Directed I/O (VT-d).
Intel VT-x with Extended Page Tables (EPT).
Mode-based execution control (MBE).
2S scalability for compatible configurations of up to two processors.
2 Intel UPI links for communication between processors.

Vector processing and artificial intelligence with Intel DL Boost
The processor incorporates Intel Deep Learning Boost (DL Boost), a technology designed to accelerate certain artificial intelligence inference operations using vector instructions. It also features Intel AVX-512 and two FMA units, which can improve the execution of compute-intensive mathematical operations in compatible applications.

Intel Deep Learning Boost with VNNI instructions.
Compatibility with SSE4.2, AVX, AVX2 and AVX-512.
2 units AVX-512 FMA.
64-bit processing architecture.
Optimised for vector computing workloads and compatible deep learning applications.

Enterprise security and management with Intel vPro
Compatibility with Intel vPro, Intel Trusted Execution and Intel AES-NI provides features designed for enterprise system security and management. These technologies can strengthen certain protection mechanisms, accelerate cryptographic operations and facilitate device management on compatible platforms.

Compatibility with the Intel vPro platform.
Intel Trusted Execution Technology.
Intel AES New Instructions (AES-NI).
Execute Disable Bit.
Intel Run Sure for platform reliability features.
Intel Resource Director Technology (RDT) for monitoring and controlling shared resources.

PCI Express 3.0 connectivity and NVMe storage management
The Xeon 6248R supports up to 48 PCI Express 3.0 lanes, facilitating the connection of compatible storage devices, network adapters and expansion cards. It incorporates Intel Volume Management Device (VMD), a technology that simplifies the management of NVMe SSDs connected directly to the platform.

Up to 48 PCI Express lanes.
PCI Express interface 3.0.
PCI Express revision CEM 3.0.
Intel Volume Management Device (VMD).
Connection management and LED identification functions for compatible NVMe SSDs.

Physical compatibility and integration in servers
This processor uses the LGA 3647 socket and is intended for compatible server and workstation platforms. It measures 76,0 x 56,5 mm and has a TDP of 205 W, so it requires an appropriate cooling solution. It does not include a cooler or have integrated graphics, so it is important to check the system requirements before installation.

Socket LGA 3647.
Processor dimensions: 76,0 x 56,5 mm.
TDP of 205 W.
Cooler not included.
Bulk packaging.
No integrated graphics adapter or discrete graphics adapter included.
Available integrated options: no.

Other technical specifications
The Intel Xeon 6248R belongs to the Intel Xeon family and was launched during the first quarter of 2020. The following features complete its technical specifications and identify other compatible functionalities and unavailable technologies.

MAKER: Intel.
Family: Intel Xeon.
MODEL: 6248R.
KIND OF PRODUCT: procesador.
Code name: Cascade Lake.
Release date: first quarter of 2020 (Q1 2020).
Status indicated in the specifications: Launched.
Intel ARK identifier: 199351.
Intel Turbo Boost Max Technology 3.0: not supported.
Intel Speed Select Technology (SST): not supported.
Intel Speed Select - Performance Profile: not supported.
Intel Speed Select - Base Frequency (SST-BF): not supported.
Harmonized System Code (SA): 8542310001.
Volume (m ³): 0.0015
