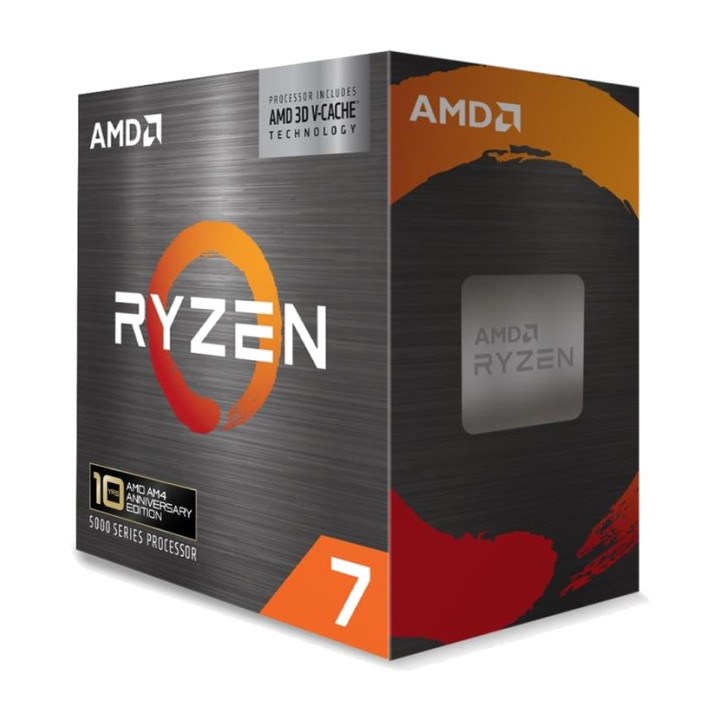

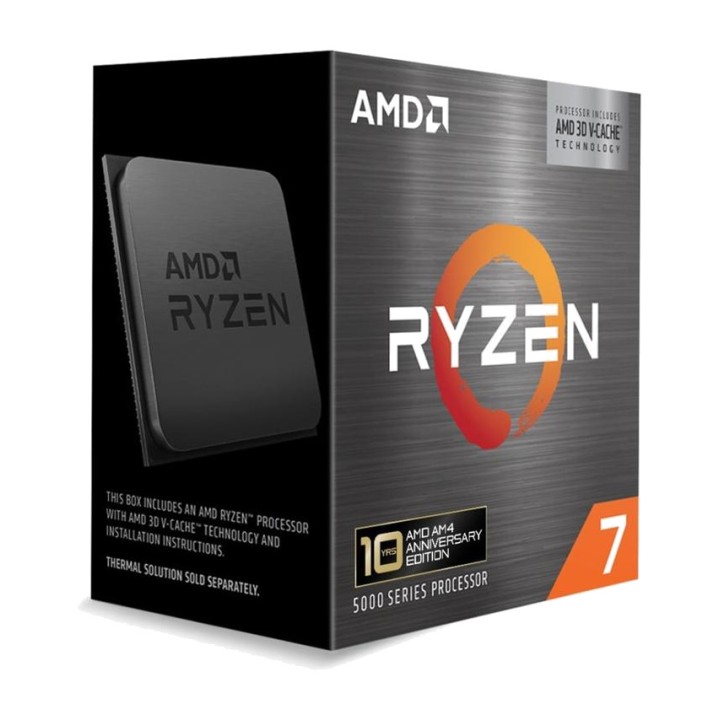

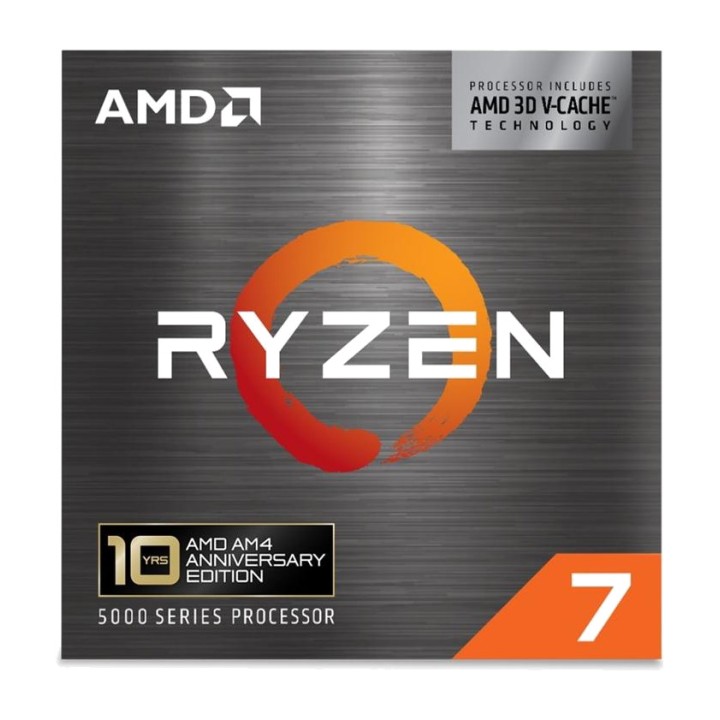

AMD Desktop processor RYZEN 7 5800X3D AM4 BOX DSP0000041811

AMD Ryzen 7 5800X3D 8 Core 4.5 GHz Processor Features 96 MB AM4
The AMD Ryzen 7 5800X3D is a desktop processor designed especially for high-performance gaming systems. With 8 cores, 16 threads and AMD 3D V-Cache technology, it delivers high processing capacity and 96 MB of L3 cache, ideal for running demanding games and multitasking applications smoothly.
Zen 3 architecture with 8 cores and 16 threads
Based on the AMD Zen 3 architecture and codenamed Vermeer, this processor provides a good balance between per-core performance and multitasking capability. Its 16 threads efficiently distribute workloads across games, professional applications and simultaneous tasks.

8 processing cores
16 threads
Zen 3 architecture
Codename: Vermeer
Instruction set x86-64
Precision Boost 2 technology

Frequency of up to 4.5 GHz
The processor operates at a base frequency of 3.4 GHz and can reach up to 4.5 GHz with Precision Boost 2. This technology automatically adjusts the operating speed according to the load, temperature and available power capacity.

Base frequency: 3.4 GHz
Maximum turbo frequency: 4.5 GHz
TDP: 105 W
Maximum Tjma temperature x: 90 °C

AMD 3D V-Cache technology
One of the Ryzen 7 5800X3D’s distinguishing features is its AMD 3D V-Cache technology, which expands the L3 cache to 96 MB. This large capacity keeps more data close to the cores, reducing access times and improving performance in cache-sensitive applications, especially video games.

Air Filter L1: 512 KB
Air Filter L2: 4 MB
Air Filter L3: 96 MB
AMD 3D V-Cache technology

Memory compatibility DDR4
The Ryzen 7 5800X3D supports up to 128 GB of DDR4 UDIMM memory in a dual-channel configuration. Supported speeds depend on the number of modules installed and their internal organization, allowing the configuration to be adapted to the system’s requirements.

Memory type : DDR4 UDIMM
Maximum capacity : 128 GB
Memory channels : 2
2 1R modules: up to DDR4-3200
2 2R modules: up to DDR4-3200
4 1R modules: up to DDR4-2933
4 2R modules: up to DDR4-2667
ECC compatibility subject to motherboard support

AM4 platform and chipset compatibility
Designed for the AMD AM4 socket, this processor is compatible with various chipsets in the 400 and 500 series. Final compatibility may depend on the BIOS version installed on the motherboard.

Socket: AM4
Compatible chipsets: X570, X470, B550, B450 and A520
Format: desktop computer processor
Packaging: boxed processor

PCI Express 4.0 connectivity and NVMe storage
The processor integrates PCI Express 4.0 support, allowing you to take advantage of high-speed graphics cards and storage drives on compatible motherboards. It also supports booting and RAID configurations using NVMe drives.

PCI Express interface 4.0
24 total PCIe lanes
20 usable PCIe lanes
NVMe support: boot, RAID 0, RAID 1 and RAID 10
4 USB 3.2 Gen 2 connections up to 10 Gbps
2 native SATA connections

Additional lanes depending on the motherboard
Additional expansion capability depends on the chipset used. X570 motherboards can provide more fourth-generation PCIe lanes, while X470 platforms provide additional third- and second-generation connectivity.

X570 motherboards: 16 additional PCIe Gen 4 lanes
X470 motherboards: 2 additional PCIe Gen 3 lanes
X470 motherboards: 8 additional PCIe Gen 2 lanes

Advanced manufacturing and chiplet design
The Ryzen 7 5800X3D uses a design consisting of two chips. The CCD is manufactured using TSMC's 7 nm FinFET process, while the I/O chip uses a 12 nm process from GlobalFoundries.

CCD manufacturing process: TSMC 7 nm FinFET
IOD manufacturing process: GlobalFoundries 12 nm
CCD size: 74 mm2
IOD size: 125 mm2
Number of chips : 2

Ready for gaming and virtual reality systems
This model incorporates Windows 11 Gaming and AMD Ryzen VR-Ready Premium technologies, making it suitable for gaming and virtual reality setups when paired with a graphics card and other appropriate components.

AMD Ryzen VR-Ready Premium
Compatible with Windows 11 Gaming
Designed for high-performance gaming computers

Requires a dedicated graphics card
The AMD Ryzen 7 5800X3D does not have integrated graphics. A compatible dedicated graphics card must be installed to provide video output and run graphics applications.

Integrated graphics: no
Requires a dedicated graphics card

Liquid cooling recommended
Due to its 105 W TDP and performance, AMD recommends using a liquid cooling solution to achieve optimal performance and maintain suitable operating temperatures.

TDP: 105 W
Liquid cooling recommended for optimal performance
Maximum operating temperature : 90 °C

Operating system compatibility
The processor is compatible with 64-bit Microsoft operating systems and various Linux distributions, allowing it to be used in gaming PCs, workstations or professional environments.

64-bit Windows 11
64-bit Windows 10
RHEL 64-bit x86
Ubuntu 64-bit x86

Compatible extensions and instructions
The Ryzen 7 5800X3D includes a comprehensive set of processing extensions to improve compatibility with modern applications, virtualization, encryption and multimedia workloads.

AES and SHA
AMD-V
AVX and AVX2
FMA3
MMX-plus
SSE, SSE2 and SSE3
SSSE3
SSE4.1, SSE4.2 and SSE4A

Other specifications

Brand: AMD
MODEL: 100-100000651POF
Family: AMD Ryzen 7
Sales format: boxed processor
Recommended use: desktop computers
Volume (m ³): 0.0012
