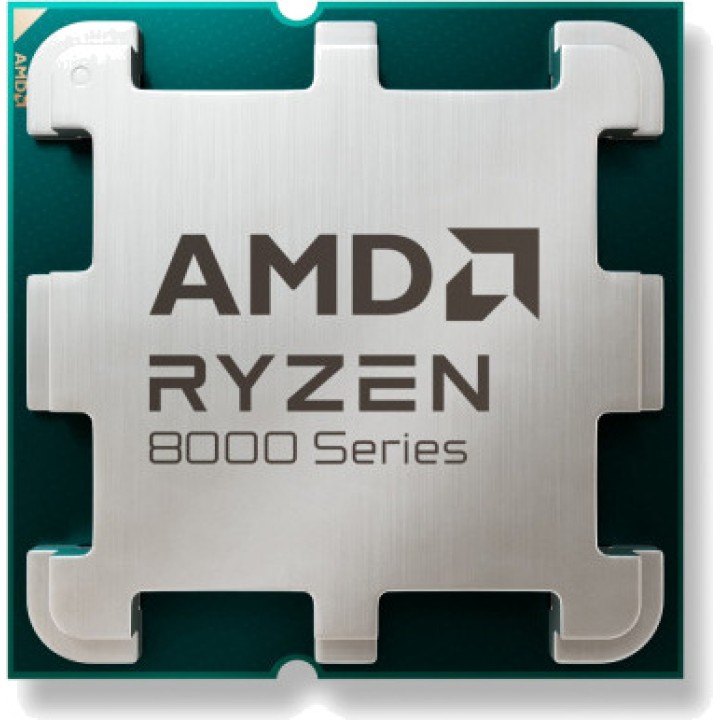

AMD Desktop processor without heatsink RYZEN 7 8700F AM5 TRAY DSP0000041765

AMD Ryzen processor features 7 8700F
ARTICULO BULK - TRAY
HEATSINK NOT INCLUDED
The AMD Ryzen 7 8700F is a desktop processor designed for high-performance systems, gaming and demanding applications. It belongs to the AMD Ryzen 8000 Series and combines 8 cores, 16 threads and a turbo frequency of up to 5 GHz to deliver smooth performance for multitasking, productivity and entertainment. It is supplied in Tray format, does not include a cooler and requires a dedicated graphics card, as it has no integrated graphics.
8 cores and 16 threads for advanced performance
With its 8 cores and 16 processing threads, the Ryzen 7 8700F can run several applications simultaneously and handle demanding workloads. Its 4.1 GHz base frequency can reach up to 5 GHz in turbo mode, providing extra power when tasks require it.

8 processor cores

16 processing threads
4.1 GHz base frequency
Turbo frequency of up to 5 GHz
64-bit operating mode

4 nm architecture and platform AM5
Manufactured using 4 nm lithography, this processor offers a modern, efficient architecture. It uses the AM5 socket and must therefore be installed on a motherboard compatible with this platform and the AMD Ryzen 8000 generation.

Manufacturer: AMD

Family: AMD Ryzen ™ 7
MODEL: 8700F
Generation: AMD Ryzen 8000 Series
Socket: AM5
Lithography: 4 nm

Dual-channel DDR5 memory
The AMD Ryzen 7 8700F supports DDR5-SDRAM memory in a dual-channel configuration, providing greater bandwidth for gaming, professional applications and intensive tasks. It is compatible with memory speeds of 3600 and 5200 MHz.

Compatible memory type: DDR5-SDRAM

Memory channels: Dual channel
Supported speeds: 3600 and 5200 MHz

16 MB cache L3
Its 16 MB L3 cache helps reduce access times for frequently used data. This high-speed memory helps improve system responsiveness when running games, programs and simultaneous processes.

Processor cache : 16 MB

Cache type: L3

AMD Ryzen AI neural processing
The processor incorporates an AMD Ryzen AI neural processing unit, designed to accelerate certain artificial intelligence-related workloads. Its NPU core can deliver performance of up to 16 TOPs in compatible applications.

Neural processing unit: AMD Ryzen AI

NPU core performance: up to 16 TOPs

PCI Express connectivity 4.0
PCI Express 4.0 compatibility allows you to connect high-performance components, such as dedicated graphics cards and compatible storage drives. The processor supports a maximum of 20 PCI Express lanes.

PCI Express version: 4.0

Maximum number of PCI Express buses: 20
Number of supported USB ports : 5

Configurable power consumption and energy efficiency
The AMD Ryzen 7 8700F has a TDP of 65 W and allows a reduced power configuration of up to 45 W. This flexibility makes it easy to integrate into different desktop configurations, provided an appropriate cooling solution is used.

Thermal design power : 65 W

High configurable power : 65 W
Low configurable power : 45 W
Cooler included: No

Requires a dedicated graphics card
This model does not have an integrated graphics adapter and does not include a discrete graphics card. To obtain video output and use the system normally, a compatible dedicated graphics card must be installed.

Integrated graphics adapter: No

Discrete graphics adapter included: No
Graphics card: not available
Discrete graphics model: not available

Operating system compatibility and advanced instructions
The processor is compatible with Windows and 64-bit Linux distributions. It also supports a wide range of instruction sets that enhance the execution of productivity, security, multimedia and advanced computing applications.

Compatible systems: Windows 11 x64 and Windows 10 x64

Linux compatibility: 64-bit RHEL x86 and 64-bit Ubuntu x86
Supported instructions: AES, AVX, AVX 2.0, AVX-512, MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2 and SSSE3

Tray format for integrators and custom builds
The AMD Ryzen 7 8700F is supplied in Tray format, a common option for system integrators, technical service providers and users who want to select the cooling system separately. Before installation, a heatsink compatible with the AM5 socket is required.

Market segment: desktop

Packaging type: tray
Cooler included: No
Volume (m ³): 0.0015
