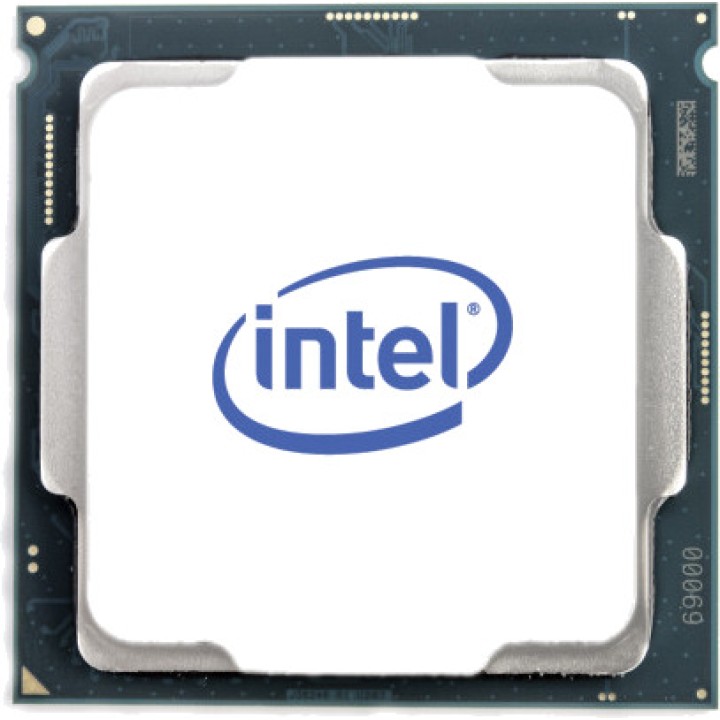

INTEL 6-core processor for LGA 1700 socket without heatsink CORE-I5 12400 UHD 730 TRAY DSP0000043072

Intel Core i features 5-12400

ARTICLE BULK
HEATSINK NOT INCLUDED
The Intel Core i5-12400 is a 12th-generation desktop processor based on the Alder Lake architecture, designed for general-purpose systems and gaming configurations. It features 6 Performance cores and 12 processing threads, reaching a turbo frequency of up to 4,4 GHz. It also integrates 18 MB of Intel Smart Cache, supports DDR4 and DDR5 memory, and includes Intel UHD Graphics 730 integrated graphics.
6 cores and 12 threads up to 4,4 GHz
The Core i5-12400 features 6 Performance cores and Intel Hyper-Threading technology, providing a total of 12 threads for handling applications, games and different workloads. Its base frequency is 2,5 GHz and it can reach up to 4,4 GHz with Intel Turbo Boost 2.0.

6 Performance cores

12 processing threads
Base frequency: 2,5 GHz
Maximum turbo frequency: 4,4 GHz
18 MB of Intel Smart Cache
Alder Lake architecture
64-bit processing

Power tailored to desktop systems
This processor has a base power of 65 W and can reach a maximum turbo power of 117 W. It is designed for the desktop segment and uses the LGA 1700 socket, corresponding to Intel's 12th-generation platform.

Processor Base Power : 65 W

Maximum Turbo Power : 117 W
Socket : LGA 1700
Maximum configuration of CPU: 1
Scalability: 1S
Maximum Tjunction temperature : 100 °C

DDR4 memory support and DDR5
The Intel Core i5-12400 supports both DDR4-SDRAM and DDR5-SDRAM memory, allowing it to be adapted to different motherboard configurations. It supports up to 128 GB of dual-channel memory and offers a maximum bandwidth of 76,8 GB/s.

Maximum supported memory : 128 GB

Memory types: DDR4-SDRAM and DDR5-SDRAM
Memory channels: Dual channel
Maximum memory bandwidth: 76.8 GB/s

Integrated Intel UHD Graphics 730
The processor features Intel UHD Graphics 730, so it can provide video output without requiring a dedicated graphics card to be installed. The integrated GPU operates at a base frequency of 300 MHz and can reach a dynamic frequency of up to 1450 MHz.

Integrated graphics: Intel UHD Graphics 730

Base graphics frequency: 300 MHz
Maximum dynamic graphics frequency: 1450 MHz
24 execution units
1 multiformat codec engine
Up to 4 supported displays
Direct X 12.0
open GL 4.5
open CL 2.1
Discrete graphics adapter not included

Supported video resolutions and outputs
The integrated graphics support different video interfaces, including DisplayPort 1.4a, HDMI 2.1 and Embedded DisplayPort 1.4b. The maximum resolution varies depending on the output used, reaching up to 7680 x 4320 pixels via DisplayPort.

DisplayPort 1.4a: up to 7680 x 4320 pixels at 60 Hz

HDMI 2.1: up to 4096 x 2160 pixels at 60 Hz
eDP 1.4b: up to 5120 x 3200 pixels at 120 Hz
Compatible outputs: eDP 1.4b, DisplayPort 1.4a and HDMI 2.1

PCI Express 5.0 and high-speed connectivity
The Core i5-12400 is compatible with PCI Express 5.0 and PCI Express 4.0, providing a platform ready for high-bandwidth components. It supports up to 20 PCI Express lanes and different configurations for distributing them among the installed devices.

PCI Express 5.0 and 4.0

Up to 20 PCI Express lanes
PCI Express configurations: 1x16+1x4 and 2x8+1x4
Interface DMI 4.0
Up to 8 DMI lanes
Bus type: DMI4

Intel technologies for performance and virtualization
The processor integrates various Intel technologies designed to improve performance, resource management and virtualization. These include Intel Turbo Boost 2.0, Intel Hyper-Threading, Intel Speed Shift and the Intel VT-x and VT-d virtualization technologies.

Intel Hyper-Threading

Intel Turbo Boost 2.0
Enhanced Intel SpeedStep
Intel Speed Shift
Intel VT-x with Extended Page Tables
Intel VT-d for Directed I/O
Intel 64
Intel VMD
MBE mode-based execution control
Intel Optane compatible

Security and acceleration features
The Intel Core i5-12400 includes various features designed to enhance system security and accelerate certain workloads, such as Intel AES-NI, Intel Secure Key, Intel Boot Guard and Intel Deep Learning Boost.

Intel Control-Flow Enforcement Technology

Intel Threat Detection Technology
Intel AES-NI
Intel Secure Key
Intel OS Guard
Intel Boot Guard
Intel Deep Learning Boost
Intel GNA 3.0
Execute Disable Bit
Intel Thermal Monitoring
Supported idle states

Integrated multimedia functions
Thanks to its integrated graphics, the processor incorporates Intel technologies focused on processing and playing multimedia content, including Intel Quick Sync Video and Clear Video HD.

Intel Quick Sync Video

Intel Clear Video HD
Integrated multi-format codec engine

Other specifications
The Intel Core i5-12400 belongs to the 12th-generation Intel Core i5 family and is designed for the desktop computer market. It supports the SSE4.1, SSE4.2 and AVX 2.0 instruction sets.

Manufacturer: Intel

Family: Intel Core i5
Model: Intel Core i 5-12400
Generation: 12th-generation Intel Core i5
Code name: Alder Lake
Market segment: desktop
Indicated target market: gaming
Terms of use: PC/Client/Tablet
Instruction sets: SSE4.1, SSE4.2 and AVX 2.0
Intel Thread Director: no
Intel Turbo Boost Max 3.0: no
Embedded options available: no
Processor size: 45 x 37.5 mm
Intel ARK ID: 134586
ECCN: 5A992CN3
CCATS: G167599
HS code: 85423119
Release date: Q122
Status: Launched
Indicated packaging type: retail box
Box: no
Volume (m ³): 0.0015
