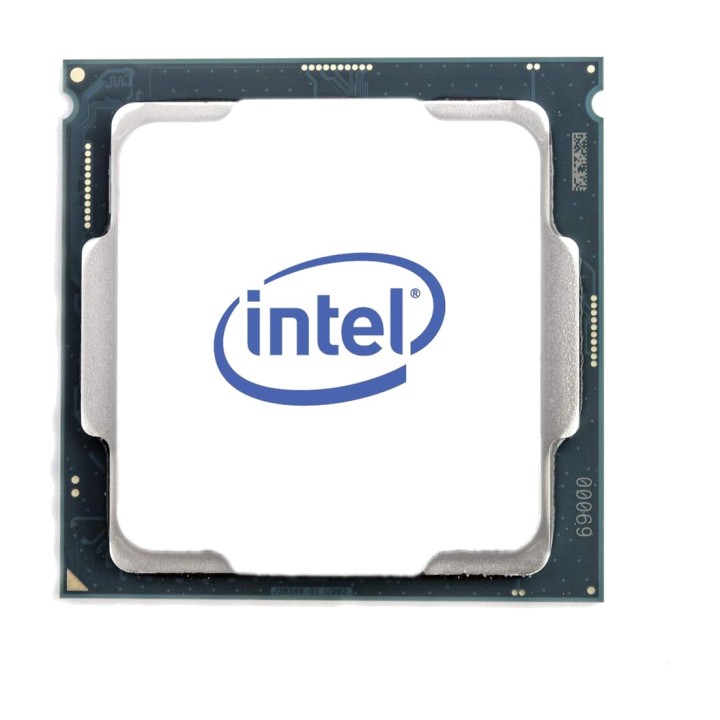

INTEL 14-core processor for LGA 1700 socket without heatsink CORE-I5 14500 UHD 770 TRAY DSP0000041749

Intel Core i Processor Features 5-14500
TRAY - BULK FORMAT, HEATSINK NOT INCLUDED
The 14th-generation Intel Core i5-14500 is a desktop processor designed for workstations, advanced home computers and productivity-focused configurations. Its hybrid architecture combines 14 cores and 20 threads, split between performance and efficiency cores, to deliver a smooth response in both demanding applications and simultaneous tasks.
Hybrid architecture with 14 cores
This processor integrates 6 Performance-cores and 8 Efficient-cores. The performance cores handle the most demanding workloads, while the efficiency cores manage background processes and secondary tasks. Intel Thread Director technology helps the operating system distribute each workload appropriately.

14 cores: 6 performance and 8 efficiency

20 processing threads
Maximum turbo frequency: 5 GHz
Performance-core base frequency: 2.6 GHz
Performance-core turbo frequency: 5 GHz
Efficient-core base frequency: 1.9 GHz
Efficient-core turbo frequency: 3.7 GHz
64-bit architecture
Codename: Raptor Lake

24 MB of Intel Smart Cache
Cache memory keeps the most frequently used data close to the processor. The Intel Core i5-14500 features 24 MB of Intel Smart Cache and 11,776 KB of L2 cache, helping reduce wait times in programs, multitasking processes and professional applications.

Processor cache : 24 MB

Cache type: Intel Smart Cache
Air Filter L2: 11.776 KB
Stepping: C0

DDR4 memory support and DDR5
Thanks to its dual-channel memory controller, the processor supports system configurations with DDR4 or DDR5 memory, making it easy to upgrade existing platforms or build next-generation systems. It supports up to 192 GB of internal memory and a maximum bandwidth of 76.8 GB/s.

Supported memory types: DDR4-SDRAM and DDR5-SDRAM

Maximum internal memory : 192 GB
Memory channels: Dual channel
Maximum bandwidth: 76.8 GB/s
ECC memory support: Yes

Integrated Intel UHD Graphics 770
The Intel UHD Graphics 770 graphics adapter lets you use the computer without installing a dedicated graphics card for office tasks, multimedia playback, browsing and everyday use. It also incorporates technologies such as Intel Quick Sync Video and two multi-format codec engines to accelerate certain video processes.

Integrated graphics: Intel UHD Graphics 770

Maximum dynamic frequency: 1,550 MHz
Execution units: 32
Multi-format codec engines : 2
Maximum number of supported displays : 4
Direct support X 12.0
Open compatibility GL 4.5
Open compatibility CL 3.0
Integrated graphics adapter ID: 0x4680
Discrete graphics adapter not included

Supported video outputs and resolutions
The integrated graphics supports Embedded DisplayPort 1.4b, DisplayPort 1.4a and HDMI 2.1 connections. Available resolutions and refresh rates depend on the motherboard, its physical connections and the final system configuration.

DisplayPort: up to 7,680 x 4,320 pixels at 60 Hz

Embedded DisplayPort: up to 5,120 x 3,200 pixels at 120 Hz
HDMI: up to 4,096 x 2,160 pixels at 60 Hz
Compatible outputs: eDP 1.4b, DisplayPort 1.4a and HDMI 2.1

Compatibility with PCI Express 4.0 and 5.0
The processor supports up to 20 PCI Express lanes and is compatible with PCIe 4.0 and PCIe 5.0. This connectivity lets you take advantage of expansion cards, storage drives and other high-performance components, provided the motherboard used is compatible.

Supported PCI Express versions: 4.0 and 5.0

Maximum number of PCI Express lanes: 20
PCI Express configurations: 1x16 + 1x4 and 2x8 + 1x4
DMI revision: 4.0
Maximum number of lanes DMI: 8

Power consumption and thermal management
The Intel Core i5-14500 has a base power of 65 W and can reach up to 154 W under turbo loads. It incorporates thermal monitoring technologies and idle states that help adjust power consumption and temperature according to the workload.

Processor base power : 65 W

Maximum turbo power : 154 W
Maximum junction temperature : 100 °C
Intel Thermal Monitoring Technology: yes
Idle states: yes
Execute Disable Bit: yes

Security and virtualization features
This model incorporates security, virtualization and management features designed for both personal and professional use. These technologies help protect system execution, improve the management of virtual environments and accelerate certain workloads.

Intel Control-Flow Enforcement Technology

Intel AES New Instructions
Intel Secure Key
Intel OS Guard
Intel Boot Guard
Intel 64
Intel Virtualization Technology VT-x
Intel VT-x with Extended Page Tables
Intel Virtualization Technology for Directed I/O VT-d
Intel Volume Management Device
Mode-based Execute Control
Intel Standard Manageability

Integrated Intel technologies
The processor includes Intel Turbo Boost 2.0 and Intel Hyper-Threading, as well as features that optimize responsiveness, multimedia processing and certain artificial intelligence tasks.

Intel Turbo Boost 2.0

Intel Hyper-Threading
Intel Thread Director
Enhanced Intel SpeedStep
Intel Speed Shift
Intel Deep Learning Boost
Intel Gaussian & Neural Accelerator 3.0
Intel Quick Sync Video
Intel Clear Video HD
Instruction sets: AVX 2.0, SSE4.1 and SSE4.2

Compatibility and format
The Intel Core i5-14500 uses the LGA 1700 socket and is intended for desktop computers, workstations and client systems. Before installing it, check that the motherboard and its BIOS version are compatible with 14th-generation Intel Core processors.

Socket : LGA 1700

Segment: desktop
Usage conditions: workstation, PC, client and tablet
Maximum configuration of CPU: 1
Scalability: 1S
Integrated options available: yes
Processor size: 45 x 37,5 mm
Boxed: no

Other specifications
The Intel Core i5-14500 model belongs to the Intel Core i5-14xxx family and was launched in the first quarter of 2024. It is supplied without a box, so it is advisable to check the contents and have a compatible cooling system available.

Manufacturer: Intel

Family: Intel Core i5
MODEL: i5-14500
Generation: Intel Core i5-14xxx
Release date: first quarter of 2024
Status: launched
Intel ARK ID: 236784
Harmonized System Code: 8542310001
ECCN: 5A992C
CCATS: 740.17B1
Volume (m ³): 0.0015
