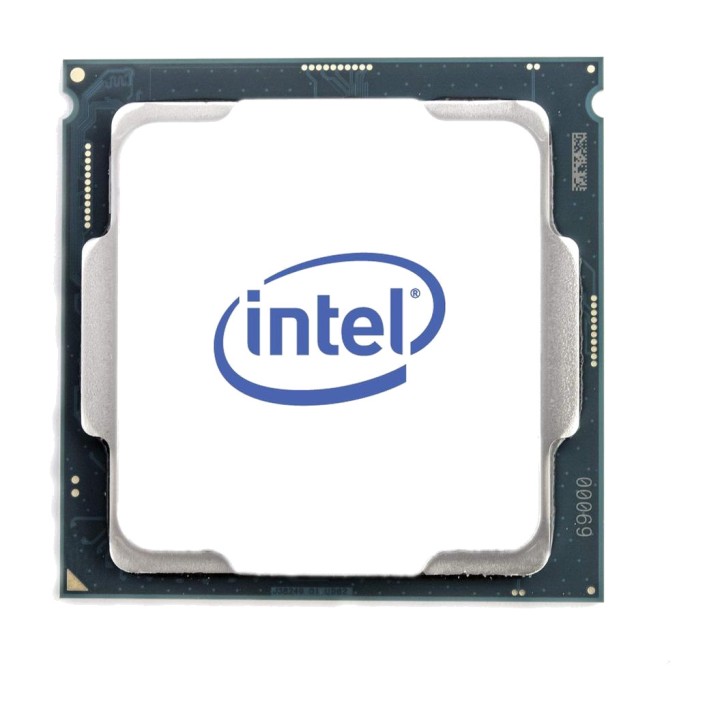

INTEL Unlocked 20-core processor for LGA 1700 socket, without heatsink CORE-I7 14700K UHD 770 TRAY DSP0000041741

Intel Core i Processor Features 7-14700K TRAY
BULK FORMAT WITHOUT DISPENSER
The 14th-generation Intel Core i7-14700K is a high-performance processor designed for desktop computers, workstations and advanced systems. Its hybrid architecture combines 20 cores and 28 threads, split between performance cores and efficiency cores, to deliver a smooth response in gaming, content creation, intensive productivity and multitasking.
Hybrid architecture with 20 cores
This processor features 8 Performance-cores and 12 Efficient-cores, allowing workloads to be distributed according to their requirements. The performance cores handle the most demanding tasks, while the efficiency cores manage background processes and parallel workloads.

20 cores: 8 Performance-cores and 12 Efficient-cores

28 processing threads
Performance-core base frequency: 3.4 GHz
Performance-core turbo frequency: up to 5.5 GHz
Efficient-core base frequency: 2.5 GHz
Efficient-core turbo frequency: up to 4.3 GHz
64-bit architecture
Codename: Raptor Lake

Turbo frequency of up to 5,6 GHz
Thanks to Intel Turbo Boost Max Technology 3.0, the Intel Core i7-14700K can reach a maximum frequency of up to 5.6 GHz. This capability boosts performance in applications that require high processing speeds, such as video games, multimedia editing, rendering or project compilation.

Maximum turbo frequency: 5.6 GHz

Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost technology 2.0
Intel Hyper-Threading
Intel Thread Director
Intel Speed Shift Technology
Enhanced Intel SpeedStep Technology

33 MB Intel Smart Cache
The processor features 33 MB of Intel Smart Cache, as well as 28,672 KB of L2 cache. This high-speed memory helps reduce access times for frequently used data and improves overall system responsiveness.

Processor cache : 33 MB

Cache type: Intel Smart Cache
Air Filter L2: 28.672 KB
Stepping: B0
Intel ARK ID: 236783

DDR4 memory support and DDR5
The Intel Core i7-14700K lets you configure systems with DDR4 or DDR5 memory, making it easy to upgrade compatible systems or build next-generation platforms. It supports up to 192 GB of dual-channel memory and offers a maximum bandwidth of 89,6 GB/s.

Compatible memory: DDR4-SDRAM and DDR5-SDRAM

Maximum supported capacity : 192 GB
Memory architecture: dual channel
Maximum bandwidth: 89,6 GB/s
ECC memory support: Yes

Integrated Intel UHD Graphics 770
The integrated Intel UHD Graphics 770 graphics allow you to use the computer without initially installing a dedicated graphics card. They are suitable for office tasks, multimedia playback, system diagnostics and multi-screen configurations.

Integrated graphics adapter: Intel UHD Graphics 770

Base graphics frequency: 300 MHz
Maximum dynamic frequency: 1.600 MHz
32 execution units
2 multi-format codec engines
Up to 4 simultaneous displays
Direct support X 12.0
Open compatibility GL 4.5
Open compatibility CL 3.0
Integrated graphics identifier: 0xA780
Discrete graphics adapter not included

Supported video outputs and resolutions
The integrated graphics controller supports DisplayPort 1.4a, HDMI 2.1 and eDP 1.4b. The final available resolution will depend on the connections implemented by the motherboard used.

DisplayPort: up to 7,680 x 4,320 pixels at 60 Hz

eDP: up to 5,120 x 3,200 pixels at 120 Hz
HDMI: up to 4,096 x 2,160 pixels at 60 Hz
Supported outputs: Embedded DisplayPort 1.4b, DisplayPort 1.4a and HDMI 2.1
Intel Quick Sync Video
Intel Clear Video HD Technology

PCI Express 5.0 connectivity and 4.0
Support for PCI Express 5.0 and PCI Express 4.0 lets you take advantage of graphics cards, storage drives and other high-speed devices. The processor supports up to 20 PCI Express lanes and different configurations to adapt the platform to the type of system.

Supported PCI Express versions: 5.0 and 4.0

Maximum number of PCI Express lanes: 20
Configurations: 1x16 + 1x4 and 2x8 + 1x4
DMI revision: 4.0
Maximum number of lanes DMI: 8
Maximum configuration of CPU: 1
Scalability: 1S

Power and thermal requirements
The Intel Core i7-14700K has a base power of 125 W and can reach up to 253 W during turbo operation. To maintain stable performance, it must be paired with a cooling solution suited to its power consumption and workload.

Processor base power : 125 W

Maximum turbo power : 253 W
Maximum junction temperature : 100 °C
Thermal specification : PCG 2020A
Intel Thermal Monitoring Technology
Idle state support

Security and virtualization features
This model incorporates advanced security, management and virtualization technologies designed to protect the system and facilitate the operation of virtual environments, professional applications and modern workloads.

Intel Control-Flow Enforcement Technology

Intel AES New Instructions
Intel Secure Key
Intel OS Guard
Intel Boot Guard
Execute Disable Bit
Intel Virtualization Technology VT-x
Intel Virtualization Technology for Directed I/O VT-d
VT-x with Extended Page Tables
Mode-based Execute Control
Intel Standard Manageability
Intel Volume Management Device

Acceleration for artificial intelligence and advanced applications
The processor includes acceleration features for artificial intelligence and advanced computing, such as Intel Deep Learning Boost and Intel Gaussian & Neural Accelerator 3.0. It also supports instruction sets used by professional and multimedia applications.

Intel Deep Learning Boost

Intel Gaussian & Neural Accelerator 3.0
Instruction sets: AVX 2.0, SSE4.1 and SSE4.2
Intel 64

LGA 1700 socket and tray packaging
The Intel Core i7-14700K uses the LGA 1700 socket and is supplied in tray format. Before installation, it is advisable to check the processor’s compatibility with the motherboard chipset, BIOS version, memory and cooling system.

Socket : LGA 1700

Processor format: FC-LGA16A
Packaging type: tray
Processor size: 45 x 37,5 mm
Market segment: desktop computers
Usage conditions: workstation, PC, client and tablet
Release date: fourth quarter of 2023
Product status: launched
Embedded options available: no

Other specifications
The processor has additional identification, classification and compatibility features intended for integration into high-performance computer systems.

Manufacturer: Intel

Family: Intel Core i7
Model: Intel Core i 7-14700K
Generation: Intel Core i7-14xxx
Manufacturer code: CM8071504820721
Additional reference: 99CFDW
HS code: 8542310001
ECCN: 5A992C
CCATS: 740.17B1
Volume (m ³): 0.0006
