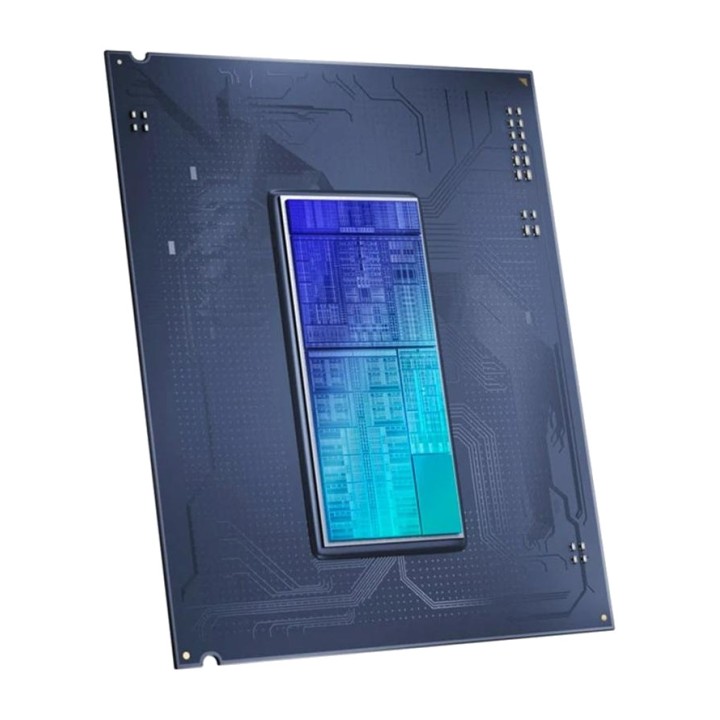

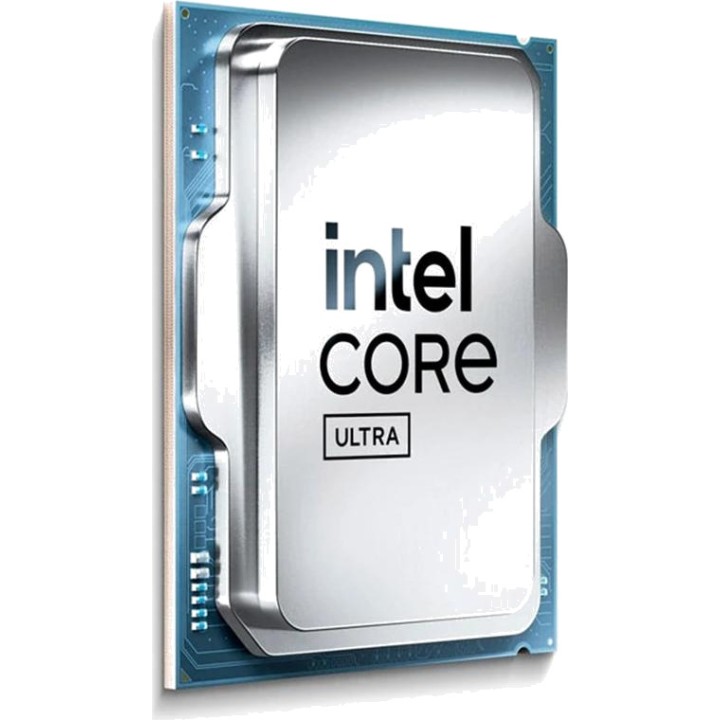

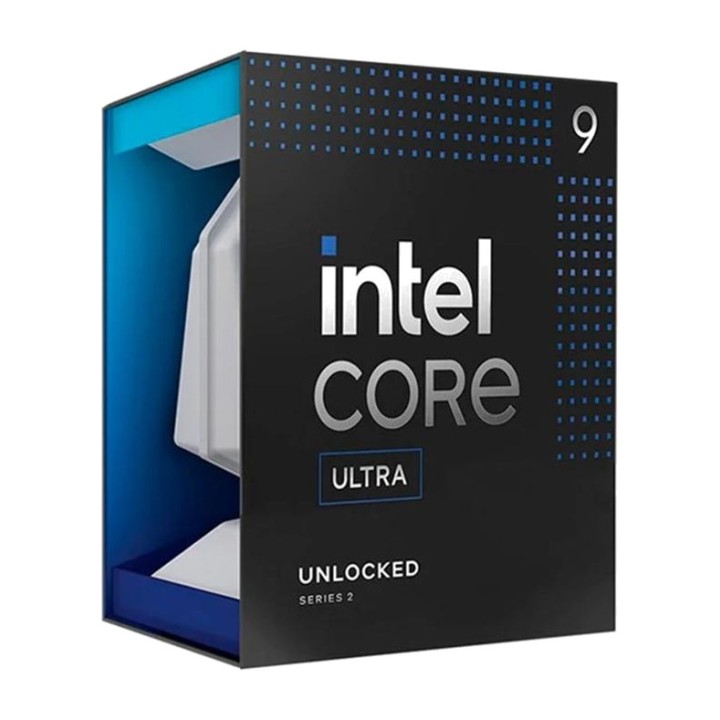

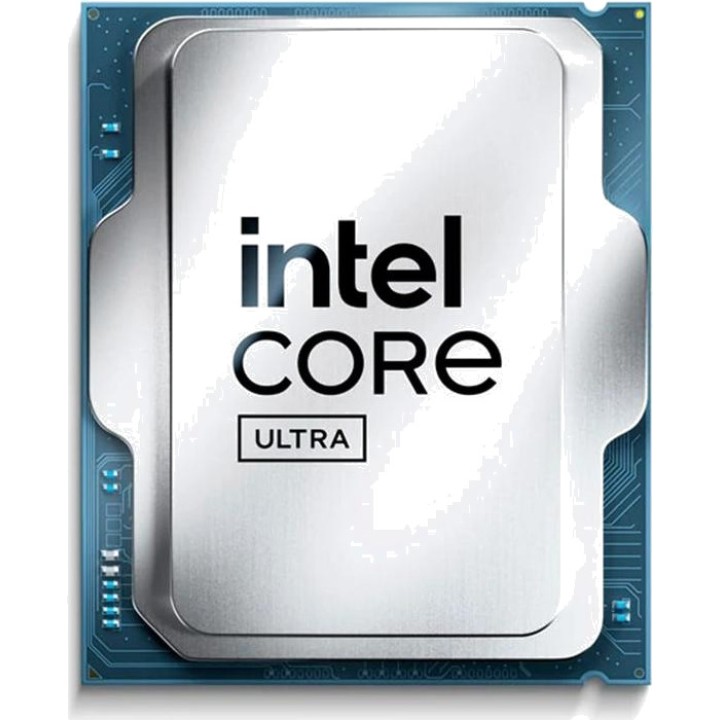

INTEL Desktop processor CORE ULTRA 9 285K LGA1851 BOX DSP0000029342

INTEL CORE ULTRA 9-285K 5.7 GHZ 36MB LGA 1851 BOX PROCESSOR

Socket
- LGA 1851

PROCESSOR
- Intel Core Ultra Processors (Series 2)

Clock speed
- Maximum turbo frequency: 5.7 GHz
- Intel Thermal Velocity Boost frequency: 5.7 GHz
- Intel Turbo Boost Max Technology 3.0 frequency: 5.6 GHz
- Maximum Performance-core turbo frequency: 5.5 GHz
- Efficient-core maximum turbo frequency: 4.6 GHz
- Performance-core base frequency: 3.7 GHz
- Efficient-core base frequency: 3.2 GHz

Air Filter
- Intel Smart Cache : 36 MB

CPU specifications
- Number of cores : 24
- Number of Performance-cores : 8
- Number of Efficient-cores : 16
- Number of threads : 24

MEMORY
- Max. memory size (depends on memory type): 192 GB
- Memory types: Up to DDR5 6400 MT/s
- Maximum memory speed: 6400 MHz
- Maximum number of memory channels : 2
- ECC memory supported

Expansion
- Direct Media Interface revision (DMI): 4
- Maximum number of lanes DMI: 8
- Intel Thunderbolt 4
- Scalability: 1S Only
- PCI Express revision: 5.0 and 4.0
- PCI Express configurations: Up to 1x16+2x4, 2x8+2x4,1x8+4x4
- Maximum number of PCI Express lanes : 24

Technologies
supported
Advanced technologies
- Intel Volume Management Device (VMD)
- Intel Gaussian and Neural Accelerator : 3.5
- Intel Thread Director
- Intel Speed Shift Technology
- Intel Thermal Velocity Boost
- Intel Turbo Boost Max Technology x 3.0
- Intel Turbo Boost Technology : 2.0
- Intel 64
- Instruction set: 64-bit
- Instruction set extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
- Idle states
- Intel Enhanced SpeedStep Technology
- Thermal monitoring technologies
security and reliability
- Intel vPro eligibility: Intel vPro Enterprise, Intel vPro Platform
- Intel Threat Detection Technology (TDT)
- Intel Active Management Technology (AMT)
- Intel Standard Manageability
- Intel Remote Platform Erase (RPE)
- Intel One-Click Recovery
- Intel Hardware Shield eligibility
- Intel Control-Flow Enforcement Technology
- Intel Total Memory Encryption, Multi-Key
- Intel AES New Instructions
- Secure Key
- Intel Trusted Execution Technology
- Execute Disable Bit
- Intel OS Guard
- Intel Boot Guard
- Mode-Based Execution Control (MBEC)
- Intel Stable Image Platform Program (SIPP)
- Intel Virtualization Technology with Redirect Protection (VT-rp)
- Intel Virtualization Technology (VT-x)
- Intel Virtualization Technology for Directed I/O (VT-d)
- Intel VT-x with Extended Page Tables (EPT)

GRAPHICS
- GPU name: Intel Graphics
- Graphics base frequency: 300 MHz
- Maximum dynamic graphics frequency: 2 GHz
- Maximum GPU TOPS (Int 8): 8
- Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
- Xe-cores : 4
- Maximum resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
- Maximum resolution (DP): 8K @ 60Hz
- Maximum resolution (eDP - integrated flat panel): 4K @ 60Hz
- Direct compatibility X: 12
- Open compatibility GL: 4.5
- Open compatibility CL: 3
- Intel Quick Sync Video
- Number of supported displays : 4
- Device ID : 0x7D67
- Intel Deep Learning Boost (Intel DL Boost) on GPU

TDP 250W

- Fanless
Volume (m ³): 0.0014
