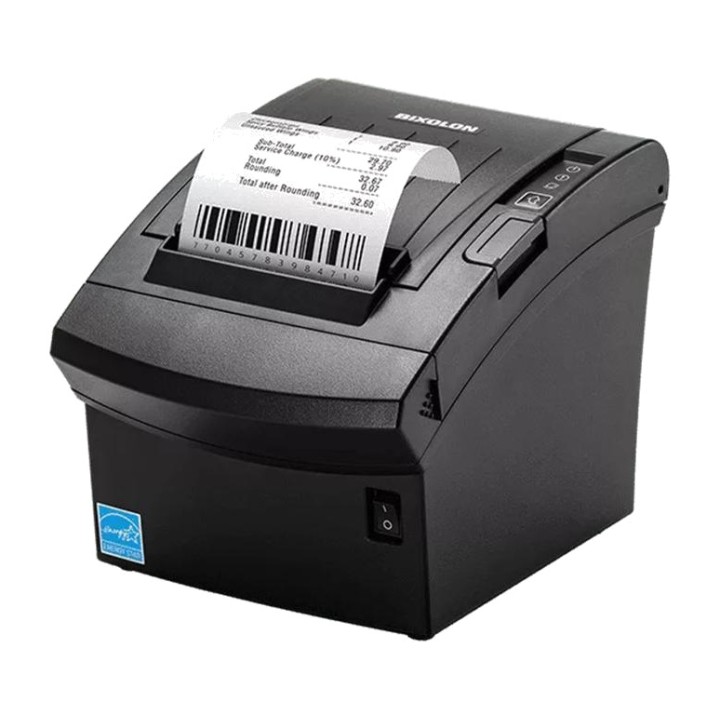

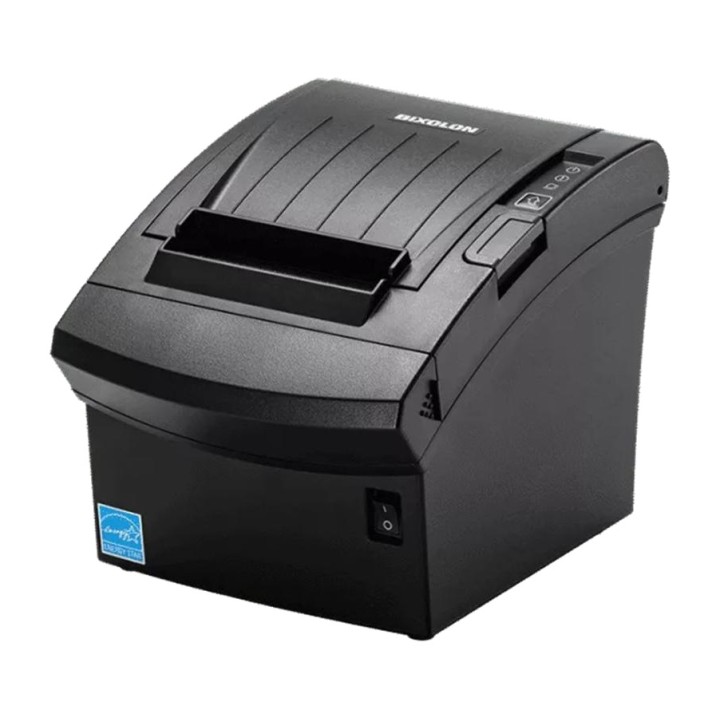

BIXOLON 3-inch thermal receipt printer SRP-350PLUSVK USB-ETHERNET MGS0000020113

Industry-leading POS printing solution - 80 mm (3-inch) POS thermal printer

The SRP-350plusV is a highly functional 80 mm (3-inch) thermal receipt and ticket printer that enables printing text, barcodes and images at speeds of up to 400 mm/s with a
print resolution of 180 dpi and graphic quality control using grayscale and interpolation. It is supplied with an All-In-One-Plus interface that includes USB + Ethernet as standard, as well as Serial,
Parallel, powered USB, optional Bluetooth or WLAN.

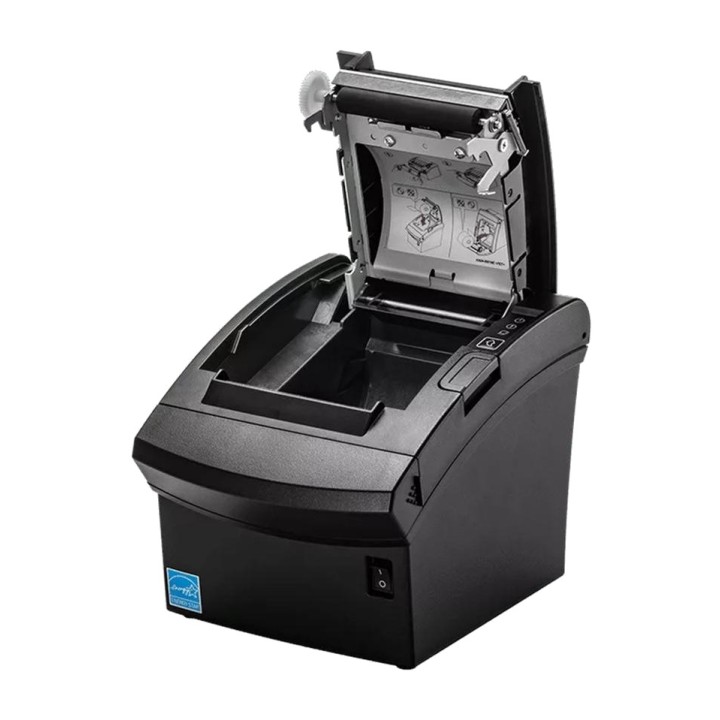

The SRP-350plusV, which supports standalone or vertical printing, is designed to prevent paper jams with a special paper exit. It features improved mechanical near-end and end-of-paper sensors
and end-of-paper sensors for Blue4est and prints with the Visibility Intelligence function, which automatically detects the paper type and optimizes print quality. The printer also supports a mode
that saves up to 25 % of paper per roll using three compression levels through Unified POS Utility.

The SRP-350plusV is compatible with BIXOLON’s XPM printer management tools, which facilitate the integration, administration and management of an entire printer fleet through
clear and precise visual indicators.

specs
Printing Features
Direct thermal printing method
Print speed SRP-350plusV: up to 400 mm/s SRP-352plusV: up to 370 mm/s
Print resolution SRP-350plusV: 180 dpi SRP-352plusV: 203 dpi
Print width Up to 72 mm
Sensor Paper end, Paper near end, Cover open, Visibility Intelligence sensor
Media characteristics
Media type Receipt
Media width 80 mm 58 mm optional
Paper roll diameter Up to 83 mm
Media thickness 0.05 ~ 0.08 mm
Media loading method Easy paper loading
physical characteristics
Dimensions (W x D x H) 145 x 200 x 146 mm (5.70 x 7.87 x 5.74 inches)
Weight 1.6 kg (3.52 Ibs)
Electrical characteristics Energy Star certified External power adapter 100-240 V AC, 50/60 Hz
Cash drawer port 2 ports (via Y-type adapter)
Performance features
Memory 64 MB SDRAM, 64 MB Flash
NV image memory 768 Kbytes (mono)
Receive buffer 4 Kbytes
User-defined buffer 12 Kbytes
Environmental Characteristics
Temperature Operating: 0 ~ 40 (32 ~ 104 ) Storage : -20 ~ 60 (-4 ~ 140 )
Humidity Operating: 10 ~ 80 % RH Storage : 10 ~ 90 % HR
SOFTWARE
Emulation BXL / POS
Driver/Utility Windows Driver OPOS/JPOS Driver CUPS Driver for Linux/Mac USB/Ethernet Virtual COM Driver Network Auto Installer Utility Program
SDK/Plugin Android/iOS/Windows SDK Linux SDK Xamarin Web Print SDK Cordova Plugin
Application mPrint App (Android, iOS)
MDM (optional) BIXOLON Profile Manager - XPM, XCM (Windows, Android)
Fonts/Graphics/Symbols
Character size Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24 Characters per line SRP-350plusV: Font A: 42, Font B, C: 56, KOR, CHN, JPN: 21 SRP-352plusV:
Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24
Character sets Alphanumeric: 95 Extended graphics: 128 x 35 pages International : 32
Graphics Supports user-defined fonts, graphics, formats and logos
Barcode symbologies 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
ACCESSORIES
Serial 6-pin RJ12 cable adapter (male to female), USB A-B cable 1.8 m
Optional Built-in SMPS, Vertical stand, Wall mount, Splash-proof cover, External buzzer, B-Melodist, Powered USB (0.5/1.2 m), Serial cable (9-9/25-9 pins), Cable
Parallel
Volume (m ³): 0.0145
