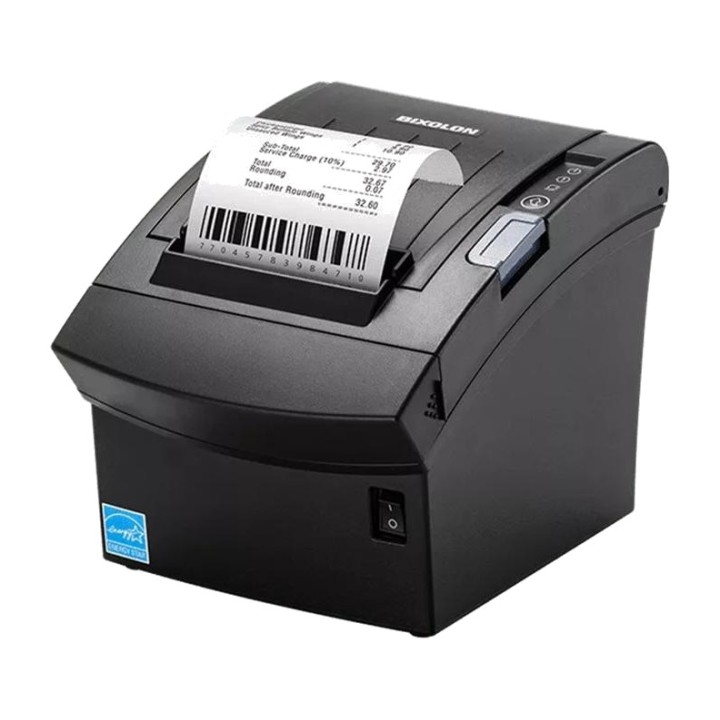

BIXOLON 3-inch thermal receipt printer SRP-350VSK USB-RS232 MGS0000020108

High functionality and reliability - 80 mm (3-inch) POS thermal printer

The SRP-350V is an 80 mm (3-inch) thermal receipt and ticket printer capable of printing at speeds of up to 300 mm/s at 180 dpi. The SRP-350V, which supports standalone or vertical printing,
is designed to prevent paper jams with a special paper exit. It also features improved mechanical near-end and paper-end sensors for Blue4est and prints with the
Visibility Intelligence function, which automatically detects the paper type and optimizes print quality.

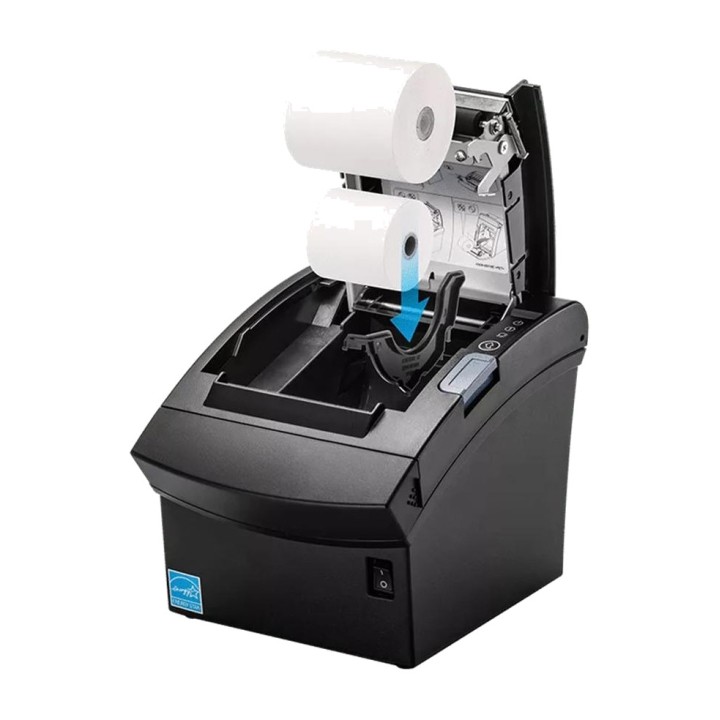

The SRP-350V comes standard with USB and offers Serial, Parallel or Ethernet as options. It offers user convenience thanks to its simple paper-loading system and comes with a standard
manual cutter. It also offers easy-to-use features with LED indicators, as well as allowing up to 25% paper savings per roll with three compression levels through Unified
Utility, which requires no software changes.

The printer also supports an optional order notification function for busy kitchen environments via B-Melodist. It is also supplied with a range of accessories, such as
vertical stand, built-in SMPS, splash-resistant cover and wall mount options.

specs
Printing Features
Direct thermal printing method
Print speed SRP-350V: up to 300 mm/s SRP-352V: up to 270 mm/s
Print resolution SRP-350V: 180 dpi SRP-352V: 203 dpi
Print width Up to 72 mm
Sensor Paper end, Paper near end, Cover open, Visibility Intelligence sensor
Media characteristics
Media type Receipt
Media width 80 mm 58 mm optional
Paper roll diameter Up to 83 mm
Media thickness 0.05 ~ 0.08 mm
Media loading method Easy paper loading
physical characteristics
Dimensions (W x D x H) 145 x 204 x 146 mm (5.70 x 8.03 x 5.74 inches)
Weight 1.6 kg (3.52 Ibs)
Electrical characteristics Energy Star certified External power adapter 100-240 V AC, 50/60 Hz
Cash drawer port 2 ports (via Y-type adapter)
Performance features
Memory 64 MB SDRAM, 64 MB Flash
NV image memory 256 Kbytes (mono)
Receive buffer 4 Kbytes
User-defined buffer 12 Kbytes
Interface Serial: USB V2.0 FS Optional: USB V2.0 FS + Serial USB V2.0 FS + Parallel USB V2.0 FS + Ethernet USB V2.0 FS + Dual Serial
Environmental Characteristics
Temperature Operating: 0 ~ 40 (32 ~ 104 ) Storage : -20 ~ 60 (-4 ~ 140 )
Humidity Operating: 10 ~ 80 % RH Storage : 10 ~ 90 % HR
SOFTWARE
Emulation BXL / POS
Driver/Utility Windows Driver OPOS/JPOS Driver CUPS Driver for Linux/Mac USB/Ethernet Virtual COM Driver Network Auto Installer Utility Program
SDK/Plugin Android/iOS/Windows SDK Linux SDK Xamarin Web Print SDK Cordova Plugin
Application mPrint App (Android, iOS)
Fonts/Graphics/Symbols
Character size Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24
Characters per line SRP-350V: Font A: 42, Font B, C: 56, KOR, CHN, JPN: 21 SRP-352V: Font A: 48, Font B, C: 64, KOR, CHN, JPN: 24
Character sets Alphanumeric: 95 Extended graphics: 128 x 35 pages International : 32
Graphics Supports user-defined fonts, graphics, formats and logos
Barcode symbologies 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
ACCESSORIES
Serial USB A-B cable 1.8 m
Optional Built-in SMPS, Vertical Stand, Wall Mount, Splash-proof Cover, External Buzzer, B-Melodist, Serial Cable (9-9/25-9 pins), Parallel Cable
Volume (m ³): 0.0145
