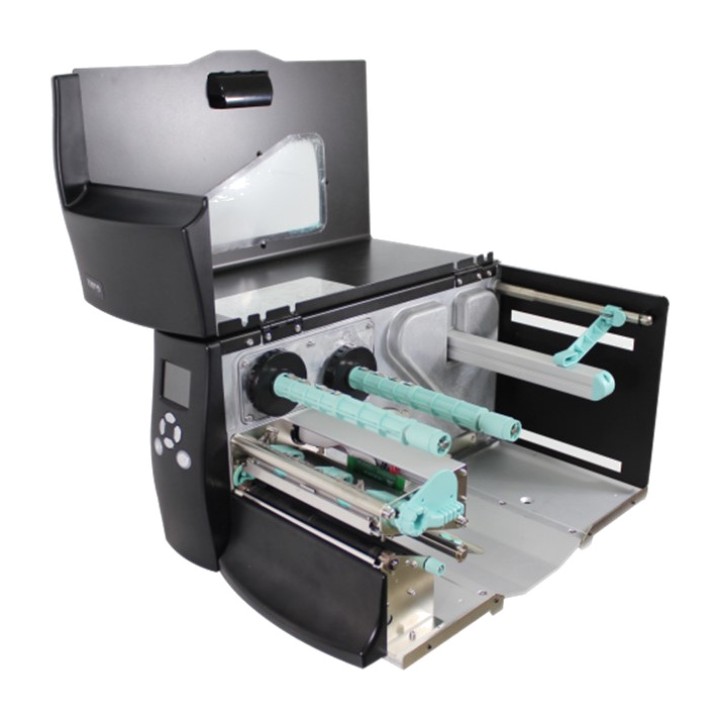

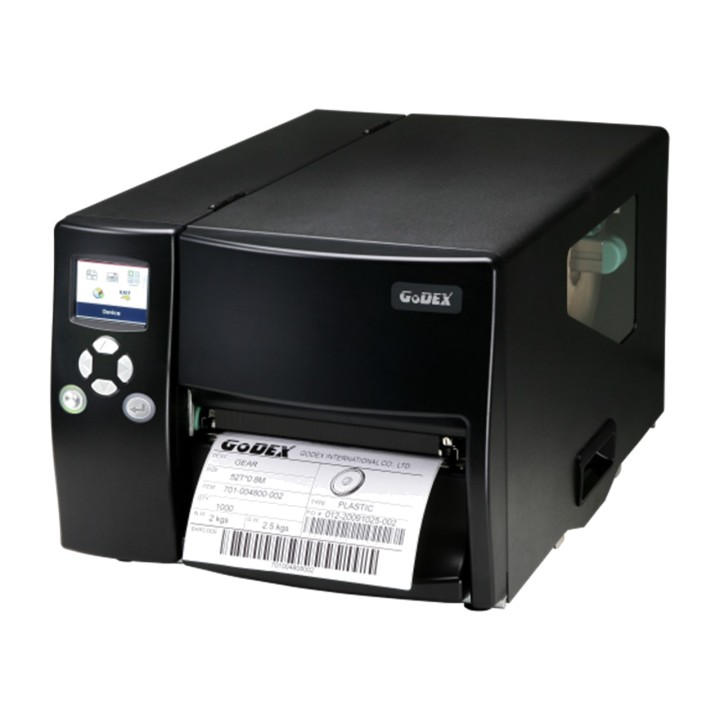

GODEX Wide-format industrial label printer with thermal transfer and direct thermal printing EZ6250I 203DPI USB-RS232-ETHERNET M

EZ6250i series printer specifications
Model name EZ6250i
Printing method Thermal transfer / Direct thermal
Resolution 203 dpi (8 dots / mm)
Print speed 7 IPS (177 mm / s)
Print width 6.61 (168 mm)
Print length Min. 0.16 (4 mm) **, Max. 70 "(1778 mm)
Processor 32-bit RISC CPU
Flash memory 8 MB Flash (4 MB for user storage)
SDRAM 32 MB
Sensor type: Adjustable reflective sensor and transmissive sensor, aligned to the
LEFT
Communication devices
Type: Continuous form, labels with gaps, black mark detection and
perforated hole, label length
set by automatic detection or programming
WIDTH
Tear-off: 2 (50.8 mm) Min. - 7 (178 mm) Max.
Cutter: 6.5 (165 mm) max.)
Peeler with rewinder: 7 (178 mm) Max.
Thickness 0.003 (0.076 mm) Min. - 0.01 (0.25 mm) max.
Max. label roll diameter 203.2 mm (8 in.) With 76.2 mm (3
in.) core / Max. 152.4 mm (6 in.) With 38.1 mm (1.5 in.)
core
Core diameter 1.5 "(38.1 mm) - 3" (76.2 mm)
Tape
Types: wax, wax/resin, resin
Max. length 1471 (450 m)
Minimum width 2.36 - Max. 6.85 "(60 mm - 174 mm)
Max. tape roll diameter 2.99 (76 mm)
Core diameter 1 "(25.4 mm)
Printer language EZPL, GEPL, GZPL, GDPL automatic switch
SOFTWARE
Label design software GoLabel (EZPL only)
Driver Vista, Windows 7, Windows 8 and 8.1, Windows 10, Windows Server 2008
R2, 2012, 2012 R2,
2016, 2019, MAC, Linux

SDK Win CE, .NET, Windows Vista, Windows 7, Windows 8 and 8.1, Windows 10,
Android, Mac,
iOS
Resident fonts Bitmap fonts
6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B
Bitmap fonts rotatable at 90°, 180°, 270°, individual characters 90 °,
Rotatable at 180°, 270°
Bitmap fonts expandable up to 8 times in horizontal and vertical directions
TTF fonts TTF fonts (bold/italic/underline). 0°, 90°, 180°, 270°
rotatable Download fonts
Bitmap fonts rotatable at 90°, 180°, 270°, individual characters 90 °,
Rotatable at 180°, 270°
Asian fonts
16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese (GB2312), Japanese (S-
JIS), Korean (KS-X1001)
Rotatable at 90°, 180°, 270° and expandable up to 8 times in horizontal and
vertical TTF fonts TTF fonts (bold/italic/underline). 0°, 90°, 180°,
270° rotating barcodes
Barcodes 1-D
Barcodes 2-D
China Post Code, Codabar, Code 11, Code 32, Code 39, Code 93,
128 (subset
A, B, C), EAN-8 / EAN-13 (with 2- and 5-digit extensions), EAN 128, FIM, code
German postal code,
GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2 of 5 (I 2 of 5), Interleaved 2 of
5 with
Shipping bearer bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI,
Postnet, Plessey,

Planet 11 and 13 digits, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A /
UPC-E (with
2- or 5-digit extension), UCC / EAN-128 K-Mart and random weight
Aztec Code, Code 49, Codablock F, Data Matrix Code, MaxiCode, Micro
PDF417, Micro

QR code, PDF417, QR code, TLC 39, composite GS1
Code Pages
Code page 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866,
869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8 UTF16BE UTF16LE
Graphics The resident graphic file types are BMP and PCX, other formats
graphics are
downloadable from the software

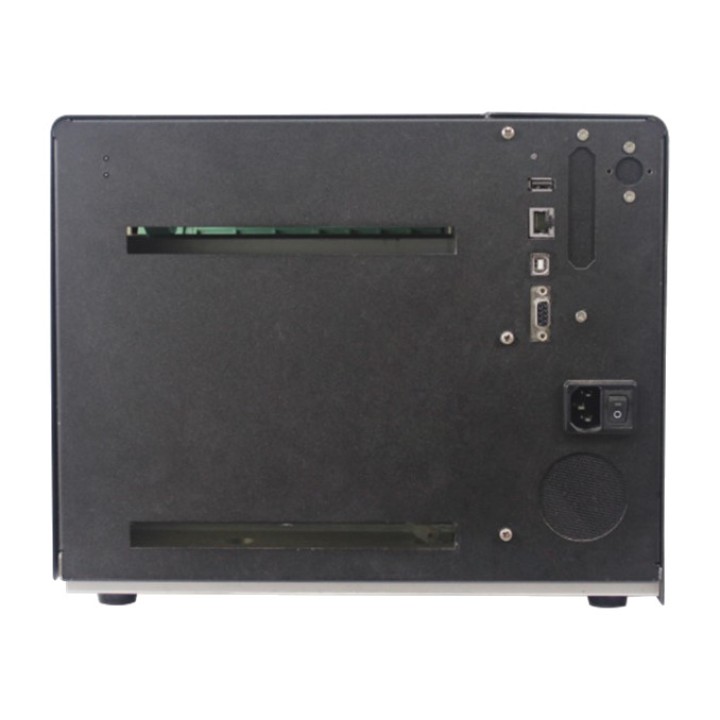

Interfaces USB 2.0 (type B) Serial port : RS-232 (DB-9)
Ethernet port IEEE 802.3 10/100 Base-Tx (RJ-45) USB host (type A)

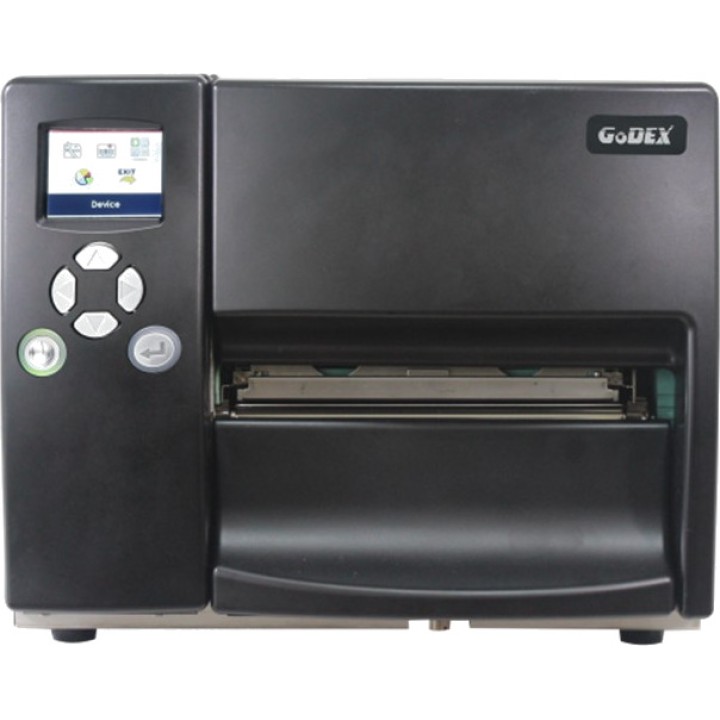

Control panel Color TFT LCD with navigation button Calibration button
Power on / off button
RTC standard
Automatic power switching 100-240 V AC, 50-60 Hz
Environment Operating temperature 41 ° F to 104 ° F (5 ° C to 40 ° C)
Storage temperature -4 ° F to 140 ° F (-20 ° C to 60 ° C)
Operating humidity 20-85%, non-condensing
Storage 10-90%, non-condensing
Agency approvals CE (EMC) FCC Class B CB UL cUL CCC
Dimensions Length: 20,31 "(516 mm) Height: 11,22" (285 mm) Width : 13,58 "(345
mm)
Weight: 36,8 pounds (16,7 kg), excluding consumables
options
Cutter module
Internal rewinder with label dispenser
Parallel port adapter module (36-pin female Centronic)
Applicator interface (1 input, 3 outputs, 500 mA power to 5 V)
External label rewinder
Volume (m ³): 0.1586
