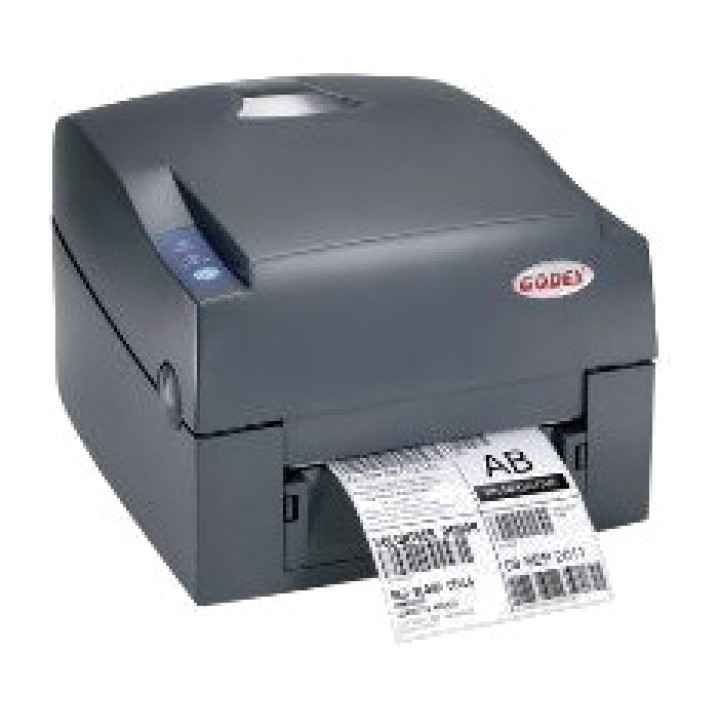

GODEX Desktop label printer with thermal transfer and direct thermal printing G530 300DPI USB-RS232-ETHERNET GODEXG530
Regular price:
€445.38
-€27.52
Price:
€417.86
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosG530 300ppp / 102mmXsec. / 105,7mm width
? Paper and Ribbon
? Dual sensor technology
? 1D and Barcodes 2D
? Flash memory 4MG / 8MG
? Memory SRAM 16MG
MODEL G500
Printing technology: thermal transfer /
Resolution 300 ppp ()
Print speed 5 IPS (102 mm/sec)
Print Width 4.25? (108 mm)
Print Length Min. 0.16? (4 mm)**, max. 68? (1,727 mm)
MEMORY
flash
4MB Flash
(2MB available for downloads)
8MB Flash
(4MB available for downloads)
16MB SDRAM
Sensor type
Adjustable reflective sensor
2 fixed transmissive sensors, center-aligned
Paper
Type: Roll, continuous, labels with gaps, notches or black mark,
tickets. Label length automatically adjusted or programmed
Width 1″ (25.4 mm) min. 4.64″ (118 mm) max.
Thickness 0.003″ (0.06 mm) min. 0.01″ (0.25 mm) max.
Roll diameter Max. 5″ (127 mm)
Core diameter 1″, 1.5″, 3″ (25.4 mm, 38.1 mm, 76.2 mm)
Tape
Type Wax, mixed, resin
Length 981″ (300 m)
Width 1.18″ min. 4.33″ (30 mm - 110 mm) max.
Maximum diameter 2.67″ (68 mm)
Core 1″ (25.4 mm)
Language EZPL / GEPL / GZPL
SOFTWARE
Design software QLabel-IV (EZPL only)
Windows 2000, XP, Vista, 7, Windows Server driver 2003 & 2008
DLL for Windows 2000, XP and Vista
Resident fonts
Bitmap fonts
6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
90, 180, 270 rotatable, single characters 90, 180, 270 rotatable
Expandable up to 8 times in horizontal and vertical directions
Scalable fonts 90, 180, 270 rotatable
Expandable fonts
Bitmap fonts 90, 180, 270 rotatable, single characters 90, 180, 270
rotatable
Asian fonts 90, 180, 270 rotatable and expandable 8 times in
horizontal and vertical directions
Scalable fonts 90, 180, 270 rotatable
Barcodes
1-D barcodes
Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I
2 of 5 with Shipping Bearer Bars,
Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128,
UCC/EAN-128 K-Mart, Random Weight,
Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1
Databar
2-D barcodes PDF417, Datamatrix code, MaxiCode, QR code, Micro
PDF417, Micro QR code and Aztec code
Code Pages
Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869,
737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode (UTF8, UTF16)
Graphics: resident graphic formats are BMP and PCX; other formats can be
downloaded with the software
Interfaces
USB
Parallel
Front panel
Two three-color LEDs: Ready, Status
Function key: FEED
Power supply Automatic selection 100-240VAC, 50-60Hz
Environment Temperature of
Functioning
41F a 104F (5C a 40C)
-4F to 122F (-20Ca 50C)
Humidity
Operation 30-85%, non-condensing
Storage 10-90%, non-condensing
Approvals CE(EMC), FCC Class A, CB, cUL, CCC
DIMENSIONS
Depth 11,2? (285 mm)
Height 6,8? (171 mm)
Width 8,9? (226 mm)
Weight 6 lbs (2,72 Kg), without consumables
Options & Accessories
Cutter module
Label peeler module
External roll holder for rolls up to 10? (250 mm) in diameter
External rewinder
Volume (m ³): 0.0242
? Paper and Ribbon
? Dual sensor technology
? 1D and Barcodes 2D
? Flash memory 4MG / 8MG
? Memory SRAM 16MG
MODEL G500
Printing technology: thermal transfer /
Resolution 300 ppp ()
Print speed 5 IPS (102 mm/sec)
Print Width 4.25? (108 mm)
Print Length Min. 0.16? (4 mm)**, max. 68? (1,727 mm)
MEMORY
flash
4MB Flash
(2MB available for downloads)
8MB Flash
(4MB available for downloads)
16MB SDRAM
Sensor type
Adjustable reflective sensor
2 fixed transmissive sensors, center-aligned
Paper
Type: Roll, continuous, labels with gaps, notches or black mark,
tickets. Label length automatically adjusted or programmed
Width 1″ (25.4 mm) min. 4.64″ (118 mm) max.
Thickness 0.003″ (0.06 mm) min. 0.01″ (0.25 mm) max.
Roll diameter Max. 5″ (127 mm)
Core diameter 1″, 1.5″, 3″ (25.4 mm, 38.1 mm, 76.2 mm)
Tape
Type Wax, mixed, resin
Length 981″ (300 m)
Width 1.18″ min. 4.33″ (30 mm - 110 mm) max.
Maximum diameter 2.67″ (68 mm)
Core 1″ (25.4 mm)
Language EZPL / GEPL / GZPL
SOFTWARE
Design software QLabel-IV (EZPL only)
Windows 2000, XP, Vista, 7, Windows Server driver 2003 & 2008
DLL for Windows 2000, XP and Vista
Resident fonts
Bitmap fonts
6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
90, 180, 270 rotatable, single characters 90, 180, 270 rotatable
Expandable up to 8 times in horizontal and vertical directions
Scalable fonts 90, 180, 270 rotatable
Expandable fonts
Bitmap fonts 90, 180, 270 rotatable, single characters 90, 180, 270
rotatable
Asian fonts 90, 180, 270 rotatable and expandable 8 times in
horizontal and vertical directions
Scalable fonts 90, 180, 270 rotatable
Barcodes
1-D barcodes
Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I
2 of 5 with Shipping Bearer Bars,
Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128,
UCC/EAN-128 K-Mart, Random Weight,
Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1
Databar
2-D barcodes PDF417, Datamatrix code, MaxiCode, QR code, Micro
PDF417, Micro QR code and Aztec code
Code Pages
Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869,
737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode (UTF8, UTF16)
Graphics: resident graphic formats are BMP and PCX; other formats can be
downloaded with the software
Interfaces
USB
Parallel
Front panel
Two three-color LEDs: Ready, Status
Function key: FEED
Power supply Automatic selection 100-240VAC, 50-60Hz
Environment Temperature of
Functioning
41F a 104F (5C a 40C)
-4F to 122F (-20Ca 50C)
Humidity
Operation 30-85%, non-condensing
Storage 10-90%, non-condensing
Approvals CE(EMC), FCC Class A, CB, cUL, CCC
DIMENSIONS
Depth 11,2? (285 mm)
Height 6,8? (171 mm)
Width 8,9? (226 mm)
Weight 6 lbs (2,72 Kg), without consumables
Options & Accessories
Cutter module
Label peeler module
External roll holder for rolls up to 10? (250 mm) in diameter
External rewinder
Volume (m ³): 0.0242
- Brand
- GODEX
- Reference
- GODEXG530
- EAN-13
- 3894177735776
- Weight
- 5 kg
