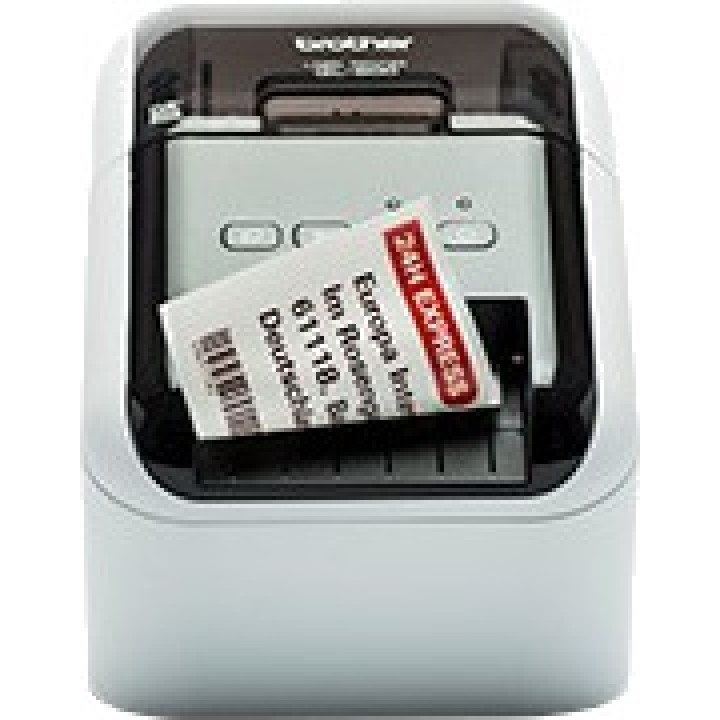

BROTHER Thermal label printer DK 62MM 93EPM-USB-CORTADOR QL800

Features of the professional direct thermal label printer with black and red printing
This professional label printer is designed for users and work environments that need to create labels quickly, accurately and with a clear, professional finish. Its direct thermal printing technology, together with the ability to print in black and red using the DK22251 consumable, makes it a very practical solution for highlighting important information on shipping, identification, filing or internal signage labels. It also combines high print speed, an automatic cutter and comprehensive design software to make everyday work easier.
Professional black and red printing to highlight key information
One of the most interesting features of this model is its ability to print not only in black, but also in black and red when using the DK22251 continuous tape roll. This feature is especially useful for creating more visual labels and highlighting important data at a glance, improving legibility and organisation in professional environments.

Direct thermal printing with black and red printing capability
Compatible with two-colour printing using the roll DK22251
Ideal for highlighting relevant information on professional labels

High print speed for demanding work environments
This printer is designed to deliver fast performance for intensive labelling tasks. It can print up to 93 labels per minute in black, helping to save time on repetitive or high-volume processes. When printing in black and red, it maintains a suitable speed for smooth, continuous operation.

Black print speed of up to 93 labels per minute
Black print speed of up to 148 mm per second
Black and red print speed of up to 24 mm per second
Up to 15 labels per minute in black and red printing

Sharp resolution and versatile format for different types of labels
The combination of a resolution of up to 300 x 600 dpi and a system compatible with tapes and labels in different sizes delivers sharp results suited to a wide range of needs. This setup is suitable for text as well as barcodes, symbols or logos, maintaining good visual clarity in the final result.

Standard resolution of 300 x 300 dpi
High resolution of 300 x 600 dpi
Maximum tape width of 62 mm
Maximum print height of 60,96 mm
Tape length from 12 mm to 1000 mm

Custom-sized labels thanks to the automatic cutter
Using continuous tape rolls together with the guillotine-type automatic cutter makes it possible to create labels cut to the length required for each application. This flexibility makes it easier to work with different identification formats and helps avoid material waste by adjusting the length to suit the content.

Integrated automatic cutter
Compatible with labels from 12 mm to 1 metre long
Use of continuous tapes for greater design flexibility

P-touch Editor software for advanced label design
The device includes P-touch Editor 5 software for PC and Mac, a comprehensive tool for designing labels with a professional approach. It lets you customise each label with logos, symbols, frames, sequential numbering, and automatic date and time fields, making it easy to create labels suited to different business uses.

Includes P-touch Editor editing and design software
Compatible with PC and Mac
Allows you to add logos, symbols and images
Includes frames and design customisation
Automatic sequential numbering
Automatic date and time fields
Vertical printing available
Mirror printing available

Work with databases for bulk printing
This printer is especially useful in environments where large quantities of labels need to be printed automatically. Its compatibility with different database formats allows information to be imported and labelling processes to be streamlined, reducing manual work and improving efficiency.

Database connection in Windows with csv, txt, mdb, xls, xlsx, xlsm, accdb files and Microsoft SQL Server Database
Database connection on Mac with csv and txt files
Ready to print large volumes of labels at once

Compatibility with 1D barcodes and 2D
Its compatibility with a wide variety of industrial barcode protocols makes it a highly versatile tool for logistics, commercial, inventory or identification applications. This broad support makes it easy to integrate into different professional workflows.

Compatible with CODE39, CODE128, UCC/EAN128 (GS1-128), ITF (I-2/5), CODABAR (NW-7), UPC-A, UPC-E, EAN13 and EAN8
Compatible with ISBN-2, ISBN-5, Laser Barcode and POSTNET
Compatible with RSS in Standard, Truncated, Stacked, Stacked Omni, Limited, Expanded and Expanded Stacked variants
Compatible with PDF417 in Standard, Truncate and Micro versions PDF417
Compatible with QR Code in Model 1, Model 2 and Micro QR
Compatible with Data Matrix in ECC Square, ECC Rectangular, ECC200 Square and ECC200 Rectangular formats
Compatible with MaxiCode in models 2, 3, 4 and 5
Compatible with CODE93, UPC/EAN EXTENSION, MSI and Aztec

Easy USB connectivity and use with different systems
Connection to the device is via USB 2.0 Full Speed, a direct and stable interface for everyday use in an office or workplace. It is also compatible with several versions of Windows, OS X and Android via a USB OTG cable, expanding its range of uses.

USB 2.0 Full Speed interface with mini-B type connector
No wired network connection
No WiFi
No serial connection
No Bluetooth
Compatible with Microsoft Windows Vista, Windows 7, Windows 8, Windows 8.1 and Windows 10
Compatible with OS X v 10.10, 10.11 and 10.12
Compatible with Android 4.1 or later via USB OTG cable
Compatible with the iPrint&Label app for Android via USB OTG cable
b-PAC SDK available for Windows

DK consumables and great format flexibility
The printer works with DK rolls, both continuous tapes and pre-cut labels in various sizes. This makes it suitable for numerous labelling applications, from internal identification to shipping or document classification.

Tape types: DK rolls
Compatible with continuous tapes from 12 mm to 62 mm
Compatible with pre-cut labels in various sizes

Compact design, ready for desktop use
Its compact design makes it easy to place on desks, counters or workspaces where equipment needs to be readily available without taking up too much space. Its low weight also makes installation easier.

Device dimensions: 125 mm high x 213 mm wide x 142 mm deep
Weight: 1.15kg

Box contents to get started right away
The device includes the accessories and consumables needed to start using the printer as soon as it is installed. This makes setup quick and practical, especially useful in professional environments.

Label printer
USB Cable
AC power cord
29 x 90 mm label roll with 100 labels
62 mm x 5 m continuous tape roll for black and red printing
Documentation included
Software and drivers available from the manufacturer's support site

Power and additional features
This model features an internal power supply and functions designed to improve energy efficiency in everyday use. Configurable automatic power-off and Energy Star certification reinforce its profile as a practical office solution.

220-240 V AC power supply with internal power supply
Configurable automatic power-off
Automatic power-off options: disabled, 10, 20, 30, 40, 50 and 60 minutes
ENERGY STAR certification

Other specifications

Print technology: Direct thermal
Print emulations: Raster
P-touch Editor 5 software available for PC and Mac
Fonts: all fonts installed on the PC
Compatible with images, logos and frames
Barcode printing available
Volume (m ³): 0.0114
