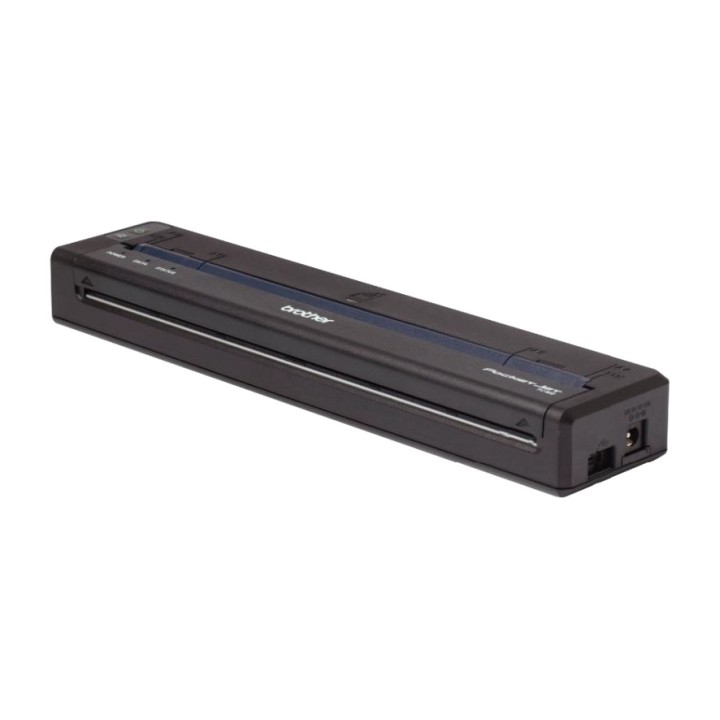

BROTHER Portable thermal document printer POCKETJET-PJ-883 A4 300PPP WI-FI-BLUETOOTH MGS0000012558

general
Box contents
PJ-883
USB cable (Type A-Type C)
Quick start guide
Cleaning sheet
Supported languages
Danish, German, English, Spanish, French,
Italian, Dutch, Norwegian, Portuguese,
Finnish, Swedish
Dimensions and weights
Without box
255 mm (W) x 55 mm (D) x 30 mm (H)
610 g with battery2
430 g without battery
specs
Direct thermal printing technology
Control panel: 4 LEDs and 3 buttons
Print resolution: 300 dpi
Print speed: Maximum 13.5 ppm1
Print width
maximum 203.2 mm (8)
Print length
maximum 279.4 mm (11)
Minimum print media width
printing
Cut sheet: 148 mm (A5)
Paper roll: 210 mm (A4)
Maximum print media
width
Cut sheet: 215.9 mm (Letter/Legal)
Paper roll: 215.9 mm (Letter/Legal)
Support thickness
printing 0.16 mm or less
Paper sizes A4, A5, Letter, Legal, continuous
Media types
Paper and synthetic
Full page: cut sheet, continuous roll,
perforated roll, fanfold
Labels: cut sheet, fanfold
Capacity of the
optional 1,750 mAh battery
Battery life of the
optional battery Approx. 600 A4 sheets1
Charging time of the
optional battery
2 hours (with optional power adapters
optional)
connections
USB Ver.2.0 Full Speed (Type C)
Bluetooth MFi v5.2 (Classic + BLE)
NFC (for Android pairing only)
Wireless LAN IEEE802.11a/b/d/g/i/n
(2.4GHz and 5GHz)
Bluetooth profiles
SPP, OPP, HCRP (Bluetooth Classic), GATT
(Low Energy)
Supported protocol: iAP
WiFi security
Infrastructure mode:
Open system(None /WEP64/WEP128
Shared key authentication (WEP)
WPA/WPA2-PSK/WPA3-SAE (TKIP+AES)
WPA3-SAE (AES)
EAP-FAST (TKIP/AES)
PEAP (TKIP/AES)
EAP-TLS (TKIP/AES)
EAP-TTLS (TKIP/AES)
TLS 1.0/1.1/1.2/1.3
Wireless Direct mode:
WPA2-PSK (AES)
WPS (Wi-Fi Protected Setup)
802.11i
Print commands
Raster graphic
ESC/P Legacy(ESC/P_P)
ESC/P Brother(ESC/P_B)
P-touch Template
ZPL II emulation
Internal fonts

Bitmap font: Gothic (16, 24, 32 points),
Letter Gothic Bold, Helsinki (16, 24, 32, 48
points),
Brussel, San Diego, Brougham (24, 32, 48
points)
Outline font: Gothic, Letter Gothic, Helsinki,
Brussel (Max: 400 points)

Outline font: Gothic, Letter Gothic, Helsinki,
Brussel (Max: 400 points)

Bitmap font: "A","B","C","D","E","F","G","H"
Outline font: "0
MEMORY RAM: 256 MB
Flash: 64 MB (user area : 30 MB)
Barcodes
Linear:

CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-
13(JAN13), UPC-A, UPC-E, CODABAR(NW-
7), CODE128, GS1-128(UCC/EAN-128),
POSTNET, GS1 DataBar (RSS)

CODE93, UPC/EAN EXTENSION, MSI,
Intelligent Mail Barcode

Intelligent Mail Barcode

CODE93, UPC/EAN EXTENSION, MSI,
Intelligent Mail Barcode, Industrial 2-of -5,
Standard 2-of -5
Two-dimensional:

QR Code, PDF417, MaxiCode, Aztec

Micro QR Code, MicroPDF417, DataMatrix

GS1 Databar Composite, Micro QR Code,
MicroPDF417, DataMatrix

GS1 Databar Composite, Micro PDF417,
DataMatrix
Operating systems
supported
Microsoft Windows 8.1 / 10 / 11
/ Server 2012 / Server 2012R2 / Server
2016 / Server 2019 / Server 2022
Mac OS 10.15 / 11 / 12
Linux Red Hat & Debian
SDK for Windows
Microsoft Windows 7 / 8.1 / 10
/ Server 2012 / Server 2012R2 / Server 2016
/ Server 2019
SDK for mobile devices
mobile
Android v8 or later
iOS v11 or later^
^Supports Bluetooth communication from
version 12.2 or later.
Requires the development of applications by
third parties using Brother SDK.
More information available at:

ex.html?c=eu
SOFTWARE
P-touch Editor
Barcode label design software
barcodes
Brother Font Manager
Font download tool (Windows only
via USB)3
Printer Settings Tool
Device configuration software
(Windows only via USB)
BRAdmin Pro 4 management software for
devices (Windows only)
Mobile apps
Mobile Deploy App
Remote configuration software
Brother iPrint&,Scan:
Android 5 or later / i OS 14-15
Brother Print Service Plugin:
Android 5.0 or higher
AirPrint
SAP, SOTI compatible software
Terms of use
Usage temperature
Printing with battery/car adapter:
-10C a 50C
Printing with AC adapter:
-10C a 40C
Charging:
0C a 40C
Operating humidity 20% to 80% non-condensing
Temperature
storage -20ºC to 60ºC
Humidity of
storage 10% to 90% non-condensing
Consumables
Thermal paper4
Thermal paper sheets
PAC411 (100 sheets A4)
Thermal paper rolls
PAR411
Width A4 x Length 30m
6 rolls per box
Thermal paper rolls protected with
perforation
LDP4F000210060I
Width A4 x Length 30m
12 rolls per box
Optional accessories
Paper handling PARH600 Paper roll holder
PAPG004 Paper guide
Battery PABT002 Lithium-ion battery
Carrying accessories
PACC500 Carrying bag
PARC001 PVC case with IP54 certification
PARB001 Protective cover
Power adapter PAAD600AEU 2-pin
Power adapter
USB
PAAD003EU USB Type-C 2-pin
For charging (not power supply)
Vehicle adapter PACD600CG Cigarette lighter adapter(15v)
PACD600WR Battery adapter (15v)
Metal case PACM500
Volume (m ³): 0.0036
